Installing a video doorbell doesn’t have to be intimidating. This guide walks you through choosing the right model, preparing your doorframe, wiring (or going wireless), and syncing with your phone—so you can see who’s at the door from anywhere.
Key Takeaways
- Choose the right video doorbell: Consider power source (wired vs. battery), Wi-Fi compatibility, and features like night vision or two-way audio.
- Check your existing doorbell wiring: Most wired video doorbells need at least 16–24V AC from your transformer—use a multimeter to test voltage if unsure.
- Turn off power before installing: Always shut off electricity at the breaker to avoid shocks or damaging your new device.
- Use the mounting bracket correctly: Secure it level and tight; angled brackets help with side views if your door is recessed.
- Connect to Wi-Fi during setup: Ensure strong signal strength at your door—consider a Wi-Fi extender if needed.
- Test motion zones and notifications: Customize detection areas in the app to reduce false alerts from passing cars or trees.
- Update firmware regularly: Keep your doorbell secure and functioning smoothly with automatic or manual updates.
How to Hook Up a Video Doorbell: A Complete Step-by-Step Guide
So, you’ve decided to upgrade your front door with a video doorbell—smart move! Whether you’re tired of missing packages, want to keep an eye on deliveries, or just crave that extra layer of home security, a video doorbell is one of the easiest and most effective smart home upgrades you can make. But if you’ve never installed one before, the thought of dealing with wires, apps, and mounting hardware might feel overwhelming.
Don’t worry—we’ve got you covered. In this comprehensive guide, we’ll walk you through how to hook up a video doorbell from start to finish. We’ll cover everything from choosing the right model for your home to final testing and troubleshooting. By the end, you’ll have a fully functional video doorbell that lets you see, hear, and speak to visitors—even when you’re miles away.
Whether you’re installing a Ring Video Doorbell, Google Nest Doorbell, Arlo, or another popular brand, the core steps are surprisingly similar. Let’s dive in!
Step 1: Choose the Right Video Doorbell for Your Home

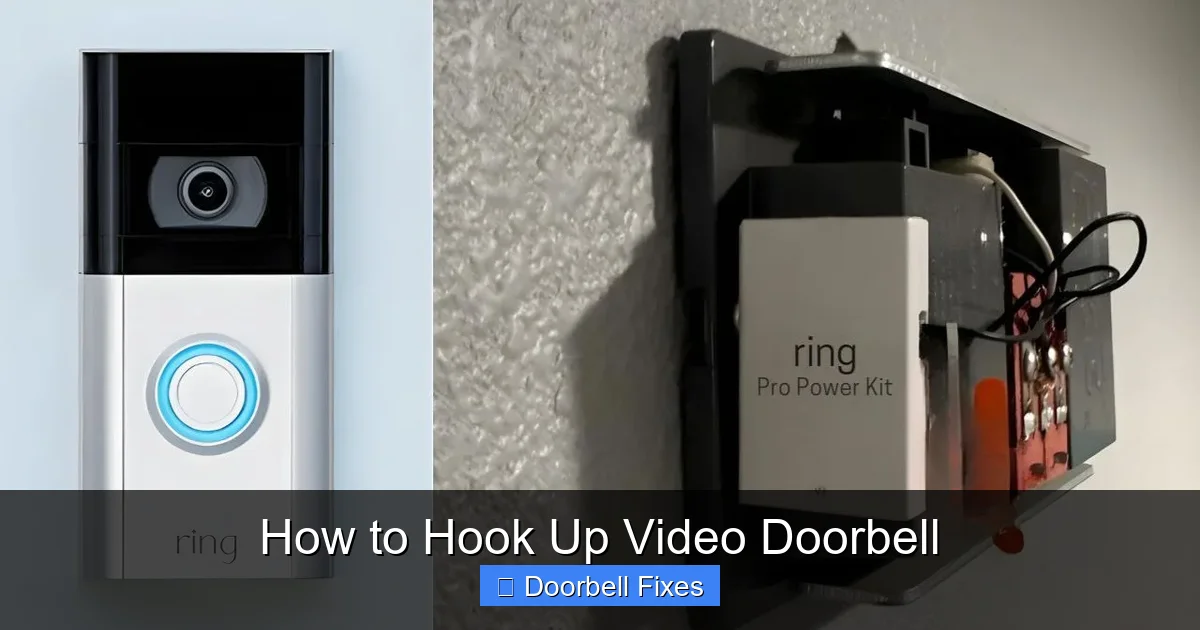

Visual guide about How to Hook Up Video Doorbell
Image source: doorbellnest.com
Before you even think about drilling holes or touching wires, take time to pick the best video doorbell for your needs. Not all models are created equal, and your choice will affect installation complexity, ongoing maintenance, and features.
Wired vs. Battery-Powered
The first big decision is power source. Wired video doorbells connect directly to your existing doorbell wiring and transformer, offering continuous power without battery swaps. Battery-powered models are easier to install (no wiring needed) but require recharging every few months.
If your home already has a working doorbell with low-voltage wiring (usually 16–24V AC), a wired model like the Ring Video Doorbell Pro or Nest Doorbell (wired) is ideal. If you don’t have wiring or prefer a no-fuss setup, go battery-powered—like the Ring Video Doorbell (2nd Gen) or Arlo Essential Wire-Free.
Key Features to Consider
Look for:
– HD video quality (1080p or higher)
– Night vision for clear footage after dark
– Two-way audio so you can talk to visitors
– Motion detection zones to reduce false alerts
– Cloud storage or local backup for recordings
– Compatibility with your smartphone OS (iOS or Android)
Also, check if the doorbell works with your existing smart home ecosystem (Google Home, Amazon Alexa, Apple HomeKit, etc.).
Check Your Wi-Fi Signal
Video doorbells rely heavily on Wi-Fi. Stand at your front door with your phone and check signal strength. If it’s weak (less than 2 bars), consider installing a Wi-Fi extender or mesh network node nearby. A strong connection ensures smooth streaming and reliable notifications.
Step 2: Gather Your Tools and Materials
You don’t need to be a DIY expert to install a video doorbell, but having the right tools makes the job faster and safer.
Basic Toolkit
Most video doorbell kits include screws, anchors, and a mounting bracket. But you’ll likely need:
– Screwdriver (Phillips and flathead)
– Drill and drill bits (for masonry or wood)
– Level (to keep the doorbell straight)
– Wire strippers (if working with existing wires)
– Voltage tester or multimeter (to check wiring)
– Pencil (for marking drill spots)
– Smartphone or tablet (for app setup)
Optional but Helpful
– Wire nuts (if extending or connecting wires)
– Electrical tape
– Ladder (if your doorbell is high up)
– Helper (to hold the doorbell while you wire it)
Pro tip: Lay out all your tools and the doorbell box before starting. There’s nothing worse than halfway through installation realizing you’re missing a screwdriver!
Step 3: Turn Off Power and Remove Old Doorbell
Safety first! Even though doorbell systems use low voltage, it’s still smart to cut power to avoid shocks or short-circuiting your new device.
Locate Your Breaker Box
Find the circuit breaker that controls your doorbell. It’s often labeled “doorbell,” “chime,” or “front door.” If unsure, turn off the main breaker to be safe.
Test the Wires
After turning off power, remove your old doorbell button. Use a non-contact voltage tester or multimeter to confirm no electricity is flowing. Touch the probes to the two wires—if the meter reads 0V, you’re good to go.
Disconnect and Label Wires
Carefully unscrew the wires from the old doorbell. Most have two wires: typically black (common) and red (front). Label them with tape if needed—this helps when connecting your new doorbell.
If your old doorbell was wireless or battery-only, you may not have any wires. That’s fine—just note that you’ll be installing a battery-powered video doorbell.
Step 4: Install the Mounting Bracket
The mounting bracket is the backbone of your video doorbell installation. It holds the device securely and ensures proper alignment.
Position the Bracket
Hold the bracket against your doorframe at about 48–52 inches from the ground—this is the ideal height for most people to see the camera clearly. Use a level to make sure it’s straight.
If your door is recessed (set back from the wall), use an included wedge or angled bracket to tilt the camera outward. This improves the field of view and reduces blind spots.
Mark and Drill Holes
Use a pencil to mark where the screws will go. If you’re drilling into wood, a small pilot hole helps prevent splitting. For brick, stucco, or concrete, use a masonry bit and wall anchors.
Secure the Bracket
Screw the bracket into place using the provided screws. Make sure it’s tight and doesn’t wobble. A loose bracket can cause video shake or misalignment.
Step 5: Connect the Wires (For Wired Models)
If you’re installing a wired video doorbell, this is where the magic happens—connecting power so your doorbell never runs out of juice.
Strip the Wire Ends
Use wire strippers to expose about 1/4 inch of copper on each wire. Be careful not to cut the wire itself.
Attach Wires to the Bracket
Most wired doorbells have terminals on the back of the mounting bracket. Loosen the screws, insert the wires, and tighten them down. It doesn’t matter which wire goes where—doorbell circuits are not polarized.
Some models (like Ring Pro) include a special “Pro Power Kit” that connects to your chime box. This ensures enough power reaches the doorbell. Follow the included instructions carefully.
Optional: Use a Chime Connector
If your existing doorbell chime isn’t compatible with the new video doorbell, you may need a chime connector or diode. This prevents damage to your chime and ensures the doorbell gets steady power. Check your doorbell’s compatibility list before installing.
Step 6: Attach the Video Doorbell
Now it’s time to snap your new doorbell onto the bracket.
Align and Secure
Slide the doorbell into the bracket until it clicks or locks into place. Some models use a security screw on the bottom to prevent theft—tighten it with the included Allen wrench.
Double-Check Stability
Give the doorbell a gentle tug. It should feel solid and not move. If it wobbles, recheck the bracket screws or tighten the security screw.
Step 7: Restore Power and Test the Doorbell
With everything mounted and wired, it’s time to bring your doorbell to life.
Turn Power Back On
Go back to your breaker box and flip the doorbell circuit back on. Wait a few seconds for the system to power up.
Listen for the Chime
Press the doorbell button. You should hear your indoor chime ring. If not, double-check your wiring or chime compatibility.
Check the LED Light
Most video doorbells have an LED that lights up when powered. A solid or blinking light usually means it’s receiving power and ready for setup.
Step 8: Download the App and Set Up the Doorbell
The final step is connecting your doorbell to your smartphone via the manufacturer’s app.
Download the App
Search for your doorbell’s app in the App Store (iOS) or Google Play (Android). Common apps include:
– Ring App (for Ring doorbells)
– Google Home (for Nest)
– Arlo App (for Arlo)
– Eufy Security (for Eufy)
Create an Account
Open the app and sign up or log in. You’ll need an email address and password.
Add Your Device
Tap “Add Device” or “Set Up a New Device.” The app will guide you through scanning a QR code (usually on the doorbell or in the box) or entering a serial number.
Connect to Wi-Fi
Select your home Wi-Fi network and enter the password. Make sure your phone is on the same network. The doorbell will connect and may take a minute to sync.
Complete Setup
Follow the on-screen prompts to:
– Name your doorbell (e.g., “Front Door”)
– Set up motion zones
– Enable notifications
– Choose recording preferences
– Link to smart home systems (Alexa, Google Assistant, etc.)
Step 9: Customize Settings and Test Features
Once your doorbell is online, take time to fine-tune it for the best experience.
Adjust Motion Zones
In the app, draw motion detection zones to focus on your walkway and ignore busy streets or trees. This reduces false alerts.
Set Notification Preferences
Choose when you want alerts: all the time, only at night, or during specific hours. You can also set up “Do Not Disturb” mode.
Test Two-Way Audio
Have someone press the button while you’re inside. Speak through the app—can they hear you? Can you hear them? Adjust volume if needed.
Check Video Quality
View a live stream or recorded clip. Is the image clear? Is the night vision working? If not, reposition the doorbell or check Wi-Fi strength.
Troubleshooting Common Issues
Even with careful installation, problems can happen. Here’s how to fix the most common ones.
Doorbell Won’t Power On
– Double-check that power is restored at the breaker.
– Verify wires are securely connected.
– Test voltage with a multimeter—should be 16–24V AC.
– If using a battery model, ensure it’s fully charged.
Weak or No Wi-Fi Connection
– Move your router closer or install a Wi-Fi extender.
– Avoid placing the doorbell near metal surfaces or thick walls.
– Reconnect to Wi-Fi in the app.
Chime Doesn’t Ring
– Confirm your chime is compatible with the doorbell.
– Install a chime connector if required.
– Check wiring at both the doorbell and chime box.
Motion Alerts Too Frequent
– Narrow motion zones in the app.
– Lower sensitivity settings.
– Avoid pointing the camera at moving objects like trees or roads.
Video Quality Is Poor
– Clean the camera lens with a soft cloth.
– Ensure strong Wi-Fi signal.
– Update the doorbell’s firmware via the app.
Maintenance Tips to Keep Your Doorbell Working
A little upkeep goes a long way in keeping your video doorbell reliable.
Clean the Lens Monthly
Dust, dirt, and spider webs can blur the camera. Use a microfiber cloth to gently wipe the lens.
Check Battery Levels (If Applicable)
Most apps show battery percentage. Recharge or replace batteries every 3–6 months, depending on usage.
Update Firmware
Manufacturers release updates to improve performance and security. Enable automatic updates or check monthly.
Review Recordings Regularly
Check your cloud or local storage to ensure recordings are saving properly. Delete old clips to free up space.
Conclusion
Congratulations—you’ve successfully learned how to hook up a video doorbell! From choosing the right model to mounting, wiring, and syncing with your phone, you’ve completed a smart home upgrade that enhances security, convenience, and peace of mind.
Remember, the key to a smooth installation is preparation: check your wiring, test your Wi-Fi, and follow the steps in order. And if you run into trouble, don’t panic—most issues are fixable with a little troubleshooting.
Your new video doorbell isn’t just a gadget; it’s your eyes and ears at the front door, 24/7. Whether you’re catching porch pirates, greeting delivery drivers, or simply checking who’s knocking, you’ll wonder how you ever lived without it.
So go ahead—press that button, answer the call, and enjoy the confidence that comes with knowing exactly who’s at your door.
