Installing your Ring Doorbell 1 doesn’t have to be complicated. This guide walks you through every step—from checking compatibility to final testing—so you can enjoy smart security in minutes. No prior experience needed!
Key Takeaways
- Check compatibility first: Ensure your existing doorbell wiring and voltage meet Ring Doorbell 1 requirements to avoid damage or malfunction.
- Turn off power safely: Always shut off electricity at the breaker before removing your old doorbell to prevent shocks or short circuits.
- Use the right tools: A Phillips screwdriver, drill (optional), level, and smartphone are essential for a smooth installation.
- Download the Ring app early: The app guides setup, connects your device to Wi-Fi, and lets you test features like motion detection and live view.
- Secure mounting is key: Properly align and tighten the doorbell to prevent wobbling, which can affect video quality and motion alerts.
- Troubleshoot common issues: If the doorbell won’t connect or chime doesn’t work, check Wi-Fi strength, wiring, or use the Ring Chime accessory.
- Test everything before finishing: Verify live view, motion alerts, and doorbell press functionality to ensure full operation.
How to Hookup the Ring Doorbell 1: A Complete Step-by-Step Guide
So, you’ve got your hands on a Ring Doorbell 1—congratulations! You’re about to upgrade your home security with motion alerts, live video streaming, and two-way talk, all from your smartphone. But before you can answer the door from your couch (or your beach vacation), you need to properly hook up your new smart doorbell.
Don’t worry—this isn’t rocket science. With the right tools, a little patience, and this detailed guide, you’ll have your Ring Doorbell 1 installed and working in under an hour. Whether you’re replacing an old wired doorbell or installing one for the first time, we’ve got you covered.
In this guide, you’ll learn:
– How to check if your home is compatible with the Ring Doorbell 1
– The exact steps to safely remove your old doorbell
– How to mount and wire your new Ring device
– How to set up the Ring app and connect to Wi-Fi
– Tips for optimizing performance and troubleshooting common issues
Let’s get started!
What You’ll Need Before You Begin

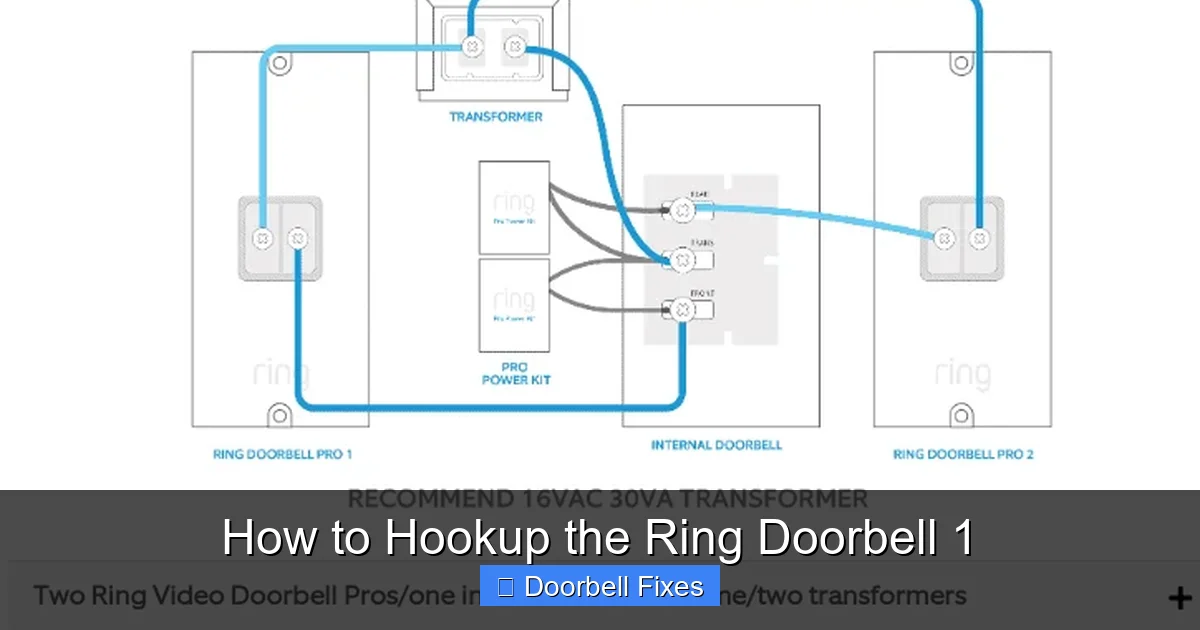

Visual guide about How to Hookup the Ring Doorbell 1
Image source: i.pinimg.com
Before you touch a single wire, gather these tools and materials. Having everything ready will save you time and frustration.
- Ring Doorbell 1 kit: Includes the doorbell, mounting bracket, screws, wire connectors, and security screw.
- Phillips screwdriver: For removing old plates and securing the new mount.
- Drill and drill bits (optional): Only if you need to make new holes or anchor into brick or concrete.
- Level: To ensure your doorbell hangs straight—important for video framing.
- Smartphone or tablet: With the Ring app downloaded (available on iOS and Android).
- Wi-Fi network: 2.4 GHz is required; 5 GHz is not supported by Ring Doorbell 1.
- Voltage tester (recommended): To confirm power is off and check existing doorbell voltage.
- Ladder (if needed): For high doorways or hard-to-reach locations.
Pro tip: Charge your smartphone fully before starting—you’ll be using the app a lot during setup.
Step 1: Check Compatibility and Power Requirements
Not every home is ready for a Ring Doorbell 1 out of the box. To avoid damage or poor performance, verify compatibility first.
Check Your Existing Doorbell Wiring
The Ring Doorbell 1 is designed to work with homes that have existing doorbell wiring. It’s a wired-only model (no battery version), so you must have two low-voltage wires connected to your current doorbell.
Here’s how to check:
1. Locate your existing doorbell button on the exterior wall.
2. Gently remove the faceplate using a screwdriver.
3. Look for two thin wires (usually white and red or black) connected to terminals.
4. If you see wires, great! If not, you may need to run new wiring or consider a wireless Ring model like the Video Doorbell 2 or Battery Doorbell Plus.
Test Voltage Levels
The Ring Doorbell 1 requires a power supply between 8V AC and 24V AC, with at least 16V AC recommended for optimal performance. Most homes fall within this range, but it’s smart to verify.
Use a multimeter or voltage tester:
1. Turn off power at the breaker (we’ll cover this next).
2. Disconnect the wires from the old doorbell.
3. Touch the multimeter probes to the wire ends.
4. Check the reading. If it’s below 8V, your transformer may be too weak. If it’s above 24V, you risk damaging the Ring.
If voltage is too low, you may need to upgrade your doorbell transformer. Ring sells a compatible 16V transformer if needed.
Check Wi-Fi Signal Strength
Your doorbell needs a strong 2.4 GHz Wi-Fi signal to function properly. Use your phone to test signal strength at the installation spot.
– Open your phone’s Wi-Fi settings.
– Walk to where the doorbell will go.
– Check the signal bars. If it’s weak (1–2 bars), consider:
– Moving your router closer
– Using a Wi-Fi extender
– Installing the Ring Chime (which can boost signal)
Note: The Ring Doorbell 1 does not support 5 GHz networks. Make sure your router broadcasts a 2.4 GHz band.
Step 2: Turn Off Power and Remove the Old Doorbell
Safety first! Working with electricity can be dangerous if you skip this step.
Turn Off the Power
1. Go to your home’s electrical panel (breaker box).
2. Locate the circuit that controls your doorbell. It’s often labeled “Doorbell,” “Chime,” or “Transformer.” If not labeled, turn off the main breaker to be safe.
3. Flip the switch to OFF.
4. Use a non-contact voltage tester at the doorbell wires to confirm power is off. If the tester beeps or lights up, power is still on—double-check the breaker.
Never assume the power is off. Always test!
Remove the Old Doorbell
1. Unscrew the faceplate of your existing doorbell button.
2. Carefully pull the button away from the wall.
3. Disconnect the two wires by loosening the terminal screws or pulling them out of wire nuts.
4. Label the wires (e.g., “Front” and “Transformer”) with tape if needed, though polarity doesn’t matter for AC.
5. Remove any old mounting plate or bracket.
Set the old doorbell aside. You can recycle or donate it.
Step 3: Install the Ring Doorbell 1 Mounting Bracket
Now it’s time to prep the wall for your new Ring Doorbell.
Choose the Right Mounting Angle
The Ring Doorbell 1 comes with a standard flat bracket, but you may need an angled wedge (sold separately) if your doorbell is mounted at an angle or you want a better view of visitors.
– Use a 15° wedge for slight angles.
– Use a 30° wedge for steeper angles or side-mounted doors.
Attach the wedge to the bracket using the provided screws before mounting.
Mark and Drill Mounting Holes
1. Hold the mounting bracket (or wedge + bracket) against the wall where you want the doorbell.
2. Use a level to ensure it’s straight.
3. Mark the screw holes with a pencil.
4. If drilling into wood, you can screw directly. For brick, concrete, or stucco, drill pilot holes and use wall anchors.
Pro tip: If your old doorbell used the same holes, you may not need to drill new ones—just check alignment.
Secure the Bracket
1. Insert wall anchors if needed.
2. Screw the bracket into place using the provided screws.
3. Make sure it’s tight and doesn’t wiggle.
The bracket should be flush against the wall and level. A loose mount can cause video tilt or motion detection issues.
Step 4: Connect the Wires to the Ring Doorbell 1
This is the moment of truth—connecting your new smart doorbell.
Prepare the Wires
1. Strip about 1/4 inch of insulation from the ends of the two doorbell wires if needed.
2. Twist the exposed copper to keep strands together.
Attach Wires to the Doorbell
1. Loosen the two terminal screws on the back of the Ring Doorbell 1 (labeled “Front” and “Trans”).
2. Insert one wire under each screw.
3. Tighten the screws to secure the wires.
Note: The Ring Doorbell 1 uses AC power, so polarity doesn’t matter. Either wire can go to either terminal.
Mount the Doorbell
1. Align the doorbell with the mounting bracket.
2. Slide it down until it clicks into place.
3. Use the included security screw and screwdriver to lock it in. This prevents theft.
Double-check that the doorbell is secure and level.
Step 5: Restore Power and Test the Doorbell
Now that everything is wired, it’s time to bring it to life.
Turn Power Back On
1. Go back to the breaker box.
2. Flip the doorbell circuit back ON.
3. Wait 30–60 seconds for the doorbell to power up.
You should see a light on the front of the Ring Doorbell 1—usually a solid white or blinking blue.
Test the Doorbell Press
Press the button on the front of the doorbell. You should hear a chime inside your home (if you have a mechanical chime) or see a notification on your phone (once the app is set up).
If nothing happens:
– Check wiring connections
– Verify power is on
– Ensure the chime is compatible (see troubleshooting section)
Step 6: Set Up the Ring App and Connect to Wi-Fi
The Ring app is your control center. It’s where you’ll view live video, receive alerts, and adjust settings.
Download and Open the Ring App
1. Go to the App Store (iOS) or Google Play (Android).
2. Search for “Ring” and download the official app.
3. Open the app and create a Ring account (or log in if you already have one).
Add Your Doorbell to the App
1. Tap the three-line menu (☰) in the top-left corner.
2. Select “Set up a device.”
3. Choose “Doorbells” and then “Ring Video Doorbell.”
4. Follow the on-screen prompts.
The app will ask you to scan the QR code on the back of your doorbell. Use your phone’s camera to scan it.
Connect to Wi-Fi
1. Select your home Wi-Fi network (must be 2.4 GHz).
2. Enter your Wi-Fi password.
3. Wait while the doorbell connects. This may take 1–2 minutes.
If the connection fails:
– Move closer to your router
– Restart your router
– Ensure you’re on 2.4 GHz (not 5 GHz)
– Try resetting the doorbell (hold the setup button for 20 seconds)
Complete Setup and Name Your Device
1. Choose a name for your doorbell (e.g., “Front Door”).
2. Set your location (for accurate motion zones and alerts).
3. Enable motion alerts and live view.
You’re almost done!
Step 7: Configure Settings and Test Features
Now that your Ring Doorbell 1 is online, customize it to fit your lifestyle.
Adjust Motion Zones
1. In the app, go to your device settings.
2. Tap “Motion Settings” > “Motion Zones.”
3. Draw zones where you want motion detection (e.g., driveway, walkway).
4. Avoid areas like busy streets to reduce false alerts.
Set Alert Preferences
Choose when and how you receive notifications:
– Instant alerts for doorbell presses
– Motion alerts (customizable sensitivity)
– Scheduled “Do Not Disturb” times
Test Live View and Two-Way Talk
1. Open the Ring app.
2. Tap your doorbell to open live view.
3. Speak into your phone—you should hear your voice through the doorbell’s speaker.
4. Ask someone to stand in front of the doorbell and test motion detection.
If live view is laggy or cuts out:
– Check Wi-Fi signal
– Reduce video quality in settings (temporarily)
– Restart the doorbell
Troubleshooting Common Issues
Even with perfect installation, you might run into problems. Here’s how to fix the most common ones.
Doorbell Won’t Power On
– Confirm power is on at the breaker.
– Check wire connections—loose wires won’t transmit power.
– Test voltage again—low voltage can prevent startup.
– Try a different transformer if voltage is below 16V.
No Chime Sound Inside
– Ensure your mechanical chime is compatible (most are).
– Check that the chime wires are connected to the transformer and doorbell.
– If using a digital chime, it may not work with Ring. Consider adding a Ring Chime ($59) for reliable sound.
Wi-Fi Connection Drops
– Move your router closer or use a Wi-Fi extender.
– Avoid placing the doorbell near metal surfaces or thick walls.
– Restart your router and the doorbell.
– Ensure your network isn’t overloaded with devices.
Motion Alerts Not Working
– Check motion zones—make sure they cover the desired area.
– Increase motion sensitivity in the app.
– Clean the doorbell lens—dirt or spider webs can block the sensor.
– Ensure the doorbell is level—tilted mounting can affect detection.
Live View is Blurry or Laggy
– Lower video quality in settings (e.g., from HD to Standard).
– Improve Wi-Fi signal strength.
– Restart the doorbell by removing and reattaching it.
Final Tips for Long-Term Success
Now that your Ring Doorbell 1 is up and running, keep it in top shape with these tips:
- Clean the lens monthly: Use a soft, dry cloth to wipe away dust, dirt, or water spots.
- Check for firmware updates: The Ring app will notify you when updates are available—install them for new features and security fixes.
- Use a Ring Chime: If your existing chime doesn’t work or you want louder alerts, the Ring Chime plugs into any outlet and syncs with your doorbell.
- Enable two-factor authentication: Protect your account from unauthorized access.
- Review recordings regularly: Save important clips to your phone or cloud (with a Ring Protect plan).
Conclusion
Congratulations—you’ve successfully hooked up your Ring Doorbell 1! You’ve gone from unboxing to full smart security in just a few steps. From checking compatibility and safely wiring the device to setting up the app and customizing alerts, you now have a powerful tool to monitor your home from anywhere.
Remember, the key to a smooth installation is preparation: turn off the power, use the right tools, and follow the steps in order. And if you run into issues, don’t panic—most problems have simple fixes.
Your Ring Doorbell 1 isn’t just a doorbell. It’s peace of mind. Whether you’re at work, on vacation, or just relaxing at home, you’ll always know who’s at the door.
So go ahead—answer that next ring with confidence. You’ve earned it.
