How to Increase Doorbell Throated Voltage for Nest Doorbell
So, you’ve installed your shiny new Nest Doorbell—only to find it keeps going offline, won’t charge properly, or gives you constant low-power warnings. Frustrating, right? The culprit is often something called “doorbell throated voltage”—a term that refers to the reduced voltage reaching your doorbell due to poor wiring, an underpowered transformer, or interference from older chime systems.
Don’t worry. You don’t need to be an electrician to fix this. In this comprehensive guide, we’ll walk you through how to increase doorbell throated voltage for Nest Doorbell step by step. Whether you’re dealing with a weak signal, inconsistent power, or installation headaches, we’ve got you covered. By the end, your Nest Doorbell will be running smoothly, reliably, and ready to capture every visitor—day or night.
We’ll cover everything from diagnosing the problem to upgrading your transformer, replacing wiring, and even exploring alternative power solutions. Plus, we’ll include safety tips, troubleshooting advice, and answers to common questions. Let’s get started!
Why Voltage Matters for Your Nest Doorbell

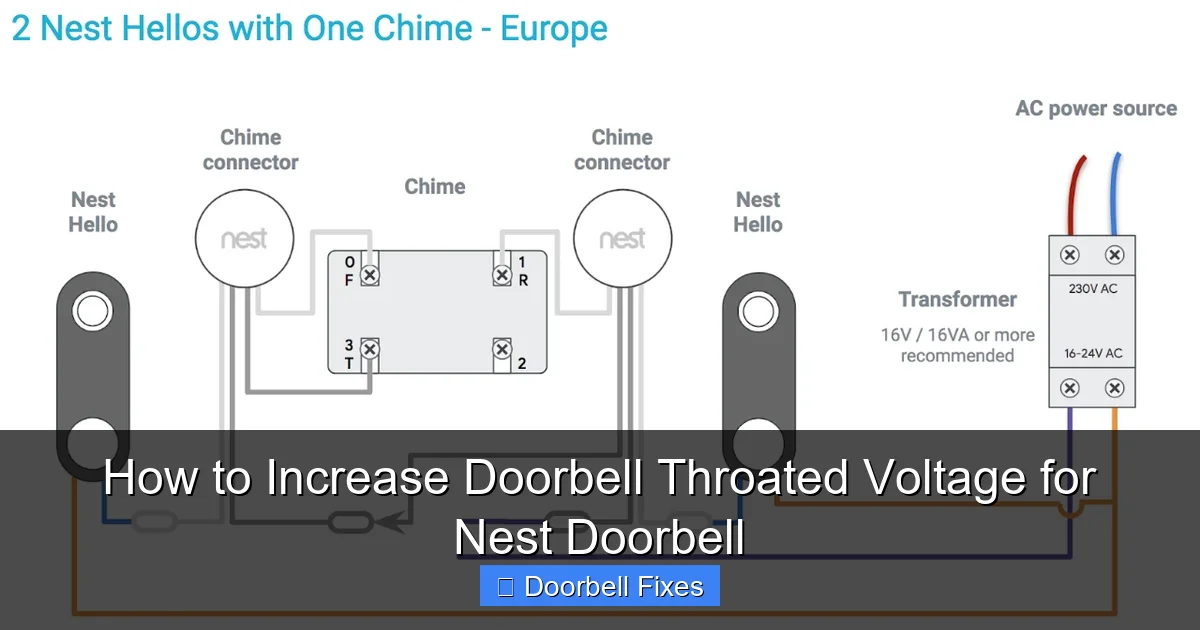

Visual guide about How to Increase Doorbell Throated Voltage for Nest Doorbell
Image source: storage.googleapis.com
Before diving into fixes, it’s important to understand why voltage is so critical for your Nest Doorbell. Unlike traditional doorbells that just need enough power to ring a chime, smart doorbells like the Nest require a steady flow of electricity to power cameras, Wi-Fi connectivity, motion sensors, and night vision.
The Nest Doorbell (wired version) is designed to operate on a voltage range of 16 to 24 volts AC, with a recommended transformer output of at least 16V and 20VA (volt-amperes). If the voltage drops below this threshold—especially under load—the doorbell may fail to charge its internal battery, disconnect from Wi-Fi, or shut down unexpectedly.
This voltage drop is often referred to as “throated voltage,” meaning the power is being “choked” before it reaches the device. Common causes include:
– An old or undersized transformer
– Long or damaged wiring
– Interference from mechanical chimes
– Corroded connections
By increasing the effective voltage at the doorbell, you ensure consistent performance and eliminate frustrating interruptions.
Step 1: Diagnose the Problem with a Multimeter
The first step in fixing low voltage is confirming it exists. You can’t solve a problem you haven’t measured. That’s where a multimeter comes in.
What You’ll Need
- A digital multimeter (available at hardware stores or online for $15–$30)
- Safety gloves and glasses (optional but recommended)
- A small screwdriver
How to Test Doorbell Voltage
- Turn off the power: Go to your home’s electrical panel and turn off the breaker that controls your doorbell circuit. This is crucial for safety.
- Remove the doorbell button: Unscrew the Nest Doorbell from the wall and gently pull it away to expose the wires.
- Set up your multimeter: Turn the dial to measure AC voltage (usually marked with a “V~” symbol). Set the range to 200V or auto-range if available.
- Touch the probes to the wires: Place the red probe on one wire terminal and the black probe on the other. Make sure the probes make solid contact.
- Read the voltage: Turn the power back on briefly to take a reading. A healthy system should show 16–24V AC. If it’s below 16V, you’ve found your problem.
Pro Tip: Test the voltage both at the transformer and at the doorbell. If the transformer outputs 20V but the doorbell only gets 12V, the issue is likely in the wiring.
Step 2: Upgrade Your Doorbell Transformer
If your multimeter shows low voltage at the source, the transformer is likely the culprit. Most older homes have transformers rated at 8V or 10V—fine for traditional chimes but insufficient for smart doorbells.
What to Look for in a New Transformer
– Voltage: 16V or 24V AC (16V is ideal for most Nest installations)
– Power Rating: At least 20VA, preferably 30VA for future-proofing
– Compatibility: Must work with mechanical or electronic chimes
– Mounting: Should fit in your existing electrical box or junction box
Popular models include the Hampton Bay 16V 30VA Transformer or the Enerlites 24V 30VA Transformer, both widely available at Home Depot, Lowe’s, or Amazon.
How to Replace the Transformer
- Turn off the main power: Shut off the breaker for the doorbell circuit. Use a voltage tester to confirm no power is flowing.
- Locate the transformer: It’s usually near your doorbell chime inside the house, often mounted on a wall or inside a junction box.
- Disconnect the old transformer: Unscrew the wires (take a photo first for reference) and remove the unit.
- Install the new transformer: Connect the wires to the new transformer’s terminals (typically labeled “Line” and “Load”). Secure it in place.
- Restore power and test: Turn the breaker back on and use your multimeter to verify the output voltage.
Safety Note: If you’re uncomfortable working with electrical components, hire a licensed electrician. Incorrect wiring can cause fires or damage your doorbell.
Step 3: Inspect and Replace Damaged Wiring
Even with a new transformer, voltage can drop if the wiring is old, thin, or damaged. Doorbell wires are typically 18- or 20-gauge and run from the transformer to the chime and doorbell.
Signs of Bad Wiring
– Frayed or cracked insulation
– Corrosion at connection points
– Voltage drops significantly over distance
– Warm or discolored wires
How to Replace Doorbell Wiring
- Turn off power: Always start by shutting off the breaker.
- Remove old wires: Disconnect the wires from the doorbell, chime, and transformer.
- Run new wire: Use 18-gauge bell wire for best results. Feed it through walls or baseboards from the transformer to the doorbell location. If running through walls is difficult, consider surface-mount conduit for a clean look.
- Reconnect everything: Attach the new wires to the transformer, chime, and doorbell. Ensure tight, secure connections.
- Test the system: Restore power and measure voltage at the doorbell. It should now be within the 16–24V range.
Pro Tip: If your doorbell is far from the transformer (over 50 feet), consider using a higher-voltage transformer (24V) to compensate for line loss.
Step 4: Bypass the Mechanical Chime (If Needed)
Many older homes have mechanical chimes that can interfere with smart doorbells. These chimes contain internal coils that create resistance, reducing the voltage available to the Nest Doorbell.
Even if your chime seems to work, it may still be “throating” the voltage. The solution? Install a chime bypass kit.
What Is a Chime Bypass?
A bypass kit redirects power directly to the doorbell, bypassing the chime’s internal mechanism. This ensures full voltage reaches the Nest Doorbell while still allowing the chime to ring when the button is pressed.
How to Install a Bypass Kit
- Turn off power: Safety first—shut off the breaker.
- Open the chime cover: Remove the front panel of your doorbell chime to access the wiring.
- Identify the terminals: Look for the two terminals connected to the doorbell wires (usually labeled “Front” and “Trans”).
- Install the bypass: Connect the bypass kit’s wires to these terminals. Most kits come with clear instructions and color-coded wires.
- Secure and test: Close the chime cover, restore power, and test the doorbell. The chime should still ring, but voltage at the doorbell will be higher.
Popular bypass kits include the Nest Chime Connector (designed specifically for Google Nest devices) or universal kits like the Doorbell Booster Bypass Module.
Step 5: Consider a Battery-Powered Nest Doorbell
If upgrading wiring or transformers isn’t practical—maybe you’re renting, or your home’s layout makes rewiring difficult—consider switching to the Nest Doorbell (battery) model.
This version doesn’t rely on constant voltage. Instead, it uses a rechargeable battery that lasts up to six months on a single charge. You can also pair it with a solar panel accessory for near-continuous charging.
Benefits of the Battery Model
– No wiring required
– Easy DIY installation
– Works in homes with low or inconsistent voltage
– Can be mounted anywhere within Wi-Fi range
Tips for Optimal Battery Performance
– Install the solar panel in a spot that gets at least 4 hours of direct sunlight daily.
– Keep the doorbell clean—dirt and snow can block the solar panel.
– Use the Nest app to monitor battery level and receive low-power alerts.
While the battery model avoids voltage issues entirely, it’s worth noting that it may have slightly lower video quality and fewer features than the wired version. Still, for many users, it’s a reliable and hassle-free alternative.
Troubleshooting Common Voltage Issues
Even after following these steps, you might still encounter problems. Here’s how to troubleshoot the most common issues.
Doorbell Still Shows Low Voltage
– Double-check all connections for looseness or corrosion.
– Ensure the transformer is rated for at least 20VA.
– Test voltage under load (with the doorbell actively streaming video).
Nest Doorbell Keeps Disconnecting
– Weak Wi-Fi can mimic power issues. Check your signal strength at the doorbell location.
– If voltage is stable, try resetting the doorbell and reconnecting it to Wi-Fi.
Chime Doesn’t Ring After Bypass
– Verify the bypass kit is installed correctly.
– Some chimes require a specific type of bypass—check compatibility.
Transformer Gets Hot
– This could indicate an overload or faulty unit. Turn off power immediately and consult an electrician.
Safety Tips When Working with Doorbell Wiring
While doorbell circuits are low-voltage, they’re still connected to your home’s electrical system. Follow these safety guidelines:
– Always turn off the breaker before working on wiring.
– Use insulated tools and wear safety gloves.
– Never touch bare wires with wet hands.
– If you’re unsure, hire a professional electrician.
– Label wires before disconnecting them to avoid confusion.
Conclusion
Increasing doorbell throated voltage for your Nest Doorbell doesn’t have to be complicated. By diagnosing the issue with a multimeter, upgrading your transformer, replacing damaged wiring, and using a chime bypass when needed, you can ensure your smart doorbell receives the power it needs to function reliably.
Remember, the key is consistency. A steady 16–24V AC supply means better performance, fewer disconnections, and longer battery life (for wired models). And if all else fails, the battery-powered Nest Doorbell offers a flexible, no-fuss alternative.
With the steps in this guide, you’re well-equipped to tackle voltage issues head-on. Your front door will be smarter, safer, and always ready to greet visitors—no more missed packages or surprise guests.
Now go ahead, test that voltage, and enjoy a doorbell that actually works when you need it most.
