How to Increase Voltage to Nest Doorbell
If your Nest Doorbell keeps disconnecting, won’t charge, or shows a “low power” warning, the culprit is often insufficient voltage. Unlike traditional doorbells that run on minimal power, smart doorbells like the Nest require a steady, higher voltage to operate reliably. Fortunately, increasing the voltage to your Nest Doorbell is a manageable DIY project—if you follow the right steps.
In this guide, you’ll learn how to diagnose low voltage, test your current setup, and safely upgrade your system to deliver the power your Nest Doorbell needs. Whether you’re dealing with an old transformer, outdated wiring, or just need a quick fix, we’ll walk you through every step with clear instructions, practical tips, and safety precautions.
By the end of this guide, you’ll have a fully powered Nest Doorbell that stays connected, records smoothly, and keeps your home secure—without constant troubleshooting.
Why Voltage Matters for Your Nest Doorbell

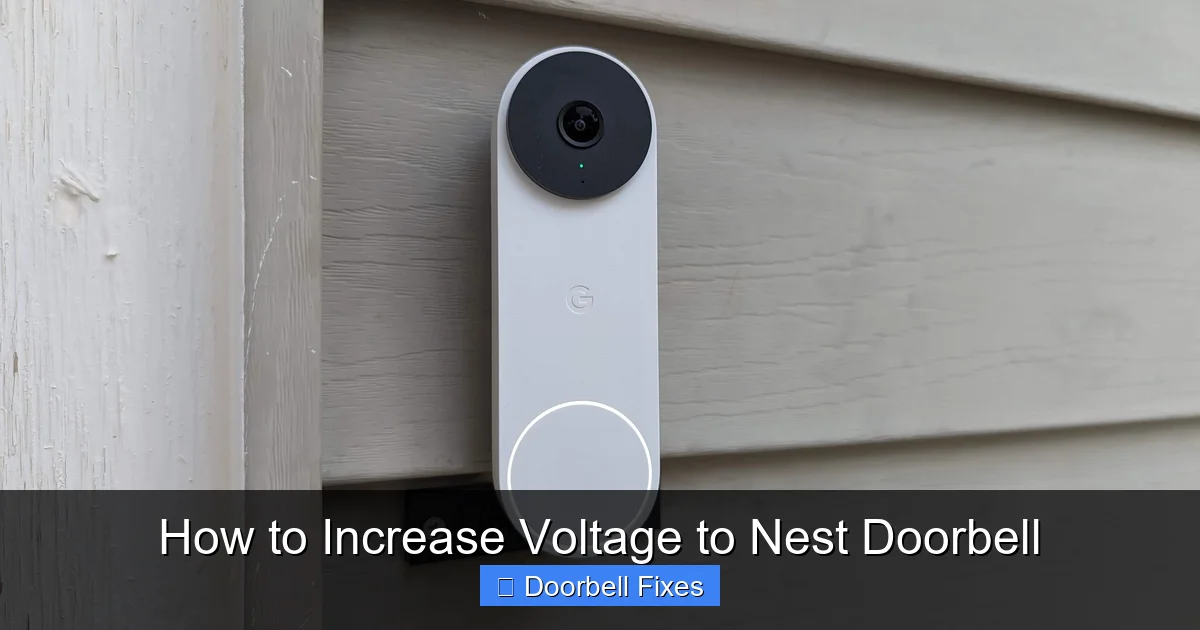

Visual guide about How to Increase Voltage to Nest Doorbell
Image source: automatelife.net
Smart doorbells like the Nest Doorbell (wired) rely on consistent electrical power to function. Unlike older mechanical chimes that only need a brief pulse of electricity, Nest Doorbells draw continuous power to run cameras, Wi-Fi, motion sensors, and two-way audio.
The Nest Doorbell (wired) is designed to operate on **16 to 24 volts AC (alternating current)**, with a recommended minimum of **16V**. If the voltage drops below this threshold—especially under load—the doorbell may fail to charge, disconnect from Wi-Fi, or shut down unexpectedly.
Common signs of low voltage include:
– Frequent “offline” status in the Google Home app
– Short battery life (even when wired)
– Blurry or laggy video
– Failure to record motion events
– Chime not ringing or ringing weakly
These issues often stem from an underpowered transformer, long wire runs, or degraded wiring. The good news? You can fix most of these problems by increasing the voltage delivered to your doorbell.
Tools and Materials You’ll Need
Before you begin, gather the following tools and materials. Most are affordable and available at hardware stores or online.
- Digital multimeter: Essential for measuring voltage. A basic model costs under $20.
- Screwdrivers: Phillips and flathead for removing covers and terminals.
- Wire strippers: To prepare new or existing wires.
- Voltage tester (non-contact): For safety checks before touching wires.
- Replacement transformer (16V or 24V, 20–30VA): Choose one compatible with your chime and doorbell.
- Electrical tape and wire nuts: For secure connections.
- Optional: Plug-in doorbell transformer: A convenient alternative to hardwiring.
- Optional: 18-gauge doorbell wire (if replacing old wiring): Thicker wire reduces resistance over long distances.
Having the right tools ensures a smooth, safe installation. Don’t skip the multimeter—it’s the only way to confirm your voltage levels.
Step 1: Turn Off the Power
Safety is paramount when working with electrical systems. Before touching any wires, you must shut off the power to your doorbell circuit.
Locate Your Circuit Breaker
Most doorbells are connected to a dedicated 15-amp or 20-amp circuit, often labeled “Doorbell,” “Chime,” or “Front Door.” If you can’t find it, turn off the main breaker to be safe.
Test for Power
Use a non-contact voltage tester at the doorbell or chime terminals. If the tester beeps or lights up, power is still on—double-check your breaker.
Label the Wires
Before disconnecting anything, take a photo or label the wires (e.g., “Front Door,” “Transformer,” “Chime”) to avoid confusion during reinstallation.
Never assume the power is off. Always test with a voltage tester before proceeding.
Step 2: Test the Current Voltage
Now that the power is off, it’s time to measure the voltage your Nest Doorbell is receiving. This will help you determine if low voltage is the real issue.
Access the Doorbell Terminals
Remove the Nest Doorbell from its mounting plate. You’ll see two wires connected to the back. These are typically labeled “Front” and “Trans” (or “Transformer”).
Set Up Your Multimeter
Turn your multimeter to the AC voltage setting (usually marked “V~” or “ACV”). Set the range to 200V or higher if your meter isn’t auto-ranging.
Measure the Voltage
Turn the power back on temporarily. Carefully touch the multimeter probes to the two doorbell terminals:
– Red probe to one terminal
– Black probe to the other
Read the display. A healthy reading should be **16V or higher**. If it’s below 16V—especially under 14V—your doorbell isn’t getting enough power.
Test Under Load (Optional but Recommended)
To simulate real-world conditions, press the doorbell button while measuring. Voltage may drop slightly when the chime activates. If it drops below 14V, your transformer or wiring is likely insufficient.
Turn the power off again before making any changes.
Step 3: Check Your Transformer
The transformer is the heart of your doorbell system. It steps down your home’s 120V AC power to the lower voltage needed by the doorbell. If it’s old, undersized, or failing, it won’t deliver enough power.
Locate the Transformer
Transformers are usually found in one of these places:
– Inside the mechanical chime box (most common)
– In the electrical panel or breaker box
– Near the furnace or in the attic
– Behind the doorbell itself (less common)
Look for a small metal or plastic box with wires coming in and out. It may be labeled “Transformer” or have voltage ratings printed on it.
Identify the Transformer Specs
Check the label for voltage (V) and VA (volt-ampere) ratings. Common ratings include:
– 8V, 10VA (too low for Nest)
– 16V, 10VA (may be insufficient)
– 16V, 20VA (good for most homes)
– 24V, 30VA (ideal for long wire runs or multiple chimes)
For Nest Doorbells, **16V at 20VA or higher** is recommended. If your transformer is 8V or 10VA, it’s likely the source of your voltage problems.
Test the Transformer Output
With the power on, use your multimeter to measure voltage at the transformer’s output terminals (usually labeled “Front” and “Trans”). Compare this to the voltage at the doorbell. A significant drop (e.g., 18V at the transformer but 12V at the doorbell) indicates wiring issues.
Step 4: Upgrade Your Transformer
If your transformer is undersized or outdated, replacing it is the most effective way to increase voltage to your Nest Doorbell.
Choose the Right Replacement
Select a transformer with:
– **16V or 24V output**
– **20–30VA rating**
– Compatibility with your chime (most mechanical chimes work with 16V; digital chimes may need 24V)
Popular brands include Nutone, Heath/Zenith, and Transformer Direct. A 16V, 20VA transformer costs around $15–$25.
Install the New Transformer
Follow these steps:
1. Turn off the power at the breaker.
2. Disconnect the old transformer wires from the chime and power source.
3. Remove the old transformer.
4. Mount the new transformer in the same location (or nearby).
5. Connect the 120V input wires (usually black and white) to your home’s power.
6. Connect the low-voltage output wires (usually red and white) to the chime and doorbell.
7. Secure all connections with wire nuts and electrical tape.
8. Turn the power back on and test the voltage at the doorbell.
Example: Replacing a Transformer in a Chime Box
Many homeowners find the transformer inside the chime unit. To replace it:
– Remove the chime cover.
– Locate the transformer (small box with wires).
– Note the wire connections.
– Disconnect and remove the old unit.
– Install the new transformer, matching wire colors.
– Reassemble the chime and test.
This upgrade often resolves low-voltage issues immediately.
Step 5: Inspect and Replace Wiring (If Needed)
Even with a good transformer, long or thin wires can cause voltage drop. If your doorbell is far from the transformer (e.g., in a large home or detached garage), wiring may be the bottleneck.
Check Wire Gauge and Condition
Standard doorbell wire is 18- or 20-gauge. Over long distances, 20-gauge wire can lose significant voltage. Look for:
– Frayed or corroded wires
– Loose connections
– Brittle insulation
If wires are damaged or too thin, replacement is recommended.
Replace Old Wiring
To upgrade your wiring:
1. Turn off the power.
2. Remove the old wires from the doorbell, chime, and transformer.
3. Run new 18-gauge doorbell wire along the same path (or through walls if necessary).
4. Strip 1/2 inch of insulation from each end.
5. Connect the new wires to the doorbell, chime, and transformer.
6. Secure connections with wire nuts.
7. Test the voltage again.
Tip: Use a Wire Run Calculator
Online tools can estimate voltage drop based on wire length and gauge. For example, 50 feet of 18-gauge wire with a 16V transformer may drop to 14V—below Nest’s minimum. Upgrading to 16-gauge wire or a 24V transformer can solve this.
Step 6: Consider a Plug-In Transformer (Easy Alternative)
If you don’t want to mess with your home’s wiring or breaker panel, a plug-in doorbell transformer is a great alternative.
How It Works
A plug-in transformer plugs into a standard 120V outlet near your door. It converts power to 16V or 24V and sends it directly to your doorbell via low-voltage wires.
Benefits
– No electrical work required
– Easy to install and relocate
– Ideal for renters or temporary setups
– Often includes a built-in chime
Installation Steps
1. Plug the transformer into an outlet near your door.
2. Run the low-voltage wires from the transformer to your doorbell.
3. Connect the wires to the doorbell terminals.
4. Mount the doorbell and test.
Popular models include the **Nest Plug-In Transformer** (designed specifically for Nest Doorbells) and universal options from brands like Transformer Direct.
Limitations
– Requires an outlet near the door
– Wires may be visible unless concealed
– Not suitable for homes without nearby outlets
Still, it’s a fast, safe way to increase voltage without major renovations.
Step 7: Reinstall and Test Your Nest Doorbell
Once you’ve upgraded your transformer or wiring, it’s time to reinstall your Nest Doorbell and verify the fix.
Reconnect the Wires
Attach the two low-voltage wires to the back of the Nest Doorbell. It doesn’t matter which wire goes where—Nest Doorbells are not polarity-sensitive.
Mount the Doorbell
Secure the doorbell to the mounting plate using the provided screws. Ensure it’s level and tight.
Power On and Test
Turn the power back on. Wait a few minutes for the doorbell to boot up and connect to Wi-Fi.
Check the Google Home app for:
– Stable connection
– Full battery indicator (if wired)
– Clear video feed
– Working motion and sound detection
Measure Voltage Again
Use your multimeter to confirm the voltage at the doorbell is now 16V or higher. This ensures your upgrades were successful.
Troubleshooting Common Issues
Even after increasing voltage, you might encounter problems. Here’s how to fix them.
Doorbell Still Shows “Low Power”
– Double-check wire connections—loose wires cause voltage drop.
– Ensure the transformer is properly rated and installed.
– Test voltage under load (while pressing the button).
Chime Doesn’t Ring
– Verify the chime is compatible with your new voltage (some digital chimes require 24V).
– Check wiring at the chime box.
– Replace the chime if it’s old or damaged.
Wi-Fi Disconnects Frequently
– Low voltage can cause Wi-Fi instability. Recheck voltage levels.
– Move your router closer or use a Wi-Fi extender.
– Ensure the doorbell is within range of your network.
Battery Drains Quickly (Even When Wired)
– This indicates insufficient charging current. Upgrade to a higher VA transformer (e.g., 30VA).
– Avoid using the doorbell in extreme cold, which reduces battery efficiency.
Transformer Hums or Overheats
– This may signal a faulty transformer or incorrect wiring.
– Turn off power immediately and recheck connections.
– Replace the transformer if it feels hot or makes noise.
Safety Tips and Best Practices
Working with electricity requires caution. Follow these guidelines to stay safe:
- Always turn off the power at the breaker before touching wires.
- Use a voltage tester to confirm circuits are dead.
- Don’t work in wet conditions—water and electricity don’t mix.
- Wear insulated gloves if handling live wires.
- Follow local electrical codes—some areas require permits for transformer work.
- When in doubt, consult an electrician—especially for complex wiring or panel work.
Remember: It’s better to be safe than sorry. If you’re uncomfortable with any step, hire a licensed professional.
Conclusion
Increasing the voltage to your Nest Doorbell is a straightforward process that can dramatically improve its performance. By diagnosing low voltage, upgrading your transformer, and ensuring proper wiring, you’ll enjoy reliable connectivity, clear video, and peace of mind.
Start by testing your current voltage with a multimeter. If it’s below 16V, replace your transformer with a 16V or 24V, 20–30VA model. For long wire runs, consider thicker 18-gauge wire or a plug-in transformer for easy installation.
Always prioritize safety—turn off the power, use the right tools, and double-check your work. With these steps, your Nest Doorbell will stay powered, connected, and ready to protect your home.
Don’t let low voltage ruin your smart doorbell experience. Take action today and enjoy the full benefits of your Nest Doorbell.
