This guide walks you through how to install a Legrand On-Q doorbell safely and correctly. You’ll learn the tools needed, wiring steps, and how to test your new smart doorbell for reliable performance.
Key Takeaways
- Turn off power first: Always shut off electricity at the breaker before working on doorbell wiring to prevent shocks or damage.
- Check compatibility: Ensure your existing transformer and chime are compatible with the Legrand On-Q system before installation.
- Use the right tools: A voltage tester, screwdrivers, wire strippers, and a drill are essential for a smooth install.
- Follow wiring diagrams: The Legrand On-Q doorbell uses specific wiring configurations—refer to the manual or included diagrams.
- Test before finalizing: Power up and test the doorbell after wiring but before securing all covers to catch issues early.
- Secure mounting is key: Properly mount the doorbell module and chime to avoid loose connections or malfunctions.
- Troubleshoot common issues: If the doorbell doesn’t ring or the LED doesn’t light, check wiring, transformer voltage, and chime settings.
How to Install a Legrand On-Q Doorbell: A Complete Step-by-Step Guide
So, you’ve decided to upgrade your home with a Legrand On-Q doorbell. Great choice! The Legrand On-Q system is known for its reliability, sleek design, and seamless integration into modern smart homes. Whether you’re replacing an old doorbell or installing one for the first time, this guide will walk you through every step of the process—safely and efficiently.
In this comprehensive how-to guide, you’ll learn exactly how to install a Legrand On-Q doorbell, from gathering the right tools to testing your finished setup. We’ll cover wiring basics, compatibility checks, mounting instructions, and troubleshooting tips. By the end, you’ll have a fully functional doorbell that enhances both your home’s security and convenience.
No prior electrical experience? No problem. We’ll keep things simple, clear, and jargon-free. Just follow along, take your time, and prioritize safety. Let’s get started!
What You’ll Need Before You Begin

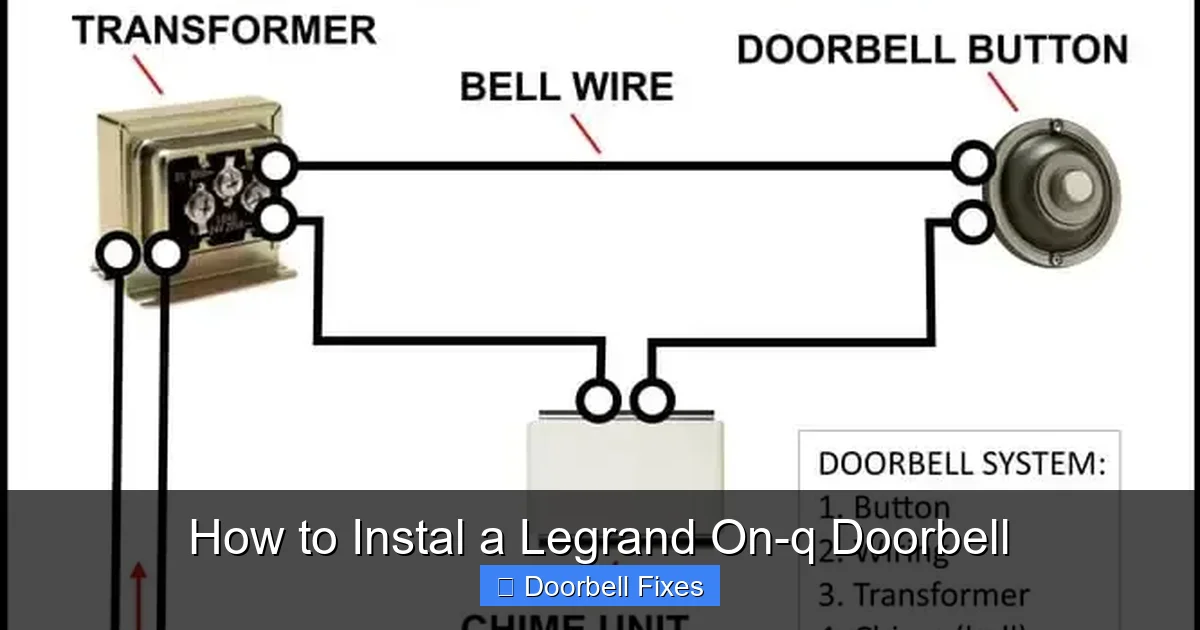

Visual guide about How to Instal a Legrand On-q Doorbell
Image source: i1.wp.com
Before diving into the installation, it’s important to gather all the necessary tools and materials. Having everything ready will save you time and prevent mid-project trips to the hardware store.
Here’s a checklist of what you’ll need:
- Legrand On-Q doorbell kit – This typically includes the doorbell button, chime module, and mounting hardware.
- Screwdrivers – Both flathead and Phillips head for removing old plates and securing new ones.
- Voltage tester – To confirm the power is off and check transformer output.
- Wire strippers – For preparing the low-voltage wires.
- Drill and drill bits – In case you need to make new holes for mounting.
- Pencil or marker – For marking drill points.
- Electrical tape – To secure wire connections.
- Ladder – If your doorbell is mounted high on the wall.
- Safety glasses – Always a good idea when drilling or working near electrical components.
It’s also helpful to have the installation manual that came with your Legrand On-Q doorbell. If you don’t have it, you can usually download a PDF version from the Legrand website using the model number.
Step 1: Turn Off the Power
Safety first! Even though doorbells use low-voltage electricity, it’s still important to turn off the power at the source to avoid any risk of shock or short circuits.
Locate Your Circuit Breaker
Most doorbells are connected to a dedicated 16V or 24V transformer, which is usually wired into a general lighting or outlet circuit. Go to your home’s main electrical panel (breaker box) and look for a breaker labeled “doorbell,” “chime,” or something similar. If there isn’t a label, you may need to test circuits by turning them off one at a time.
Test the Power
Once you think you’ve found the right breaker, flip it to the “off” position. Then, go to your existing doorbell and press the button. If the chime doesn’t sound, the power is likely off. For extra safety, use a non-contact voltage tester near the doorbell wires to confirm there’s no live current.
Pro Tip: Place a piece of tape over the breaker switch with a note like “Do not turn on – working on doorbell.” This prevents someone else from accidentally restoring power while you’re working.
Step 2: Remove the Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, you’ll need to remove it before installing the Legrand On-Q model.
Unscrew the Old Button
Use a screwdriver to remove the screws holding the old doorbell button to the wall. Gently pull the button away from the wall to expose the wires underneath.
Disconnect the Wires
You’ll typically see two low-voltage wires (usually black and white or red and white) connected to the back of the button. Loosen the terminal screws and carefully remove the wires. Don’t let them fall back into the wall—use a piece of tape to hold them in place.
Remove the Old Chime (Optional)
If you’re also replacing the indoor chime unit, go to its location (usually in a closet or basement) and repeat the process: remove the cover, disconnect the wires, and unscrew the mounting plate.
Note: The Legrand On-Q system often uses a modular chime that integrates with other On-Q modules in a structured media panel. If you have such a panel, you may only need to replace the doorbell button and connect it to the existing chime module.
Step 3: Check Compatibility and Transformer Voltage
Before installing the new doorbell, it’s crucial to ensure your home’s electrical setup is compatible with the Legrand On-Q system.
Locate the Transformer
The transformer steps down your home’s 120V power to the 16V or 24V needed for the doorbell. It’s usually found in the basement, garage, or near the electrical panel. It looks like a small metal box with wires coming out.
Test the Voltage
Use a multimeter or voltage tester to check the output of the transformer. Set your meter to AC voltage and touch the probes to the two transformer wires. A reading between 16V and 24V is ideal. If it’s too low (below 16V), the doorbell may not work properly. If it’s too high, it could damage the unit.
Pro Tip: If your transformer is old or underpowered, consider replacing it with a 16V, 10VA or 24V, 20VA transformer for optimal performance.
Verify Chime Compatibility
The Legrand On-Q doorbell is designed to work with On-Q chime modules. If you’re using a third-party chime, check the manufacturer’s specifications to ensure compatibility. Most mechanical and electronic chimes will work, but digital or smart chimes may require additional configuration.
Step 4: Install the Legrand On-Q Doorbell Button
Now it’s time to install the new doorbell button. The Legrand On-Q doorbell features a sleek, modern design with an LED indicator and weather-resistant construction.
Prepare the Wires
Take the two wires from the wall (the ones you disconnected earlier) and strip about 1/4 inch of insulation from the ends using wire strippers. This will ensure a solid connection.
Connect the Wires to the Button
The Legrand On-Q doorbell button has two terminal screws—usually labeled “Front” and “Trans.” It doesn’t matter which wire goes where, as doorbell circuits are not polarity-sensitive. Loosen the screws, insert the stripped wire ends, and tighten securely.
Important: Make sure the bare wire is fully under the screw and not touching the other terminal to avoid a short.
Mount the Button to the Wall
Hold the doorbell button against the wall where you want it installed. Use a pencil to mark the screw holes. If the holes don’t align with the existing ones, you may need to drill new ones.
Use wall anchors if you’re mounting into drywall or brick. Secure the button with the provided screws, but don’t overtighten—this could crack the plastic housing.
Test the Button (Before Final Mounting)
Temporarily reconnect the wires at the chime or transformer and turn the power back on. Press the button to see if the chime rings and the LED lights up. If it works, turn the power off again and proceed. If not, double-check your wiring.
Step 5: Install or Configure the Chime Module
The chime is the indoor unit that produces the sound when the doorbell is pressed. The Legrand On-Q system often uses a modular chime that fits into a structured media enclosure.
Locate the On-Q Enclosure
If your home has a Legrand On-Q structured media panel (usually in a utility closet), open the door to access the modules. Look for an empty slot or an existing chime module.
Install the Chime Module
If you’re adding a new chime, simply snap the Legrand On-Q chime module into an available slot in the enclosure. The modules are designed to click into place securely.
If you’re replacing an old chime, remove it first by gently pulling it out, then insert the new one.
Connect the Wires
The chime module will have terminal blocks for connecting wires. Typically, you’ll connect:
- One wire from the doorbell button (usually labeled “Front”)
- One wire from the transformer (labeled “Trans”)
- Optional: A second doorbell wire if you have a rear door
Match the wires to the correct terminals as indicated on the module. Tighten the screws to secure the connections.
Configure Chime Settings (If Applicable)
Some Legrand On-Q chime modules allow you to select different sounds or volumes. Refer to the manual for instructions on how to adjust these settings—usually done via dip switches or a small button on the module.
Step 6: Secure All Components and Restore Power
Once everything is wired and tested, it’s time to secure all components and restore power.
Tuck Wires Neatly
Before closing up any enclosures or mounting plates, make sure all wires are neatly tucked away and not pinched or strained. Use cable ties or electrical tape to bundle loose wires.
Close the Enclosure
If you’re using a structured media panel, close the door and secure it with the latch or screws.
Restore Power
Go back to your circuit breaker and turn the power back on. Wait a few seconds for the system to initialize.
Test the Full System
Press the doorbell button and listen for the chime. Check that the LED on the button lights up when pressed. If you have a second doorbell (e.g., for a back door), test that as well.
Pro Tip: Have someone stand near the chime while you press the button to confirm the sound is clear and loud enough.
Troubleshooting Common Installation Issues
Even with careful installation, you might run into a few hiccups. Here are some common problems and how to fix them.
Doorbell Doesn’t Ring
- Check power: Ensure the breaker is on and the transformer is outputting the correct voltage.
- Inspect wiring: Loose or disconnected wires are the most common cause. Recheck all connections at the button, chime, and transformer.
- Test the button: Use a multimeter to check for continuity when the button is pressed.
LED Doesn’t Light Up
- Wiring issue: The LED requires proper voltage. Double-check wire connections.
- Faulty button: If the chime works but the LED doesn’t, the button may be defective. Contact Legrand support.
Chime Sounds Weak or Intermittent
- Low voltage: The transformer may be underpowered. Upgrade to a higher VA rating.
- Loose connections: Vibration can loosen wires over time. Re-tighten all terminals.
Multiple Doorbells Not Working Together
- Incorrect wiring: Ensure each doorbell is connected to the correct terminal (Front, Rear, etc.) on the chime module.
- Overloaded circuit: Too many devices on one transformer can cause issues. Consider a dedicated transformer for the doorbell system.
Final Tips for a Successful Installation
- Label your wires: If you’re working with multiple wires, label them with tape to avoid confusion.
- Take photos: Before disconnecting anything, snap a photo of the existing setup for reference.
- Work in daylight: Natural light makes it easier to see small components and wire colors.
- Don’t rush: A careful, methodical approach prevents mistakes and rework.
- Consult the manual: Legrand provides detailed diagrams and instructions—use them!
Conclusion
Installing a Legrand On-Q doorbell is a straightforward DIY project that can significantly improve your home’s functionality and curb appeal. By following this step-by-step guide, you’ve learned how to safely turn off power, remove old components, check compatibility, wire the new doorbell, and troubleshoot common issues.
Remember, the key to a successful installation is preparation and attention to detail. Always prioritize safety, double-check your connections, and test the system before finalizing everything. With the right tools and a little patience, you’ll have a reliable, modern doorbell that serves your home for years to come.
Whether you’re upgrading from a basic doorbell or integrating into a smart home system, the Legrand On-Q doorbell offers durability, style, and performance. Now that you know how to install a Legrand On-Q doorbell, you can enjoy peace of mind every time someone rings the bell.
