Installing a 10 ohm resistor on your doorbell chime can resolve common issues like weak sound, constant buzzing, or chime failure. This guide walks you through the process safely and effectively, even if you’re a beginner.
Key Takeaways
- Understand the purpose: A 10 ohm resistor helps regulate voltage and current in your doorbell circuit, improving chime performance and preventing damage.
- Safety first: Always turn off power at the breaker before working on your doorbell system to avoid electrical shock.
- Identify your chime type: Mechanical, electronic, and smart chimes may require different resistor placement and wiring methods.
- Use the right tools: Basic tools like a screwdriver, wire strippers, and a multimeter make the installation smoother and safer.
- Test before finalizing: After installation, test the chime to ensure it works properly and the resistor isn’t overheating.
- Troubleshoot common issues: If the chime still doesn’t work, check wiring, resistor value, and transformer output.
- When to call a pro: If you’re unsure about electrical work or your system uses high voltage, consult a licensed electrician.
How to Install a 10 Ohm Resistor on Doorbell Chime
Is your doorbell chime buzzing constantly, sounding weak, or not working at all? You might be dealing with a voltage or current imbalance in your doorbell circuit. One effective and affordable fix is installing a 10 ohm resistor. This small electronic component can make a big difference in how your doorbell performs—especially if you’ve recently upgraded to a smart doorbell or noticed inconsistent chime behavior.
In this comprehensive guide, we’ll walk you through the entire process of installing a 10 ohm resistor on your doorbell chime. Whether you’re a DIY enthusiast or a complete beginner, you’ll find clear, step-by-step instructions, safety tips, and troubleshooting advice. By the end, you’ll understand why the resistor helps, how to install it correctly, and how to test your system for optimal performance.
Let’s get started!
Why Use a 10 Ohm Resistor on a Doorbell Chime?
Before diving into the installation, it’s important to understand why a 10 ohm resistor is used in doorbell systems. Doorbell circuits are typically low-voltage (usually 8–24 volts AC), but they can still experience issues like voltage spikes, inconsistent current flow, or interference—especially when using modern smart doorbells with older mechanical chimes.

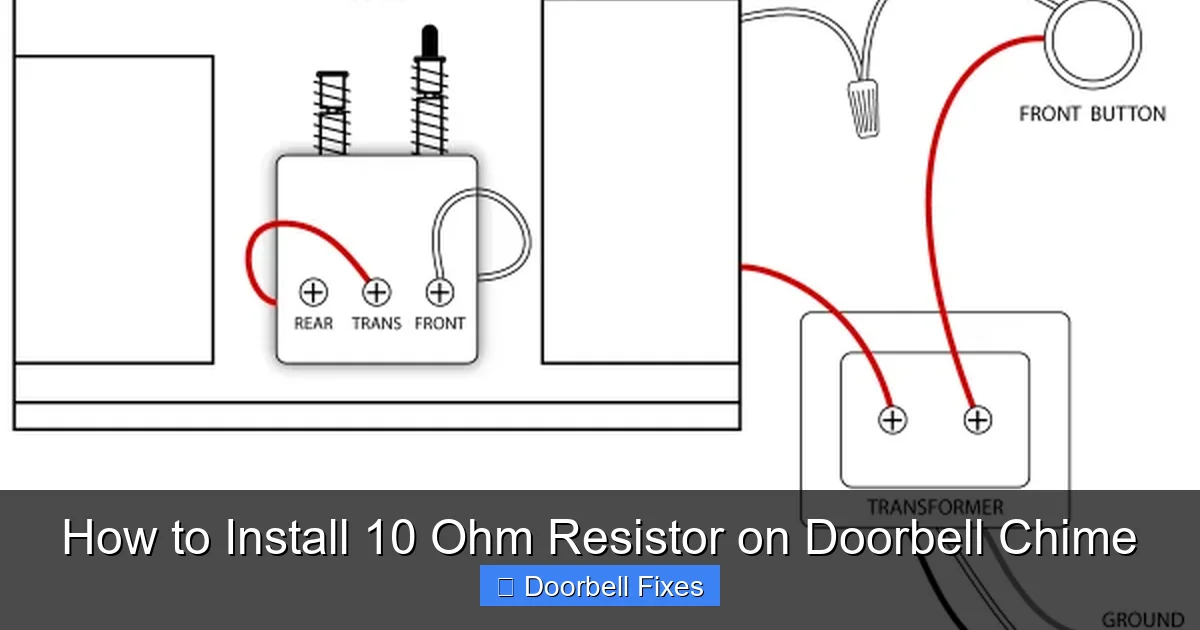

Visual guide about How to Install 10 Ohm Resistor on Doorbell Chime
Image source: tankbig.com
A resistor limits the amount of electrical current flowing through a circuit. In this case, a 10 ohm resistor helps stabilize the current, reducing the chance of the chime buzzing, overheating, or failing to activate. It’s particularly useful when:
- Your mechanical chime buzzes instead of ringing clearly.
- You’ve installed a video doorbell that doesn’t fully activate the chime.
- The chime sounds weak or delayed.
- You’re using a transformer with higher output than your chime is designed for.
Think of the resistor as a traffic controller for electricity—it ensures the current flows smoothly and at the right level, protecting your chime and improving sound quality.
Tools and Materials You’ll Need
Before you begin, gather all the necessary tools and materials. Having everything ready will save time and reduce frustration.
Essential Tools
- Screwdrivers: A flathead and Phillips screwdriver for removing covers and terminals.
- Wire strippers: To safely remove insulation from wires without damaging the copper.
- Needle-nose pliers: Helpful for bending wires and securing connections.
- Multimeter: To test voltage and ensure the circuit is off before working.
- Electrical tape: For insulating exposed wires.
- Wire nuts or terminal connectors: To secure wire connections.
Materials

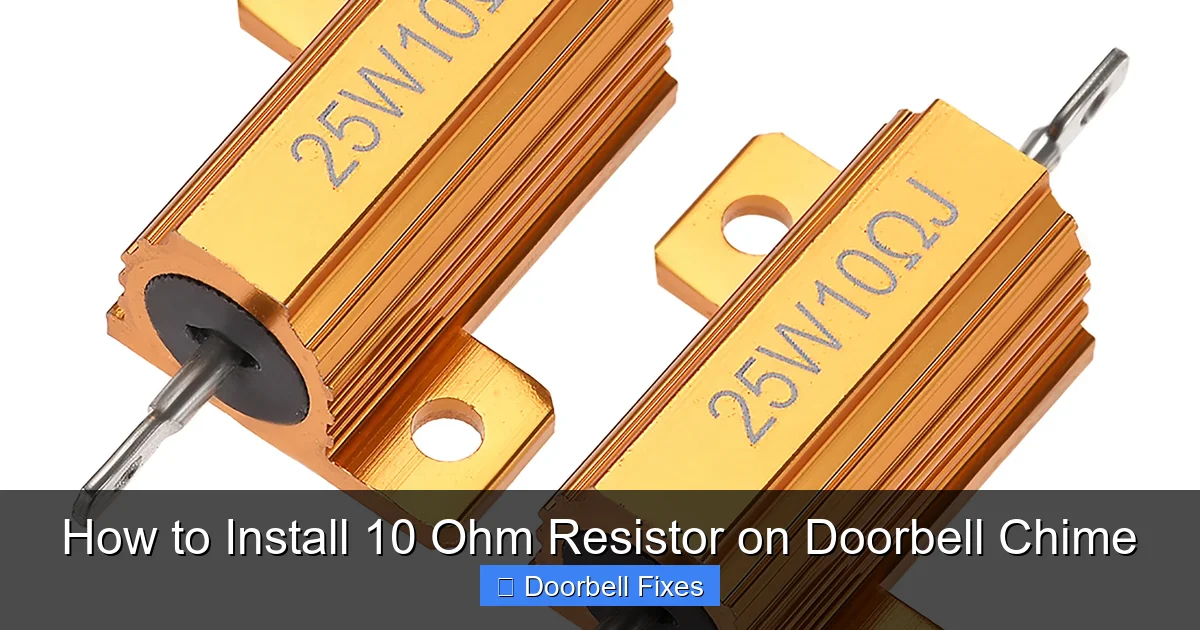

- 10 ohm resistor: Rated for at least 1/2 watt (1/4 watt may overheat). Look for a ceramic or metal film resistor.
- Heat shrink tubing (optional): Provides extra insulation and protection.
- Zip ties (optional): To neatly secure wires inside the chime box.
You can find 10 ohm resistors at hardware stores, electronics suppliers like RadioShack, or online retailers such as Amazon or Digi-Key. Make sure the resistor is compatible with low-voltage AC circuits.
Safety First: Preparing to Work on Your Doorbell
Working with electricity—even low-voltage systems—requires caution. Follow these safety steps to protect yourself and your home.
Turn Off the Power
The most important step is to turn off the power to your doorbell circuit. Locate your home’s electrical panel (breaker box) and find the breaker labeled “doorbell,” “chime,” or “low voltage.” If there isn’t a specific label, turn off the main breaker to be safe.
Use a non-contact voltage tester or multimeter to confirm that power is off at the chime and transformer. Simply touch the probes to the wire terminals—if the multimeter shows 0 volts, it’s safe to proceed.
Label Wires Before Disconnecting
Doorbell systems usually have two or three wires connected to the chime. Before removing anything, take a photo or label each wire (e.g., “Front,” “Rear,” “Transformer”) so you can reconnect them correctly later.
Work in a Dry, Well-Lit Area
Moisture increases the risk of shock. Avoid working in damp basements or during rainy weather. Use a flashlight or work lamp if the chime box is in a dark area.
Wear Safety Gear (Optional but Recommended)
While low-voltage systems are generally safe, wearing rubber-soled shoes and avoiding metal jewelry can reduce risk.
Step 1: Locate and Access Your Doorbell Chime
The chime unit is usually mounted on a wall inside your home, often in a hallway or near the front door. It’s typically a rectangular or square box with a front cover that can be removed.
Remove the Chime Cover
Use a screwdriver to remove the screws holding the cover in place. Gently pull the cover away from the wall. Some models have clips instead of screws—press the sides to release.
Identify the Wiring
Inside, you’ll see two or three wires connected to terminals labeled “Front,” “Rear,” “Trans,” or “Transformer.” These wires come from:
- The doorbell button(s) at your front and rear doors.
- The transformer, which steps down household voltage to low voltage.
The “Front” terminal connects to the front door button, “Rear” to the back door button (if applicable), and “Trans” to the transformer.
Take a Photo for Reference
Before disconnecting anything, snap a clear photo of the wiring. This will help you reconnect everything correctly after installing the resistor.
Step 2: Understand Your Doorbell Circuit
To install the resistor correctly, you need to understand how the circuit works. Most doorbells use a simple series circuit:
- Power flows from the transformer → through the doorbell button → to the chime → back to the transformer.
- When you press the button, it completes the circuit, allowing current to flow and activate the chime.
The resistor will be installed in series with the chime coil—meaning it will be placed along the wire path to limit current flow.
Mechanical vs. Electronic Chimes
The installation method may vary slightly depending on your chime type:
- Mechanical chimes: Use electromagnets to strike metal bars. These often benefit from a resistor to prevent buzzing.
- Electronic chimes: Use a speaker and circuit board. Resistors help stabilize power for consistent sound.
- Smart chimes: May require a resistor to simulate the load of a traditional chime when used with older systems.
If you’re unsure of your chime type, check the manufacturer’s label inside the cover or consult the user manual.
Step 3: Install the 10 Ohm Resistor
Now it’s time to install the resistor. We’ll go through the process step by step.
Step 3.1: Choose the Right Wire to Modify
The resistor should be installed on one of the wires connected to the chime coil—typically the wire going to the “Front” or “Rear” terminal. For most installations, the “Front” wire is used.
Why? Because the front door is the most frequently used, and the resistor will affect both buttons if placed correctly. However, if you only have one doorbell button, use that wire.
Step 3.2: Cut the Wire
Using wire cutters or strippers, carefully cut the chosen wire about 2–3 inches from the terminal. This gives you enough length to work with.
Tip: Cut the wire in the middle of the exposed section inside the chime box, not too close to the terminal or the wall.
Step 3.3: Strip the Wire Ends
Use wire strippers to remove about 1/2 inch of insulation from both ends of the cut wire. You should see clean, shiny copper.
Step 3.4: Connect the Resistor
Take your 10 ohm resistor. It has two leads (metal wires) coming out of it. Bend the leads slightly to make them easier to attach.
Now, connect one lead of the resistor to one end of the cut wire. You can do this by:
- Twisting the resistor lead around the exposed copper wire.
- Using a wire nut to secure the connection.
- Soldering the joint for a more permanent fix (optional but recommended for durability).
Repeat the process with the other resistor lead and the other cut wire end. Make sure the connections are tight and secure.
Step 3.5: Insulate the Connections
Once connected, wrap each joint with electrical tape. For extra protection, slide a piece of heat shrink tubing over the connection and use a heat gun (or lighter) to shrink it.
This prevents accidental short circuits and keeps moisture out.
Step 3.6: Secure the Resistor
The resistor should not be left dangling inside the chime box. Use a zip tie or tape to gently secure it to a nearby wire or the chime frame. Avoid placing it directly on metal parts, as heat buildup could damage it.
Step 4: Reconnect and Test the System
With the resistor installed, it’s time to reconnect everything and test your doorbell.
Step 4.1: Reattach Wires to Terminals
Refer to your photo or labels. Reconnect each wire to its correct terminal:
- “Front” wire → Front terminal
- “Rear” wire → Rear terminal (if present)
- “Trans” wire → Transformer terminal
Tighten the terminal screws securely. Loose connections can cause intermittent issues.
Step 4.2: Replace the Chime Cover
Once all wires are reconnected, carefully place the cover back on the chime unit. Secure it with screws or clips.
Step 4.3: Restore Power
Go back to your breaker box and turn the power back on. Wait a few seconds for the system to reset.
Step 4.4: Test the Doorbell
Press the doorbell button and listen to the chime. It should now:
- Ring clearly without buzzing.
- Sound at normal volume (not too quiet or too loud).
- Activate immediately when pressed.
If the chime works as expected, congratulations—you’ve successfully installed the resistor!
Troubleshooting Common Issues
Sometimes, the chime still doesn’t work properly after installation. Here’s how to diagnose and fix common problems.
Chime Still Buzzes or Doesn’t Ring
If the chime buzzes or fails to activate, the resistor may not be the right value or the wiring could be incorrect.
- Check resistor value: Use a multimeter to confirm it’s 10 ohms. A wrong resistor (e.g., 100 ohms) can block too much current.
- Verify connections: Ensure the resistor is connected in series and not shorted.
- Test transformer output: Use a multimeter to check voltage at the “Trans” terminal. It should read 16–24V AC for most chimes.
Chime Sounds Weak
A weak sound could mean the resistor is limiting too much current.
- Try a lower resistor value (e.g., 5 ohms) if the chime is still too quiet.
- Ensure the transformer is providing adequate voltage.
Resistor Gets Hot
If the resistor becomes warm or hot to the touch, it may be underpowered.
- Use a 1-watt resistor instead of 1/4 or 1/2 watt.
- Ensure it’s not touching metal parts that could conduct heat.
Smart Doorbell Not Triggering Chime
Some video doorbells (like Ring) require a resistor to simulate the load of a traditional chime.
- Install the resistor across the chime terminals (in parallel) instead of in series.
- Follow the manufacturer’s instructions for your specific model.
When to Call a Professional
While installing a 10 ohm resistor is generally safe for DIYers, there are situations where you should call a licensed electrician:
- You’re uncomfortable working with electrical components.
- Your doorbell uses high voltage (120V) instead of low voltage.
- The transformer is hardwired and difficult to access.
- You suspect a wiring fault or damaged chime.
An electrician can safely diagnose and repair complex issues, ensuring your system is up to code.
Conclusion
Installing a 10 ohm resistor on your doorbell chime is a simple yet effective way to improve performance, eliminate buzzing, and extend the life of your doorbell system. With the right tools, a bit of patience, and attention to safety, even beginners can complete this project successfully.
Remember to turn off the power, label your wires, and test the system thoroughly. If something doesn’t work, don’t panic—use the troubleshooting tips to identify and fix the issue.
By following this guide, you’ll not only solve a common household problem but also gain valuable DIY skills. Your doorbell will ring clearly, reliably, and without annoying buzzes—just the way it should.
Now go enjoy your perfectly functioning doorbell!
