Installing your 2nd generation Ring Doorbell is easier than you think. This guide walks you through every step—from checking compatibility to final setup—so you can secure your home in under an hour. No electrician needed!
Key Takeaways
- Check compatibility first: Ensure your existing doorbell wiring and transformer meet Ring’s requirements (16–24V AC, 30VA or higher).
- Use the right tools: A Phillips screwdriver, drill (optional), level, and smartphone are all you need for a smooth install.
- Mount securely: Choose a location 4–5 feet above ground with a clear view of your entryway and Wi-Fi signal.
- Connect to the Ring app: Download the app, create an account, and follow in-app prompts to pair your device.
- Test motion and video: After installation, verify live view, motion alerts, and two-way audio are working properly.
- Troubleshoot common issues: If your doorbell won’t power on or connect, check wiring, Wi-Fi strength, or reset the device.
- Optional chime kits: Use the Ring Chime or Chime Pro if your mechanical chime doesn’t work with the Ring Doorbell.
How to Install 2nd Generation Ring Doorbell: A Complete Step-by-Step Guide
So you’ve just unboxed your brand-new 2nd generation Ring Doorbell—congratulations! You’re one step closer to smarter home security. But now comes the big question: *How do I actually install this thing?* Don’t worry. Installing the Ring Doorbell (2nd Gen) is simpler than most people think, and you don’t need to be an electrician or tech wizard to get it done.
In this comprehensive guide, we’ll walk you through every step of the installation process—from checking your home’s compatibility to final testing and troubleshooting. Whether you’re replacing an old doorbell or installing one for the first time, this guide has you covered. By the end, you’ll have a fully functional smart doorbell that sends real-time alerts, records HD video, and lets you talk to visitors from anywhere.
Let’s get started!
What You’ll Need Before You Begin

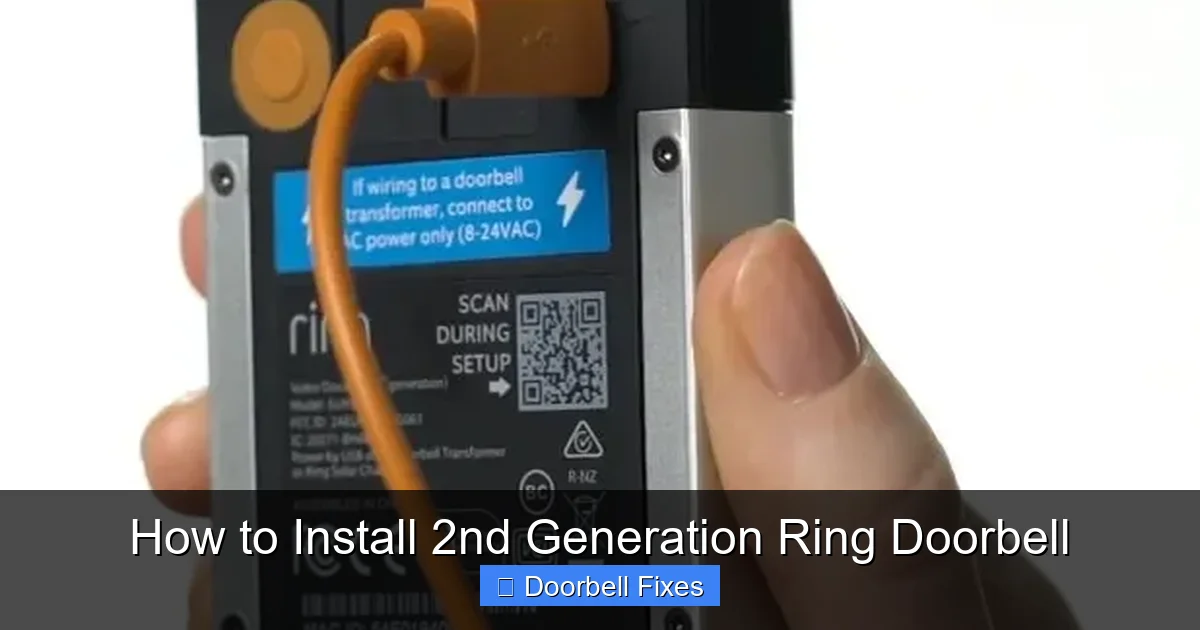

Visual guide about How to Install 2nd Generation Ring Doorbell
Image source: safetyfic.com
Before you grab your tools and head to the door, make sure you have everything ready. Rushing into installation without the right gear can lead to frustration—or worse, damage to your device or wiring.
Here’s a quick checklist of what you’ll need:
- Ring Doorbell (2nd Gen): Obviously! Make sure it’s the wired version (not the battery-only model).
- Phillips head screwdriver: For removing your old doorbell and securing the new mounting bracket.
- Drill (optional): Only if you need to create new mounting holes or run wires through a wall.
- Level: To ensure your doorbell is straight—nobody wants a crooked camera view.
- Smartphone with the Ring app: Available for free on iOS and Android. You’ll use this to set up and configure your device.
- Wi-Fi network: Your doorbell needs a strong 2.4 GHz Wi-Fi signal (5 GHz is not supported).
- Existing doorbell wiring: The 2nd Gen Ring Doorbell is designed to replace a wired doorbell, so you’ll need two low-voltage wires connected to a transformer.
- Transformer (if upgrading): If your current transformer is under 16V AC or less than 30VA, you may need to upgrade it.
Pro tip: If you’re not sure about your wiring or transformer, don’t guess—check it! We’ll show you how in the next section.
Step 1: Check Compatibility and Power Requirements
Not every home is ready for a Ring Doorbell right out of the box. The 2nd Gen model requires specific electrical conditions to function properly. Skipping this step could result in a doorbell that won’t power on or keeps disconnecting.
Check Your Existing Doorbell Wiring
First, locate your current doorbell. It’s usually near your front door, mounted on the wall. Gently remove the cover or faceplate using a screwdriver. You should see two thin wires connected to terminals labeled “Front” and “Trans” (or similar).
These wires carry low-voltage power from your doorbell transformer—usually located in your basement, attic, or near your electrical panel. The Ring Doorbell needs these wires to stay powered 24/7.
If you don’t have any wires at all, you’ll need to install wiring first, which may require professional help. But if you already have a wired doorbell, you’re in good shape.
Test Your Transformer Voltage
The Ring Doorbell (2nd Gen) requires a transformer that outputs between 16 and 24 volts AC (alternating current) and at least 30VA (volt-amperes). Most older homes have transformers that meet this, but some very old systems may fall short.
To check your transformer:
- Turn off power to your doorbell at the circuit breaker.
- Locate the transformer—usually near your furnace, in the basement, or in a junction box.
- Use a multimeter to test the voltage across the two terminals where the doorbell wires connect.
- If the reading is below 16V or the VA rating is under 30, consider upgrading the transformer.
Don’t have a multimeter? You can buy one for under $20 at any hardware store, or borrow one from a friend. It’s a handy tool to have around the house anyway.
Check Your Wi-Fi Signal Strength
Your Ring Doorbell needs a stable Wi-Fi connection to send alerts and stream video. The 2nd Gen model only supports 2.4 GHz networks—not 5 GHz. If your router broadcasts both, make sure your phone connects to the 2.4 GHz band during setup.
To test signal strength:
- Stand at your front door with your smartphone.
- Open a speed test app (like Speedtest by Ookla).
- Look for at least -65 dBm signal strength or higher (the closer to 0, the better).
If your signal is weak, consider moving your router closer, using a Wi-Fi extender, or installing a Ring Chime Pro (which also acts as a Wi-Fi extender).
Step 2: Download the Ring App and Create an Account
Before you physically install the doorbell, it’s best to set up the Ring app on your phone. This will make the pairing process faster and smoother.
Download the App
Go to the App Store (iOS) or Google Play Store (Android) and search for “Ring.” Download the official Ring app—it’s free and has over 10 million downloads.
Create a Ring Account
Open the app and tap “Create Account.” You’ll need:
- An email address
- A phone number (for two-factor authentication)
- A strong password
Follow the on-screen prompts to verify your email and phone number. Once your account is active, you’re ready to add your device.
Add Your Doorbell to the App
Tap the “+” icon in the top-right corner of the app and select “Set up a device.” Choose “Doorbells” and then “Ring Video Doorbell (2nd Gen).”
The app will guide you through the setup process, including scanning the QR code on the back of your doorbell. Keep your phone nearby—you’ll need it during installation.
Step 3: Remove Your Old Doorbell
Now it’s time to get physical. Turn off the power to your doorbell at the circuit breaker to avoid any shocks. Use a voltage tester to confirm the wires are not live.
Unscrew the Old Doorbell
Use your Phillips screwdriver to remove the screws holding your old doorbell in place. Gently pull the device away from the wall. You should see two wires connected to the back.
Disconnect the Wires
Loosen the terminal screws and carefully remove the wires. Don’t let them fall back into the wall! Use electrical tape to label them (e.g., “Front” and “Trans”) or twist the ends together temporarily to keep them from retracting.
If the wires are too short or damaged, you may need to extend them with wire nuts and additional low-voltage wire. But in most cases, the existing wires will work fine.
Remove the Old Mounting Plate (If Needed)
If your old doorbell used a different mounting system, remove the old plate. You’ll be replacing it with the Ring mounting bracket.
Step 4: Install the Ring Mounting Bracket
The Ring Doorbell comes with a versatile mounting bracket that allows for adjustable angles. This is especially helpful if your doorbell isn’t perfectly centered or if you want to angle the camera toward your walkway.
Choose the Right Bracket Angle
The 2nd Gen Ring Doorbell includes three bracket options:
- Standard bracket: For flat mounting (0° angle).
- Left wedge: Angles the camera 10° to the left.
- Right wedge: Angles the camera 10° to the right.
Use the one that best aligns your camera with the area you want to monitor. For most homes, the standard bracket works fine.
Position the Bracket
Hold the bracket (with the chosen wedge, if any) against the wall where you want to install the doorbell. Use a level to make sure it’s straight. The ideal height is 4 to 5 feet above the ground—this gives the best view of visitors and packages.
Mark the screw holes with a pencil.
Drill Pilot Holes (If Needed)
If you’re mounting into wood or need extra stability, drill small pilot holes at the marked spots. This prevents the screws from splitting the material.
Secure the Bracket
Use the included screws to attach the bracket to the wall. Make sure it’s tight and level. If you’re mounting into brick, stucco, or concrete, use wall anchors for extra support.
Step 5: Connect the Wires to the Ring Doorbell
Now for the electrical part—don’t worry, it’s simple.
Thread the Wires Through the Bracket
Feed the two doorbell wires through the center hole in the mounting bracket. This keeps them neat and protected.
Attach the Wires to the Doorbell
On the back of the Ring Doorbell, you’ll see two terminal screws. Loosen them slightly, then insert one wire under each screw. It doesn’t matter which wire goes where—Ring’s design is polarity-independent.
Tighten the screws to secure the wires. Give them a gentle tug to make sure they’re firmly connected.
Optional: Use the Included Wire Nuts
If your wires are too short or frayed, use the included wire nuts to extend or repair them. Strip about 1/2 inch of insulation from each wire, twist them together with the nut, and wrap with electrical tape for safety.
Step 6: Attach the Ring Doorbell to the Bracket
With the wires connected, it’s time to mount the doorbell.
Align the Doorbell with the Bracket
Hold the Ring Doorbell so the screw holes on the back align with the posts on the mounting bracket.
Secure with the Security Screw
Slide the doorbell down onto the bracket until it clicks into place. Then, use the included security screw and screwdriver (or a small flathead) to tighten the screw at the bottom. This prevents theft—someone can’t just pull the doorbell off the wall.
Double-Check the Angle
Step back and look at the doorbell. Is it level? Is the camera pointing where you want it? Adjust the bracket if needed before tightening everything completely.
Step 7: Power On and Complete Setup in the App
Turn the power back on at the circuit breaker. The Ring Doorbell should light up with a blue LED ring, indicating it’s powering on.
Follow the In-App Setup
Return to the Ring app. It should detect your doorbell automatically. If not, tap “Add Device” again and scan the QR code.
The app will guide you through:
- Connecting to your Wi-Fi network
- Setting up motion zones
- Configuring alerts and notifications
- Testing the camera and microphone
Make sure to enable motion alerts and two-way talk during setup.
Test the Doorbell
Press the button on the front of the doorbell. You should hear a chime (if connected to a mechanical chime) and receive a notification on your phone. Open the app to see the live video feed.
Speak into your phone’s microphone—you should hear your voice through the doorbell’s speaker. This confirms two-way audio is working.
Step 8: Configure Motion Settings and Notifications
Now that your doorbell is online, customize it to fit your lifestyle.
Set Motion Zones
In the Ring app, go to Device Settings > Motion Settings > Motion Zones. Draw zones on the camera view to focus on areas like your driveway or front walk. This reduces false alerts from passing cars or trees.
Adjust Motion Sensitivity
Slide the sensitivity bar to low, medium, or high. Start with medium and adjust based on how many alerts you get.
Enable Smart Alerts (Optional)
Ring’s Smart Alerts use AI to distinguish between people, packages, and vehicles. Enable this feature to get more relevant notifications.
Set Up Chimes
If your mechanical doorbell chime doesn’t ring when you press the button, you may need a Ring Chime or Chime Pro. These plug into an outlet and sync with your doorbell to play custom sounds.
Troubleshooting Common Installation Issues
Even with careful installation, problems can happen. Here’s how to fix the most common ones.
Doorbell Won’t Power On
- Check that power is restored at the breaker.
- Verify the wires are securely connected and not loose.
- Test the transformer voltage—it must be 16–24V AC.
- Ensure the wires aren’t shorted together.
Wi-Fi Connection Fails
- Make sure you’re connecting to a 2.4 GHz network.
- Move closer to the router during setup.
- Restart your router and try again.
- Use a Wi-Fi extender or Ring Chime Pro to boost signal.
No Sound from Chime
- Check if your mechanical chime is compatible (most are).
- Ensure the wires are connected to the correct terminals on the chime.
- Install a Ring Chime if your existing chime doesn’t work.
Blurry or Dark Video
- Clean the camera lens with a soft, dry cloth.
- Adjust the angle to avoid direct sunlight or backlighting.
- Check for obstructions like spiderwebs or dirt.
Frequent Disconnections
- Weak Wi-Fi is the usual culprit. Improve signal strength.
- Ensure the transformer provides enough power.
- Reset the doorbell by holding the setup button for 20 seconds.
Final Tips for a Successful Installation
- Take your time: Rushing can lead to mistakes. Follow each step carefully.
- Label your wires: This prevents confusion if you ever need to remove the doorbell.
- Keep the app updated: Ring regularly releases firmware updates that improve performance.
- Test regularly: Check your doorbell weekly to ensure it’s working properly.
- Consider a Ring Protect Plan: For cloud video storage and advanced features, subscribe to Ring Protect (starts at $3.99/month).
Conclusion
Installing your 2nd generation Ring Doorbell doesn’t have to be intimidating. With the right preparation, tools, and a little patience, you can have a fully functional smart doorbell up and running in under an hour. From checking compatibility to final testing, this guide covers everything you need to know.
Remember: safety first—always turn off the power before handling wires. And don’t skip the app setup—it’s essential for pairing and customization.
Once installed, your Ring Doorbell will give you peace of mind, whether you’re at home or halfway around the world. You’ll never miss a delivery, visitor, or suspicious activity again.
So grab your screwdriver, download the app, and get started. Your smarter, safer home is just a few steps away.
