This guide walks you through how to install a doorbell ring safely and correctly, whether you’re replacing an old one or setting up a new system. You’ll learn about tools, wiring, testing, and common mistakes to avoid.
Key Takeaways
- Turn off power first: Always shut off electricity at the breaker before working on doorbell wiring to prevent shocks.
- Choose the right doorbell: Decide between wired, wireless, or smart models based on your home setup and needs.
- Use proper tools: A voltage tester, screwdrivers, wire strippers, and drill are essential for a smooth installation.
- Follow wiring carefully: Match transformer voltage to your doorbell and connect wires securely to avoid malfunctions.
- Test before finishing: Always test the doorbell after installation and before reattaching covers or trim.
- Troubleshoot common issues: If the doorbell doesn’t ring, check power, wiring, and chime connections.
- Consider smart upgrades: Smart doorbells offer video, alerts, and remote access—great for modern homes.
How to Install a Doorbell Ring: A Complete Step-by-Step Guide
Installing a doorbell ring might seem like a small task, but it can make a big difference in your home’s safety and convenience. Whether you’re replacing an old, broken doorbell or installing one for the first time, this guide will walk you through the entire process—from choosing the right model to testing the final setup. You don’t need to be an electrician to do this. With the right tools and a little patience, you can have a working doorbell in under an hour.
In this guide, you’ll learn how to install a doorbell ring safely and correctly. We’ll cover everything from turning off the power and removing the old unit to wiring the new doorbell and troubleshooting common problems. Whether you’re going with a traditional wired doorbell, a wireless model, or a smart doorbell with video, the steps are similar—and we’ll explain the differences along the way.
By the end of this guide, you’ll not only know how to install a doorbell ring, but you’ll also understand how doorbells work, what tools you need, and how to avoid common mistakes. Let’s get started!
What You’ll Need Before You Begin

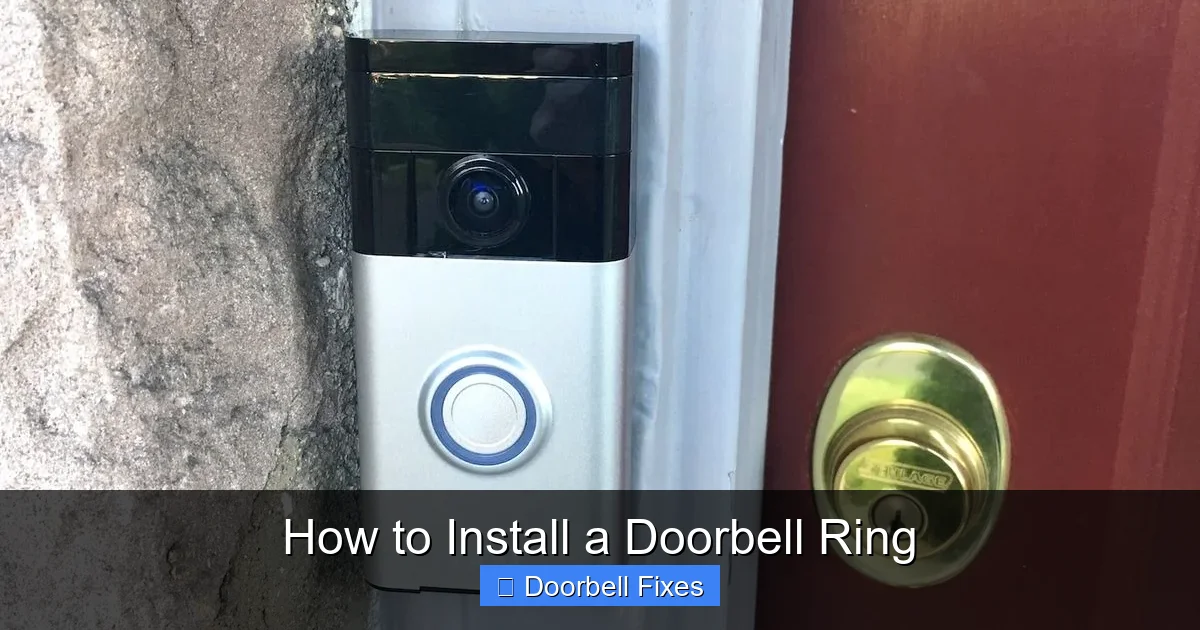

Visual guide about How to Install a Doorbell Ring
Image source: robots.net
Before you touch any wires or remove the old doorbell, it’s important to gather all the tools and materials you’ll need. Having everything ready will save time and reduce frustration.
Here’s a checklist of what you’ll need:
- New doorbell kit: This usually includes the button, chime unit, and sometimes a transformer or mounting hardware.
- Screwdrivers: Both flathead and Phillips head screwdrivers are useful for removing covers and tightening connections.
- Voltage tester: A non-contact voltage tester helps confirm that the power is off before you start working.
- Wire strippers: These are used to remove insulation from wires if you need to expose fresh copper.
- Drill and drill bits: You may need to drill holes for mounting screws, especially if installing a new doorbell in a different location.
- Electrical tape: Useful for insulating wire connections or marking wires.
- Pencil or marker: For marking drill points or labeling wires.
- Ladder: If your doorbell is high up, a stable ladder is essential for safety.
- Safety glasses: Protect your eyes when drilling or working near electrical components.
If you’re installing a smart doorbell, you may also need a smartphone or tablet to complete the setup via an app. Some models require a strong Wi-Fi signal, so make sure your doorbell location has good coverage.
Step 1: Turn Off the Power
Safety is the most important part of any electrical project. Before you remove the old doorbell or touch any wires, you must turn off the power.
Locate Your Electrical Panel
Go to your home’s main electrical panel (also called the breaker box). Look for a breaker labeled “doorbell,” “chime,” or “front door.” If there isn’t a specific label, you may need to test breakers one by one.
Turn Off the Correct Breaker
Switch the breaker to the “off” position. To be extra safe, use a non-contact voltage tester at the doorbell button and chime unit to confirm that no electricity is flowing. The tester should not light up or beep if the power is off.
Pro Tip: If you’re unsure which breaker controls the doorbell, turn off the main breaker temporarily. This cuts power to the entire house, ensuring safety.
Label the Breaker (Optional but Helpful)
Once you’ve identified the correct breaker, label it clearly so you or others can find it easily in the future.
Step 2: Remove the Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, you’ll need to remove the old unit before installing the new one.
Remove the Doorbell Button
Use a screwdriver to remove the screws holding the doorbell button to the wall. Gently pull the button away from the wall. You should see two small wires connected to the back.
Disconnect the Wires
Carefully unscrew the terminal screws or release the wire clips to disconnect the wires. Don’t let the wires fall back into the wall—use a piece of tape to hold them in place.
Remove the Chime Unit
Go inside your home to the chime unit, usually located in a hallway or near the front door. Remove the cover and unscrew the unit from the wall. Disconnect the wires, again using tape to keep them from retracting.
Note: Take a photo of the wiring before disconnecting anything. This will help you remember how to reconnect the new doorbell.
Step 3: Choose the Right Doorbell for Your Home
Not all doorbells are the same. The type you choose will affect how you install it.
Wired Doorbell
A traditional wired doorbell uses low-voltage wires connected to a transformer (usually near your furnace or electrical panel). It’s reliable and doesn’t require batteries, but it requires existing wiring or new wire installation.
Wireless Doorbell
A wireless doorbell uses radio signals to connect the button to the chime. The button runs on batteries, and the chime plugs into an outlet. It’s easy to install and great for homes without existing doorbell wiring.
Smart Doorbell
Smart doorbells (like Ring, Nest, or Arlo) connect to your Wi-Fi and send alerts to your phone. Some are wired, while others are battery-powered. They often include video, motion detection, and two-way audio.
Choosing Tip: If you have existing wiring, a wired or smart wired doorbell is a good choice. If not, go wireless or battery-powered.
Step 4: Install the New Doorbell Button
Now it’s time to install the new doorbell button at your front door.
Position the Button
Hold the new button against the wall where you want it installed. Make sure it’s at a comfortable height (usually 48 inches from the ground) and aligned with the door frame.
Mark the Screw Holes
Use a pencil to mark the spots where you’ll drill for the mounting screws.
Drill Pilot Holes
Use a drill to create small pilot holes at the marked spots. This makes it easier to insert the screws and prevents the wood or siding from splitting.
Connect the Wires
Strip about 1/4 inch of insulation from the ends of the wires if needed. Connect them to the terminals on the back of the doorbell button. Most buttons have two terminals labeled “Front” and “Trans,” but the labels may vary. It doesn’t matter which wire goes where—doorbell circuits are not polarity-sensitive.
Secure the Button
Screw the button into place using the provided screws. Make sure it’s tight and flush against the wall.
Pro Tip: If the wires are too short, you can use wire nuts to extend them, but this is rare. Most doorbell wires are long enough.
Step 5: Install the Chime Unit
Next, install the chime unit inside your home.
Position the Chime
Choose a location where the sound will be heard clearly—usually in a central hallway or living area. Avoid placing it behind thick walls or in noisy areas.
Mount the Chime
Hold the chime unit against the wall and mark the screw holes. Drill pilot holes and secure the unit with screws.
Connect the Wires
Connect the wires from the wall to the terminals on the chime. Again, most chimes have two terminals, and the wire order doesn’t matter. Tighten the screws securely.
Attach the Cover
Snap or screw the cover onto the chime unit. Make sure it’s secure and aligned properly.
Step 6: Connect the Transformer (If Needed)
The transformer steps down your home’s 120V electricity to a safe 8–24V for the doorbell. It’s usually located near your furnace, in the basement, or in the electrical panel.
Locate the Transformer
Find the transformer—it looks like a small metal box with wires coming out. It may be connected to a junction box or mounted directly to a stud.
Check the Voltage
Use a multimeter to check the voltage output. Most doorbells require 16V, but check your new doorbell’s specifications.
Replace or Upgrade (If Necessary)
If the transformer is old or doesn’t match the required voltage, replace it. Turn off the main power, disconnect the old transformer, and install the new one following the manufacturer’s instructions.
Warning: Transformer work involves high voltage. If you’re not comfortable, hire an electrician.
Step 7: Restore Power and Test the Doorbell
Now that everything is connected, it’s time to test your work.
Turn the Power Back On
Go to the breaker box and turn the doorbell breaker back on.
Test the Button
Press the doorbell button. You should hear the chime ring inside.
Check for Issues
If the doorbell doesn’t ring, don’t panic. We’ll cover troubleshooting in the next section.
Pro Tip: If you installed a smart doorbell, download the app and follow the setup instructions to connect it to Wi-Fi and complete the configuration.
Troubleshooting Common Doorbell Problems
Even with careful installation, issues can happen. Here’s how to fix the most common problems.
Doorbell Doesn’t Ring
- Check the power: Make sure the breaker is on and the transformer is working.
- Test the button: Use a multimeter to check for continuity when the button is pressed.
- Inspect the chime: Open the chime unit and check for loose wires or burnt components.
Doorbell Rings Weakly or Intermittently
- Loose wires: Tighten all connections at the button, chime, and transformer.
- Low voltage: The transformer may be underpowered. Upgrade to a 16V or 24V model.
- Faulty button: The button may be worn out. Replace it.
Smart Doorbell Won’t Connect to Wi-Fi
- Check signal strength: Move your router closer or use a Wi-Fi extender.
- Restart the device: Power cycle the doorbell and router.
- Update the app: Make sure you’re using the latest version of the manufacturer’s app.
Chime Makes a Buzzing Sound
This usually means the chime is getting power but the button isn’t completing the circuit. Check the button wiring and connections.
Safety Tips and Best Practices
Installing a doorbell is generally safe, but it’s important to follow best practices.
- Always turn off power: Never work on electrical components with the power on.
- Use insulated tools: This reduces the risk of shock.
- Don’t overload circuits: If you’re adding multiple devices, ensure your transformer can handle the load.
- Keep wires organized: Use wire nuts and electrical tape to secure connections.
- Follow manufacturer instructions: Every doorbell is slightly different—read the manual.
Upgrading to a Smart Doorbell
If you’re ready for more features, consider upgrading to a smart doorbell.
Benefits of Smart Doorbells
- Video monitoring: See who’s at the door from your phone.
- Motion alerts: Get notifications when someone approaches.
- Two-way audio: Talk to visitors remotely.
- Cloud storage: Record and save footage.
Installation Tips for Smart Doorbells
- Ensure strong Wi-Fi: Test signal strength at the door before installing.
- Use a strong mounting bracket: Smart doorbells are heavier than traditional buttons.
- Charge or replace batteries: Battery-powered models need regular charging.
- Set up the app: Follow the app instructions carefully for best results.
Conclusion
Learning how to install a doorbell ring is a practical skill that can save you money and improve your home’s functionality. Whether you’re installing a simple wired doorbell or a high-tech smart model, the process is straightforward when you follow the right steps.
Remember to always prioritize safety by turning off the power and using the correct tools. Take your time with wiring and testing, and don’t hesitate to consult the manufacturer’s guide if you’re unsure.
With this guide, you now have everything you need to install a doorbell ring confidently. Once it’s working, you’ll enjoy the convenience of knowing when someone’s at your door—whether you’re home or away.
So grab your tools, turn off the breaker, and get started. Your new doorbell will be ringing in no time!
