Installing a doorbell transformer and chime doesn’t have to be complicated. This guide walks you through the entire process—from choosing the right components to wiring and testing—so you can upgrade or replace your doorbell with confidence. Perfect for DIYers who want a reliable, long-lasting doorbell system.
Key Takeaways
- Turn off power before starting: Always shut off electricity at the breaker to prevent shocks or damage.
- Choose the right transformer: Match voltage and wattage to your chime and doorbell button needs (typically 16V, 10–30VA).
- Locate the transformer correctly: Install it inside near an outlet, often in the basement, attic, or electrical panel.
- Use proper wiring techniques: Low-voltage wires should be connected securely and routed safely away from high-voltage lines.
- Test before finalizing: Power up and test the chime and button before securing everything in place.
- Label wires for easy troubleshooting: Marking wires during removal helps avoid confusion during reinstallation.
- Consult an electrician if unsure: If you’re uncomfortable with electrical work, hire a professional.
How to Install a Doorbell Transformer and Chime
Upgrading or installing a new doorbell system might seem like a small project, but it involves working with both high and low-voltage wiring—so it’s important to get it right. Whether your old doorbell stopped working, you’re renovating your home, or you simply want a more modern chime with better sound, this step-by-step guide will walk you through how to install a doorbell transformer and chime safely and effectively.
In this guide, you’ll learn everything from choosing the right components to wiring the system, testing it, and troubleshooting common issues. We’ll keep things simple, clear, and safe—so even if you’ve never touched electrical wiring before, you’ll feel confident tackling this project.
By the end, you’ll have a fully functional doorbell system that’s reliable, quiet, and built to last. Let’s get started!
What You’ll Need

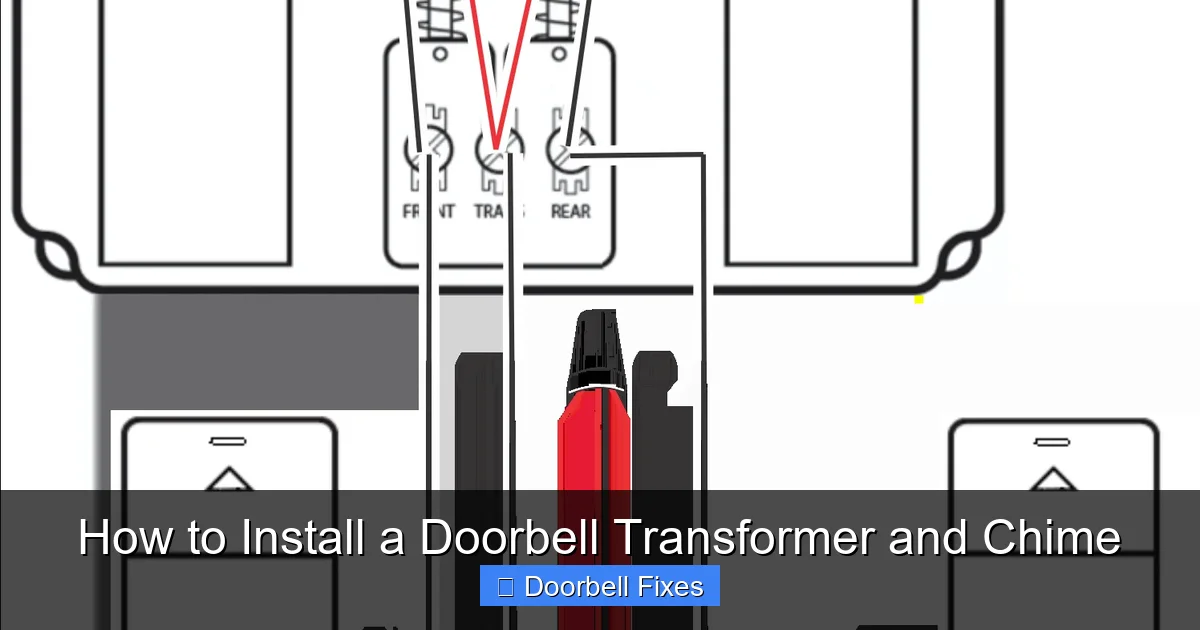

Visual guide about How to Install a Doorbell Transformer and Chime
Image source: i.ytimg.com
Before you begin, gather all the tools and materials. Having everything ready will save time and prevent frustration.
Tools
- Screwdrivers (flathead and Phillips)
- Wire strippers
- Voltage tester (non-contact)
- Drill and drill bits (if mounting new components)
- Electrical tape
- Pliers
- Wire nuts
- Stud finder (optional, for mounting)
- Ladder (if working in high areas)
Materials
- Doorbell transformer (16V, 10–30VA recommended)
- Doorbell chime unit
- Doorbell button (if replacing)
- Low-voltage doorbell wire (18–22 gauge, typically 2-conductor)
- Wire labels or colored tape
- Mounting screws and anchors
- Electrical box (if not already present)
Safety Gear
- Insulated gloves
- Safety glasses
- Rubber-soled shoes
Always prioritize safety. Even though doorbell systems use low voltage, the transformer connects to your home’s main electrical supply—so treat it with the same caution as any other electrical project.
Step 1: Turn Off the Power
Safety first! Before touching any wires, you must turn off the power at the main electrical panel.
Locate the Correct Circuit
Most doorbell transformers are connected to a 120V circuit, often labeled “doorbell,” “chime,” or “low voltage.” If you’re unsure, turn off the main breaker to be safe.
Verify Power Is Off
Use a non-contact voltage tester at the transformer location (usually near the electrical panel, in the basement, or attic). Touch the tester to the wires—if it beeps or lights up, power is still on. Double-check your breaker and test again.
Never assume the power is off. Always test.
Step 2: Locate the Existing Transformer (If Replacing)
If you’re replacing an old doorbell system, you’ll need to find the existing transformer. It’s usually tucked away in a junction box near your electrical panel, furnace, or in the attic.
Common Locations
- Inside the electrical panel (mounted on the side or back)
- Near the furnace or water heater
- In the basement ceiling or wall cavity
- Inside a closet or utility room
Look for a small, rectangular metal box with wires coming out—often labeled “16V” or “24V.” It may be hidden behind drywall or insulation, so check carefully.
Remove the Old Transformer
Once you’ve located it:
- Disconnect the low-voltage wires (usually two small-gauge wires) from the transformer terminals.
- Unscrew the transformer from its mounting bracket or electrical box.
- Carefully pull it out and set it aside.
Label the wires with tape (e.g., “Front Door,” “Back Door”) so you know where they go later.
Step 3: Choose the Right Transformer
Not all transformers are created equal. You need one that matches your chime and doorbell button requirements.
Voltage and Wattage
Most standard doorbells use a 16-volt transformer with a wattage (VA) rating between 10 and 30 VA. Here’s a quick guide:
- 10–15 VA: Suitable for one simple chime and one button.
- 20–30 VA: Better for multiple chimes, video doorbells, or long wire runs.
Check your chime unit’s label or manual for its voltage and wattage requirements. If it says “16V AC, 10VA,” get a transformer that meets or exceeds that.
Where to Buy
You can find doorbell transformers at:
- Home improvement stores (Home Depot, Lowe’s)
- Electrical supply shops
- Online retailers (Amazon, Wayfair)
Look for reputable brands like Nutone, Heath/Zenith, or Ring (for smart doorbells).
Step 4: Install the New Transformer
Now it’s time to mount and wire the new transformer.
Mounting Location
Install the transformer in a dry, accessible location near an electrical outlet. Common spots include:
- Inside the electrical panel (if space allows)
- On a junction box in the basement or attic
- Near the furnace or water heater
Avoid areas with high heat, moisture, or direct sunlight.
Mounting the Transformer
- Hold the transformer against the mounting surface and mark screw holes.
- Drill pilot holes if needed.
- Secure it with screws or use the built-in mounting bracket.
Make sure it’s firmly attached and won’t vibrate or rattle.
Connect the High-Voltage Wires
The transformer has two input wires (usually black and white) that connect to your home’s 120V power.
- Strip about ½ inch of insulation from the ends of the transformer’s input wires.
- Connect the black wire to the hot (black) wire from the electrical box using a wire nut.
- Connect the white wire to the neutral (white) wire.
- Secure with electrical tape for extra safety.
Never connect the transformer to a switched outlet—it should always be powered.
Connect the Low-Voltage Wires
The transformer’s output terminals (usually labeled “1” and “2” or “Common” and “Front”) connect to the doorbell wires.
- Strip the ends of the low-voltage wires from your doorbell circuit.
- Attach one wire to each terminal on the transformer.
- Tighten the terminal screws securely.
If you have multiple doors (front and back), you may have three wires: common, front, and rear. The common wire usually goes to one terminal, and the front/rear wires go to the other terminal (or to separate terminals if your transformer supports it).
Step 5: Run or Replace Doorbell Wiring
If your existing wires are damaged or too short, you may need to run new ones.
Check Wire Condition
Inspect the wires from the doorbell button to the chime location. Look for:
- Frayed or cracked insulation
- Corrosion at connection points
- Loose or broken wires
If any of these are present, replace the wire.
Running New Wire
- Plan the route from the doorbell button to the chime, then to the transformer.
- Use a fish tape or flexible drill bit to pull wire through walls or ceilings.
- Use 18- or 22-gauge, 2-conductor low-voltage wire.
- Avoid running wires near high-voltage lines (like Romex) to prevent interference.
Tip: If you’re installing a video doorbell, consider using a higher-gauge wire or a dedicated power kit, as they draw more current.
Connect the Doorbell Button
At the doorbell button location:
- Remove the old button (if replacing).
- Strip the ends of the two wires.
- Attach one wire to each terminal on the new button.
- Secure the button to the wall with screws.
Most buttons are not polarity-sensitive, so it doesn’t matter which wire goes where.
Step 6: Install the Doorbell Chime
The chime is the unit that makes the sound when someone presses the button.
Choose a Location
Mount the chime inside your home where it’s clearly audible—typically in a central hallway, living room, or kitchen. Avoid placing it behind furniture or in a closet.
Mount the Chime Unit
- Hold the chime against the wall and mark screw holes.
- Drill pilot holes and insert wall anchors if needed.
- Secure the chime with screws.
Some chimes come with adhesive strips or magnetic mounts, but screws are more reliable.
Connect the Wires
Most chimes have three terminals:
- Front: Connects to the front door button
- Trans: Connects to the transformer
- Rear: Connects to the back door button (if applicable)
If you only have one door, connect the two wires from the button and transformer to the “Front” and “Trans” terminals. The exact wiring may vary—always check the manufacturer’s diagram.
Secure the Cover
Once wired, snap or screw the chime cover into place. Make sure no wires are pinched.
Step 7: Restore Power and Test
Now it’s time to see if everything works.
Turn the Power Back On
Go to your electrical panel and flip the breaker back on.
Test the Doorbell
- Press the doorbell button.
- Listen for the chime.
- If it works, great! If not, proceed to troubleshooting.
You can also use a multimeter to check voltage at the chime terminals. You should see around 16V AC when the button is not pressed.
Troubleshooting Common Issues
Even with careful installation, problems can occur. Here’s how to fix the most common ones.
No Sound When Button Is Pressed
- Check power: Is the breaker on? Test voltage at the transformer.
- Check connections: Are all wires tight and properly connected?
- Test the button: Use a multimeter to check continuity when pressed.
- Test the chime: Try connecting a known-good transformer directly to the chime.
Chime Sounds Weak or Intermittent
- Low voltage: The transformer may be underpowered. Upgrade to a higher VA rating.
- Long wire run: Voltage drops over distance. Use thicker wire or a higher-voltage transformer.
- Loose connections: Re-tighten all terminal screws.
Chime Rings Randomly
- Faulty button: Moisture or dirt can cause false triggers. Replace the button.
- Loose wire: A frayed wire touching metal can cause short circuits.
- Transformer buzzing: Some transformers hum under load—this is normal, but excessive noise may indicate a problem.
Transformer Overheats
- Overloaded: Too many chimes or devices drawing power. Reduce load or upgrade transformer.
- Poor ventilation: Ensure the transformer has airflow and isn’t covered.
- Defective unit: Replace if it’s hot to the touch or smells burnt.
Safety Tips and Best Practices
Always Turn Off Power
Even though the doorbell uses low voltage, the transformer connects to 120V mains power. Never work on it while energized.
Use the Right Tools
Wire strippers, voltage testers, and insulated screwdrivers reduce the risk of shock and damage.
Label Everything
Mark wires during removal so you don’t mix them up later.
Follow Local Codes
Some areas require permits or licensed electricians for electrical work. Check with your local building department.
When to Call a Professional
If you’re unsure about wiring, don’t have access to the electrical panel, or encounter complex issues, hire a licensed electrician. It’s better to be safe than sorry.
Conclusion
Installing a doorbell transformer and chime is a manageable DIY project that can improve your home’s functionality and curb appeal. With the right tools, a clear plan, and attention to safety, you can complete the job in a few hours.
Remember to:
- Turn off power before starting
- Choose the correct transformer and chime
- Wire everything securely and test thoroughly
- Troubleshoot any issues methodically
A working doorbell is more than just a convenience—it’s a small upgrade that adds peace of mind and value to your home. So grab your tools, follow this guide, and enjoy the satisfying click of a properly installed doorbell!
