How to Install a Doorbell Transformer Video

This guide walks you through how to install a doorbell transformer to support your video doorbell, ensuring safe wiring, proper voltage, and reliable performance. You’ll learn essential safety tips, tools needed, and troubleshooting advice to complete the job like a pro.

Key Takeaways

• Turn off power at the breaker before starting any electrical work to prevent shocks or damage.
• Use a 16-24V AC transformer compatible with most video doorbells for optimal performance.
• Locate the transformer near the chime or in the electrical panel—it’s often hidden behind walls or in basements.
• Run low-voltage wires carefully to avoid interference and ensure a clean connection.
• Test the system before finalizing installation to confirm the doorbell receives power and functions correctly.
• Upgrade old transformers if your video doorbell isn’t getting enough power or keeps rebooting.
• Consult a licensed electrician if you’re unsure about wiring or electrical safety.

How to Install a Doorbell Transformer: A Complete Video Doorbell Upgrade Guide

So, you’ve just bought a shiny new video doorbell—maybe a Ring, Nest, or Eufy—and you’re excited to install it. But then you open the box and see a note: “Requires a compatible doorbell transformer.” Uh-oh. What does that even mean?

Don’t worry. You’re not alone. Many homeowners hit this snag when upgrading from a simple mechanical doorbell to a smart video model. The good news? Installing a doorbell transformer isn’t as scary as it sounds. With the right tools, a bit of patience, and this step-by-step guide, you can do it safely and correctly—no electrician required (though we’ll tell you when to call one).

In this guide, we’ll walk you through everything you need to know about how to install a doorbell transformer for your video doorbell. You’ll learn where to find your current transformer, how to replace or upgrade it, and how to wire it properly so your new doorbell gets the power it needs. We’ll also cover safety tips, common mistakes to avoid, and troubleshooting advice if things don’t go as planned.

Whether you’re a DIY beginner or a seasoned home improver, this guide is designed to make the process simple, safe, and stress-free. Let’s get started!

Why Your Video Doorbell Needs a Transformer

Before we dive into the installation, let’s talk about why transformers matter—especially for video doorbells.

Traditional doorbells run on very low voltage, usually around 8 to 16 volts AC (alternating current). They don’t need much power because all they do is ring a chime when someone presses the button. But video doorbells? They’re a whole different story.

Smart doorbells come with cameras, motion sensors, Wi-Fi connectivity, night vision, two-way audio, and sometimes even facial recognition. All these features require more power than a standard doorbell. That’s where the transformer comes in.

The doorbell transformer steps down your home’s standard 120V AC power to a safer, lower voltage (usually 16V or 24V) that your doorbell can use. Most video doorbells recommend a transformer that outputs between 16 and 24 volts with at least 20 to 30 VA (volt-amperes) of power.

If your current transformer is too weak or outdated, your video doorbell might:
– Fail to turn on
– Reboot randomly
– Have poor video quality
– Lose Wi-Fi connection frequently
– Not charge its battery (if it’s a hybrid model)

Upgrading to a compatible transformer ensures your doorbell gets steady, reliable power—so you can enjoy crisp video, instant alerts, and smooth performance.

Tools and Materials You’ll Need

Before you start, gather these tools and supplies. Having everything ready will save time and reduce frustration.

Essential Tools

• Voltage tester or multimeter – To check if power is off and verify voltage output.
• Screwdrivers – Phillips and flathead, for removing covers and terminals.
• Wire strippers – To strip insulation from low-voltage wires.
• Electrical tape – For insulating connections.
• Wire nuts – To secure wire connections (if needed).
• Drill and drill bits – Only if you need to run new wires or mount the transformer.
• Fish tape or wire puller – Helpful for threading wires through walls.

Materials

• Doorbell transformer (16V or 24V, 20–30VA) – Choose one compatible with your doorbell brand.
• Low-voltage wire (18 or 20 gauge) – If you need to extend or replace existing wires.
• Wire connectors or terminal blocks – For secure connections.
• Mounting screws or brackets – To secure the transformer in place.

Optional but Helpful

• Flashlight or headlamp – For better visibility in dark areas like basements or attics.
• Labeling tape – To mark wires and avoid confusion.
• Smartphone or tablet – To watch installation videos or take reference photos.

Pro tip: If you’re unsure about the transformer specs, check your video doorbell’s manual or the manufacturer’s website. Most brands list compatible transformers and even sell them directly.

Step 1: Turn Off the Power

Safety first! Working with electricity is never something to take lightly. Even though doorbell transformers use low voltage, they’re still connected to your home’s main electrical system. That means there’s a real risk of electric shock if you don’t disconnect power properly.

Locate Your Electrical Panel

Go to your home’s main electrical panel (also called the breaker box). It’s usually in the basement, garage, or utility closet. Open the door and look for the circuit breakers.

Find the Doorbell Circuit

Most homes have a dedicated breaker for the doorbell, but it might not be labeled clearly. Look for breakers labeled “Doorbell,” “Chime,” or “Low Voltage.” If you can’t find one, you may need to test each breaker by turning them off one at a time and checking if the doorbell stops working.

Turn Off the Breaker

Once you’ve identified the correct breaker, switch it to the “OFF” position. Use a voltage tester or multimeter to double-check that power is off at the transformer location. Touch the tester to the transformer’s input terminals—if it beeps or lights up, power is still on. Wait until it reads zero volts.

Lock Out the Breaker (Optional but Recommended)

If you’re working alone or want extra safety, use a breaker lock or tape to prevent someone from accidentally turning the power back on while you’re working.

Never skip this step. Even a small mistake can lead to serious injury or damage to your equipment.

Step 2: Locate Your Existing Doorbell Transformer

Now that the power is off, it’s time to find your current transformer. It’s usually hidden, so don’t expect it to be sitting out in the open.

Common Locations

• Behind the doorbell chime – Open the chime unit (usually mounted on a wall inside your home). The transformer is often tucked behind it, connected to the chime wires.
• In the electrical panel – Some transformers are mounted directly inside the breaker box, especially in newer homes.
• In the basement or attic – Look near the furnace, water heater, or along basement ceiling joists.
• Inside a junction box – Sometimes transformers are enclosed in a metal or plastic box mounted on a wall or ceiling.

How to Identify It

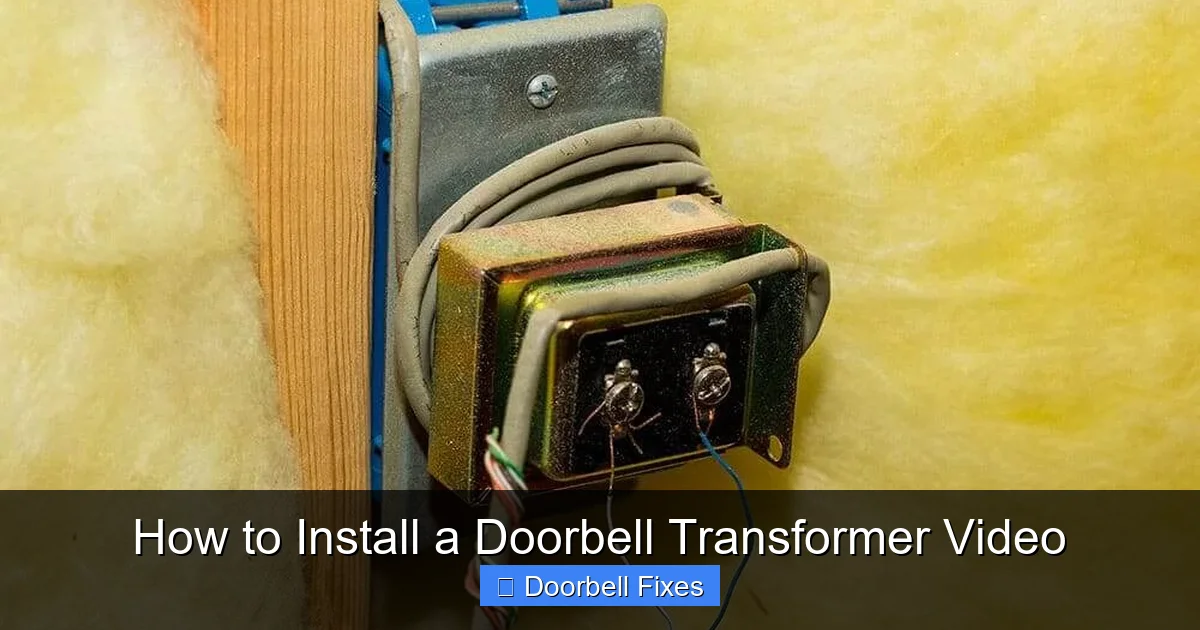

A doorbell transformer looks like a small metal or plastic box with wires coming out of it. It typically has:
– Two input wires (connected to 120V power)
– Two output wires (connected to the doorbell and chime)
– A label showing voltage (e.g., 16V) and wattage (e.g., 20VA)

If you can’t find it, follow the low-voltage wires from your doorbell button or chime. They should lead back to the transformer.

Pro tip: Take a photo of the current wiring before disconnecting anything. This will help you reconnect everything correctly later.

Step 3: Remove the Old Transformer

Once you’ve located the transformer, it’s time to remove it—but carefully.

Disconnect the Low-Voltage Wires

The output wires (usually two, often red and white or black and white) connect to your doorbell and chime. Loosen the terminal screws or wire nuts and gently pull the wires free. Label them if needed (e.g., “Doorbell” and “Chime”) to avoid confusion later.

Disconnect the High-Voltage Wires

The input wires (typically black and white) connect to your home’s 120V power. These are usually connected to a junction box or directly to the electrical panel. Use your screwdriver to loosen the terminal screws or remove wire nuts. Be extra careful—even though the power is off, these wires are live when the breaker is on.

Unmount the Transformer

Most transformers are mounted with screws or clips. Remove the mounting hardware and gently pull the transformer free. If it’s stuck, wiggle it slightly or use a flathead screwdriver to pry it loose.

Set the old transformer aside. You can recycle it or keep it as a backup.

Step 4: Install the New Transformer

Now for the fun part—installing your new transformer. Make sure it matches the voltage and wattage requirements of your video doorbell.

Choose the Right Location

Mount the new transformer in the same spot as the old one, if possible. This minimizes the need to run new wires. If you’re installing it in a new location (e.g., inside the electrical panel), make sure it’s accessible and protected from moisture.

Mount the Transformer

Use the included screws or mounting bracket to secure the transformer to a stud, junction box, or electrical panel. Make sure it’s firmly attached and won’t vibrate or rattle.

Connect the High-Voltage Wires

Connect the black (hot) and white (neutral) wires from your home’s power supply to the input terminals on the transformer. Tighten the screws securely. If your transformer uses wire nuts, twist the wires together and cap them with a wire nut.

Double-check that the connections are tight and insulated with electrical tape.

Connect the Low-Voltage Wires

Attach the output wires to the transformer’s low-voltage terminals. These will run to your doorbell and chime. Again, tighten the screws or use wire nuts. Make sure the connections are secure—loose wires can cause poor performance or no power at all.

If you’re running new wires, use 18 or 20 gauge low-voltage wire. Strip about 1/2 inch of insulation from each end before connecting.

Secure and Organize Wires

Use zip ties or wire clips to keep wires neat and prevent them from touching each other or metal surfaces. This reduces the risk of short circuits and makes future maintenance easier.

Step 5: Restore Power and Test the System

You’re almost done! Now it’s time to turn the power back on and see if everything works.

Turn On the Breaker

Go back to your electrical panel and switch the doorbell breaker to the “ON” position. Listen for any unusual sounds (like buzzing or clicking) from the transformer.

Test the Voltage

Use your multimeter to check the output voltage at the transformer’s low-voltage terminals. Set the meter to AC voltage and touch the probes to the two output wires. You should see a reading close to the transformer’s rated voltage (e.g., 16V or 24V).

If the voltage is too low or zero, double-check your wiring. A loose connection or incorrect wiring could be the culprit.

Test the Doorbell

Press the doorbell button. The chime should ring, and your video doorbell should power on. Open the app on your phone and check for a live video feed. Look for:
– Clear video and audio
– Stable Wi-Fi connection
– No flickering or rebooting

If everything works, congratulations—you’ve successfully installed your doorbell transformer!

Troubleshooting Common Issues

Even with careful installation, problems can happen. Here’s how to fix the most common issues.

Doorbell Won’t Turn On

– Check that the breaker is on and the transformer is receiving power.
– Verify the low-voltage wires are connected correctly.
– Test the transformer output with a multimeter—should be 16–24V AC.
– Ensure the doorbell button isn’t faulty (test with a jumper wire).

Video Doorbell Keeps Rebooting

– This usually means insufficient power. Upgrade to a higher-wattage transformer (e.g., 30VA instead of 20VA).
– Check for voltage drop over long wire runs—use thicker wire (18 gauge) if needed.
– Make sure the transformer isn’t overloaded (e.g., powering multiple devices).

Chime Doesn’t Ring

– Confirm the chime wires are connected to the correct terminals.
– Test the chime unit separately—it may be broken.
– Ensure the transformer voltage matches the chime’s requirements.

Buzzing or Humming Sound

– This can happen if the transformer is overloaded or poorly mounted.
– Secure the transformer firmly to reduce vibration.
– Replace with a higher-quality or higher-wattage model.

Wi-Fi Connection Drops

– While this is often a Wi-Fi issue, low power can also cause instability.
– Ensure the transformer provides consistent voltage.
– Move your router closer or use a Wi-Fi extender if signal is weak.

When to Call a Professional

Most homeowners can handle a transformer replacement with basic tools and caution. But there are times when it’s best to call a licensed electrician:

– You can’t locate the transformer or access the wiring.
– Your electrical panel is outdated or overloaded.
– You’re uncomfortable working with electricity.
– You need to run new wires through finished walls.
– The transformer is inside a sealed junction box or conduit.

A professional can ensure the job is done safely and up to code—especially important if you’re planning to sell your home or upgrade other electrical systems.

Final Tips for a Successful Installation

– Label everything before disconnecting wires.
– Take photos at each step for reference.
– Use quality components—cheap transformers can fail prematurely.
– Don’t overload the transformer—stick to one doorbell and chime.
– Check local codes—some areas require permits for electrical work.

With the right preparation and attention to detail, installing a doorbell transformer is a manageable DIY project that pays off with reliable, high-performance video doorbell operation.

Conclusion

Installing a doorbell transformer might seem intimidating at first, but it’s a straightforward process once you understand the basics. By following this guide, you’ve learned how to safely locate, remove, and replace your transformer—ensuring your video doorbell gets the power it needs to function at its best.

Remember: always turn off the power, use the right tools, and test your system before calling the job done. And if you ever feel unsure, don’t hesitate to consult a professional.

Now that your transformer is installed, you can enjoy all the benefits of your smart doorbell—crisp video, instant alerts, and peace of mind—knowing it’s powered reliably and safely.

Welcome to the future of home security. You’ve got this!
