This guide walks you through how to install a doorbell with one button, from turning off power to testing your new chime. Whether you’re replacing an old unit or installing one for the first time, we’ve got you covered with clear, beginner-friendly steps.
Key Takeaways
- Turn off power first: Always shut off electricity at the breaker before working on doorbell wiring to prevent shocks or damage.
- Check compatibility: Ensure your new doorbell matches your home’s voltage (usually 8–24V) and existing wiring setup.
- Use the right tools: A voltage tester, screwdrivers, wire strippers, and a drill are essential for a smooth installation.
- Follow wiring labels: Most doorbells have clearly marked terminals—connect wires correctly to avoid malfunctions.
- Test before finishing: Always test the doorbell after wiring but before securing the cover to catch issues early.
- Upgrade options available: Consider smart doorbells for added features like video, motion detection, and smartphone alerts.
- Call a pro if unsure: If you’re uncomfortable with electrical work, hiring an electrician is the safest choice.
How to Install a Doorbell with One Button: A Complete Beginner’s Guide
Installing a doorbell with one button might sound simple—and it is! But like any home improvement project, doing it right means planning ahead, using the correct tools, and following safety steps. Whether you’re replacing an outdated chime or adding a doorbell to a new home, this guide will walk you through every step of the process.
In this comprehensive tutorial, you’ll learn how to safely remove an old doorbell (if applicable), prepare your wiring, mount the new button and chime unit, and test everything to make sure it works perfectly. We’ll also cover common pitfalls, troubleshooting tips, and when it’s best to call in a professional.
By the end of this guide, you’ll have a fully functional doorbell that enhances your home’s convenience and curb appeal—all without breaking the bank or risking your safety.
What You’ll Need Before You Start

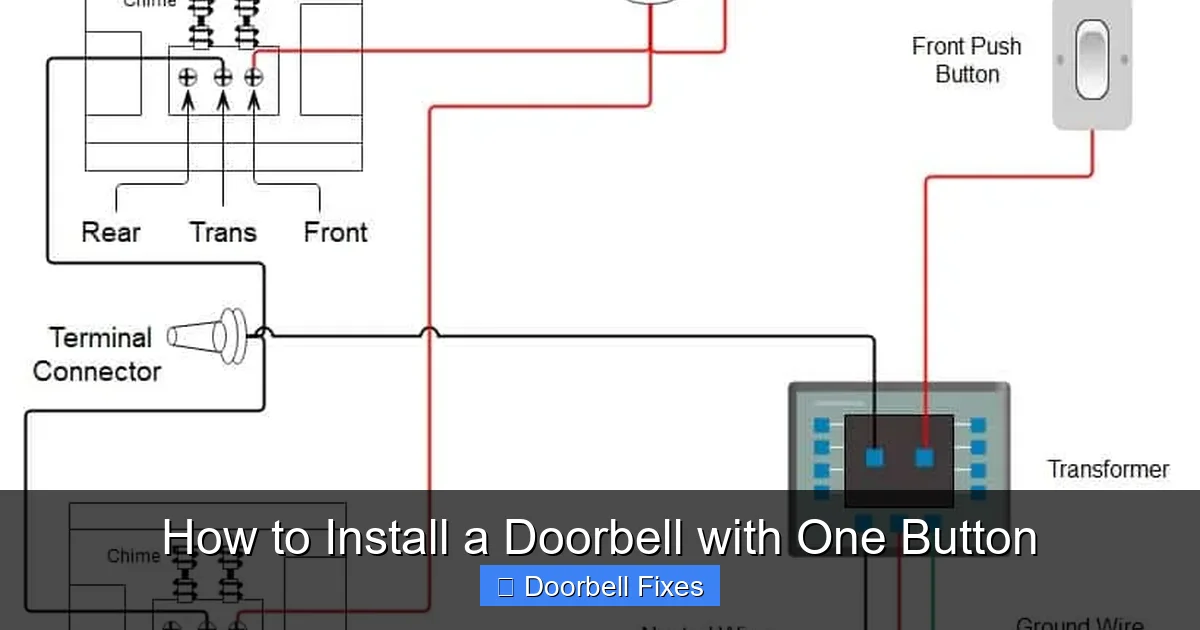

Visual guide about How to Install a Doorbell with One Button
Image source: 1.bp.blogspot.com
Before diving into the installation, gather all the necessary tools and materials. Having everything ready will save time and reduce frustration.
Essential Tools
- Screwdrivers: Both flathead and Phillips head are useful for removing covers and mounting brackets.
- Voltage tester: A non-contact voltage tester helps confirm the power is off before touching wires.
- Wire strippers: Needed if you have to trim or re-strip old wires.
- Drill and drill bits: For mounting the chime unit or button if new holes are required.
- Pencil or marker: To mark drill points and wire locations.
- Electrical tape: Useful for insulating wire connections or labeling wires temporarily.
- Level: Ensures your doorbell button and chime are mounted straight.
Materials
- New doorbell kit: Includes the button, chime unit, and mounting hardware. Choose a model compatible with your home’s voltage.
- Wire nuts (if needed): For securing wire connections, especially if extending wires.
- Wall anchors (optional): Helpful if mounting into drywall or masonry without existing support.
Safety Gear
- Safety glasses: Protect your eyes when drilling or handling wires.
- Work gloves: Prevent cuts or pinches, especially when handling sharp edges or tight spaces.
Step 1: Turn Off the Power
Safety is the most important part of any electrical project. Even though doorbells use low voltage, they’re still connected to your home’s electrical system through a transformer. That means there’s a risk of shock if the power isn’t properly disconnected.
Locate Your Circuit Breaker
Go to your main electrical panel (usually in the basement, garage, or utility closet). Look for a breaker labeled “doorbell,” “chime,” or “low voltage.” If you don’t see a label, you may need to test breakers one by one.
Test the Power
Use your non-contact voltage tester near the existing doorbell button and chime. Press the button—if the tester beeps or lights up, power is still on. Flip breakers until the tester shows no voltage.
Pro Tip: Take a photo of your breaker panel before turning anything off. This helps you remember which breaker controls what.
Double-Check
Even after turning off the breaker, test the wires again at the doorbell button. This ensures no residual current is present.
Step 2: Remove the Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, you’ll need to remove the old components before installing the new ones.
Remove the Button
Use a screwdriver to unscrew the front plate of the doorbell button. Gently pull it away from the wall. You’ll see two wires connected to the back.
Note: Don’t pull too hard—wires may be short and connected to the chime unit inside the wall.
Disconnect the Wires
Loosen the screws holding the wires in place. Carefully remove the wires and label them with tape (e.g., “Front” or “Transformer”) so you know where to reconnect them later.
Remove the Chime Unit
Go inside to where the chime is mounted (usually near the front door). Unscrew the cover and remove it. Disconnect the wires from the terminals, again labeling them if needed.
Pro Tip: Take a photo of the wiring setup before disconnecting anything. This serves as a reference if you get confused later.
Step 3: Prepare the Wiring
Now that the old unit is out, it’s time to prepare the wires for your new doorbell.
Inspect the Wires
Check the condition of the existing wires. Look for fraying, corrosion, or damage. If the wires are in poor shape, you may need to extend them or run new ones (more on that later).
Strip the Wire Ends
Use wire strippers to remove about 1/4 inch of insulation from each wire end. This exposes fresh copper for a solid connection.
Check Wire Length
Ensure the wires are long enough to reach the new button and chime locations. If not, you can splice in additional wire using wire nuts and electrical tape.
Important: Always use the same gauge wire (usually 18- or 20-gauge) for doorbell circuits.
Step 4: Install the New Doorbell Button
The doorbell button is the part guests press to ring the chime. It’s usually mounted on the door frame or adjacent wall.
Position the Button
Hold the new button against the wall where you want it installed. Use a level to make sure it’s straight. Mark the screw holes with a pencil.
Drill Pilot Holes
If you’re drilling into wood or masonry, use a drill bit slightly smaller than the screws to create pilot holes. This prevents splitting and makes screwing easier.
Connect the Wires
Most doorbell buttons have two terminals labeled “Front” and “Transformer” (or just two screws with no labels). It doesn’t matter which wire goes where—doorbell circuits are not polarity-sensitive.
Attach one wire to each terminal and tighten the screws securely. Make sure no bare wire is exposed beyond the terminal.
Mount the Button
Align the button with the pilot holes and screw it into place. Don’t overtighten—this can crack the plastic housing.
Pro Tip: If the button feels loose, use wall anchors for a more secure fit, especially in drywall.
Step 5: Install the Chime Unit
The chime unit is the indoor component that makes the sound when the button is pressed. It’s typically mounted on a wall near the front door.
Choose a Location
Pick a spot that’s central, easy to hear, and close to the existing wiring. Avoid areas with high humidity (like near a bathroom) unless the unit is rated for it.
Mount the Chime
Hold the chime unit against the wall and mark the screw holes. Drill pilot holes if needed, then secure the mounting bracket with screws.
Connect the Wires
Your chime unit will have terminals labeled something like:
- Front: Connects to the doorbell button.
- Transformer: Connects to the low-voltage transformer (usually near your furnace or breaker panel).
- Rear (optional): For a second button at a back door (not used in this guide).
Attach the corresponding wires to the correct terminals. Tighten the screws firmly but gently.
Note: If your chime has a “Common” terminal, it usually connects to the transformer wire. Always refer to the manufacturer’s instructions.
Attach the Cover
Once the wires are connected, snap or screw the cover onto the chime unit. Make sure it’s secure and flush with the wall.
Step 6: Restore Power and Test the Doorbell
Now it’s time to see if your hard work paid off.
Turn the Power Back On
Go to your breaker panel and flip the doorbell breaker back to the “on” position.
Test the Button
Press the doorbell button. You should hear a clear, consistent chime from the indoor unit.
If it doesn’t work: Don’t panic—troubleshooting is next!
Check the Sound
Listen for clarity and volume. Some chimes have adjustable volume or tone settings—consult your manual to customize the sound.
Troubleshooting Common Doorbell Problems
Even with careful installation, issues can arise. Here’s how to fix the most common problems.
Doorbell Doesn’t Ring
- Check power: Use your voltage tester to confirm power is on at the breaker and chime.
- Inspect wiring: Make sure all connections are tight and wires aren’t loose or reversed.
- Test the button: Use a multimeter to check for continuity when the button is pressed.
- Transformer issue: A faulty transformer won’t supply enough power. Test output voltage (should be 8–24V AC).
Weak or Intermittent Sound
- Loose connections: Re-tighten all wire terminals.
- Old wiring: Corroded or damaged wires can cause poor conductivity. Replace if necessary.
- Low voltage: If the transformer is underpowered, upgrade to a higher-wattage model.
Button Sticks or Feels Stiff
- Debris in mechanism: Clean the button with compressed air or a soft brush.
- Improper mounting: If the button is too tight against the wall, it may not depress fully. Loosen the screws slightly.
Chime Makes a Buzzing Sound
- Incorrect wiring: Double-check terminal connections.
- Faulty solenoid: The internal striker may be damaged. Consider replacing the chime unit.
Upgrading to a Smart Doorbell (Optional)
Once your basic doorbell is working, you might want to upgrade to a smart model for added features.
Benefits of Smart Doorbells
- Video monitoring: See who’s at the door via your smartphone.
- Motion detection: Get alerts when someone approaches, even if they don’t ring the bell.
- Two-way audio: Speak to visitors remotely.
- Cloud storage: Save video clips for later review.
Installation Considerations
Most smart doorbells can replace traditional ones, but they often require a stronger Wi-Fi signal and a compatible transformer (usually 16–24V). Some models also need a diode or resistor to prevent chime interference.
Pro Tip: If your existing chime doesn’t work with a smart doorbell, you can disable it or use a “chime bypass” kit.
Safety Tips and Best Practices
Even though doorbells are low-voltage, safety should never be overlooked.
Always Turn Off Power
Never work on doorbell wiring with the power on. Even low voltage can cause injury or damage components.
Use Proper Tools
Avoid using damaged tools or makeshift solutions. Invest in a good voltage tester and wire strippers.
Label Wires
Labeling wires during removal prevents confusion during reinstallation.
Don’t Over-Tighten
Overtightening screws can crack plastic housings or strip terminals.
Know Your Limits
If you’re unsure about wiring, voltage, or electrical work, hire a licensed electrician. It’s better to spend a little money than risk injury or fire.
Conclusion
Installing a doorbell with one button is a straightforward DIY project that can improve your home’s functionality and security. By following this guide—turning off power, removing old components, preparing wires, mounting the new button and chime, and testing thoroughly—you can complete the job safely and successfully.
Remember to use the right tools, double-check your connections, and don’t hesitate to troubleshoot if something doesn’t work. And if you’re feeling adventurous, consider upgrading to a smart doorbell for modern convenience.
With a little patience and attention to detail, you’ll have a reliable doorbell that works perfectly for years to come. Now go ahead—ring that bell with confidence!
