Installing a Google Nest wired doorbell is simpler than you think. This guide walks you through every step—from checking compatibility to final testing—so you can upgrade your home security with confidence.
Key Takeaways
- Check compatibility first: Ensure your existing doorbell wiring and transformer meet Nest’s voltage requirements (16–24V AC).
- Turn off power safely: Always shut off electricity at the breaker before working on wiring to prevent shocks or damage.
- Use the right tools: A screwdriver, voltage tester, wire strippers, and drill (if needed) make installation smoother.
- Follow the Nest app: The app guides setup, connects your doorbell to Wi-Fi, and helps test functionality.
- Secure mounting matters: Use the included wedge or trim kit for proper angle and stability, especially on uneven surfaces.
- Test after install: Confirm chime activation, live view, and motion alerts work before finishing.
- Troubleshoot common issues: No power? Weak signal? We cover fixes for frequent problems.
Introduction: Why Upgrade to a Google Nest Wired Doorbell?
Your front door is the first line of defense for your home—and a smart doorbell like the Google Nest Wired Doorbell adds convenience, security, and peace of mind. Unlike traditional doorbells, this device offers HD video, two-way audio, motion detection, and real-time alerts straight to your phone. Best of all, it runs on existing doorbell wiring, so you don’t need to worry about battery changes.
In this comprehensive guide, we’ll walk you through how to install a Google Nest wired doorbell from start to finish. Whether you’re replacing an old mechanical chime or upgrading from a basic wired model, we’ll cover everything: checking compatibility, turning off power, removing your old doorbell, mounting the new one, connecting wires, and setting it up via the Google Home app. By the end, you’ll have a fully functional smart doorbell that integrates seamlessly with your smart home ecosystem.
Don’t worry if you’re not a DIY expert—this project is beginner-friendly with the right preparation. Just gather your tools, follow our step-by-step instructions, and take your time. Let’s get started!
What You’ll Need Before Starting
Before you touch a single wire, make sure you have all the necessary tools and materials. Rushing into installation without preparation can lead to frustration—or worse, electrical hazards.

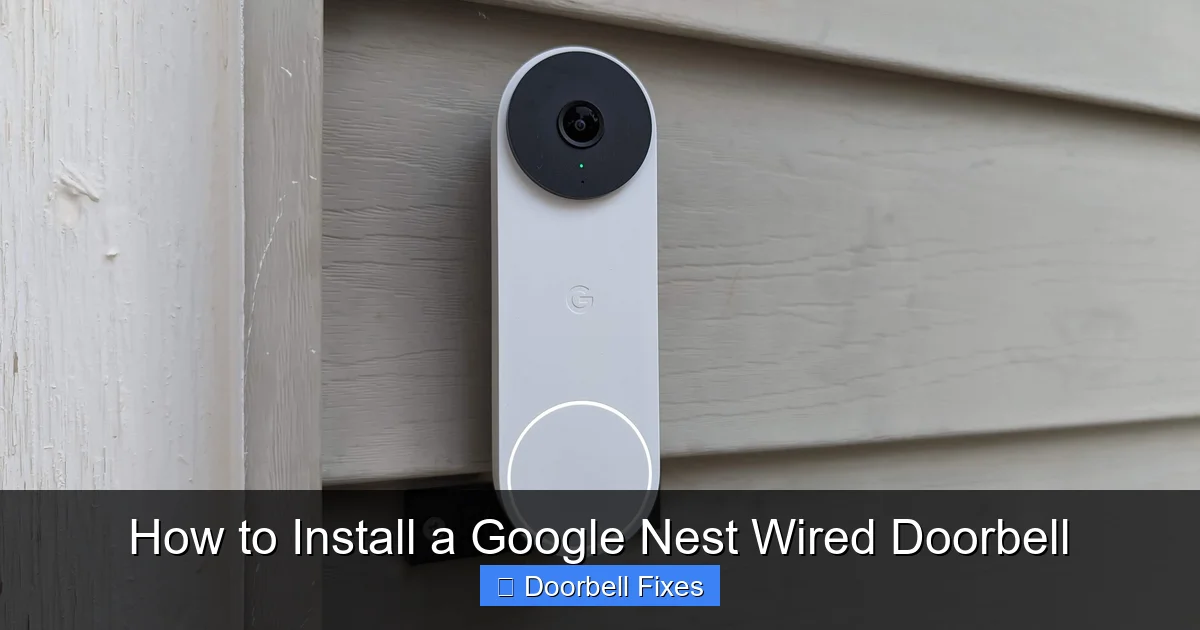

Visual guide about How to Install a Google Nest Wired Doorbell
Image source: storables.com
Essential Tools
- Screwdriver set: Phillips and flathead for removing faceplates and mounting hardware.
- Voltage tester: Non-contact type to confirm power is off.
- Wire strippers: To expose fresh copper if your wires are frayed or too short.
- Drill and bits (optional): Only if you need to drill new holes for mounting.
- Pencil or marker: For marking screw positions.
- Electrical tape: To insulate wire connections if needed.
Included in the Box
- Google Nest Wired Doorbell (battery-free model)
- Mounting plate
- Screws and anchors
- Wedge kit (for angled mounting)
- Trim kit (for narrow gaps or uneven walls)
- Quick start guide
Optional but Helpful
- Smartphone with Google Home app installed
- Stable Wi-Fi network (2.4 GHz recommended)
- Helper (to hold the doorbell while wiring)
Pro tip: Charge your phone fully before starting—you’ll use it extensively during setup!
Step 1: Check Compatibility with Your Existing Setup
Not all doorbell systems work with the Google Nest Wired Doorbell. Skipping this step could mean your new device won’t power on—or worse, damage your transformer.
Verify Your Transformer Voltage
The Nest Wired Doorbell requires a transformer that outputs 16–24 volts AC. Most modern homes meet this, but older systems may not. Here’s how to check:
- Locate your doorbell transformer. It’s usually near your doorbell chime inside the house, in the basement, attic, or garage.
- Look for a label showing voltage (e.g., “16V” or “24V”). If it says 8V or 12V, it’s likely incompatible.
- If unsure, use a multimeter to test the voltage across the doorbell wires at the chime unit (with power on).
Check Your Chime Type
The Nest doorbell works with both mechanical (ding-dong) and digital (electronic) chimes. However, if you have a very old mechanical chime with a physical striker, ensure it’s compatible by checking Google’s official compatibility tool online.
Assess Wire Condition
Inspect the two low-voltage wires running from your wall to the old doorbell. They should be intact, not brittle, and have at least ½ inch of exposed copper. If they’re damaged, you may need to run new wire—but that’s rare for most replacements.
Important: If your current setup uses batteries only (no wires), you’ll need to install a transformer and run wire—or consider the battery-powered Nest model instead.
Step 2: Turn Off Power at the Breaker
Safety first! Even though doorbell wires carry low voltage, they’re still connected to your home’s electrical system. Accidentally leaving power on can cause shocks, short circuits, or damage your new doorbell.
Locate the Correct Circuit
Doorbell circuits are often labeled “Doorbell,” “Chime,” or “HVAC” on your breaker panel. If unsure:
- Turn off suspect breakers one by one and test your existing doorbell.
- When the chime stops working, you’ve found the right circuit.
Double-Check with a Voltage Tester
After turning off the breaker:
- Remove the old doorbell faceplate.
- Touch the non-contact voltage tester to both wires.
- If it beeps or lights up, power is still on—return to the breaker and turn off the correct one.
Never skip this step. It takes 30 seconds but prevents serious risk.
Step 3: Remove Your Old Doorbell
Now that power is off, it’s time to remove the existing doorbell.
Unscrew the Faceplate
Use a screwdriver to remove the screws holding your old doorbell to the wall. Gently pull the device away—don’t yank it, as the wires may be tight.
Disconnect the Wires
You’ll see two wires (usually red and white, but color doesn’t matter). Loosen the terminal screws and slide the wires out. Note their positions—though polarity isn’t critical for AC systems, keeping track helps avoid confusion.
Tuck Wires Safely
Push the wires back into the wall slightly so they don’t fall in. You’ll need them accessible for the new doorbell. If the wires are too short, strip back ¼–½ inch of insulation to expose fresh copper.
Tip: Wrap the wire ends with electrical tape temporarily to prevent accidental contact.
Step 4: Prepare the Mounting Surface
The Nest doorbell comes with versatile mounting options to fit almost any doorway.
Choose Your Mounting Kit
- Standard mount: Use if your wall is flat and the doorbell sits flush.
- Wedge kit: Ideal for angled mounting (e.g., if your door is recessed). Includes 5°, 10°, and 15° wedges.
- Trim kit: For narrow gaps between the doorbell and doorframe or uneven brick/stucco walls.
Mark Screw Holes
Hold the mounting plate (with chosen wedge/trim) against the wall where you want the doorbell. Use a pencil to mark the screw hole locations. Ensure the plate is level—use a spirit level if needed.
Drill Pilot Holes (If Needed)
If mounting into brick, concrete, or hard siding, drill pilot holes using a masonry bit. Insert wall anchors for secure fastening.
Pro tip: On vinyl siding, use the trim kit to avoid cracking the material.
Step 5: Connect the Wires to the Nest Doorbell
This is the most critical electrical step—but it’s straightforward.
Thread Wires Through the Mounting Plate
Feed the two doorbell wires through the center hole of the mounting plate (and wedge/trim if used).
Secure Wires to the Doorbell
The Nest doorbell has two spring-loaded terminals labeled “Front” and “Trans.” It doesn’t matter which wire goes where—AC current flows either way.
- Insert one wire into the “Front” terminal and press the release tab to lock it.
- Insert the other wire into the “Trans” terminal and lock it.
Warning: Do not strip more than ½ inch of wire. Excess copper can cause shorts.
Attach the Doorbell to the Mounting Plate
Align the doorbell with the mounting plate and press firmly until it clicks into place. The magnets will help hold it securely.
Step 6: Turn Power Back On and Test
Before celebrating, verify everything works.
Restore Power
Go back to your breaker panel and turn the doorbell circuit back on.
Listen for the Chime
Within 10–30 seconds, your indoor chime should sound briefly—this confirms power is reaching the doorbell.
Check the Doorbell Light
The Nest doorbell has a status light ring:
- Solid white: Power is on, but not connected to Wi-Fi.
- Pulsing yellow: Ready for setup.
- Blinking red: Error (e.g., no power or wiring issue).
If you see red, double-check wiring and power.
Step 7: Set Up the Doorbell Using the Google Home App
The app handles Wi-Fi connection, notifications, and feature customization.
Download and Open the Google Home App
Available on iOS and Android. Sign in with your Google account.
Start Setup
- Tap the “+” icon > “Set up device” > “New device.”
- Select your home and follow prompts.
- When asked to scan a code, point your phone at the QR code on the back of the doorbell (or enter manually).
Connect to Wi-Fi
Choose your 2.4 GHz Wi-Fi network (5 GHz is not supported). Enter your password. The doorbell will connect within a minute.
Configure Settings
Customize:
- Motion zones (to reduce false alerts)
- Notification preferences
- Chime duration (if using a digital chime)
- Integration with other Google devices (e.g., Nest Hub for live view)
Tip: Enable “Package Detection” if you receive frequent deliveries.
Step 8: Final Checks and Adjustments
Don’t walk away just yet—test everything thoroughly.
Test Live View
Open the Google Home app and tap your doorbell. You should see a live HD video feed. Speak through the app—you should hear audio from the doorbell’s speaker.
Trigger Motion Alerts
Walk in front of the doorbell. You should receive a push notification within seconds.
Ring the Doorbell
Press the button on the doorbell. Your indoor chime should sound, and you’ll get a phone alert.
Adjust Angle if Needed
If the view is too high/low, remove the doorbell, swap wedges, and remount.
Troubleshooting Common Installation Issues
Even with careful installation, hiccups happen. Here’s how to fix them.
Doorbell Won’t Power On
- Check breaker: Ensure power is restored.
- Test voltage: Use a multimeter at the wires—should read 16–24V AC.
- Inspect connections: Wires must be fully inserted and not loose.
Chime Doesn’t Ring
- For mechanical chimes: Ensure the Nest app chime setting matches your chime type.
- For digital chimes: Adjust “Chime Duration” in the app (too short = silent).
- Check wire continuity with a multimeter.
Weak or No Wi-Fi Signal
- Move your router closer or use a Wi-Fi extender.
- Avoid placing the doorbell behind metal doors or thick walls.
- Ensure you’re using 2.4 GHz (not 5 GHz).
Video Quality is Poor
- Clean the lens with a microfiber cloth.
- Check internet speed—Nest recommends at least 2 Mbps upload.
- Reduce motion zone sensitivity to prevent overloading.
False Motion Alerts
- Adjust motion zones in the app to exclude trees or busy streets.
- Lower sensitivity during windy days.
Conclusion: Enjoy Your New Smart Doorbell
Congratulations! You’ve successfully installed your Google Nest Wired Doorbell. You now have a powerful tool that enhances home security, simplifies package monitoring, and lets you communicate with visitors from anywhere. The installation process—while detailed—is totally manageable with patience and the right prep.
Remember: compatibility checks, safe wiring practices, and thorough testing are the keys to a smooth experience. If you hit a snag, don’t hesitate to consult Google’s support or a licensed electrician for complex wiring issues.
With your new doorbell active, take time to explore advanced features like familiar face detection, activity zones, and integration with Google Assistant. Your front door just got a whole lot smarter—and so have you!
