This guide walks you through how to install a hard wired doorbell from start to finish, including tools, wiring, and safety tips. Even beginners can follow along to upgrade their home with a reliable, permanent doorbell system.
Key Takeaways
- Turn off power at the breaker before starting any electrical work to prevent shocks or damage.
- Use a voltage tester to confirm wires are not live, even after turning off the breaker.
- Match your new doorbell to your existing transformer—most homes use 16V systems, but check compatibility.
- Secure wires properly with wire nuts or terminal screws to avoid loose connections and future malfunctions.
- Test the doorbell before final mounting to catch issues early and save time.
- Label wires during removal of the old unit to avoid confusion when connecting the new one.
- Follow manufacturer instructions closely, especially for smart doorbells with additional setup steps.
Introduction: Why Install a Hard Wired Doorbell?
If you’re tired of battery-powered doorbells dying at the worst moment or dealing with unreliable wireless signals, it’s time to consider a hard wired doorbell. Unlike battery-operated models, a hard wired doorbell connects directly to your home’s electrical system, offering consistent power and often better sound quality. Whether you’re replacing an old unit or installing one for the first time, this guide will walk you through the entire process safely and efficiently.
In this comprehensive how-to guide, you’ll learn how to install a hard wired doorbell step by step—from turning off the power and removing the old unit to wiring the new chime and testing the system. We’ll cover essential tools, safety precautions, troubleshooting tips, and even how to handle smart doorbells with Wi-Fi features. By the end, you’ll have a reliable, permanent doorbell that enhances both functionality and curb appeal.
This project is ideal for DIYers with basic electrical knowledge, but don’t worry—if you’ve never touched a wire before, we’ll keep things simple and clear. With the right tools and careful attention, you can complete this upgrade in under two hours. Let’s get started!
Tools and Materials You’ll Need
Before you begin, gather all the necessary tools and materials. Having everything ready will save time and prevent mid-project trips to the hardware store.

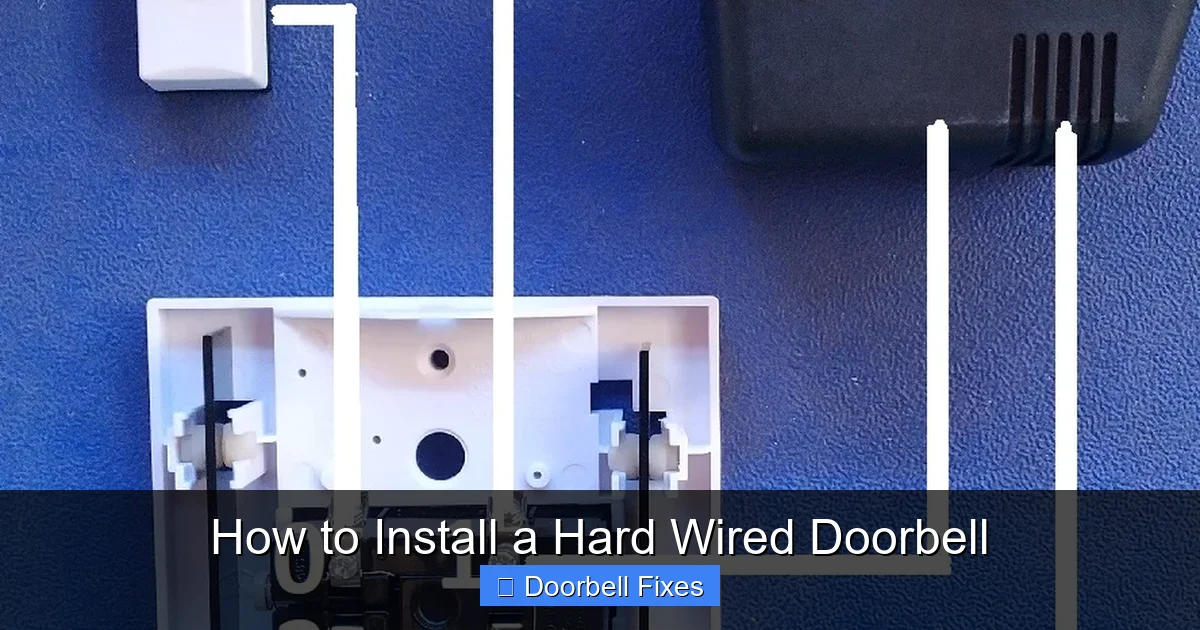

Visual guide about How to Install a Hard Wired Doorbell
Image source: mrdoorbells.com.au
Essential Tools
- Screwdrivers (Phillips and flathead)
- Voltage tester (non-contact type recommended)
- Wire strippers
- Needle-nose pliers
- Drill and drill bits (if mounting on brick or concrete)
- Level (to ensure the doorbell is straight)
- Tape measure
- Pencil or marker
Materials
- Hard wired doorbell kit (includes chime unit, button, and mounting hardware)
- Wire nuts (usually included, but good to have extras)
- Wall anchors (if not mounting into wood or studs)
- Replacement wires (optional, if existing wires are damaged)
Optional but Helpful
- Smartphone or tablet (for smart doorbell setup)
- Wi-Fi signal booster (if installing a smart doorbell in a weak signal area)
- Helper (to hold the chime unit while you wire it)
Pro tip: Always buy a doorbell that matches your home’s voltage. Most residential systems use 16 volts, but older homes might have 8V or 12V transformers. Check the label on your existing chime or transformer to confirm.
Step 1: Turn Off the Power
Safety first! Working with electricity can be dangerous, so the very first step is to turn off the power to the doorbell circuit.
Locate Your Electrical Panel
Find your home’s main electrical panel (also called the breaker box). It’s usually in the basement, garage, or utility closet. Open the panel door and look for the breaker labeled “doorbell,” “chime,” or something similar. If there’s no label, you may need to test breakers one by one.
Turn Off the Correct Breaker
Switch the breaker to the “OFF” position. If you’re unsure which one controls the doorbell, turn off the main breaker to be safe—this cuts power to the entire house. Use a flashlight if the panel is in a dark area.
Test the Power
Even after turning off the breaker, always double-check with a non-contact voltage tester. Touch the tester to the doorbell wires at the chime unit or button location. If the tester beeps or lights up, the power is still on—double-check your breaker or try another one.
Never skip this step. A live wire can cause serious injury or damage your new doorbell.
Step 2: Remove the Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, you’ll need to remove the old unit before installing the new one.
Remove the Doorbell Button
Unscrew the button from the exterior wall. Gently pull it away to expose the wires. You’ll typically see two small-gauge wires (usually white and red or black). Use your voltage tester again to confirm no power is present.
Label the Wires
Before disconnecting anything, label the wires with tape or a marker. For example, write “Front” on one and “Transformer” on the other. This prevents confusion when reconnecting the new button.
Disconnect the Wires
Loosen the terminal screws or remove the wire nuts holding the wires. Carefully pull the wires free. If the wires are brittle or frayed, trim them back with wire strippers and expose fresh copper.
Remove the Chime Unit
Go inside to the chime unit, usually located in a hallway or near the front door. Unscrew the cover and remove it. You’ll see two or more wires connected to terminals labeled “Front,” “Trans,” and sometimes “Rear” (for a second button).
Label these wires too—especially if you have multiple buttons. Then disconnect them and remove the old chime unit from the wall.
Inspect the Wiring
Check the condition of the wires. If they’re damaged, corroded, or too short, you may need to run new wires. This is rare in most homes, but if needed, consult an electrician.
Step 3: Prepare the New Doorbell Components
Now that the old system is out, it’s time to prepare your new hard wired doorbell for installation.
Unpack and Inspect the Kit
Open your new doorbell kit and lay out all components: the chime unit, doorbell button, mounting screws, wire nuts, and instruction manual. Make sure nothing is missing or damaged.
Read the Manufacturer’s Instructions
Every doorbell is slightly different. Read the manual carefully, especially if you’re installing a smart doorbell with Wi-Fi, app setup, or video features. Some models require a specific resistor or additional wiring.
Check Voltage Compatibility
Confirm that your new doorbell is compatible with your home’s voltage. Most hard wired doorbells work with 8V to 24V systems, but the chime unit must match your transformer’s output. If you’re unsure, check the transformer (usually near your furnace or in the basement) for a voltage rating.
Prepare the Wires
Strip about 1/2 inch of insulation from the ends of the wires at both the button and chime locations. Use wire strippers for a clean cut. Twist the exposed copper strands gently with pliers to keep them neat.
Step 4: Install the Doorbell Button
The doorbell button is the part guests press outside your door. Installing it correctly ensures reliable operation.
Position the Button
Hold the new button against the wall where you want it installed. Use a level to make sure it’s straight. Mark the screw holes with a pencil.
Drill Pilot Holes (If Needed)
If you’re mounting into wood, you can screw directly. For brick, stucco, or concrete, drill pilot holes and insert wall anchors. Use a drill bit slightly smaller than the anchors for a snug fit.
Connect the Wires
Attach the two wires to the terminal screws on the back of the button. It doesn’t matter which wire goes where—doorbell circuits are not polarized. Tighten the screws securely.
Mount the Button
Align the button with the screw holes and secure it with screws. Don’t overtighten, as this can crack the plastic. Make sure the button moves freely when pressed.
Seal Against Weather (Optional)
For outdoor durability, apply a small bead of silicone caulk around the edges of the button where it meets the wall. This prevents moisture from seeping in.
Step 5: Install the Chime Unit
The chime unit is the indoor part that makes the sound when the button is pressed. It’s usually mounted on a wall or inside a closet.
Choose the Location
Pick a spot near the front door but away from direct sunlight or heat sources. The chime should be audible throughout the house. Avoid areas with thick walls or metal ducts that can block sound.
Mount the Chime
Hold the chime unit against the wall and mark the screw holes. Drill pilot holes if needed, then secure the mounting bracket with screws. Snap or screw the chime onto the bracket.
Connect the Wires
Attach the wires to the correct terminals:
- Front: Connects to the front doorbell button
- Trans: Connects to the transformer (usually the common wire)
- Rear: Only if you have a second button (e.g., at the back door)
Use wire nuts or terminal screws as directed. Wrap connections with electrical tape for extra security.
Secure Loose Wires
Tuck any excess wire into the electrical box or wall cavity. Don’t let wires hang loose, as they can vibrate and cause noise or damage.
Step 6: Restore Power and Test the System
Once everything is wired, it’s time to test your new hard wired doorbell.
Turn the Power Back On
Return to the breaker box and switch the doorbell breaker back to “ON.” If you turned off the main breaker, restore power to the entire house.
Test the Doorbell
Press the doorbell button. You should hear a clear, consistent chime from the indoor unit. If it doesn’t work, don’t panic—troubleshooting is next.
Check for Multiple Tones
Some chimes have multiple tones (e.g., “ding” for front, “dong” for back). Test each button if you have more than one.
Adjust Volume or Melody (If Applicable)
Many modern chimes have volume controls or melody settings. Use the switches or buttons on the unit to customize the sound.
Troubleshooting Common Issues
Even with careful installation, problems can occur. Here’s how to fix the most common issues.
Doorbell Doesn’t Ring
- Check the breaker: Ensure power is restored.
- Test the button: Use a multimeter to check for continuity when pressed.
- Inspect connections: Loose or reversed wires can prevent operation.
- Test the transformer: It may be faulty or underpowered.
Weak or Intermittent Sound
- Low voltage: The transformer may not be providing enough power. Upgrade to a 16V or 24V transformer if needed.
- Loose wires: Re-tighten all connections.
- Faulty chime: The internal mechanism may be worn out.
Doorbell Rings Randomly
- Moisture in the button: Replace the button or seal it better.
- Loose wiring: Vibration can cause intermittent contact.
- Electrical interference: Nearby appliances or wiring may cause false triggers.
Smart Doorbell Won’t Connect to Wi-Fi
- Weak signal: Move the router closer or use a Wi-Fi extender.
- Incorrect password: Re-enter the Wi-Fi password in the app.
- Voltage issues: Smart doorbells need stable power. Use a compatible transformer or add a resistor.
Safety Tips and Best Practices
Working with electricity requires caution. Follow these tips to stay safe and ensure a long-lasting installation.
Always Turn Off Power
Never assume the power is off. Use a voltage tester every time.
Use Proper Tools
Don’t use damaged tools or substitute household items for electrical work.
Don’t Overload the Circuit
A doorbell uses very little power, but avoid connecting other devices to the same transformer.
Follow Local Codes
Some areas require permits for electrical work. When in doubt, consult a licensed electrician.
Keep Wires Organized
Label and bundle wires neatly to prevent confusion during future repairs.
Upgrading to a Smart Hard Wired Doorbell
If you’re installing a smart doorbell (like Ring, Nest, or Eufy), the process is similar but includes extra steps.
Download the App
Install the manufacturer’s app on your smartphone before starting.
Create an Account
Sign up and follow the setup wizard.
Connect to Wi-Fi
During installation, the app will guide you through connecting the doorbell to your home network. Make sure your Wi-Fi password is handy.
Adjust Settings
Set motion zones, notification preferences, and recording options.
Test Live View
Open the app and check the live video feed to ensure the camera is working.
Note: Some smart doorbells require a resistor (often included) to prevent the chime from ringing when the app is used. Install it according to the manual.
Conclusion: Enjoy Your New Hard Wired Doorbell
Congratulations! You’ve successfully learned how to install a hard wired doorbell and completed the project from start to finish. Whether you chose a traditional chime or a high-tech smart model, your new doorbell offers reliable performance, better sound, and peace of mind.
By following this guide, you’ve not only saved money on professional installation but also gained valuable DIY skills. Remember to test your doorbell regularly and keep the button clean to ensure long-term reliability. If you ever encounter issues, refer back to the troubleshooting section or consult the manufacturer’s support.
Now, every time someone presses your doorbell, you’ll know it’s working perfectly—thanks to your own hands. Enjoy the upgrade!
