Installing a new doorbell transformer is a manageable DIY project that ensures your doorbell works reliably. This guide walks you through the entire process—from identifying the right transformer to wiring and testing—so you can upgrade or replace yours with confidence.
Key Takeaways
- Safety first: Always turn off the power at the breaker before working on electrical components to prevent shocks or injury.
- Choose the right transformer: Match the voltage (typically 16V or 24V) and wattage (10W to 30W) to your doorbell system’s requirements.
- Locate the existing transformer: It’s usually near your main electrical panel, inside the doorbell chime, or in the attic or basement.
- Use proper tools: A voltage tester, screwdrivers, wire strippers, and electrical tape are essential for a clean, safe installation.
- Test after installation: Always verify the doorbell works and check for proper voltage output to ensure everything is functioning correctly.
- When to call a pro: If you’re uncomfortable with electrical work or encounter complex wiring, hire a licensed electrician.
- Upgrade benefits: A new transformer can support smart doorbells, multiple chimes, or louder rings—improving functionality and home security.
How to Install a New Doorbell Transformer
If your doorbell is weak, silent, or inconsistent, the culprit might be a failing or undersized transformer. The doorbell transformer is a small but crucial component that steps down your home’s 120V electrical supply to a safer, lower voltage (usually 16V or 24V) used by your doorbell system. Over time, transformers can wear out, especially if you’ve upgraded to a smart doorbell or added extra chimes. Replacing it is a straightforward DIY task—if you follow the right steps and prioritize safety.
In this comprehensive guide, you’ll learn how to install a new doorbell transformer from start to finish. We’ll cover how to identify your current transformer, choose the right replacement, safely disconnect the old one, wire the new unit, and test your system. Whether you’re fixing a broken doorbell or upgrading for better performance, this step-by-step walkthrough will help you get it done confidently and correctly.
What Is a Doorbell Transformer?

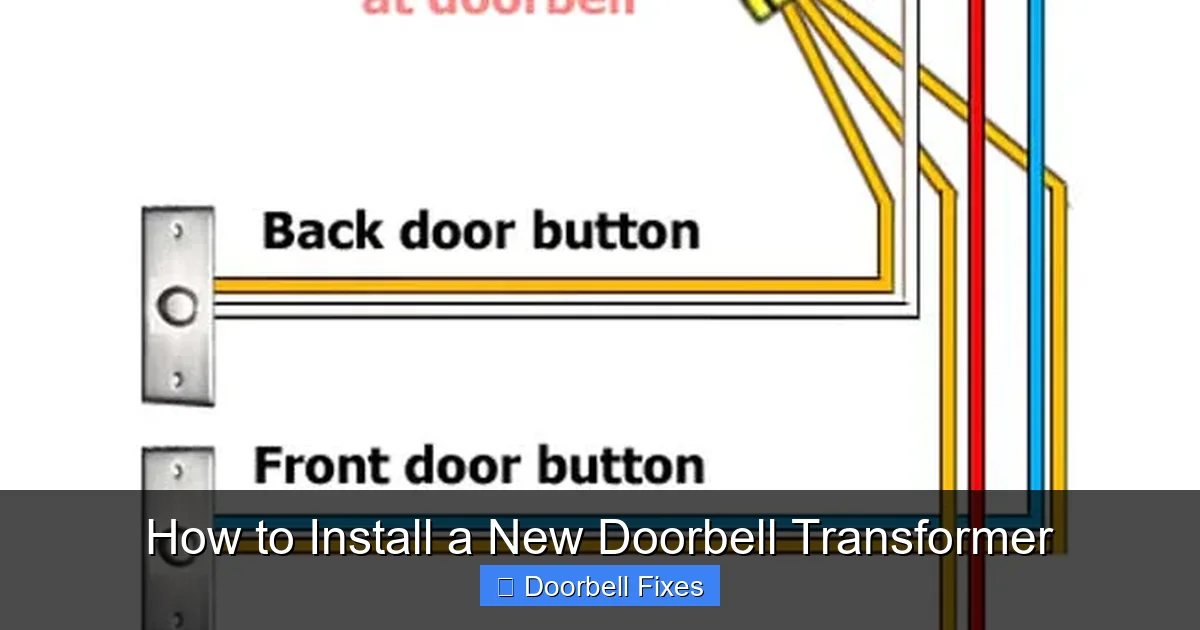

Visual guide about How to Install a New Doorbell Transformer
Image source: storables.com
Before diving into the installation, it’s helpful to understand what a doorbell transformer does. Think of it as a power adapter for your doorbell. Your home’s electrical system runs on 120 volts—way too much for a delicate doorbell mechanism. The transformer reduces that voltage to a safe level, typically between 8 and 24 volts, depending on your doorbell model.
Most traditional doorbells use a 16V transformer, while newer smart doorbells (like Ring, Nest, or Arlo) often require 24V for optimal performance. The transformer also supplies enough wattage (measured in VA or watts) to power the chime and any additional features like lights or cameras.
Without a working transformer, your doorbell won’t ring—no matter how many times you press the button. A weak or failing transformer can cause intermittent ringing, low volume, or complete failure. Replacing it is often the simplest and most effective fix.
Signs You Need a New Doorbell Transformer
How do you know if your transformer is the problem? Here are common symptoms:
- Doorbell doesn’t ring at all: If pressing the button does nothing, the transformer may have failed.
- Weak or muffled sound: A dying transformer might not supply enough power for a clear ring.
- Intermittent operation: The doorbell works sometimes but not others—this often points to a loose connection or failing transformer.
- Smart doorbell won’t charge or connect: Many video doorbells need a stable 24V supply. An old 16V transformer may not cut it.
- Buzzing or humming from the chime: This can indicate voltage fluctuations caused by a faulty transformer.
If you’ve already checked the doorbell button, wiring, and chime unit and the problem persists, it’s time to inspect the transformer.
Tools and Materials You’ll Need
Before starting, gather these tools and supplies:
- New doorbell transformer (16V or 24V, 10W–30W)
- Voltage tester or multimeter
- Screwdrivers (flathead and Phillips)
- Wire strippers
- Electrical tape
- Wire nuts (usually included with the transformer)
- Electrical box or mounting bracket (if not already in place)
- Safety gloves and goggles
- Flashlight (for dark areas like attics or basements)
Most transformers come with basic installation instructions, but having the right tools ensures a smooth process.
Step 1: Turn Off the Power
Safety is the most important part of this project. Never work on electrical components while the power is on.
Locate Your Electrical Panel
Go to your home’s main electrical panel (breaker box). Look for the circuit that controls your doorbell. It’s often labeled “Doorbell,” “Chime,” or “Low Voltage.” If it’s not labeled, you may need to test circuits by turning them off one at a time and checking if the doorbell stops working.
Switch Off the Breaker
Once you’ve identified the correct breaker, switch it to the “OFF” position. For extra safety, use a voltage tester to confirm that power is off at the transformer location.
Double-Check with a Tester
Even after turning off the breaker, use a non-contact voltage tester near the transformer wires to ensure no electricity is flowing. This step prevents accidental shocks.
Step 2: Locate the Existing Transformer
The transformer is usually hidden in one of three places:
- Inside the doorbell chime unit: Open the chime cover (often held by screws) and look for a small rectangular or cylindrical device with wires attached.
- Near the electrical panel: Many transformers are mounted on or near the breaker box, often in a junction box.
- In the attic or basement: Some older homes have transformers tucked away in utility areas, connected to the doorbell wires.
If you can’t find it, follow the low-voltage wires from the doorbell button or chime. They’ll lead you to the transformer.
Identify the Wiring
Once located, note how the wires are connected. Most transformers have two sets of wires:
- Line (Primary) Side: Connects to the 120V household circuit (usually black and white wires).
- Load (Secondary) Side: Connects to the doorbell system (typically two low-voltage wires, often red and white or black).
Take a photo or make a sketch of the wiring before disconnecting anything. This helps during reinstallation.
Step 3: Remove the Old Transformer
With the power off and the transformer located, it’s time to remove the old unit.
Disconnect the Low-Voltage Wires
Unscrew the wire nuts or terminal screws connecting the transformer to the doorbell wires. Gently pull the wires free. Label them if needed (e.g., “Front Door,” “Back Door”) to avoid confusion later.
Disconnect the Line Wires
Next, disconnect the 120V wires (black and white) from the transformer. These are usually connected to the household circuit via wire nuts or terminal blocks. Carefully remove them and cap the wires with wire nuts to prevent accidental contact.
Unmount the Transformer
If the transformer is mounted to a junction box or bracket, unscrew it and remove it. Keep the mounting hardware if you plan to reuse it.
Step 4: Choose the Right Replacement Transformer
Not all transformers are created equal. Choosing the correct one ensures your doorbell works properly and safely.
Check Voltage Requirements
Most standard doorbells use 16V, but smart doorbells often require 24V. Check your doorbell’s manual or product label for the recommended voltage. Using the wrong voltage can damage the doorbell or cause poor performance.
Consider Wattage (VA Rating)
Wattage determines how much power the transformer can supply. A 10W transformer is fine for a basic doorbell, but if you have multiple chimes, a video doorbell, or a long wire run, opt for 20W or 30W. Higher wattage ensures stable power delivery.
Match the Mounting Style
Transformers come in different styles:
- Plug-in transformers: Easy to install—just plug into an outlet. Best for renters or simple setups.
Hardwired transformers: Mounted directly to a junction box or electrical panel. More permanent and reliable.
Choose one that fits your setup and skill level.
Buy from a Reputable Brand
Stick with trusted brands like Nutone, Heath Zenith, or Ring. Avoid cheap, no-name transformers—they may not meet safety standards or last long.
Step 5: Install the New Transformer
Now it’s time to install the new transformer. Follow these steps carefully.
Mount the Transformer
If replacing a hardwired unit, mount the new transformer to the same junction box or bracket. Use the provided screws and ensure it’s secure. For plug-in models, simply plug into an outlet near the electrical panel or chime.
Connect the Line (120V) Wires
Connect the black (hot) and white (neutral) wires from your home’s circuit to the corresponding terminals on the transformer. Most transformers have labeled terminals (L1 and L2 or Hot and Neutral). Use wire nuts to secure the connections and wrap them with electrical tape for extra safety.
Connect the Low-Voltage Wires
Attach the doorbell wires (from the button and chime) to the transformer’s secondary terminals. These are usually unlabeled, so polarity doesn’t matter—just connect one wire to each terminal. Secure with wire nuts.
Double-Check All Connections
Before restoring power, verify that:
- All wire nuts are tight and covered.
- No bare wire is exposed.
- The transformer is securely mounted.
- Wires are not pinched or strained.
A loose connection can cause overheating or failure.
Step 6: Restore Power and Test
With everything connected, it’s time to test your work.
Turn the Breaker Back On
Go to the electrical panel and switch the doorbell breaker to “ON.” Listen for any unusual sounds (buzzing, clicking) from the transformer.
Test the Doorbell
Press the doorbell button. The chime should ring clearly and consistently. If it doesn’t, double-check your wiring and connections.
Use a Multimeter to Verify Voltage
For extra assurance, use a multimeter to measure the voltage across the low-voltage terminals. Set the meter to AC voltage and touch the probes to the two output wires. You should see a reading close to the transformer’s rated voltage (e.g., 16V or 24V). If it’s significantly lower, there may be a wiring issue or overload.
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here’s how to fix them:
Doorbell Still Doesn’t Ring
- Check the breaker—make sure it’s fully on.
- Test the doorbell button for continuity.
- Inspect wires for damage or loose connections.
- Ensure the chime unit is properly connected.
Weak or Intermittent Sound
- The transformer may be underpowered—upgrade to a higher wattage model.
- Long wire runs can cause voltage drop—use thicker gauge wire or a higher voltage transformer.
- Loose connections can cause intermittent contact—re-tighten all wire nuts.
Transformer Hums or Gets Hot
- This can indicate an overload or short circuit.
- Turn off the power immediately and check for crossed wires or damaged insulation.
- Ensure the transformer isn’t powering too many devices.
Smart Doorbell Won’t Connect
- Many smart doorbells need a 24V transformer—confirm your model’s requirements.
- Some require a diode or resistor in parallel with the button—check the manufacturer’s installation guide.
- Wi-Fi signal strength can also affect connectivity—ensure the doorbell is within range of your router.
When to Call a Professional
While installing a doorbell transformer is generally safe for DIYers, there are times when you should call a licensed electrician:
- You’re unsure which breaker controls the doorbell.
- The wiring is old, damaged, or hard to access.
- You don’t feel comfortable working with electricity.
- The transformer is integrated into a complex system (e.g., intercom or security system).
- You encounter unexpected voltage readings or electrical issues.
Safety should always come first. If in doubt, hire a pro.
Tips for a Successful Installation
- Label wires: Use tape or tags to mark which wire goes where.
- Work in good lighting: A headlamp or work light helps in dark areas.
- Keep wires organized: Avoid tangling or pinching wires during installation.
- Test as you go: Check connections before closing up panels or covers.
- Upgrade while you’re at it: If your doorbell is old, consider replacing the button or chime for better performance.
Conclusion
Installing a new doorbell transformer is a practical and rewarding DIY project that can restore functionality to your doorbell system—or upgrade it for modern smart features. By following this guide, you’ve learned how to safely locate, remove, and replace your transformer, choose the right model, and troubleshoot common issues.
Remember: always turn off the power, use the correct tools, and double-check your work. A properly installed transformer ensures reliable doorbell operation, enhances home security, and supports advanced features like video monitoring and mobile alerts.
Whether you’re fixing a silent chime or preparing for a smart doorbell upgrade, this project is well within reach. With a little patience and attention to detail, you’ll have a working doorbell in no time.
