Installing new doorbell wiring may seem daunting, but with the right tools and guidance, it’s a manageable DIY project. This guide walks you through every step—from turning off power to testing your new system—so you can upgrade your doorbell safely and efficiently.
Key Takeaways
- Safety first: Always turn off power at the breaker before working on doorbell wiring to avoid electrical shock.
- Choose the right wire: Use 18- or 20-gauge low-voltage doorbell wire for reliable performance and compatibility with most chimes.
- Plan your route: Map out the wire path from the button to the chime and transformer before drilling or running cables.
- Use a voltage tester: Confirm the circuit is off and verify transformer output (typically 16–24 volts AC) before connecting wires.
- Secure connections properly: Strip wires cleanly, wrap them tightly around terminal screws, and avoid loose or frayed ends.
- Test before finalizing: Power up and test the doorbell after wiring but before closing up walls or trim.
- Know when to call a pro: If you’re uncomfortable with electrical work or encounter complex wiring issues, consult a licensed electrician.
How to Install a New Doorbell Wiring
Upgrading or replacing your doorbell wiring might sound like a job for an electrician—but with some basic tools, patience, and this detailed guide, you can do it yourself. Whether your old wires are frayed, your doorbell is outdated, or you’re installing a brand-new system in a renovation, proper wiring is the foundation of reliable performance. In this comprehensive how-to, you’ll learn exactly how to install a new doorbell wiring safely, efficiently, and correctly—without breaking the bank or risking electrical hazards.
We’ll cover everything from gathering the right materials and turning off power, to routing wires through walls, connecting components, and testing your setup. By the end, you’ll have a fully functional doorbell that looks clean, works reliably, and meets modern safety standards. Let’s get started!
Why Replace or Install New Doorbell Wiring?

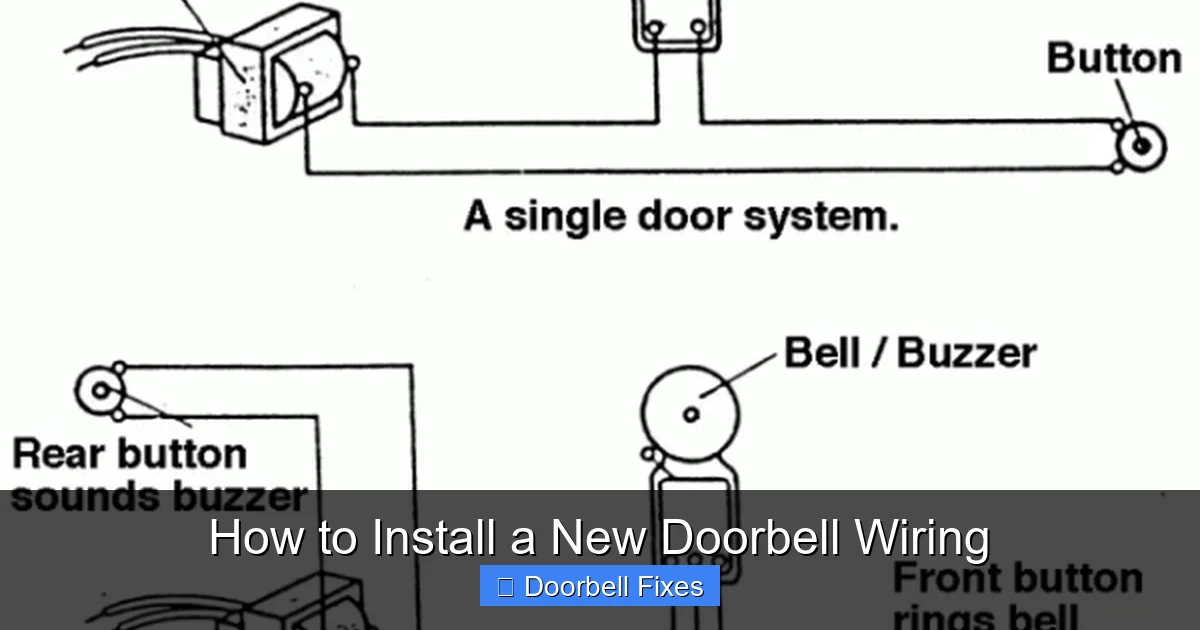

Visual guide about How to Install a New Doorbell Wiring
Image source: i1.wp.com
Before diving into the installation, it’s helpful to understand why you might need new doorbell wiring in the first place. Over time, doorbell wires can degrade due to moisture, pests, or simple wear and tear. Frayed or corroded wires can cause intermittent ringing, weak chimes, or complete failure. If you’ve recently upgraded to a smart doorbell or a more powerful chime unit, your existing wiring might not support the increased voltage or current demands.
Additionally, older homes often have outdated wiring that doesn’t meet current electrical codes or lacks proper insulation. Installing new wiring ensures your system is safe, efficient, and compatible with modern doorbell technology. Even if your current doorbell works, upgrading the wiring now can prevent future headaches and make future upgrades easier.
Tools and Materials You’ll Need
Having the right tools and materials on hand will make the installation process smoother and safer. Here’s a complete checklist:
- Low-voltage doorbell wire: 18- or 20-gauge stranded wire (typically sold in spools of 50 or 100 feet). Choose solid-core wire if running through conduit; stranded is more flexible for tight spaces.
- Wire strippers: For cleanly removing insulation without damaging copper strands.
- Voltage tester (non-contact): To confirm power is off and verify transformer output.
- Screwdrivers: Flathead and Phillips for terminal screws.
- Drill and drill bits: For creating holes in walls, baseboards, or door frames.
- Fish tape or wire puller: Helps guide wire through walls or tight spaces.
- Electrical tape: For insulating connections (though most modern terminals don’t require it).
- Wire nuts (optional): For splicing wires if needed.
- Pencil and measuring tape: For marking wire paths and measuring distances.
- Stud finder: To avoid drilling into wall studs unnecessarily.
- Safety glasses and gloves: Essential for protecting your eyes and hands.
Optional but helpful:
- Cable clips or staples to secure wire along baseboards or trim.
- A helper to feed wire while you pull from the other end.
- A label maker or tape to mark wire ends (e.g., “Front Button” or “Chime”).
Step 1: Turn Off the Power
Safety is the most important part of any electrical project—even low-voltage ones. Although doorbell systems operate at 16–24 volts (much safer than standard 120V household circuits), they are still connected to your home’s electrical system via a transformer. That means there’s still a risk of shock if the transformer is energized.
Locate the Doorbell Transformer
The transformer steps down your home’s 120V power to the lower voltage needed for the doorbell. It’s usually located in one of these places:
- Inside the electrical panel (breaker box)
- In the attic near the chime unit
- In the basement or crawlspace
- Inside a junction box near the doorbell chime
Look for a small black or gray box with wires coming out—often labeled “Doorbell” or “Bell.”
Turn Off the Correct Breaker
Once you’ve found the transformer, trace its wires back to the breaker panel. The circuit is usually labeled “Doorbell,” “Chime,” or “Low Voltage.” If it’s not labeled, turn off breakers one by one and test the doorbell until it stops working—then you’ve found the right one.
Flip the breaker to the OFF position. For extra safety, use a non-contact voltage tester near the transformer terminals to confirm no power is present.
Test the Circuit
Even after turning off the breaker, double-check with your voltage tester. Touch the probe to the transformer’s input terminals (the ones connected to the 120V line). If the tester doesn’t light up or beep, it’s safe to proceed.
Step 2: Remove the Old Doorbell Components
Now that the power is off, it’s time to remove the existing doorbell button, chime unit, and any old wiring you plan to replace.
Remove the Doorbell Button
Unscrew the doorbell button from the exterior wall. Gently pull it away from the wall to expose the wires. You’ll typically see two small-gauge wires connected to terminals labeled “Front” or “Trans.”
Take a photo of the wiring before disconnecting anything—this will help you remember how to reconnect later.
Loosen the terminal screws and carefully remove the wires. If the wires are damaged or corroded, cut them back to fresh copper using wire cutters.
Remove the Chime Unit
Go inside to the location of your doorbell chime (usually in a hallway or living room). Unscrew the cover and remove it. Inside, you’ll see several wires:
- One pair from the front doorbell button
- One pair from the transformer
- Possibly another pair if you have a rear or side doorbell
Label each wire with tape or a marker (e.g., “Front,” “Trans,” “Rear”) before disconnecting. Then loosen the terminal screws and remove the wires.
Remove Old Wiring (If Necessary)
If you’re replacing the entire wire run, you’ll need to remove the old wires from the walls. This can be tricky, especially in finished walls. Use a fish tape to gently pull the old wire out from one end. If it’s stuck, don’t force it—you may need to cut it and pull it in sections.
Alternatively, you can leave the old wire in place and run new wire alongside it, using the old wire as a guide.
Step 3: Plan Your Wire Route
Before running new wire, plan the most efficient path from the doorbell button to the chime and transformer. A well-planned route saves time, reduces wire waste, and minimizes damage to walls.
Map the Path
Start at the doorbell button location. Trace a route along the wall, baseboard, or through the attic/basement to the chime unit. Avoid sharp bends, tight corners, or areas with heavy moisture.
Use a stud finder to locate wall studs. You’ll want to drill holes in the center of studs (not the edges) to avoid weakening the structure.
Measure the Distance
Use a measuring tape to determine the total length of wire needed. Add 10–15% extra for slack and connections. For example, if the distance is 30 feet, buy at least 35 feet of wire.
Choose the Right Wire Type
Most doorbell systems use 18- or 20-gauge low-voltage wire. Here’s a quick guide:
- 18-gauge: Best for longer runs (over 50 feet) or systems with multiple chimes or smart features.
- 20-gauge: Suitable for standard single-doorbell setups under 50 feet.
Stranded wire is more flexible and easier to pull through walls, while solid-core is sturdier and better for conduit.
Step 4: Run the New Doorbell Wire
Now it’s time to install the new wiring. This is the most labor-intensive part, but with patience, it’s totally doable.
Drill Access Holes
At the doorbell button location, drill a small hole (about 1/4 inch) through the exterior wall. Angle it slightly downward to prevent water from entering.
At the chime location, drill a hole through the interior wall or baseboard to route the wire into the wall cavity or attic.
Use a Fish Tape to Pull Wire
Attach the new doorbell wire to the end of a fish tape using electrical tape. Make sure the connection is secure but not too bulky.
Feed the fish tape from the chime side toward the doorbell button. Once it emerges at the exterior hole, pull the wire through.
If you’re running wire through an attic or basement, you can often drop it down from above or pull it up from below—this is much easier than fishing through walls.
Secure the Wire
Once the wire is in place, use cable clips or staples to secure it along baseboards, trim, or studs. Avoid over-tightening, which can damage the insulation.
Leave a few inches of slack at both ends for connections.
Step 5: Connect the Wiring
With the wire run complete, it’s time to connect everything.
Connect the Doorbell Button
Strip about 1/2 inch of insulation from each wire end using wire strippers. Twist the exposed copper strands to prevent fraying.
Attach one wire to each terminal on the doorbell button. Most buttons have two terminals—it doesn’t matter which wire goes where, as doorbell circuits are not polarity-sensitive.
Tighten the terminal screws securely. Give the wires a gentle tug to ensure they’re held firmly.
Connect the Chime Unit
At the chime, strip the wire ends and connect them to the appropriate terminals:
- Front: Connect the two wires from the front doorbell button.
- Trans: Connect the two wires from the transformer.
If you have a rear doorbell, connect those wires to the “Rear” terminals.
Again, tighten the screws and test the connections.
Connect the Transformer
Locate the transformer. It should have two low-voltage output terminals and two input terminals connected to the 120V circuit.
Connect the two wires from the chime to the transformer’s output terminals. These are usually labeled “C” and “24V” or similar.
Ensure the input side remains connected to the 120V circuit (this should already be wired).
Step 6: Test the System
Before closing up walls or reattaching covers, test your new doorbell wiring.
Restore Power
Go back to the breaker panel and turn the doorbell circuit back on.
Test the Doorbell
Press the doorbell button. The chime should ring clearly and consistently.
If it doesn’t work:
- Check all connections—loose wires are the most common issue.
- Use a voltage tester to confirm the transformer is outputting 16–24 volts AC.
- Verify the wire isn’t pinched or damaged.
Troubleshoot Common Issues
- No sound: Check for loose connections or a blown fuse in the chime (some models have internal fuses).
- Weak or intermittent ring: This could indicate a poor connection or undersized wire.
- Chime rings without pressing button: Likely a short circuit or moisture in the button.
Step 7: Secure and Finish
Once everything is working, it’s time to clean up and secure your installation.
Reattach Covers
Screw the doorbell button and chime cover back into place. Make sure they’re snug but not over-tightened.
Tuck in Wires
Gently push any excess wire back into the wall or junction box. Avoid cramming too much wire, which can stress connections.
Seal Exterior Holes
Use exterior-grade caulk or silicone sealant around the doorbell button hole to prevent water intrusion.
Label Wires (Optional)
If you ever need to troubleshoot or upgrade, labeled wires make the job much easier.
Tips for a Professional-Looking Installation
- Run wires along natural pathways (baseboards, door frames) to minimize visibility.
- Use wire molding or raceways if you can’t hide the wire inside walls.
- Keep wire runs as straight as possible to reduce resistance.
- Double-check local building codes—some areas require permits for electrical work, even low-voltage.
When to Call a Professional
While most homeowners can handle doorbell wiring, there are times when it’s best to call an electrician:
- You’re unsure about electrical safety or breaker locations.
- The wiring requires extensive wall demolition or rewiring.
- You’re installing a complex multi-door system with multiple chimes.
- Your home has aluminum wiring (which requires special handling).
A licensed electrician can ensure the job is done safely and up to code.
Conclusion
Installing new doorbell wiring is a rewarding DIY project that improves both functionality and safety. By following this step-by-step guide—turning off power, planning your route, running wire carefully, and testing thoroughly—you can upgrade your doorbell system with confidence. Remember to prioritize safety, use the right materials, and don’t hesitate to seek help if needed. With your new wiring in place, you’ll enjoy a reliable, modern doorbell for years to come.
