This guide walks you through how to install a Nutone doorbell safely and correctly, whether you’re replacing an old unit or installing one for the first time. You’ll learn about tools, wiring, chime setup, and common pitfalls to avoid.
Key Takeaways
- Turn off power at the breaker before starting any electrical work to prevent shocks or damage.
- Check compatibility between your Nutone doorbell, transformer, and existing wiring before installation.
- Use a voltage tester to confirm wires are not live, even after turning off the breaker.
- Follow the manufacturer’s wiring diagram closely—Nutone models vary slightly in terminal layout.
- Test the doorbell before finalizing the installation to catch issues early.
- Secure all connections with wire nuts and electrical tape to prevent loose wires.
- If your chime doesn’t ring, double-check transformer voltage—most Nutone doorbells require 16V.
How to Install a Nutone Doorbell: A Complete Step-by-Step Guide
So, you’ve decided to install a Nutone doorbell—great choice! Nutone is known for reliable, high-quality doorbell systems that offer clear sound, durable construction, and easy integration with home electrical systems. Whether you’re upgrading from a broken unit or installing your first doorbell, this guide will walk you through the entire process safely and efficiently.
In this comprehensive how-to, you’ll learn everything from gathering the right tools to testing your new doorbell. We’ll cover wiring basics, compatibility checks, mounting techniques, and troubleshooting tips. By the end, you’ll have a fully functional Nutone doorbell that enhances your home’s security and convenience.
No prior electrical experience? No problem. We’ll keep things simple, clear, and jargon-free. Just follow along, take your time, and prioritize safety at every step.
Why Choose a Nutone Doorbell?

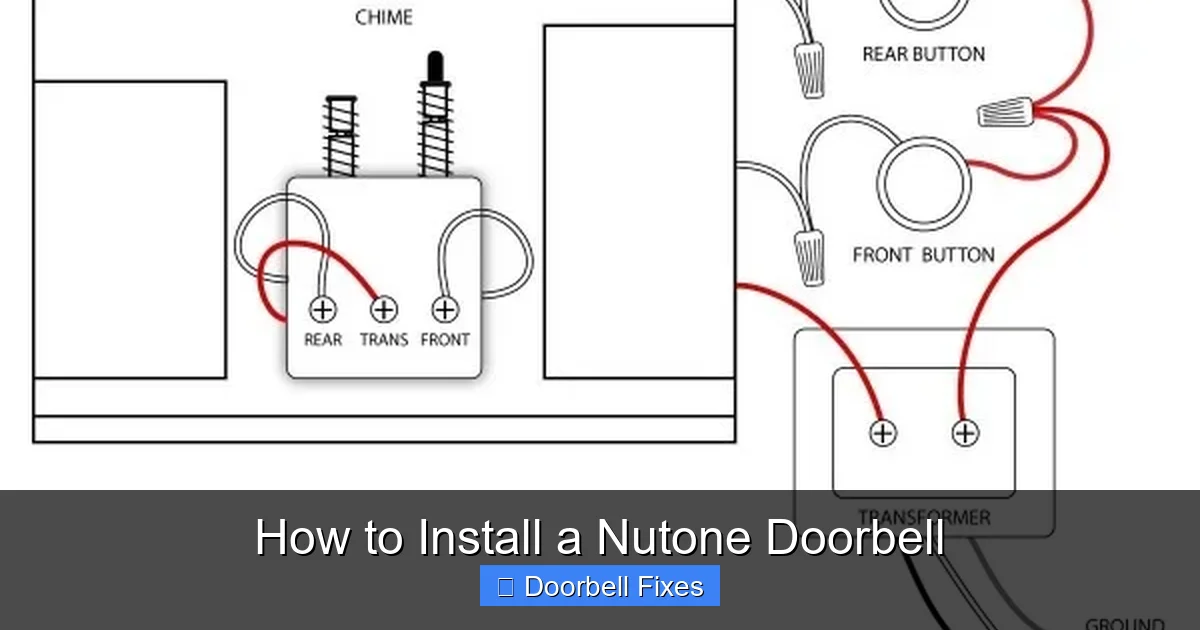

Visual guide about How to Install a Nutone Doorbell
Image source: i1.wp.com
Before we dive into the installation, let’s talk about why Nutone stands out. Nutone doorbells are built for longevity and performance. They often feature dual-tone chimes, adjustable volume, and compatibility with both wired and wireless setups. Many models also support multiple doors (front and back), making them ideal for larger homes.
Additionally, Nutone systems are designed to work seamlessly with standard household transformers and low-voltage wiring. This means you’re less likely to run into compatibility issues compared to some lesser-known brands. Plus, their chime units are typically easy to mount and wire, even for beginners.
Tools and Materials You’ll Need
Before you start, make sure you have all the necessary tools and materials on hand. This will save you time and prevent mid-project trips to the hardware store.
Essential Tools
- Screwdrivers (flathead and Phillips)
- Voltage tester (non-contact type recommended)
- Wire strippers
- Electrical tape
- Wire nuts (usually included with the doorbell kit)
- Pliers (optional, for tightening connections)
- Drill and drill bits (if mounting on brick or concrete)
- Level (to ensure the button is straight)
Materials
- Nutone doorbell kit (includes button, chime unit, and instructions)
- Low-voltage doorbell wire (if replacing or extending wiring)
- Wall anchors and screws (if not included)
- Transformer (if upgrading or replacing—most Nutone systems need 16V)
Optional but Helpful
- Stud finder (to avoid drilling into studs unnecessarily)
- Ladder (for high mounting locations)
- Flashlight (for better visibility in dim areas)
Having everything ready will make the installation smoother and safer.
Safety First: Turning Off the Power
This cannot be stressed enough: always turn off the power before working on any electrical device, including doorbells.
Even though doorbells use low voltage (typically 8–24V), they are still connected to your home’s electrical system via a transformer. That means there’s still a risk of shock or short-circuiting if you’re not careful.
Step 1: Locate Your Circuit Breaker
Go to your main electrical panel (breaker box). Look for a breaker labeled “doorbell,” “chime,” or “low voltage.” If you don’t see one, check your home’s electrical diagram or turn off the main breaker as a precaution.
Step 2: Turn Off the Breaker
Switch the appropriate breaker to the “OFF” position. If you’re unsure which one controls the doorbell, turn off the main breaker to be safe.
Step 3: Test the Wires
Use a non-contact voltage tester to check the wires at the doorbell button and chime location. Touch the tester near the wire terminals—if it beeps or lights up, power is still on. Double-check your breaker and try again.
Only proceed once you’ve confirmed the wires are dead.
Assessing Your Current Setup
Before removing the old doorbell (if applicable), take a moment to assess your existing system. This will help you determine what needs to be replaced or upgraded.
Check the Transformer
The transformer converts standard 120V household current into low voltage (usually 16V) for the doorbell. It’s typically located in your basement, garage, or near the electrical panel.
To check its voltage:
- Turn the power back on temporarily (only for this test).
- Use a multimeter to measure the voltage across the transformer’s output terminals.
- If it reads below 14V or above 20V, it may need replacement.
Most Nutone doorbells require a 16V transformer. If yours is underpowered, your new doorbell may not work properly.
Inspect the Wiring
Look at the wires running from the button to the chime. Are they frayed, corroded, or too short? If so, you may need to run new wire. Standard 18- or 20-gauge doorbell wire works well.
Evaluate the Chime Location
Is the current chime unit in a good spot? It should be centrally located so you can hear it from multiple rooms. If not, consider relocating it during installation.
Removing the Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, start by removing the old components.
Step 1: Remove the Button
Unscrew the doorbell button from the wall. Gently pull it away to expose the wires. Take a photo of the wiring setup for reference.
Step 2: Disconnect the Wires
Loosen the terminal screws and carefully remove the wires. Label them if needed (e.g., “Front Door,” “Back Door”) to avoid confusion later.
Step 3: Remove the Chime Unit
Unscrew the chime from the wall or ceiling. Disconnect the wires and set the old unit aside.
Step 4: Patch Holes (Optional)
If you’re not reusing the same mounting holes, fill them with spackle or wall filler and sand smooth.
Installing the Nutone Doorbell Button
Now it’s time to install the new Nutone doorbell button. This is usually the easiest part of the process.
Step 1: Prepare the Wires
Strip about 1/4 inch of insulation from the ends of the wires using wire strippers. Twist the exposed copper to prevent fraying.
Step 2: Connect the Wires
Most Nutone buttons have two terminal screws (often labeled “Front” and “Trans”). It doesn’t matter which wire goes where—doorbell circuits are not polarity-sensitive.
Attach one wire to each terminal and tighten the screws securely.
Step 3: Mount the Button
Hold the button against the wall where you want it installed. Use a level to ensure it’s straight. Mark the screw holes with a pencil.
Drill pilot holes if needed, then secure the button with screws. Make sure it’s snug but not over-tightened.
Step 4: Test the Button (Temporarily)
Turn the power back on briefly and press the button. If the chime rings, great! If not, double-check your connections.
Turn the power off again before proceeding.
Installing the Nutone Chime Unit
The chime unit is the heart of your doorbell system. It receives the signal from the button and produces the sound.
Step 1: Choose the Location
Pick a central, dry location—typically a hallway, living room, or entryway. Avoid areas with high humidity or direct sunlight.
Step 2: Mount the Chime
Hold the chime unit against the wall and mark the screw holes. Drill pilot holes if necessary, then secure it with screws.
Step 3: Connect the Wires
Nutone chimes usually have three terminals: “Front,” “Trans,” and “Rear” (for a second door). Connect the wires as follows:
- The wire from the front door button goes to “Front.”
- The wire from the transformer goes to “Trans.”
- If you have a back door, connect that wire to “Rear.”
Use wire nuts to secure connections and wrap them with electrical tape for extra safety.
Step 4: Secure Loose Wires
Tuck any excess wire into the electrical box or wall cavity to prevent damage.
Connecting the Transformer
The transformer is essential—it powers the entire system. If you’re using the existing transformer, ensure it’s compatible (16V). If not, replace it.
Step 1: Turn Off Power
Again, confirm the breaker is off before touching the transformer.
Step 2: Locate the Transformer
It’s usually near your electrical panel, in the basement, or in a utility closet.
Step 3: Disconnect Old Wires
Remove the wires connected to the transformer’s low-voltage terminals.
Step 4: Connect New Wires
Attach the wires from your doorbell circuit to the transformer’s output terminals. Use wire nuts and tape.
Step 5: Secure the Transformer
Mount it securely to a junction box or stud. Ensure it’s not loose or dangling.
Final Wiring Check and Power Restoration
Before turning the power back on, do a final inspection.
Step 1: Verify All Connections
Double-check that:
- All wires are securely connected.
- Wire nuts are tight and taped.
- No bare wire is exposed.
- The chime and button are properly mounted.
Step 2: Turn On the Power
Go back to the breaker box and turn the power back on.
Step 3: Test the System
Press the doorbell button. Listen for the chime. If it rings clearly, congratulations—you’ve successfully installed your Nutone doorbell!
Troubleshooting Common Issues
Even with careful installation, problems can occur. Here’s how to fix the most common ones.
Doorbell Doesn’t Ring
- Check the transformer voltage—use a multimeter to confirm it’s outputting 16V.
- Inspect wire connections—loose or corroded wires can break the circuit.
- Test the button—press it firmly. If it feels loose, it may be defective.
- Replace the chime—if the chime unit is old or damaged, it may not respond.
Chime Rings Weakly or Intermittently
- Low voltage—upgrade to a higher-capacity transformer.
- Long wire runs—use thicker wire (18-gauge) for distances over 50 feet.
- Corroded terminals—clean with sandpaper or replace the chime.
Multiple Buttons, Only One Works
- Check terminal assignments—ensure each button is connected to the correct terminal (Front, Rear, etc.).
- Test each button individually—one may be faulty.
Transformer Hums or Overheats
- Overloaded circuit—too many devices on one transformer.
- Faulty transformer—replace with a new 16V unit.
Tips for a Professional-Looking Installation
A clean, neat installation not only looks better but also lasts longer.
- Use a level for both the button and chime to avoid crooked mounting.
- Hide wires in walls or use wire molding for exposed runs.
- Label wires during disassembly to avoid confusion.
- Keep spare wire nuts and tape on hand for quick fixes.
- Take photos at each step for future reference.
When to Call a Professional
While most homeowners can install a Nutone doorbell themselves, some situations call for an electrician:
- You’re uncomfortable working with electricity.
- The wiring is damaged or outdated.
- You need to run new wires through walls or ceilings.
- The transformer needs to be relocated or upgraded.
Safety always comes first. If in doubt, hire a licensed electrician.
Conclusion
Installing a Nutone doorbell is a straightforward project that can greatly improve your home’s functionality and curb appeal. By following this guide, you’ve learned how to safely turn off power, assess your system, install the button and chime, connect the transformer, and troubleshoot common issues.
Remember: safety is paramount. Always turn off the breaker, test wires, and double-check connections. With the right tools and a little patience, you can complete this upgrade in under an hour.
Now that your Nutone doorbell is up and running, enjoy the peace of mind that comes with a reliable, high-quality doorbell system. Whether you’re welcoming guests or monitoring deliveries, your new doorbell will serve you well for years to come.
