Installing a resistor to your Ring doorbell transformer can resolve low-voltage issues and prevent device malfunctions. This guide walks you through the process safely, with clear steps, tools, and troubleshooting tips to ensure your doorbell works reliably.
Key Takeaways
- Understand why a resistor may be needed: A resistor helps stabilize voltage when your Ring doorbell isn’t receiving enough power from the existing transformer, especially in older homes with low-voltage wiring.
- Always turn off power before starting: Safety is critical—shut off the circuit breaker connected to your doorbell transformer to avoid electric shock.
- Use the correct resistor value: A 30-ohm, 10-watt resistor is typically recommended for Ring doorbells to boost effective voltage without overloading the system.
- Proper wiring technique matters: Connect the resistor in series with the doorbell wire to ensure it regulates voltage correctly and doesn’t interfere with the chime.
- Test the system after installation: Use a multimeter to confirm voltage levels and ensure your Ring doorbell powers on and functions as expected.
- Know when to call a professional: If you’re unsure about electrical work or your transformer is outdated, consult a licensed electrician to avoid damage or safety risks.
- Consider upgrading your transformer: In many cases, replacing the transformer with a higher-output model (16–24V AC) is a better long-term solution than adding a resistor.
How to Install a Resistor to My Ring Doorbell Transformer
If your Ring doorbell keeps going offline, failing to charge, or not ringing the chime, the problem might be low voltage from your transformer. One common fix is installing a resistor to your Ring doorbell transformer. This small component can help stabilize voltage and improve performance—especially in older homes with weak wiring. While it’s not always the best long-term solution, a resistor can be a quick and affordable fix.
In this guide, you’ll learn exactly how to install a resistor to your Ring doorbell transformer safely and correctly. We’ll cover what a resistor does, why it helps, the tools you’ll need, step-by-step instructions, and troubleshooting tips. By the end, you’ll know whether this fix is right for your setup and how to do it without risking damage to your doorbell or home wiring.
Why You Might Need a Resistor for Your Ring Doorbell

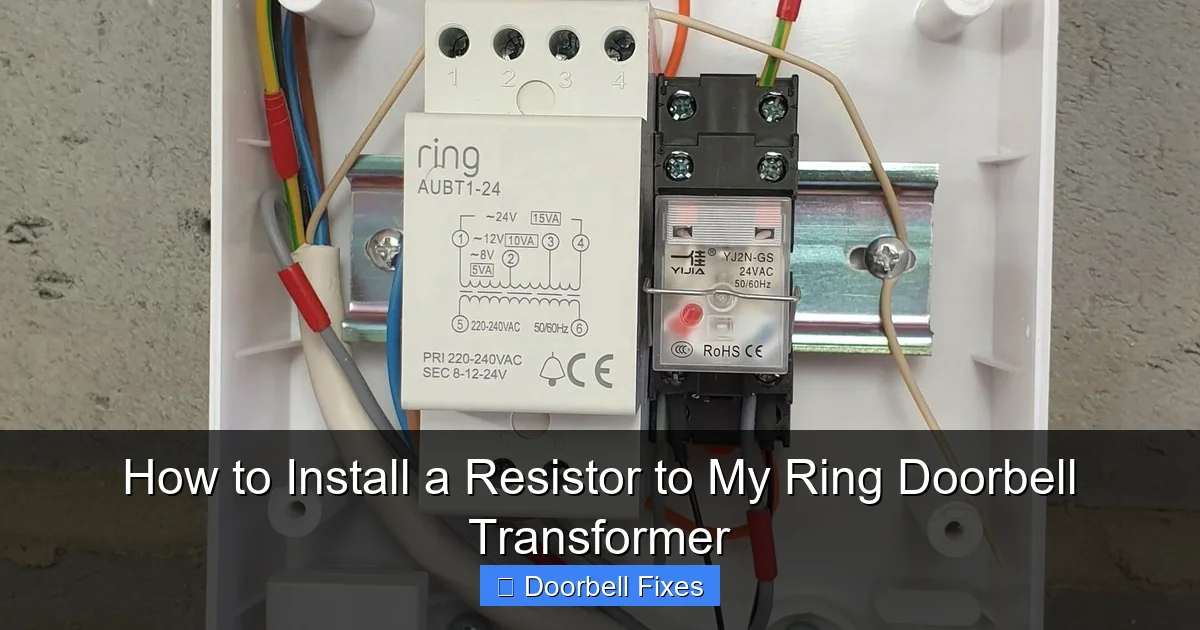

Visual guide about How to Install a Resistor to My Ring Doorbell Transformer
Image source: i.pinimg.com
Ring doorbells require a stable power supply to function properly. Most models need between 16 and 24 volts AC (alternating current) to operate reliably. If your existing doorbell transformer outputs less than 16 volts—or if voltage drops due to long wire runs or poor connections—your Ring doorbell may not get enough power.
This can cause several issues:
– The doorbell won’t charge or stays offline.
– The chime doesn’t ring when someone presses the button.
– The video quality is poor or the device reboots frequently.
A resistor helps by increasing the effective voltage delivered to the doorbell. It does this by creating a small voltage drop across the chime mechanism, which forces more current through the doorbell itself. Think of it like redirecting water flow in a pipe—by adding resistance in one spot, you increase pressure (voltage) elsewhere.
However, it’s important to note that a resistor is not a permanent fix. It’s a workaround for low-voltage systems. If your transformer is old or underpowered, replacing it with a higher-output model (like a 24V AC transformer) is often a better solution. But if you’re on a budget or want to test whether voltage is the issue, installing a resistor is a smart first step.
What Is a Resistor and How Does It Work?
A resistor is an electrical component that limits the flow of current in a circuit. It’s measured in ohms (Ω) and rated by wattage (W), which indicates how much power it can safely handle.
In the context of a doorbell circuit, a resistor is wired in series with the doorbell button. When the button is pressed, the resistor creates a small voltage drop across the mechanical chime. This forces more voltage to be available for the Ring doorbell, which is connected in parallel to the chime.
For example, if your transformer outputs 12 volts and your chime uses 6 volts, only 6 volts reach the doorbell—too low to power it. By adding a 30-ohm resistor, you can shift that balance so the doorbell gets closer to 16 volts, which is within the ideal range.
The most commonly recommended resistor for Ring doorbells is a 30-ohm, 10-watt ceramic wirewound resistor. These are durable, heat-resistant, and designed for continuous use in low-voltage circuits.
Tools and Materials You’ll Need
Before you begin, gather the following tools and materials:
- 30-ohm, 10-watt resistor: Available at electronics stores or online (e.g., Amazon, Digi-Key). Make sure it’s ceramic wirewound for heat resistance.
- Wire strippers: To remove insulation from doorbell wires.
- Electrical tape or wire nuts: For securing connections.
- Screwdrivers: Typically a flathead or Phillips, depending on your chime and transformer.
- Multimeter: To test voltage before and after installation.
- Electrical tape: For insulating exposed wires.
- Safety gloves and goggles: Recommended for protection.
- Ladder: If your doorbell or chime is mounted high.
Optional but helpful:
– Voltage booster (alternative to resistor)
– New 16–24V AC transformer (for long-term fix)
– Wire connectors or terminal blocks
Step-by-Step Guide to Installing the Resistor
Step 1: Turn Off the Power
Safety first! Before touching any wires, turn off the power to your doorbell circuit.
1. Go to your home’s electrical panel (breaker box).
2. Locate the breaker labeled “Doorbell,” “Chime,” or something similar. If you’re unsure, turn off the main breaker to be safe.
3. Use a non-contact voltage tester to confirm the power is off at the doorbell transformer or chime.
Never skip this step. Even low-voltage circuits can cause shocks or damage components if mishandled.
Step 2: Locate Your Doorbell Transformer
The transformer is usually found in one of these places:
– Inside the mechanical chime box (most common)
– In the attic or basement near the doorbell circuit
– Behind an electrical outlet (if wired through a receptacle)
To find it:
1. Remove the cover of your indoor doorbell chime.
2. Look for a small black or gray box with wires connected to it—this is the transformer.
3. It will have two wires (usually red and white) running to the chime and doorbell.
If you can’t find it, check your breaker panel. Some transformers are plugged into outlets or wired directly into the circuit.
Step 3: Test the Current Voltage
Use a multimeter to check the voltage output of your transformer.
1. Set your multimeter to AC voltage (usually marked as “V~”).
2. Touch the red probe to the red wire and the black probe to the white wire at the transformer.
3. Record the reading.
If the voltage is below 16V, your Ring doorbell may not be getting enough power. A resistor can help, but if it’s extremely low (under 10V), you may need a new transformer.
Step 4: Disconnect the Doorbell Wires
Now, prepare to install the resistor.
1. At the chime unit, locate the two terminals labeled “Front” and “Trans” (or similar). These connect to the doorbell button and transformer.
2. Loosen the screws and disconnect the wires. Note which wire goes where—take a photo if needed.
3. If your chime has a “Rear” terminal (for a second doorbell), leave it connected unless you’re modifying that circuit too.
Step 5: Connect the Resistor
The resistor must be wired in series with the doorbell button. This means it goes between the transformer and the doorbell wire.
1. Take your 30-ohm, 10-watt resistor. It has two leads (metal wires).
2. Strip about 1/2 inch of insulation from the end of the wire that runs from the transformer to the doorbell (usually the red wire).
3. Twist one lead of the resistor to the stripped end of the transformer wire.
4. Secure the connection with a wire nut or electrical tape.
5. Connect the other lead of the resistor to the wire that goes to the doorbell button.
6. Use a wire nut or tape to insulate this connection.
Double-check that the resistor is not touching any metal parts or other wires. It may get warm during operation, so give it space.
Step 6: Reconnect the Wires to the Chime
Now, reattach the wires to the chime unit.
1. Connect the wire from the transformer (now going through the resistor) to the “Trans” terminal.
2. Connect the wire from the doorbell button (after the resistor) to the “Front” terminal.
3. Tighten the screws securely.
Make sure no bare wire is exposed outside the terminals.
Step 7: Restore Power and Test
1. Go back to the breaker panel and turn the power back on.
2. Wait a few seconds for the system to stabilize.
3. Press the doorbell button and listen for the chime.
4. Check if your Ring doorbell powers on and connects to Wi-Fi.
Use your multimeter again to test the voltage at the doorbell. You should see an increase—ideally between 16V and 24V.
If the chime doesn’t ring or the doorbell still doesn’t work, double-check your connections.
Troubleshooting Common Issues
Doorbell Still Not Working After Resistor Installation
If your Ring doorbell still won’t power on:
– Check all wire connections for looseness or corrosion.
– Verify the resistor is the correct value (30 ohms, 10 watts).
– Test the transformer voltage again—it may be too low even with the resistor.
– Ensure the resistor is wired in series with the doorbell, not the chime.
Chime Doesn’t Ring
If the indoor chime stops working:
– The resistor may be dropping too much voltage. Try a lower-ohm resistor (e.g., 20 ohms) or remove it temporarily.
– Check if the chime is mechanical or digital. Some digital chimes don’t work well with resistors.
– Make sure the resistor isn’t shorted or damaged.
Resistor Gets Very Hot
A warm resistor is normal, but if it’s too hot to touch:
– It may be undersized or faulty. Replace it with a 10-watt or higher-rated resistor.
– Check for loose connections that could cause arcing.
– Consider upgrading to a higher-voltage transformer instead.
Voltage Still Too Low
If voltage remains below 16V:
– The transformer is likely underpowered. Replace it with a 16–24V AC, 10–30VA transformer.
– Long wire runs can cause voltage drop. Use thicker wire (18-gauge) if possible.
– Consider a Ring-approved plug-in transformer for easier installation.
When to Upgrade Instead of Adding a Resistor
While a resistor can help, it’s not always the best solution. Consider upgrading your transformer if:
– Your current transformer is rated below 16V AC.
– The resistor gets excessively hot.
– You have multiple doorbells or smart devices on the same circuit.
– You plan to install a Ring Video Doorbell Pro or other high-power model.
A new transformer provides clean, stable power and avoids the risks of overheating or voltage imbalance. Ring recommends a 16–24V AC transformer with at least 10VA (volt-amperes) of power. For most homes, a 24V, 20VA transformer is ideal.
Installation is similar to adding a resistor—just replace the old transformer with the new one and reconnect the wires. Many models come with mounting brackets and clear instructions.
Safety Tips and Best Practices
– Always turn off power at the breaker before working on electrical components.
– Use insulated tools and wear safety gloves.
– Never work on live circuits, even if they’re low voltage.
– Keep the resistor away from flammable materials—it can get warm.
– Label wires before disconnecting them to avoid confusion.
– If you’re unsure at any point, consult a licensed electrician.
Remember: DIY electrical work can be risky. If you’re not confident, it’s better to hire a professional.
Conclusion
Installing a resistor to your Ring doorbell transformer is a practical fix for low-voltage issues. It’s affordable, relatively simple, and can restore functionality to your doorbell when done correctly. By following this guide, you’ve learned how to safely add a 30-ohm resistor, test voltage, and troubleshoot common problems.
However, keep in mind that a resistor is a temporary solution. For long-term reliability, consider upgrading to a higher-output transformer. This ensures your Ring doorbell gets consistent power and reduces the risk of overheating or system failure.
With the right tools, careful wiring, and attention to safety, you can keep your smart doorbell working smoothly—whether you’re greeting guests or monitoring your home remotely. And if you ever run into trouble, don’t hesitate to reach out to Ring support or a qualified electrician.
Your home’s security is worth the effort. Take your time, follow the steps, and enjoy the peace of mind that comes with a fully functional Ring doorbell.
