This guide walks you through how to install a Ring 2 Doorbell safely and correctly. You’ll learn everything from checking compatibility to final setup, with tips to avoid common mistakes.
Key Takeaways
- Check compatibility first: Ensure your existing doorbell wiring and transformer meet Ring 2 requirements (8–24V AC, 10–40VA).
- Turn off power before starting: Always shut off electricity at the breaker to prevent shocks or damage.
- Use the included tools: The Ring 2 kit comes with a screwdriver, drill bit, and level—use them for best results.
- Mount securely at the right height: Install 48–60 inches from the ground and angle slightly toward the walkway for optimal motion detection.
- Test Wi-Fi signal strength: Place the doorbell where it gets strong Wi-Fi; use a Wi-Fi extender if needed.
- Complete setup in the Ring app: Follow in-app prompts to connect, name your device, and customize settings.
- Keep firmware updated: Regular updates improve performance, security, and feature access.
How to Install a Ring 2 Doorbell: A Complete Step-by-Step Guide
Installing a Ring 2 Doorbell is one of the smartest upgrades you can make to your home security. It gives you real-time alerts, two-way talk, HD video, and motion detection—all from your smartphone. Whether you’re replacing an old wired doorbell or installing one for the first time, this guide will walk you through every step with clarity and confidence.
You’ll learn how to check compatibility, safely remove your old doorbell, mount the Ring 2, connect the wiring, and complete setup using the Ring app. We’ll also cover common pitfalls, troubleshooting tips, and best practices to ensure your new smart doorbell works perfectly from day one.
Let’s get started!
What You’ll Need Before You Begin

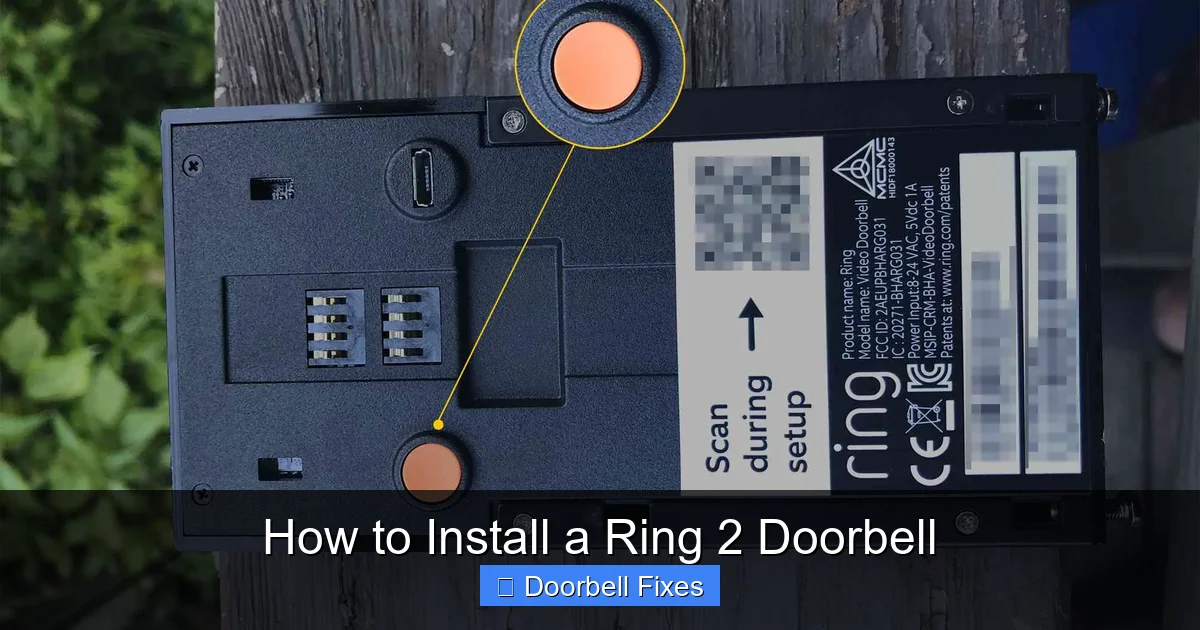

Visual guide about How to Install a Ring 2 Doorbell
Image source: surveillanceguides.com
Before you touch any wires or tools, make sure you have everything ready. Rushing this step can lead to frustration or safety risks.
Gather Your Tools and Materials
Your Ring 2 Doorbell kit includes:
– Ring Video Doorbell (2nd Gen)
– Security screwdriver (with flathead and Phillips bits)
– Drill bit (for mounting)
– Level
– Mounting bracket
– Screws and anchors
– Wire nuts
– Security screw (to lock the doorbell in place)
You’ll also need:
– A smartphone or tablet with the Ring app installed
– A stable Wi-Fi connection (2.4 GHz recommended)
– A ladder (if your doorbell is high up)
– A voltage tester (optional but helpful)
– Electrical tape (optional)
Check Your Existing Doorbell System
The Ring 2 is designed to work with most wired doorbell systems, but not all. Here’s what to check:
– **Transformer voltage:** Your doorbell transformer should output between 8 and 24 volts AC. Most homes have 16V, which is ideal. If yours is below 8V, the Ring may not power on. If it’s above 24V, it could damage the device.
– **Transformer wattage (VA):** Look for a rating between 10 and 40 VA. A 10VA transformer is usually sufficient, but higher is better for reliability.
– **Wiring:** You need two low-voltage wires connected to your doorbell button. If you only have one wire or no wires at all, you’ll need a Ring Power Adapter or consider a battery-powered model like the Ring Video Doorbell (3rd Gen) or Ring Doorbell Wired.
Tip: If you’re unsure about your transformer, check near your furnace, in the basement, or in a utility closet. It’s usually a small gray or black box with wires leading to your doorbell.
Download the Ring App
Download the free Ring app from the Apple App Store or Google Play. You’ll use it to set up your doorbell, connect to Wi-Fi, adjust settings, and view live video.
Create a Ring account if you don’t already have one. Use a strong password and enable two-factor authentication for extra security.
Step 1: Turn Off the Power
Safety first! Working with electricity can be dangerous if you’re not careful.
Locate Your Circuit Breaker
Go to your home’s main electrical panel (breaker box). Look for the breaker labeled “doorbell,” “chime,” or “front door.” If there’s no label, you may need to test breakers one by one.
Turn off the breaker that controls your doorbell. Use a non-contact voltage tester at the doorbell button to confirm the power is off. If the tester doesn’t beep or light up, it’s safe to proceed.
Tip: Place a piece of tape over the breaker switch so no one accidentally turns it back on while you’re working.
Remove the Old Doorbell Button
Use the included screwdriver to remove the screws holding your old doorbell button to the wall. Gently pull the button away from the wall—you should see two wires connected to the back.
Don’t cut the wires yet. Loosen the terminal screws and carefully disconnect the wires. Wrap the exposed ends with electrical tape to prevent them from touching each other or the wall.
Set the old button aside. You can recycle it or keep it as a backup.
Step 2: Prepare the Mounting Area
Now that the old button is gone, it’s time to get the wall ready for your Ring 2.
Clean the Surface
Wipe the area with a dry cloth to remove dust, dirt, or old adhesive. A clean surface helps the mounting bracket stay secure.
Check for Obstructions
Make sure there are no pipes, wires, or studs behind the wall where you plan to drill. Use a stud finder if needed. Avoid drilling into brick or concrete unless you have the right drill bits and anchors.
Choose the Right Mounting Bracket
The Ring 2 comes with a standard mounting bracket. If your doorbell is on a corner or you want to angle it for better coverage, use the included wedge mount (sold separately in some kits). The wedge helps point the camera toward your walkway.
Step 3: Install the Mounting Bracket
This step ensures your Ring 2 stays firmly in place.
Position the Bracket
Hold the mounting bracket against the wall where you want to install the doorbell. The ideal height is between 48 and 60 inches from the ground—about eye level for most adults.
Use the included level to make sure the bracket is straight. Mark the screw holes with a pencil.
Drill Pilot Holes
If you’re mounting into wood or drywall, use the included drill bit to create pilot holes. This prevents the wall from cracking and makes screwing easier.
For brick, concrete, or stucco, use a masonry drill bit and plastic anchors. Drill slowly and wear safety goggles.
Secure the Bracket
Line up the bracket with the pilot holes and insert the screws. Tighten them with the screwdriver until the bracket is snug against the wall. Don’t over-tighten—this can strip the screws or damage the wall.
Step 4: Connect the Wires
Now it’s time to connect your home’s wiring to the Ring 2.
Strip the Wire Ends (If Needed)
If the wire ends are frayed or too short, use wire strippers to expose about 1/4 inch of copper. Be careful not to cut the wire.
Attach Wires to the Bracket
The Ring 2 mounting bracket has two terminals labeled “Front” and “Trans.” It doesn’t matter which wire goes where—Ring 2 is polarity-insensitive.
Loosen the terminal screws, insert one wire into each terminal, and tighten the screws. Make sure the wires are secure and not touching each other.
Tip: If your wires are too short, you can extend them using wire nuts and additional low-voltage wire. Just make sure the connections are tight and insulated.
Secure the Wires
Tuck the wires neatly into the wall cavity so they don’t get pinched when you attach the doorbell. Use electrical tape to bundle them if needed.
Step 5: Attach the Ring 2 Doorbell
With the bracket and wires ready, it’s time to mount the device.
Slide the Doorbell onto the Bracket
Hold the Ring 2 with the camera facing forward. Align the slots on the back of the doorbell with the tabs on the mounting bracket. Gently slide it down until it clicks into place.
You should hear a secure snap. Give it a light tug to make sure it’s locked.
Insert the Security Screw
Use the small security screw and the included screwdriver to secure the doorbell to the bracket. This prevents theft and ensures it stays in place.
Tighten the screw just enough—don’t force it.
Step 6: Restore Power and Test
Now that everything is connected, it’s time to turn the power back on.
Turn On the Breaker
Go back to your electrical panel and flip the doorbell breaker back on. Wait about 30 seconds for the system to power up.
Check the Doorbell Light
Look at the front of the Ring 2. You should see a small LED light. If it’s solid white, the doorbell is receiving power and ready to connect. If it’s blinking or off, double-check your wiring and breaker.
Step 7: Set Up the Ring App
The final step is connecting your doorbell to your Wi-Fi and customizing settings.
Open the Ring App
Launch the Ring app on your phone. Tap “Set Up a Device” and select “Doorbells.”
Scan the QR Code
Point your phone’s camera at the QR code on the back of the Ring 2. The app will detect it automatically.
If the camera doesn’t scan, you can enter the device serial number manually.
Follow the On-Screen Prompts
The app will guide you through:
– Naming your doorbell (e.g., “Front Door”)
– Connecting to your Wi-Fi network (2.4 GHz recommended)
– Setting up motion zones
– Enabling notifications
– Testing the two-way talk and live view
Make sure your phone is connected to the same Wi-Fi network you want the doorbell to use.
Complete the Setup
Once connected, the app will confirm successful setup. You can now view live video, receive motion alerts, and talk to visitors from anywhere.
Tips for Optimal Performance
To get the most out of your Ring 2, follow these best practices.
Position for Best Coverage
Mount the doorbell so the camera has a clear view of your walkway, driveway, or porch. Avoid pointing it directly at a wall or busy street, which can trigger false alerts.
Use the wedge mount if you need to angle the camera. Test the view in the app and adjust as needed.
Improve Wi-Fi Signal
Weak Wi-Fi can cause lag, poor video quality, or disconnections. If your signal is weak:
– Move your router closer to the doorbell
– Use a Wi-Fi extender or mesh network
– Switch to a 2.4 GHz band (better range than 5 GHz)
You can check signal strength in the Ring app under Device Health.
Adjust Motion Settings
Too many alerts? Customize motion zones to focus on areas like your front walk and ignore trees or passing cars.
Set motion sensitivity to “Medium” or “Low” if you’re getting false alarms.
Keep the Lens Clean
Dust, dirt, and bugs can blur the camera. Wipe the lens gently with a microfiber cloth every few weeks.
Avoid using harsh chemicals or abrasive materials.
Update Firmware Regularly
Ring releases updates to improve performance and security. The app will notify you when updates are available. Install them promptly.
Troubleshooting Common Issues
Even with careful installation, you might run into problems. Here’s how to fix them.
Doorbell Won’t Power On
– Check that the breaker is on
– Verify wiring connections are tight
– Test the transformer voltage with a multimeter
– Try a different transformer if voltage is too low
Poor Video Quality or Lag
– Check Wi-Fi signal strength in the app
– Move closer to the router or use an extender
– Restart your router
– Reduce the video quality setting in the app (temporarily)
No Motion Alerts
– Make sure motion alerts are enabled in the app
– Check that motion zones are set correctly
– Ensure the doorbell is not facing a heat source (like a vent), which can interfere with sensors
Two-Way Talk Not Working
– Check microphone and speaker settings in the app
– Ensure your phone’s volume is up
– Restart the doorbell by removing and reattaching it
Doorbell Disconnects Frequently
– This is often a Wi-Fi issue. Move the router or add an extender
– Avoid placing the doorbell near metal surfaces or thick walls
– Update the firmware
Conclusion
Installing a Ring 2 Doorbell is a straightforward process that can significantly boost your home’s security and convenience. By following this guide, you’ve learned how to safely remove your old doorbell, mount the new one, connect the wiring, and complete setup using the Ring app.
Remember to check compatibility, turn off the power, and test your Wi-Fi signal before installing. Use the included tools, mount at the right height, and customize settings for the best experience.
With your Ring 2 now active, you’ll enjoy peace of mind knowing you can see, hear, and speak to anyone at your door—whether you’re home or away.
If you run into issues, don’t hesitate to use the troubleshooting tips or contact Ring support. And don’t forget to keep your firmware updated for the latest features and security improvements.
Welcome to the world of smart home security!
