How to Install a Ring 3 Doorbell

Installing a Ring 3 Doorbell is simpler than you think. This guide walks you through every step—from checking compatibility to final testing—so you can secure your home with confidence.

Key Takeaways

• Check compatibility first: Ensure your existing doorbell wiring and transformer meet Ring’s requirements (16–24V AC, 30VA or higher).
• Use the right tools: A screwdriver, drill (optional), level, and smartphone with the Ring app are essential for a smooth install.
• Turn off power safely: Always shut off electricity at the breaker before handling wires to avoid shocks or damage.
• Install the mounting bracket correctly: Level it properly and secure it tightly to prevent wobbling or misalignment.
• Connect wires securely: Loose connections can cause power issues or device failure—double-check all contacts.
• Complete setup via the Ring app: Follow in-app prompts to connect to Wi-Fi, test motion, and customize settings.
• Troubleshoot common issues: If the doorbell doesn’t power on or connect, check wiring, Wi-Fi signal, and app permissions.

How to Install a Ring 3 Doorbell: A Complete Step-by-Step Guide

So, you’ve decided to upgrade your home security with a Ring 3 Doorbell—great choice! Whether you’re replacing an old mechanical chime or installing a smart doorbell for the first time, the Ring 3 offers crystal-clear video, two-way audio, motion alerts, and seamless integration with other Ring devices. But before you enjoy those features, you need to get it installed correctly.

In this comprehensive guide, we’ll walk you through every step of installing your Ring 3 Doorbell—from checking compatibility and gathering tools to mounting the device, connecting wires, and setting it up in the Ring app. We’ll also cover common pitfalls and how to fix them. By the end, you’ll have a fully functional smart doorbell that keeps your home safe and gives you peace of mind.

No prior experience? No problem. This guide is written for beginners and pros alike, using simple language and clear instructions. Let’s get started!

What You’ll Need Before You Begin

Before diving into the installation, make sure you have everything you need. Skipping this step can lead to frustration, delays, or even damage to your new doorbell.

Gather Your Tools and Materials

• Ring 3 Doorbell kit: Includes the doorbell unit, mounting bracket, screws, anchors, wire nuts, and a leveling tool.
• Screwdriver: A Phillips head is usually sufficient, but a flathead may be needed for some screws.
• Drill (optional): Useful if you need to drill new holes or use wall anchors.
• Smartphone or tablet: Must have the Ring app installed (available on iOS and Android).
• Wi-Fi network: Your home Wi-Fi should be 2.4 GHz (Ring 3 doesn’t support 5 GHz-only networks).
• Voltage tester (recommended): To confirm your doorbell transformer is outputting the correct voltage.
• Ladder (if needed): For reaching high doorframes or entryways.

Check Doorbell Compatibility

Not all homes are ready for a Ring 3 Doorbell out of the box. The device requires a working doorbell system with low-voltage wiring and a compatible transformer. Here’s how to check:

• Existing doorbell: You should have a traditional wired doorbell with two wires coming from the wall.
• Transformer voltage: Use a multimeter or voltage tester to check that your transformer outputs between 16 and 24 volts AC. Most older homes have 8–16V transformers, which are too weak.
• Chime compatibility: The Ring 3 works with most mechanical and digital chimes. If you have a complex chime system (like a multi-tone or wireless chime), you may need a Ring Chime Pro for reliable operation.

Pro Tip: If your transformer is under 16V, you’ll need to upgrade it. Consult an electrician if you’re unsure—this is a common cause of installation failure.

Step 1: Turn Off the Power

Safety first! Working with electrical wiring can be dangerous if you don’t disconnect the power source. Even though doorbell systems use low voltage, there’s still a risk of shock or short-circuiting your device.

Locate Your Circuit Breaker

Go to your home’s main electrical panel (usually in the basement, garage, or utility closet). Look for the breaker labeled “doorbell,” “chime,” or “front door.” If there’s no label, you may need to test breakers by turning them off one at a time and checking if your existing doorbell stops working.

Turn Off the Breaker

Switch the breaker to the “OFF” position. Use a voltage tester on the doorbell wires to confirm no power is flowing. This extra step ensures your safety and protects your Ring 3 from power surges during installation.

Important: Never assume the power is off just because the breaker is switched. Always test the wires with a voltage tester.

Step 2: Remove Your Old Doorbell

Now that the power is off, it’s time to remove your existing doorbell. This step varies slightly depending on whether you’re replacing a wired doorbell or installing Ring 3 on a new location.

Unscrew the Old Unit

Use your screwdriver to remove the screws holding the old doorbell to the wall. Gently pull the unit away from the wall to expose the two wires connected to the back.

Disconnect the Wires

Loosen the terminal screws or wire nuts and carefully remove the wires. Don’t let them fall back into the wall—use electrical tape to label them (e.g., “Front” and “Trans”) or hold them with a clip.

Inspect the Mounting Area

Check the condition of the wall surface. If it’s damaged or uneven, you may need to patch it or use wall anchors for a secure mount. Clean any dust or debris so the new bracket adheres properly.

Tip: Take a photo of the wiring setup before disconnecting. This can help if you need to troubleshoot later.

Step 3: Install the Mounting Bracket

The mounting bracket is the foundation of your Ring 3 Doorbell. If it’s not installed correctly, the doorbell may wobble, tilt, or fail to connect properly.

Position the Bracket

Hold the Ring mounting bracket against the wall where you want to install the doorbell. Use the built-in level (or a separate level) to ensure it’s straight. The ideal height is about 48 inches from the ground—eye level for most visitors.

Mark the Screw Holes

Use a pencil to mark the locations of the screw holes through the bracket. If you’re drilling into brick, concrete, or tile, you’ll need a masonry drill bit and wall anchors.

Drill and Secure

Drill pilot holes if necessary, then screw the bracket into place using the provided screws. Make sure it’s tight and doesn’t move when you press on it.

Pro Tip: If your wall is uneven, use the included shims (thin plastic pieces) behind the bracket to level it. This ensures the doorbell sits flush against the wall.

Step 4: Connect the Wires

This is the most critical part of the installation. Proper wiring ensures your Ring 3 gets consistent power and communicates with your chime.

Prepare the Wires

Strip about 1/4 inch of insulation from the ends of the two doorbell wires if they’re not already exposed. Twist the bare copper strands to prevent fraying.

Attach to the Bracket

Thread the wires through the back of the mounting bracket. Then, connect them to the two terminals on the bracket—usually labeled “Front” and “Trans.” It doesn’t matter which wire goes where, as long as both are securely fastened.

Secure the Connections

Tighten the terminal screws firmly. Give the wires a gentle tug to make sure they won’t come loose. Loose connections are a common cause of power issues.

Warning: Do not wrap wires around the screws—this can cause them to break over time. Always insert them into the terminal holes and tighten.

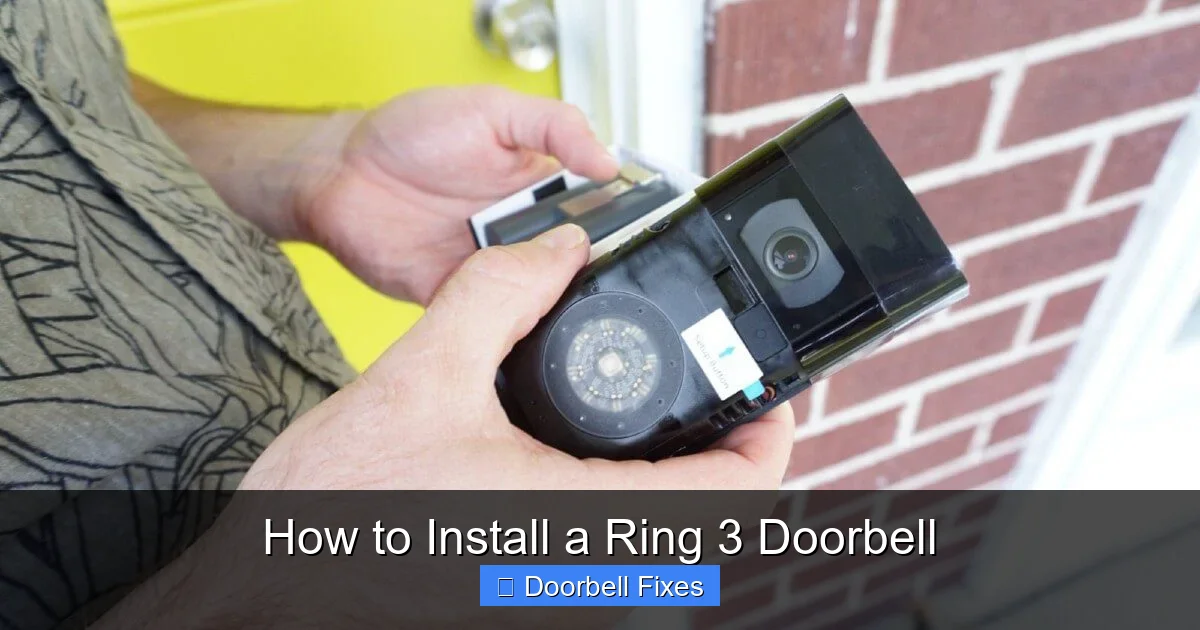

Step 5: Attach the Ring 3 Doorbell

With the bracket and wires in place, it’s time to mount the Ring 3 unit itself.

Align the Doorbell

Hold the Ring 3 Doorbell against the bracket, aligning the screw holes. The front-facing camera should be level and pointing straight ahead.

Secure with Screws

Insert the security screws (included in the kit) through the bottom of the doorbell and into the bracket. Use the provided screwdriver or a small Phillips head to tighten them. Don’t overtighten—this can crack the plastic housing.

Check the Fit

Gently wiggle the doorbell to ensure it’s firmly attached. It should not move or tilt. If it does, recheck the bracket installation and screw tightness.

Note: The Ring 3 uses security screws to prevent theft. Keep the screwdriver handy—you’ll need it to remove the doorbell for maintenance or battery replacement (if using the optional battery pack).

Step 6: Restore Power and Test

Now that everything is installed, it’s time to turn the power back on and see if your Ring 3 is working.

Turn On the Breaker

Go back to your electrical panel and switch the doorbell breaker to the “ON” position. Listen for your existing chime—if it rings, power is restored.

Check the Doorbell Light

Look at the front of the Ring 3. You should see a small LED light. If it’s solid white, the device is receiving power. If it’s blinking or off, there may be a wiring issue.

Test the Button

Press the doorbell button. Your chime should ring, and the LED should flash. If nothing happens, double-check your wiring and breaker.

Troubleshooting Tip: If the light is blinking white, the doorbell is in setup mode and ready to connect to the app. If it’s red or off, recheck connections and voltage.

Step 7: Set Up the Ring App

The Ring app is your control center for the doorbell. It handles Wi-Fi setup, motion zones, notifications, and more.

Download and Open the App

If you haven’t already, download the Ring app from the App Store or Google Play. Create an account or log in if you have one.

Start the Setup Process

Tap “Set Up a Device” and select “Doorbells.” Choose “Ring Video Doorbell 3” from the list. The app will guide you through the next steps.

Scan the QR Code

Use your phone’s camera to scan the QR code on the back of the doorbell or inside the battery compartment. This links the device to your account.

Connect to Wi-Fi

Select your home Wi-Fi network and enter the password. The Ring 3 only supports 2.4 GHz networks—make sure you’re not trying to connect to a 5 GHz band.

Test the Connection

The app will verify the connection and update the firmware if needed. Once complete, you’ll see a live video feed from your doorbell.

Pro Tip: Place your phone near the doorbell during setup to ensure a strong signal. Weak Wi-Fi can cause setup failures or poor video quality.

Step 8: Customize Your Settings

Now that your Ring 3 is online, it’s time to personalize it to fit your lifestyle.

Set Motion Zones

In the app, go to “Device Settings” > “Motion Settings” > “Motion Zones.” Draw zones where you want to detect motion (e.g., driveway, walkway). Avoid areas like busy streets to reduce false alerts.

Adjust Sensitivity

Choose from Low, Medium, or High motion sensitivity. Start with Medium and adjust based on how often you get alerts.

Enable Notifications

Turn on push notifications so you’re alerted when someone rings the doorbell or motion is detected. You can also set quiet hours to avoid disturbances at night.

Link to Other Devices

If you have a Ring Chime, Echo device, or security system, link them in the app for synchronized alerts.

Bonus Feature: Enable “People Only Mode” to filter out motion from cars, animals, or trees—this reduces unnecessary notifications.

Troubleshooting Common Installation Issues

Even with careful installation, problems can arise. Here’s how to fix the most common issues.

Doorbell Won’t Power On

• Check that the breaker is on and the wires are securely connected.
• Use a voltage tester to confirm the transformer is outputting 16–24V AC.
• If voltage is low, replace the transformer or install a Ring Chime Pro (which includes a built-in transformer).

No Video or Poor Connection

• Ensure your Wi-Fi signal is strong at the doorbell location. Use a Wi-Fi extender if needed.
• Restart your router and the Ring app.
• Reconnect the doorbell to Wi-Fi through the app.

Chime Doesn’t Ring

• Verify the wires are connected to the correct terminals on the chime unit.
• Check that the chime is compatible with Ring (most are, but some digital chimes require a resistor).
• Install a Ring Chime Pro if your existing chime doesn’t work reliably.

False Motion Alerts

• Adjust motion zones to exclude moving objects like trees or traffic.
• Lower motion sensitivity in the app.
• Enable “People Only Mode” to focus on human activity.

App Setup Fails

• Make sure your phone is connected to the same Wi-Fi network as the doorbell.
• Restart the app and try scanning the QR code again.
• Update the Ring app to the latest version.

Maintenance and Long-Term Care

To keep your Ring 3 Doorbell working smoothly, follow these maintenance tips:

• Clean the lens monthly: Use a soft, dry cloth to wipe away dust, dirt, or fingerprints. Avoid harsh chemicals.
• Check for firmware updates: The Ring app will notify you when updates are available. Install them to improve performance and security.
• Inspect wiring annually: Ensure connections are tight and wires aren’t frayed or damaged.
• Replace batteries (if using): If you’re using the optional battery pack, recharge or replace it every 6–12 months depending on usage.

With proper care, your Ring 3 Doorbell will provide reliable service for years.

Conclusion

Installing a Ring 3 Doorbell is a smart way to enhance your home security, and with this guide, you’ve learned how to do it safely and correctly. From checking compatibility and turning off power to mounting the bracket, connecting wires, and setting up the app, each step is designed to ensure a smooth, successful installation.

Remember, the key to a hassle-free setup is preparation and attention to detail. Don’t rush—take your time with wiring and alignment. And if you run into issues, refer back to the troubleshooting section or contact Ring support.

Once your Ring 3 is up and running, you’ll enjoy real-time alerts, crystal-clear video, and the peace of mind that comes with knowing who’s at your door—even when you’re not home. Welcome to the future of home security!
