Installing a Ring Doorbell 3 Plus is simple with the right tools and guidance. This guide walks you through mounting, wiring, app setup, and troubleshooting to ensure a secure, working smart doorbell in under an hour.
Key Takeaways
- Check compatibility first: Ensure your existing doorbell wiring and transformer meet Ring’s voltage requirements (16–24V AC) to avoid damage or poor performance.
- Use the Ring app for setup: The app guides you through mounting, Wi-Fi connection, and device activation—no technical expertise needed.
- Mount securely at the right height: Install the doorbell 48 inches above the ground and angled slightly toward the walkway for optimal motion detection.
- Test before finalizing: Always test the doorbell and chime after installation to confirm power, Wi-Fi, and audio/video functionality.
- Use a Pro Power Kit if needed: If your chime doesn’t ring, install the included Pro Power Kit to stabilize voltage and ensure reliable operation.
- Update firmware regularly: Keep your Ring Doorbell 3 Plus updated via the app for the latest features and security patches.
- Enable motion zones and alerts: Customize detection areas and notification settings to reduce false alarms and improve usability.
How to Install a Ring Doorbell 3 Plus
Upgrading your home security with a smart doorbell has never been easier—especially with the Ring Doorbell 3 Plus. This advanced model offers 1080p HD video, two-way audio, improved motion detection, and dual-band Wi-Fi for a stronger connection. Whether you’re replacing an old doorbell or installing one for the first time, this step-by-step guide will walk you through the entire process, from checking compatibility to final testing. By the end, you’ll have a fully functional Ring Doorbell 3 Plus that keeps your home safe and connected.
In this guide, you’ll learn how to safely remove your existing doorbell, prepare the wiring, mount the new device, connect it to your Wi-Fi network, and configure settings in the Ring app. We’ll also cover common issues and how to fix them, so you can avoid frustration and get the most out of your new smart doorbell. Let’s get started!
What You’ll Need Before You Begin
Before you start installing your Ring Doorbell 3 Plus, gather the following tools and materials to ensure a smooth process:

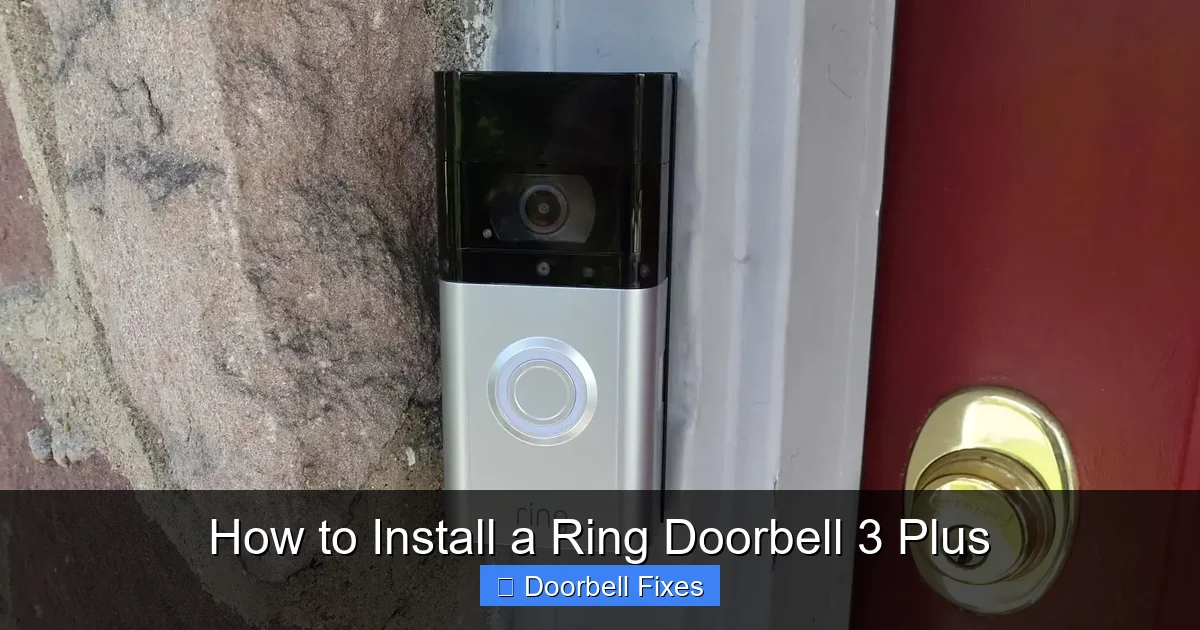

Visual guide about How to Install a Ring Doorbell 3 Plus
Image source: i0.wp.com
- Ring Doorbell 3 Plus (with mounting bracket and screws)
- Phillips-head screwdriver
- Drill (optional, for brick or concrete surfaces)
- Wall anchors (if not included or needed for your wall type)
- Voltage tester (to check existing wiring)
- Smartphone or tablet with the Ring app installed
- Wi-Fi network name and password
- Ladder (if installing at height)
- Electrical tape (optional, for securing wires)
Having everything ready ahead of time saves time and prevents interruptions during installation. If you’re unsure about your doorbell’s wiring, it’s worth testing it with a voltage tester to confirm compatibility.
Step 1: Check Compatibility and Power Requirements
Not all doorbell systems are compatible with the Ring Doorbell 3 Plus. To avoid damage or poor performance, verify that your existing setup meets Ring’s requirements.
Check Your Existing Doorbell Wiring
The Ring Doorbell 3 Plus requires a wired connection with a transformer that outputs between 16 and 24 volts AC. Most older homes have transformers in this range, but some newer or low-voltage systems may not provide enough power.
To check:
- Turn off power to your doorbell at the circuit breaker.
- Remove the existing doorbell button from the wall.
- Use a voltage tester to measure the voltage across the two wires. If it reads below 16V, your system may not support the Ring Doorbell 3 Plus.
If your voltage is too low, you may need to upgrade your transformer or consider a battery-powered Ring model instead.
Verify Chime Compatibility
The Ring Doorbell 3 Plus works with most mechanical and digital chimes. However, some older or incompatible chimes may not ring properly. Ring includes a Pro Power Kit in the box to help stabilize voltage and ensure your chime works correctly.
If your chime doesn’t ring after installation, you’ll likely need to install the Pro Power Kit. We’ll cover that in a later step.
Step 2: Download and Set Up the Ring App
The Ring app is essential for setting up and managing your doorbell. It guides you through installation, connects your device to Wi-Fi, and lets you customize settings.
Install the Ring App
Download the free Ring app from the Apple App Store (iOS) or Google Play Store (Android). Create a Ring account if you don’t already have one. Use a valid email address and strong password.
Prepare Your Wi-Fi Network
The Ring Doorbell 3 Plus supports both 2.4 GHz and 5 GHz Wi-Fi networks, giving you more flexibility. However, for initial setup, it’s recommended to use the 2.4 GHz band, as it has better range and wall penetration.
Make sure your Wi-Fi signal is strong near the installation location. If your signal is weak, consider using a Wi-Fi extender or moving your router closer.
Step 3: Turn Off Power and Remove the Old Doorbell
Safety first! Always turn off power to your doorbell before working on wiring.
Turn Off the Circuit Breaker
Locate your home’s electrical panel and turn off the breaker that controls your doorbell. If you’re unsure which one it is, turn off the main breaker to be safe.
Remove the Existing Doorbell
Use a Phillips-head screwdriver to remove the screws holding your old doorbell to the wall. Gently pull the button away from the wall to expose the two wires underneath.
Take a photo of the wiring setup before disconnecting anything. This will help you reconnect the wires correctly later.
Disconnect the Wires
Loosen the terminal screws on the back of the old doorbell and carefully remove the wires. If the wires are short or damaged, you may need to strip a small amount of insulation to expose fresh copper.
Twist the bare ends of the wires together temporarily to prevent them from slipping back into the wall. You can also use electrical tape to secure them to the wall.
Step 4: Install the Mounting Bracket
The Ring Doorbell 3 Plus comes with a mounting bracket that attaches to your wall. This bracket holds the doorbell securely and allows for easy removal for charging or maintenance.
Position the Bracket
Hold the mounting bracket against the wall where you want to install the doorbell. The ideal height is 48 inches from the ground to the center of the doorbell. This ensures clear video of visitors and optimal motion detection.
Use a level to make sure the bracket is straight. Mark the screw holes with a pencil.
Drill Pilot Holes (If Needed)
If you’re installing on wood or drywall, you can screw directly into the wall. For brick, concrete, or stucco, drill pilot holes using a masonry bit. Insert wall anchors for extra support.
Secure the Bracket
Align the bracket with the pilot holes and screw it into place using the provided screws. Make sure it’s tight and level.
Angle the Bracket (Optional)
If your doorbell is installed on a corner or angled wall, use the included wedge kit to adjust the viewing angle. This helps capture more of your front yard or walkway.
Attach the wedge to the bracket before securing it to the wall. The wedge allows you to tilt the doorbell up to 15 degrees for better coverage.
Step 5: Connect the Wires and Attach the Doorbell
Now it’s time to connect your doorbell to the wiring and attach it to the mounting bracket.
Connect the Wires
Take the two wires from your wall and connect them to the terminals on the back of the Ring Doorbell 3 Plus. It doesn’t matter which wire goes to which terminal—the doorbell is non-polarized.
Loosen the terminal screws, insert the bare wire ends, and tighten the screws securely. Make sure no bare wire is exposed outside the terminals.
Attach the Doorbell to the Bracket
Align the doorbell with the mounting bracket and slide it down until it clicks into place. You should hear a secure snap.
Use the included security screw and screwdriver to fasten the doorbell to the bracket. This prevents theft and ensures it stays in place.
Step 6: Turn Power Back On and Test the Doorbell
Once the doorbell is mounted and wired, restore power and test the system.
Turn the Circuit Breaker Back On
Go to your electrical panel and turn the breaker back on. Wait a few seconds for the doorbell to power up.
Check for Power and Chime
Press the doorbell button. You should hear your indoor chime ring. If it doesn’t, your chime may be incompatible, or the wiring may need adjustment.
If the chime doesn’t work, proceed to install the Pro Power Kit (covered in the troubleshooting section).
Step 7: Set Up the Doorbell in the Ring App
Now that the doorbell is powered, it’s time to connect it to your Wi-Fi and configure settings.
Open the Ring App
Launch the Ring app on your smartphone or tablet. Tap “Set Up a Device” and select “Doorbells.”
Scan the QR Code
The app will ask you to scan the QR code on the back of your doorbell. Use your phone’s camera to scan it. If the code is damaged, you can enter the serial number manually.
Connect to Wi-Fi
Follow the on-screen prompts to connect your doorbell to your Wi-Fi network. Choose your network and enter the password. The app will guide you through the process.
If you have a dual-band router, the app may ask which band to use. For best results, start with 2.4 GHz during setup.
Name Your Doorbell
Give your doorbell a name, such as “Front Door” or “Main Entrance.” This helps if you have multiple Ring devices.
Complete the Setup
The app will finalize the setup, update the firmware if needed, and test the connection. You’ll see a confirmation screen when everything is ready.
Step 8: Customize Settings and Features
Once your doorbell is online, take time to personalize it for your needs.
Adjust Motion Settings
Go to “Device Settings” > “Motion Settings” to customize detection zones. Draw areas on the video preview where you want motion alerts (e.g., driveway, walkway). Avoid areas like busy streets to reduce false alarms.
Set Notification Preferences
Choose when and how you receive alerts. You can set quiet hours, enable person detection, or turn off notifications at night.
Enable Two-Way Talk
Test the two-way audio by pressing the talk button in the app when someone is at the door. Speak clearly and listen for their response.
Review Video Quality
Check the live view to ensure the video is clear and the field of view covers your desired area. Adjust the angle if needed by loosening the security screw and repositioning the doorbell.
Troubleshooting Common Installation Issues
Even with careful installation, you might run into a few hiccups. Here’s how to fix the most common problems.
Chime Doesn’t Ring
If your indoor chime doesn’t ring when the doorbell is pressed, your chime may be incompatible or the voltage may be unstable. Install the Pro Power Kit included in the box.
To install:
- Turn off power at the breaker.
- Remove your indoor chime from the wall.
- Disconnect the wires and connect them to the Pro Power Kit terminals.
- Mount the kit inside the chime box and reconnect the wires.
- Turn power back on and test.
Weak Wi-Fi Signal
If the doorbell frequently disconnects or has poor video quality, your Wi-Fi signal may be weak. Try moving your router closer, using a Wi-Fi extender, or switching to the 5 GHz band if your doorbell supports it.
Doorbell Won’t Power On
If the doorbell doesn’t light up or respond, double-check the wiring connections. Ensure the wires are securely attached and the breaker is on. Test the voltage again with a multimeter.
Blurry or Dark Video
Clean the lens with a soft, dry cloth. Make sure the doorbell is mounted at the correct height and angle. If it’s too dark, consider adding outdoor lighting near the door.
False Motion Alerts
Adjust motion zones in the app to exclude areas with frequent movement (e.g., trees, cars). Enable “People Only” mode to reduce alerts from animals or shadows.
Maintenance and Best Practices
To keep your Ring Doorbell 3 Plus working smoothly, follow these maintenance tips:
- Clean the lens monthly: Use a microfiber cloth to remove dust, dirt, or fingerprints.
- Check for firmware updates: The Ring app will notify you when updates are available. Install them to improve performance and security.
- Inspect wiring annually: Ensure connections are tight and wires aren’t frayed or damaged.
- Test the chime regularly: Press the button weekly to confirm it’s working.
- Monitor battery (if using optional battery): The Ring Doorbell 3 Plus can be powered by a rechargeable battery, but it’s designed for hardwired use. If using the battery, charge it every 3–6 months.
Conclusion
Installing a Ring Doorbell 3 Plus is a straightforward process that enhances your home’s security and convenience. By following this guide, you’ve learned how to check compatibility, safely remove your old doorbell, mount the new device, connect it to Wi-Fi, and customize settings in the Ring app. With proper installation and maintenance, your smart doorbell will provide reliable performance for years to come.
Remember to test everything after installation, use the Pro Power Kit if your chime doesn’t work, and keep your firmware updated. Whether you’re a DIY beginner or an experienced homeowner, the Ring Doorbell 3 Plus is a smart investment in peace of mind. Welcome to the future of home security!
