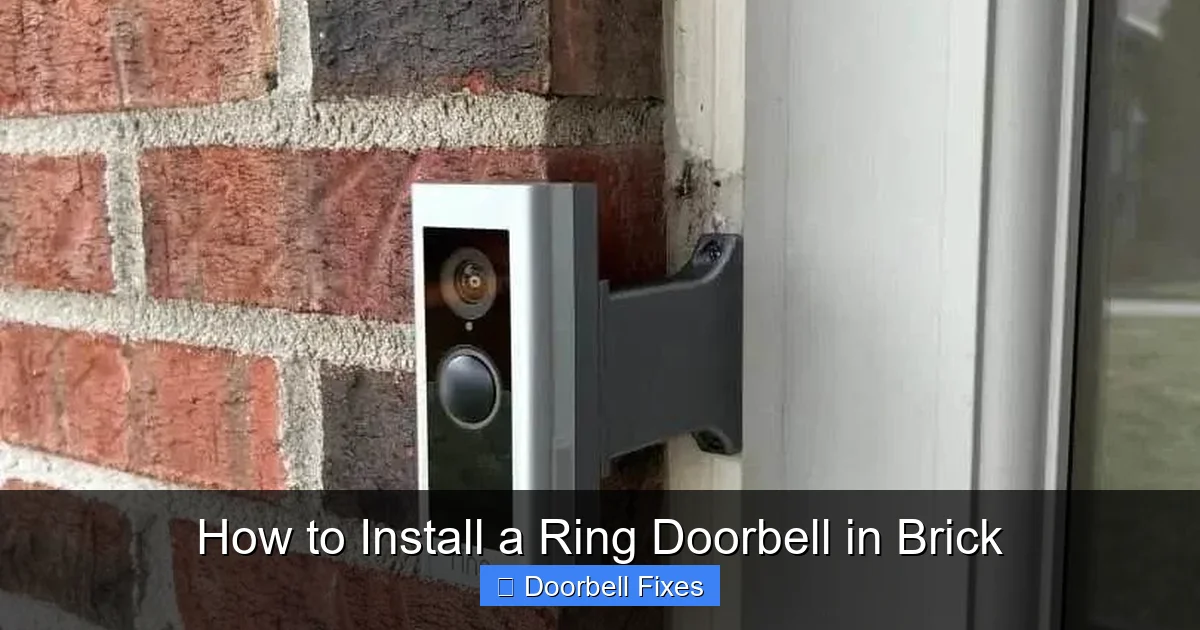

How to Install a Ring Doorbell in Brick

Step 1: Choose the Right Ring Doorbell Model

Not all Ring doorbells are created equal—especially when it comes to installation. Some models are battery-powered, while others require hardwiring. Your choice will affect how you install it on brick.

Battery-Powered Models (e.g., Ring Video Doorbell, Ring Doorbell 2, 3, 4)

These are the easiest to install on brick because you don’t need to connect to existing wiring. You simply mount the bracket and snap the doorbell in place. Rechargeable batteries last 3–6 months, depending on usage.

Hardwired Models (e.g., Ring Video Doorbell Pro, Pro 2, Wired)

These require connecting to your home’s doorbell wires. If you already have a wired doorbell, this is doable—but you’ll need to run wires through the brick or use surface-mounted conduit. More on that later.

Solar Options

Ring also offers solar panel accessories that can keep your battery doorbell charged. These can be mounted nearby on the brick and connected via a short wire.

Pro Tip: If you’re unsure about wiring or don’t want to drill multiple holes, go with a battery model. It’s simpler and just as effective for most homes.

Step 2: Pick the Best Location

Where you place your Ring doorbell matters—for both security and functionality.

Height

The standard height is 48 inches (4 feet) from the ground. This gives a good view of visitors and packages while staying out of easy reach for tampering.

Angle and Coverage

Mount the doorbell so it faces the walkway or driveway. Avoid pointing it directly at the sun (which can cause glare) or into a dark shadow. If your door is in a corner, consider the Ring Corner Kit to angle the camera outward.

Wi-Fi Signal

Brick can block Wi-Fi signals. Before drilling, test your connection at the install spot. Use the Ring app’s “Device Health” feature to check signal strength. If it’s weak, consider a Wi-Fi extender or moving the router closer.

Power Source (for Hardwired Models)

Make sure you can access existing doorbell wires. If not, you’ll need to run new wires—either through the wall (tough in brick) or along the surface with conduit.

Example: If your front door is on a brick wall with no existing wires, a battery-powered Ring Doorbell 4 might be your best bet. No wires, no hassle.

Step 3: Use the Mounting Template

Ring includes a paper template in the box—don’t skip this step! It ensures your drill holes are perfectly spaced and aligned.

How to Use the Template

1. Hold the template against the brick at your chosen height.
2. Use a level to make sure it’s straight.
3. Mark the drill holes with a pencil.
4. Double-check the position before drilling.

Pro Tip: Tape the template in place with painter’s tape so it doesn’t slip while you mark.

Step 4: Drill Into the Brick

Now for the part that makes most people nervous: drilling into brick. But with the right technique, it’s safe and effective.

Step-by-Step Drilling

1. Put on safety gear: Glasses and a mask are essential. Brick dust is sharp and harmful to breathe.
2. Set your drill to hammer mode: This combines rotation with a pounding action to break through brick.
3. Start slowly: Begin at a low speed to create a pilot hole. Don’t force it—let the drill do the work.
4. Drill to the correct depth: Most anchors need about 1.5 to 2 inches deep. Use tape on the drill bit as a depth guide.
5. Clean out the hole: Blow or vacuum out dust. A clean hole ensures the anchor expands properly.

Warning: Never drill into mortar if possible. Mortar is softer and may crumble, leading to a loose mount. Aim for the center of the brick.

What If You Hit a Hard Spot?

Sometimes you’ll hit a particularly dense part of the brick. If the drill stalls, stop and reposition slightly. Don’t force it—you could crack the brick.

Step 5: Insert the Masonry Anchors

Once your holes are drilled, it’s time to insert the anchors.

How to Install Anchors

1. Tap the plastic or metal anchor into the hole with a hammer until it’s flush with the brick.
2. Make sure it’s snug—wiggle it gently. If it moves, the hole may be too big. Use a slightly larger anchor or fill the hole with epoxy (advanced fix).
3. Repeat for all drill holes.

Pro Tip: If you’re using metal anchors, they may require a setting tool or screw to expand. Follow the manufacturer’s instructions.

Step 6: Attach the Mounting Bracket

Now that your anchors are in, you can secure the Ring mounting bracket.

Steps

1. Hold the bracket over the anchors.
2. Insert the screws through the bracket and into the anchors.
3. Tighten with a screwdriver or drill (on low torque to avoid stripping).
4. Use a level to confirm the bracket is straight.

Note: Some Ring models use a quick-release bracket. Make sure it clicks securely into place.

Step 7: Run and Protect the Wires (If Hardwiring)

If you’re hardwiring your doorbell, you’ll need to connect it to existing doorbell wires.

Steps for Hardwiring

1. Turn off power at the breaker to avoid shocks.
2. Remove your old doorbell (if present).
3. Feed the wires through the back of the Ring bracket.
4. Strip the wire ends (about 1/4 inch).
5. Connect to the terminals on the back of the doorbell (usually labeled “Front” and “Trans”).
6. Tuck excess wire into the wall cavity or use conduit for surface runs.

Waterproofing the Wires

This is crucial for brick installations. Moisture can seep through drill holes and damage wires or cause shorts.

• Apply silicone sealant around the wire entry point and drill holes.
• Use a drip loop: Let the wire dip down before entering the doorbell to prevent water from running along it.
• Consider a weatherproof junction box if running wires externally.

Pro Tip: Even if you’re using a battery model, seal the drill holes with silicone. It prevents pests and water damage.

Step 8: Install the Doorbell

With the bracket secure and wires connected (if applicable), it’s time to attach the doorbell.

For Battery Models

1. Slide the doorbell onto the bracket until it clicks.
2. Secure with the included security screw (use a screwdriver or Allen wrench).
3. Make sure it’s tight—don’t overtighten and crack the casing.

For Hardwired Models

1. Connect the wires to the terminals.
2. Snap the doorbell onto the bracket.
3. Secure with the security screw.

Step 9: Test and Set Up in the App

Your doorbell is mounted—now make sure it works.

Steps

1. Turn power back on (if hardwired).
2. Open the Ring app on your phone.
3. Follow the setup prompts to connect to Wi-Fi.
4. Check live view, motion detection, and notifications.
5. Adjust motion zones if needed.

Pro Tip: Walk in front of the doorbell to test motion alerts. Make sure it detects movement without false triggers from trees or passing cars.

Step 10: Final Touches and Maintenance

A few final steps will keep your doorbell working perfectly for years.

Seal All Holes

Go over every drill hole and wire entry with silicone sealant. This prevents water, insects, and drafts.

Clean the Lens

Use a soft, dry cloth to wipe the camera lens monthly. Dirt or water spots can blur footage.

Check Battery (If Applicable)

Recharge or replace the battery every 3–6 months. The app will notify you when it’s low.

Trim Nearby Foliage

Overgrown plants can block the camera or trigger false motion alerts.

Troubleshooting Common Issues

Even with careful installation, problems can happen. Here’s how to fix the most common ones.

Doorbell Won’t Stay On

• Battery model: Charge the battery fully. Cold weather can reduce battery life.
• Hardwired model: Check wire connections. Loose wires or low voltage can cause power issues. Use a voltage tester—Ring needs at least 16V.

Poor Wi-Fi Signal

• Move your router closer.
• Install a Wi-Fi extender.
• Switch to a 2.4GHz network (better range than 5GHz through brick).

Blurry or Dark Video

• Clean the lens.
• Adjust the angle to avoid direct sunlight.
• Enable HDR in the app settings for better contrast.

Motion Alerts Not Working

• Check motion zones in the app.
• Ensure the doorbell is angled correctly.
• Update the firmware via the app.

Loose Mounting

• Tighten the security screw.
• If the anchor is loose, remove it, fill the hole with epoxy, and re-drill.
• Consider using a larger anchor or switching to a No-Drill Mount.

Alternative: Use a No-Drill Mount

If you’re renting, worried about damaging brick, or just want a cleaner look, the Ring No-Drill Mount is a great alternative.

How It Works

The No-Drill Mount uses strong adhesive strips to stick to the brick. It holds most Ring doorbells securely and can be removed without residue.

Pros

• No drilling required.
• Easy to install and remove.
• Perfect for renters or historic homes.

Cons

• May not hold as securely in extreme weather.
• Adhesive can weaken over time.
• Not recommended for heavy models like the Pro.

Pro Tip: Clean the brick with rubbing alcohol before applying the adhesive for maximum stickiness.

When to Call a Professional

Most homeowners can install a Ring doorbell on brick themselves. But if you’re dealing with:

• Thick or reinforced brick
• No existing doorbell wires and no way to run new ones
• Electrical concerns or low voltage
• Structural worries (e.g., old or crumbling brick)

…it’s worth hiring a handyman or electrician. They have the tools and experience to do it safely and correctly.

Conclusion

Installing a Ring doorbell in brick might seem daunting at first, but it’s absolutely achievable with the right tools and know-how. By using a hammer drill, masonry anchors, and silicone sealant, you can create a secure, weatherproof mount that protects your home for years to come.

Remember: take your time, follow the steps, and don’t skip safety precautions. Whether you go with a battery model or hardwire it, your Ring doorbell will give you peace of mind, real-time alerts, and a clear view of who’s at your door.

And if you ever run into trouble, the Ring app and customer support are there to help. So grab your drill, put on your safety glasses, and get ready to upgrade your home security—one brick at a time.
