This guide walks you through how to install a Ring doorbell system safely and correctly, whether you’re replacing an old doorbell or setting up a new one. You’ll learn about tools, wiring, mounting, app setup, and common fixes—all in simple, beginner-friendly steps.
Key Takeaways
- Choose the right Ring model: Select a battery, wired, or solar-powered Ring doorbell based on your home’s setup and power source.
- Gather essential tools: You’ll need a screwdriver, drill (optional), level, and smartphone with the Ring app installed.
- Turn off power at the breaker: Safety first—always shut off electricity before working with existing doorbell wiring.
- Use the mounting bracket correctly: Secure the bracket level and at the right height (48 inches from the ground) for best performance.
- Connect to Wi-Fi during setup: Ensure your 2.4 GHz Wi-Fi network is available and strong near the doorbell location.
- Test motion and video settings: Adjust motion zones and sensitivity after installation to reduce false alerts.
- Troubleshoot common issues: If the doorbell won’t charge or connect, check wiring, Wi-Fi, or reset the device.
How to Install a Ring Doorbell System: A Complete Step-by-Step Guide
So, you’ve decided to upgrade your home security with a Ring doorbell. Great choice! Ring doorbells are popular for a reason—they’re easy to use, offer crisp video, two-way talk, and motion alerts that keep you connected to your front door no matter where you are. But before you can start seeing who’s knocking, you need to install it properly.
This guide will walk you through how to install a Ring doorbell system from start to finish. Whether you’re replacing an old wired doorbell or installing a brand-new battery-powered model, we’ve got you covered. We’ll explain the tools you need, how to mount the device, connect it to your Wi-Fi, and troubleshoot common problems—all in plain, easy-to-follow language.
By the end of this guide, you’ll have a fully functioning Ring doorbell that enhances your home’s safety and convenience. No electrician required (though we’ll tell you when it’s okay to call one). Let’s get started!
Step 1: Choose the Right Ring Doorbell Model
Before you even think about drilling holes or pulling out your screwdriver, you need to pick the right Ring doorbell for your home. Ring offers several models, each with different features and power options. Here’s a quick breakdown to help you decide:
Ring Video Doorbell (2nd Gen)
This is the most basic model. It’s battery-powered, so you don’t need existing doorbell wiring. It offers 1080p HD video, two-way talk, and motion detection. Perfect for renters or homes without a doorbell transformer.

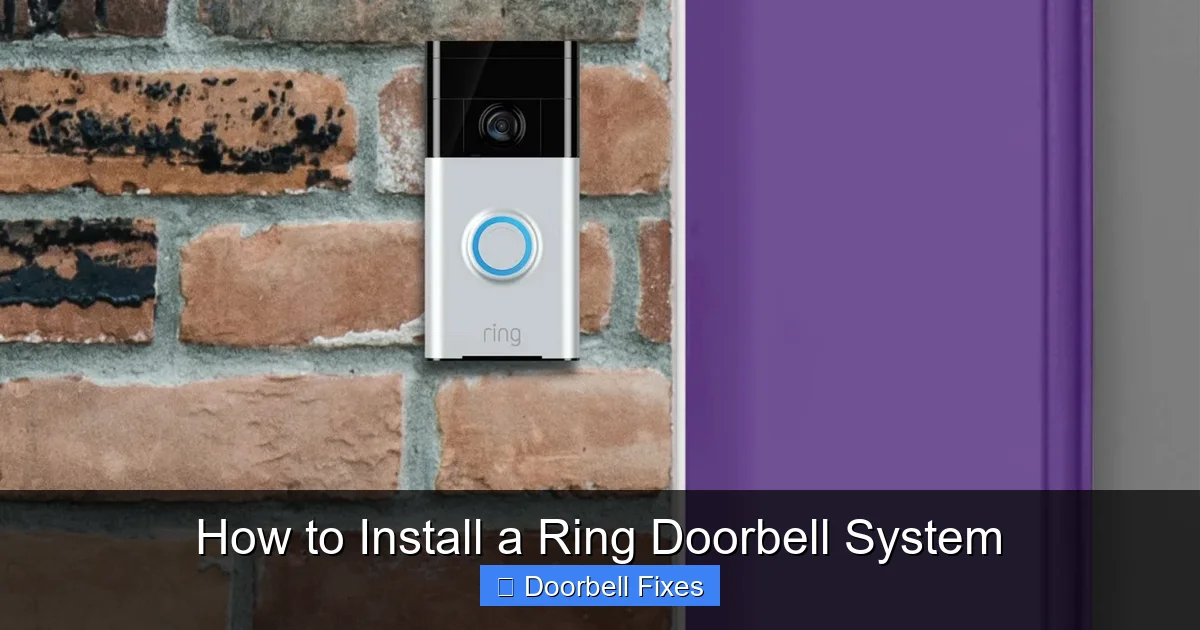

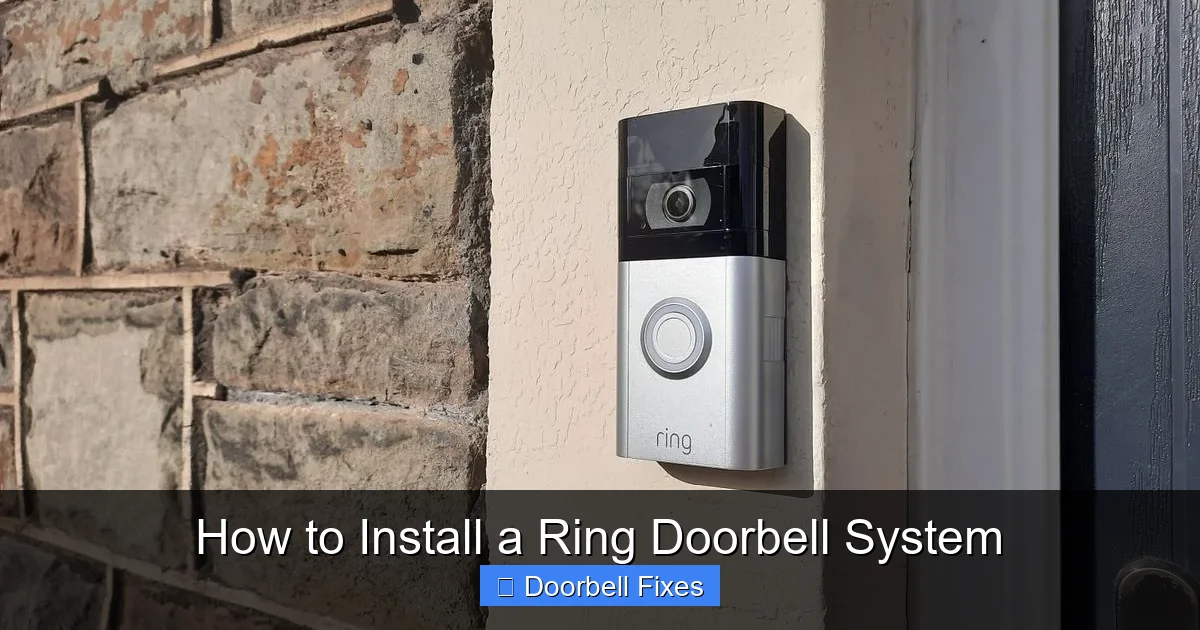

Visual guide about How to Install a Ring Doorbell System
Image source: gambrick.com
Ring Video Doorbell Wired
If your home already has doorbell wiring, this model connects directly to your existing setup. It doesn’t require batteries, so you never have to worry about charging. It also supports advanced features like pre-roll video (shows a few seconds before motion is detected).
Ring Video Doorbell Pro 2
A premium option with 1536p HD video, advanced motion zones, and customizable motion schedules. It requires wired installation and a compatible transformer (16–24V). Best for homeowners who want top-tier performance.
Ring Video Doorbell Solar
This model comes with a solar panel that charges the battery using sunlight. Great for sunny climates and eco-conscious users. It still has a backup battery, so it works even on cloudy days.
Ring Video Doorbell Elite
Designed for hardwired installation with Ethernet power (PoE). Requires professional installation and is best for new builds or homes with structured wiring.
Pro Tip: If you’re unsure whether your home has doorbell wiring, look near your doorframe. You might see a small chime box inside or a wire running through the wall. You can also check your breaker panel for a doorbell transformer.
Once you’ve chosen your model, order it and wait for delivery. Most Ring doorbells come with everything you need in the box: the doorbell unit, mounting bracket, screws, anchors, a screwdriver, and a charging cable (for battery models).
Step 2: Gather Your Tools and Materials
You don’t need a full toolbox to install a Ring doorbell, but having the right tools makes the job faster and safer. Here’s what you’ll need:
- Smartphone or tablet: To download and use the Ring app (available on iOS and Android).
- Screwdriver: A Phillips head screwdriver is usually included, but having your own can help.
- Drill (optional): Only needed if you’re mounting into brick, concrete, or hard siding. Use a masonry bit for tough surfaces.
- Level: A small bubble level ensures your doorbell is straight—important for video quality and aesthetics.
- Pencil: For marking drill holes.
- Wire strippers (for wired models): If your existing wires are frayed or too short, you may need to strip them.
- Voltage tester (optional but recommended): To confirm power is off before working with wires.
Bonus Tip: If you’re installing a wired model and your existing wires are too short, you can extend them using 18- or 20-gauge low-voltage wire and wire nuts. Just make sure the connections are secure and insulated.
Step 3: Turn Off the Power (For Wired Installations)
If you’re installing a wired Ring doorbell (like the Wired or Pro 2 models), safety is critical. Even though doorbell systems use low voltage, they’re still connected to your home’s electrical circuit. Here’s how to stay safe:
Locate Your Doorbell Transformer
The transformer steps down your home’s 120V power to 16–24V for the doorbell. It’s usually found in your basement, garage, or near your electrical panel. Look for a small metal box with wires running to your doorbell.
Turn Off the Breaker
Go to your main electrical panel and turn off the breaker that controls the doorbell circuit. If you’re not sure which one it is, turn off the main breaker to be safe. Use a voltage tester on the doorbell wires to confirm no power is flowing.
Label the Wires (Optional but Helpful)
If your old doorbell has two wires, label them “Front” and “Transformer” so you know which is which when reconnecting. Use small pieces of tape and a pen.
Important: Never work on live wires. Even low voltage can cause a shock or damage your Ring doorbell. If you’re uncomfortable working with electricity, consider hiring a licensed electrician.
Step 4: Remove Your Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, you’ll need to remove it first. Here’s how:
Unscrew the Old Unit
Use your screwdriver to remove the screws holding the old doorbell to the wall. Gently pull the unit away from the wall. You should see two wires connected to the back.
Disconnect the Wires
Loosen the terminal screws and carefully remove the wires. Don’t let them fall back into the wall—tape them to the outside of the wall or hold them with a clip.
Patch Any Holes (Optional)
If the old doorbell was larger or in a different spot, you might need to fill holes with spackle or use a mounting plate to cover gaps. Ring includes a wedge and corner bracket for angled mounting if needed.
Pro Tip: Take a photo of the wiring before disconnecting. This can help if you need to troubleshoot later.
Step 5: Install the Mounting Bracket
The mounting bracket is what holds your Ring doorbell securely to the wall. Proper installation ensures stability and optimal camera angle.
Position the Bracket
Hold the bracket against the wall where you want to install the doorbell. The ideal height is 48 inches from the ground—this gives the best view of visitors and packages.
Check for Level
Place your level on top of the bracket and adjust until the bubble is centered. A crooked doorbell looks unprofessional and can affect video quality.
Mark the Screw Holes
Use a pencil to mark where the screw holes will go. If you’re drilling into wood or siding, you can screw directly. For brick, stucco, or concrete, use a drill and wall anchors.
Drill Pilot Holes (If Needed)
For hard surfaces, drill pilot holes slightly smaller than your anchors. Tap the anchors into place with a hammer.
Secure the Bracket
Line up the bracket with the holes and screw it in tightly. Make sure it’s flush against the wall and doesn’t wobble.
Optional Accessories:
- Wedge Kit: If your doorbell is mounted on a flat surface but you want a better downward angle, use the included wedge.
- Corner Bracket: For doors near a corner, this bracket angles the doorbell outward for a wider view.
Step 6: Connect the Wires (For Wired Models)
If you’re installing a wired Ring doorbell, now’s the time to connect the wires to the bracket.
Thread the Wires Through the Bracket
Feed the two doorbell wires through the center hole in the mounting bracket. This keeps them hidden and protected.
Attach Wires to the Bracket Terminals
Most Ring brackets have two small terminals or clips. Loosen the screws, insert the wires, and tighten. It doesn’t matter which wire goes where—Ring doorbells are not polarity-sensitive.
Secure the Wires
Use the included wire clamp or electrical tape to hold the wires in place and prevent them from pulling out.
Note: If your wires are too short, extend them as mentioned earlier. If they’re frayed, strip about 1/4 inch of insulation to expose fresh copper.
Step 7: Attach the Ring Doorbell to the Bracket
Now it’s time to mount the actual doorbell unit.
Align the Doorbell
Hold the Ring doorbell so the pins on the back align with the slots on the bracket. Gently push it into place until it clicks.
Secure with the Security Screw
Use the small security screw (included) to lock the doorbell to the bracket. This prevents theft—only someone with the special screwdriver can remove it.
For Battery Models: If you’re using a battery-powered Ring, make sure the battery is fully charged before attaching. You can charge it via USB using the included cable.
Step 8: Download and Set Up the Ring App
The Ring app is your control center for everything—live view, motion alerts, settings, and more. Here’s how to get started:
Download the App
Search for “Ring” in the App Store (iOS) or Google Play Store (Android). Download and install it.
Create or Log In to Your Account
If you’re new to Ring, tap “Create Account” and follow the prompts. If you already have an account, log in.
Add Your Device
Tap the three-line menu (☰) in the top-left corner, then select “Set Up a Device.” Choose “Doorbells” and follow the on-screen instructions.
Scan the QR Code
Use your phone’s camera to scan the QR code on the back of your Ring doorbell. This pairs the device with your account.
Connect to Wi-Fi
Select your home Wi-Fi network and enter the password. Ring doorbells only work on 2.4 GHz networks—5 GHz is not supported. Make sure your signal is strong near the door.
Complete Setup
The app will guide you through naming your doorbell, setting up motion zones, and enabling notifications. Take your time—these settings affect how well your doorbell works.
Pro Tip: Use the “Device Health” feature in the app to check signal strength, battery level (if applicable), and firmware updates.
Step 9: Test Your Ring Doorbell
Once everything is set up, it’s time to test it.
Check the Live View
Open the Ring app and tap “Live View.” You should see a clear video feed from your doorbell. If the image is blurry or dark, adjust the angle or clean the lens.
Test the Two-Way Talk
Tap the microphone icon and speak. You should hear audio through the doorbell’s speaker. Ask someone outside to test it from their end.
Trigger Motion Alerts
Walk in front of the doorbell to trigger motion. You should receive a notification on your phone within a few seconds.
Ring the Doorbell
Press the button on the front. Your phone should ring (if enabled), and you should see a live video call. Answer it to talk to the visitor.
Check Night Vision
Turn off the lights or wait for dusk. The doorbell should switch to night vision mode automatically, showing a clear black-and-white image.
If everything works, congratulations—you’ve successfully installed your Ring doorbell!
Step 10: Adjust Settings for Best Performance
Your Ring doorbell is working, but you can make it even better with a few tweaks.
Customize Motion Zones
In the app, go to Device Settings > Motion Settings > Motion Zones. Draw zones where you want to detect motion (e.g., walkway, driveway). Avoid areas like busy streets to reduce false alerts.
Adjust Motion Sensitivity
Set sensitivity to “Medium” or “Low” if you’re getting too many alerts from passing cars or wind-blown trees.
Enable Smart Alerts
Use features like “People Only Mode” to filter out non-human motion. This reduces notifications and saves battery.
Set Up Chime Pro (Optional)
If your indoor chime doesn’t work with Ring, consider the Ring Chime Pro. It plugs into an outlet and extends Wi-Fi range while providing a traditional chime sound.
Schedule Do Not Disturb
Set quiet hours so you don’t get alerts during sleep or work meetings.
Troubleshooting Common Ring Doorbell Issues
Even with careful installation, problems can happen. Here’s how to fix the most common issues:
Doorbell Won’t Turn On or Charge
Possible Causes: Dead battery, faulty wiring, or defective unit.
Solution: For battery models, charge the battery for at least 4 hours. For wired models, check that power is on at the breaker and wires are connected. If the issue persists, contact Ring support.
Poor Wi-Fi Connection
Possible Causes: Weak signal, distance from router, or interference.
Solution: Move your router closer, use a Wi-Fi extender, or install a Ring Chime Pro to boost signal. Avoid placing the doorbell near metal objects or thick walls.
Blurry or Dark Video
Possible Causes: Dirty lens, incorrect angle, or low light.
Solution: Clean the lens with a microfiber cloth. Adjust the mounting angle. Ensure the area is well-lit at night—consider adding a porch light.
Motion Alerts Not Working
Possible Causes: Motion zones disabled, low sensitivity, or firmware issue.
Solution: Check motion settings in the app. Update the firmware. Test by walking in front of the doorbell.
Doorbell Keeps Disconnecting
Possible Causes: Wi-Fi dropout, power fluctuation, or overheating.
Solution: Restart your router. Ensure the doorbell isn’t in direct sunlight (can cause overheating). Reconnect via the app.
Chime Not Ringing
Possible Causes: Incompatible chime, wiring issue, or settings.
Solution: Check Ring’s compatibility list for mechanical chimes. For digital chimes, use a Ring Chime or Chime Pro. Verify wiring connections.
Final Tips for Long-Term Success
- Clean the lens monthly: Dust and dirt can blur video. Use a soft cloth and mild cleaner.
- Check battery level regularly: For battery models, recharge every 3–6 months depending on use.
- Update firmware: Ring pushes updates automatically, but check the app periodically.
- Review recordings: Save important clips to the cloud (requires Ring Protect plan).
- Secure your account: Use two-factor authentication to prevent unauthorized access.
Conclusion
Installing a Ring doorbell system is a smart, straightforward way to boost your home’s security. With the right model, tools, and a little patience, you can complete the job in under an hour—no professional help needed. From choosing the right doorbell to mounting, wiring, and setting up the app, this guide has covered every step to ensure a smooth installation.
Remember, safety comes first—always turn off power when working with wires. And don’t skip the testing phase; it’s the best way to catch issues early. Once your Ring doorbell is up and running, you’ll enjoy peace of mind knowing you can see and speak to anyone at your door, anytime.
Whether you’re a DIY新手 or a seasoned home improver, this guide gives you everything you need to install your Ring doorbell like a pro. Now go enjoy that extra layer of security—and maybe even scare off a few porch pirates!
