Installing a Ring Wired Doorbell Plus is simpler than you think. This guide walks you through every step—from checking compatibility to final setup—so you can enjoy smart security in under an hour. No experience? No problem.
Key Takeaways
- Check compatibility first: Your existing doorbell must have a 16–24V AC transformer and mechanical chime to work with the Ring Wired Doorbell Plus.
- Turn off power at the breaker: Safety is critical—always shut off electricity before removing your old doorbell.
- Use the included mounting bracket: It ensures a secure fit and proper alignment for optimal video and motion detection.
- Connect wires correctly: Match the labeled terminals (Front and Trans) to avoid damage or malfunction.
- Test before finalizing: Power on and use the Ring app to confirm live view and motion alerts before tightening screws.
- Update firmware via the app: Keep your doorbell secure and functional with the latest software updates.
- Use the Ring app for setup: The app guides you through Wi-Fi connection, chime settings, and motion zones.
How to Install a Ring Wired Doorbell Plus
Upgrading your home security doesn’t have to be complicated. The Ring Wired Doorbell Plus offers crystal-clear video, two-way talk, motion detection, and seamless integration with other Ring devices—all without relying on batteries. Best of all, it installs directly into your existing doorbell wiring, making it a great choice for homeowners who already have a wired setup.
In this complete guide, you’ll learn exactly how to install a Ring Wired Doorbell Plus—from checking compatibility to final testing. Whether you’re a DIY beginner or a seasoned home improver, we’ll walk you through each step with clear instructions, helpful tips, and troubleshooting advice. By the end, you’ll have a smart doorbell that keeps your home safe and gives you peace of mind.
Let’s get started.
What You’ll Need Before You Begin

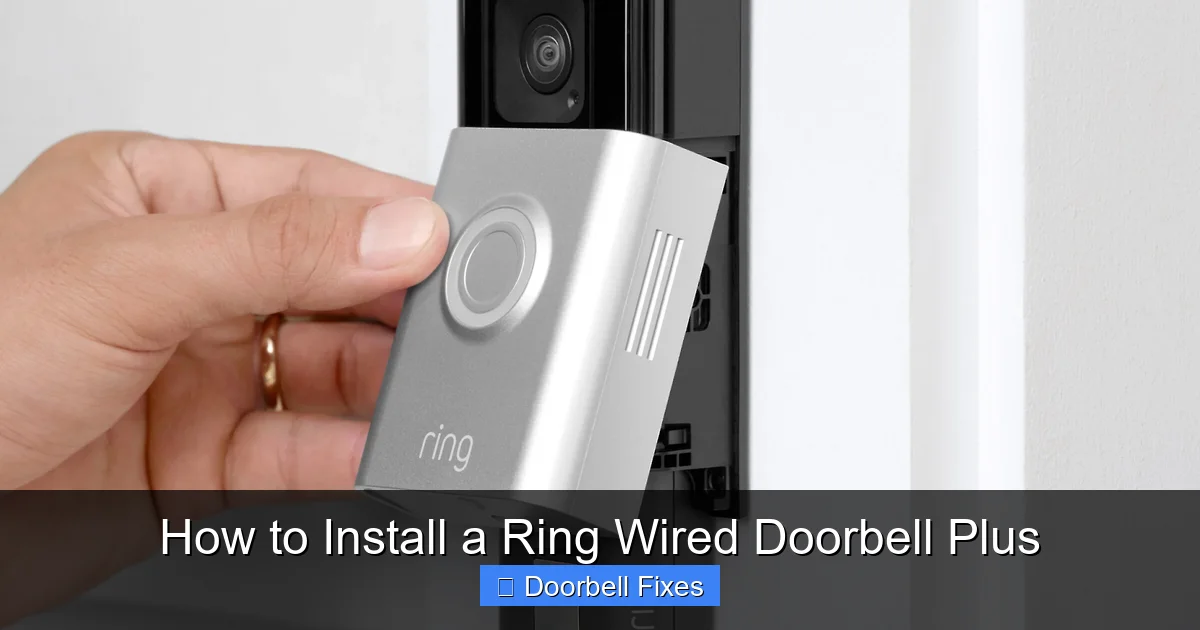

Visual guide about How to Install a Ring Wired Doorbell Plus
Image source: images.hometheaterreview.com
Before you touch a single wire, gather all the tools and materials you’ll need. Having everything ready will save time and reduce frustration.
Tools Required
- Phillips-head screwdriver
- Voltage tester (non-contact recommended)
- Wire strippers (if wires need trimming)
- Drill and drill bits (only if mounting on brick or concrete)
- Level (to ensure the doorbell is straight)
- Smartphone or tablet with the Ring app installed
Included in the Box
- Ring Wired Doorbell Plus unit
- Mounting bracket
- Screws and anchors
- Wire nuts
- Chime kit (for mechanical chimes)
- Installation guide and quick start card
Optional but Helpful
- Electrical tape
- Zip ties (for wire management)
- Assistant (to hold the doorbell while wiring)
Step 1: Check Compatibility
Not all doorbells are compatible with the Ring Wired Doorbell Plus. Before you start, confirm your current setup meets the requirements.
Transformer Voltage
Your doorbell transformer must supply between 16 and 24 volts AC. Most older homes have 16V transformers, which work perfectly. If your transformer is below 16V, the doorbell may not power on. If it’s above 24V, you risk damaging the device.
To check:
– Locate your transformer (usually near your doorbell chime or in the basement/attic).
– Look for a label indicating voltage (e.g., “16V AC”).
– If unsure, use a multimeter to test the voltage at the doorbell terminals.
Chime Type
The Ring Wired Doorbell Plus works with mechanical chimes (the kind with physical hammers that strike bells). It does not support digital or electronic chimes unless you use a Ring Chime Pro or disable the internal chime in the app.
If you have a digital chime, you can still use the doorbell—but you’ll need to turn off the chime in the Ring app and rely on your phone or a Ring Chime device for alerts.
Wi-Fi Requirements
Your home Wi-Fi must support 2.4 GHz networks. The Ring Wired Doorbell Plus does not work on 5 GHz-only networks. Ensure your router broadcasts a 2.4 GHz signal, and that it’s within range of your doorbell location.
Step 2: Turn Off the Power
Safety first. Electricity and water don’t mix, and neither do live wires and fingers.
Locate Your Circuit Breaker
Find the breaker that controls your doorbell circuit. It’s often labeled “Doorbell,” “Chime,” or “Front Door.” If not labeled, turn off breakers one by one and test the doorbell until it stops working.
Turn Off the Power
Switch the breaker to the OFF position. Use a non-contact voltage tester at the doorbell terminals to confirm no power is present. If the tester lights up, double-check the breaker or consult an electrician.
Pro Tip: Place a piece of tape over the breaker switch to prevent someone from accidentally turning it back on while you’re working.
Step 3: Remove Your Old Doorbell
Now it’s time to take down the existing doorbell.
Unscrew the Faceplate
Use a Phillips-head screwdriver to remove the screws holding your old doorbell to the wall. Gently pull the faceplate away from the wall.
Disconnect the Wires
You’ll see two wires connected to terminals (usually labeled “Front” and “Trans”). Loosen the screws and carefully pull the wires free. Don’t let them fall back into the wall.
Important: Take a photo of the wiring before disconnecting. This serves as a reference if you get confused later.
Tuck Wires Safely
Use electrical tape to wrap the exposed ends of the wires to prevent short circuits. Push them gently back into the wall cavity.
Step 4: Install the Mounting Bracket
The Ring Wired Doorbell Plus comes with a specialized mounting bracket that ensures a secure fit and proper alignment.
Position the Bracket
Hold the bracket against the wall where your old doorbell was. Use a level to make sure it’s straight. The bracket has slotted holes, allowing for minor adjustments.
Mark Screw Holes
Use a pencil to mark the locations of the screw holes through the bracket.
Drill Pilot Holes (If Needed)
If you’re mounting on wood, you can screw directly into the wall. For brick, stucco, or concrete, drill pilot holes and insert wall anchors.
Secure the Bracket
Align the bracket with the marks and screw it into place. Make sure it’s tight and level.
Step 5: Connect the Wires
Now it’s time to wire the Ring Wired Doorbell Plus.
Prepare the Wires
If the wire ends are frayed or too short, use wire strippers to expose about 1/4 inch of copper. Twist the strands gently to keep them neat.
Attach to Terminals
The Ring doorbell has two terminals: “Front” and “Trans.” These correspond to the two wires from your wall.
– Connect one wire to the “Front” terminal.
– Connect the other to the “Trans” terminal.
It doesn’t matter which wire goes where—the doorbell is not polarity-sensitive. Tighten the screws securely.
Secure with Wire Nuts (Optional)
For extra safety, you can use the included wire nuts to cap the connections. This prevents accidental contact and adds strain relief.
Step 6: Attach the Doorbell to the Bracket
With the wires connected, it’s time to mount the doorbell.
Align the Doorbell
Hold the Ring Wired Doorbell Plus against the bracket. The bottom edge should snap into the bracket’s lower hooks.
Slide and Secure
Gently slide the doorbell downward until it locks into place. You’ll hear a click when it’s secure.
Tighten the Security Screw
Use the provided security screw and screwdriver to fasten the doorbell to the bracket. This prevents tampering and ensures a stable connection.
Step 7: Restore Power and Test
Now that everything is installed, it’s time to power up.
Turn the Breaker Back On
Go to your circuit breaker and switch the doorbell circuit back to ON.
Wait for the Doorbell to Power Up
The Ring Wired Doorbell Plus will take 30–60 seconds to boot up. You’ll see a light ring on the front—blue during setup, solid white when ready.
Test the Doorbell
Press the button on the doorbell. If you have a mechanical chime, it should ring. If not, check the app for a notification.
Step 8: Set Up the Ring App
The Ring app is your control center for the doorbell. Download it from the App Store or Google Play if you haven’t already.
Log In or Create an Account
Open the app and sign in with your Ring account. If you don’t have one, create a free account.
Add a New Device
Tap the menu (three lines) and select “Set Up a Device.” Choose “Doorbells” and then “Wired Doorbell Plus.”
Scan the QR Code
Use your phone’s camera to scan the QR code on the back of the doorbell or the quick start card.
Connect to Wi-Fi
Follow the prompts to connect the doorbell to your 2.4 GHz Wi-Fi network. Enter your password when prompted.
Name Your Doorbell
Give your doorbell a name, like “Front Door” or “Main Entrance.”
Adjust Settings
Customize motion zones, alert frequency, and chime settings. You can also enable features like People Only Mode to reduce false alerts.
Step 9: Final Checks and Optimization
Before calling it a day, run a few final checks.
Test Live View
Open the Ring app and tap “Live View” to see the camera feed. Make sure the image is clear and the field of view covers your desired area.
Check Motion Detection
Walk in front of the doorbell to trigger motion alerts. Adjust the motion zones in the app if needed.
Verify Two-Way Audio
Press the talk button in the app and speak. Ask someone outside to confirm they can hear you.
Update Firmware
The app may prompt you to update the doorbell’s firmware. Allow the update to complete—it improves performance and security.
Troubleshooting Common Issues
Even with careful installation, you might run into problems. Here’s how to fix the most common ones.
Doorbell Won’t Power On
- Double-check that the breaker is on.
- Use a voltage tester to confirm power at the terminals.
- Ensure wires are securely connected and not shorted.
- Test with a multimeter—voltage should be 16–24V AC.
No Chime Sound
- Confirm you have a mechanical chime.
- Check that the chime kit is properly installed (if included).
- In the Ring app, go to Device Settings > Chime and ensure it’s enabled.
Poor Wi-Fi Connection
- Move your router closer or use a Wi-Fi extender.
- Ensure the doorbell is on 2.4 GHz, not 5 GHz.
- Restart your router and the doorbell.
Blurry or Dark Video
- Clean the camera lens with a microfiber cloth.
- Adjust the angle of the doorbell for better lighting.
- Enable Night Vision in the app if needed.
False Motion Alerts
- Reduce motion sensitivity in the app.
- Draw motion zones to exclude trees or busy streets.
- Enable People Only Mode to filter out animals and vehicles.
Maintenance Tips for Long-Term Performance
To keep your Ring Wired Doorbell Plus working smoothly:
- Clean the lens monthly: Dust and dirt can blur the video. Use a soft, dry cloth.
- Check connections annually: Vibration can loosen wires over time. Turn off power and inspect terminals.
- Update the app and firmware: Enable automatic updates to stay protected.
- Review motion settings seasonally: Trees and foliage change with the seasons—adjust zones accordingly.
- Test the doorbell weekly: Press the button and check alerts to ensure everything’s working.
Conclusion
Installing a Ring Wired Doorbell Plus is a smart, straightforward upgrade that enhances your home’s security and convenience. With the right tools, a bit of patience, and this step-by-step guide, you can complete the installation in under an hour—no electrician required.
From checking compatibility to final testing, every step is designed to ensure a smooth, safe, and successful setup. Once installed, you’ll enjoy real-time alerts, crystal-clear video, and the peace of mind that comes with knowing your home is protected.
Remember: safety first, double-check your wiring, and don’t hesitate to consult a professional if you’re unsure. With your new Ring Wired Doorbell Plus in place, you’re not just installing a doorbell—you’re upgrading your entire home security experience.
Welcome to the future of front-door safety.
