Installing a Roku doorbell camera is simpler than you think—even if you’re not a tech expert. This guide walks you through every step, from checking compatibility to final app setup, so you can enjoy secure, real-time video monitoring at your front door.
Key Takeaways
- Check compatibility first: Ensure your existing doorbell wiring and voltage meet Roku’s requirements (16–24V AC) to avoid damage or malfunction.
- Turn off power at the breaker: Safety is critical—always shut off electricity before removing your old doorbell or installing the new one.
- Use the Roku Home app: The app guides setup, connects your camera to Wi-Fi, and lets you customize alerts and recordings.
- Mount securely and angle correctly: Position the camera at chest height and slightly downward for optimal facial recognition and motion detection.
- Test after installation: Verify live video, two-way audio, and motion alerts work before finishing the job.
- Update firmware regularly: Keep your Roku doorbell camera secure and functional with automatic or manual updates via the app.
- Contact support if stuck: Roku offers customer help for wiring, Wi-Fi, or app issues—don’t hesitate to reach out.
How to Install a Roku Doorbell Camera: A Complete Step-by-Step Guide
So, you’ve decided to upgrade your home security with a Roku doorbell camera. Great choice! These smart devices offer crisp HD video, two-way audio, motion detection, and real-time alerts—all from your smartphone. Whether you’re replacing an old wired doorbell or installing one for the first time, this guide will walk you through the entire process safely and efficiently.
By the end of this guide, you’ll know exactly how to install a Roku doorbell camera, connect it to your Wi-Fi, set up the app, and troubleshoot common issues. No prior experience? No problem. We’ll keep things simple, clear, and jargon-free. Let’s get started!
What You’ll Need Before You Begin

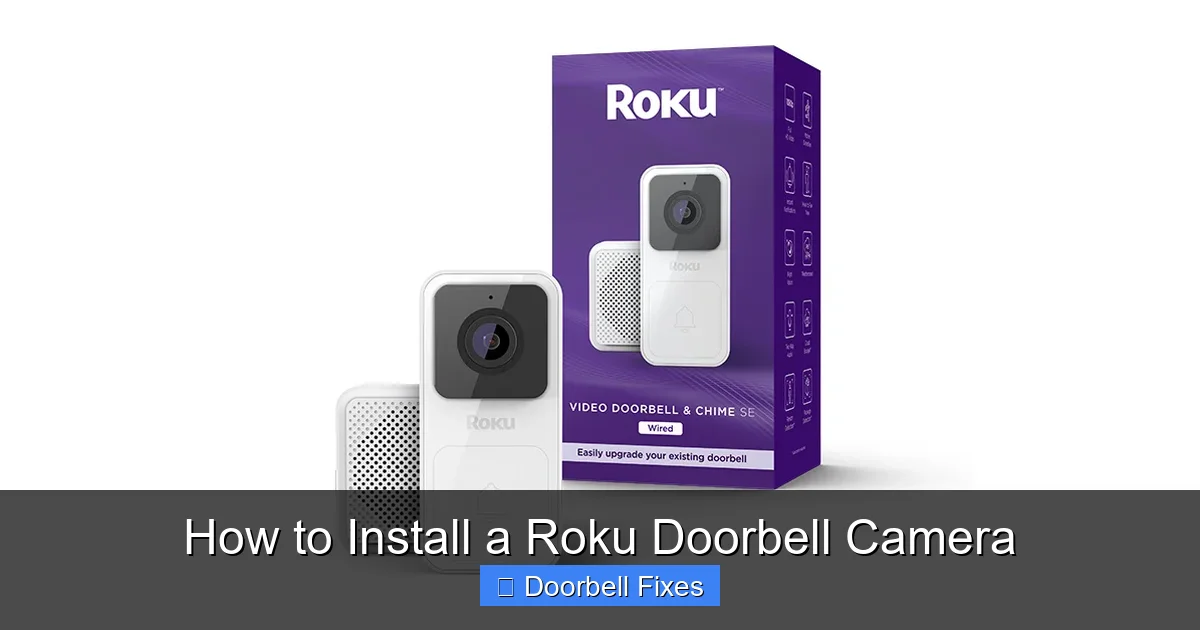

Visual guide about How to Install a Roku Doorbell Camera
Image source: image.roku.com
Before you touch a single wire, gather all the tools and materials. Having everything ready saves time and prevents frustration.
- Roku doorbell camera kit (includes camera, mounting plate, screws, wire connectors)
- Screwdriver (Phillips head, usually #2)
- Voltage tester (non-contact type recommended)
- Drill and drill bits (if mounting on brick, stucco, or concrete)
- Level (to ensure the camera is straight)
- Smartphone or tablet with the Roku Home app installed
- Wi-Fi network (2.4 GHz band required; 5 GHz not supported)
- Ladder (if your doorbell is high up)
- Electrical tape (optional, for extra wire insulation)
Pro Tip: Download the Roku Home app from the Apple App Store or Google Play before starting. You’ll need it for setup, so having it ready speeds things up.
Step 1: Check Compatibility and Power Requirements
Not all doorbells are created equal. The Roku doorbell camera is designed for wired installations and requires a specific voltage to work properly.
Check Your Existing Doorbell Wiring
Most homes with a traditional doorbell have low-voltage wiring (16–24V AC) running from a transformer near your electrical panel to the doorbell button and chime inside. The Roku doorbell camera needs this wiring to power itself.
To check:
- Remove your current doorbell button (we’ll cover this in Step 2).
- Look at the wires—there should be two (usually labeled “Front” and “Trans”).
- Use a voltage tester to confirm power. Touch the probes to the wire terminals. If you see 16–24V AC, you’re good to go.
Warning: If your voltage is below 16V, the camera may not power on or could behave erratically. If it’s above 24V, you risk damaging the device. In either case, consult an electrician.
Confirm Wi-Fi Compatibility
The Roku doorbell camera only works on a 2.4 GHz Wi-Fi network. Most modern routers broadcast both 2.4 GHz and 5 GHz signals. Make sure your network name (SSID) includes “2.4” or is labeled separately. If your router combines both bands under one name, you may need to split them temporarily during setup.
Tip: Place your router close to the doorbell location during setup. Weak signal = poor performance.
Step 2: Turn Off Power at the Breaker
Safety first! Even though doorbell voltage is low, it’s still electricity. Turning off the power prevents shocks and protects your equipment.
Locate Your Doorbell Transformer
The transformer steps down your home’s 120V power to 16–24V for the doorbell. It’s usually found in:
- The basement near the electrical panel
- The attic
- Inside a closet near the doorbell chime
- Behind the chime unit itself
Once located, trace the circuit back to your main breaker box.
Switch Off the Correct Breaker
Turn off the breaker that controls the doorbell circuit. If you’re unsure which one it is:
- Turn off breakers one by one.
- Test the doorbell button—if it doesn’t ring, you’ve found the right one.
- Label it for future reference.
Double-check with a voltage tester at the doorbell wires to confirm no power is flowing.
Step 3: Remove the Old Doorbell Button
Now it’s time to take off the existing doorbell.
Unscrew and Disconnect
- Use a screwdriver to remove the screws holding the old button to the wall.
- Gently pull the button away to expose the two wires.
- Loosen the terminal screws and disconnect the wires.
- Twist the exposed wire ends together temporarily to prevent them from slipping back into the wall.
Note: Don’t cut the wires—you’ll need them to connect to the Roku camera.
Inspect the Mounting Area
Check the wall surface. Is it flat? Cracked? Painted? If the surface is uneven, you may need to use the included mounting plate or add a spacer (some kits include one). For brick or concrete, you’ll need a drill and masonry anchors.
Step 4: Install the Roku Doorbell Camera Mounting Plate
The mounting plate ensures a secure fit and helps align the camera correctly.
Position the Plate
- Hold the mounting plate against the wall where the old button was.
- Use a level to make sure it’s straight.
- Mark the screw holes with a pencil.
Ideal height: 48–52 inches from the ground. This captures faces clearly and reduces glare from the sun.
Drill and Secure
- Drill pilot holes if needed (especially for hard surfaces).
- Insert wall anchors if required.
- Attach the mounting plate with the provided screws.
Pro Tip: If your doorbell is near a corner or under an eave, consider using the included wedge mount to adjust the camera angle.
Step 5: Connect the Wires to the Roku Camera
Now for the electrical connection—don’t worry, it’s straightforward.
Prepare the Wires
- Strip about 1/4 inch of insulation from each wire end if needed.
- Untwist the wires if you twisted them earlier.
Attach to the Camera
- Locate the two wire terminals on the back of the Roku doorbell camera.
- Loosen the terminal screws.
- Insert one wire into each terminal (polarity doesn’t matter for AC).
- Tighten the screws securely.
Caution: Don’t let the bare wire touch the camera body or each other—this could cause a short.
Secure the Camera to the Mounting Plate
- Align the camera with the mounting plate.
- Slide it down until it clicks into place.
- Use the included security screw to lock it (prevents theft).
Double-check: Give the camera a gentle tug to ensure it’s firmly attached.
Step 6: Restore Power and Test the Connection
Time to bring the power back and see if everything works.
Turn the Breaker Back On
Go to your breaker box and flip the doorbell circuit back on. Wait 30–60 seconds for the system to power up.
Check for Lights
The Roku doorbell camera should light up:
- A solid white light means it’s powering on.
- A blinking white light means it’s ready for setup.
- If no light appears, double-check wiring and power.
Troubleshooting Tip: If the light doesn’t come on, turn the breaker off, recheck connections, and ensure the transformer is working.
Step 7: Set Up the Roku Doorbell Camera via the App
The Roku Home app is your control center. It handles Wi-Fi setup, notifications, and recordings.
Open the Roku Home App
- Launch the app on your smartphone.
- Sign in or create a Roku account if you don’t have one.
- Tap the “+” icon to add a new device.
Follow the On-Screen Instructions
The app will guide you through:
- Selecting “Doorbell Camera” from the device list.
- Scanning the QR code on the camera (located on the back or in the manual).
- Connecting to your Wi-Fi network (2.4 GHz only).
- Entering your Wi-Fi password.
Note: Keep your phone close to the doorbell during setup for a strong signal.
Name Your Doorbell and Set Preferences
- Give your doorbell a name (e.g., “Front Door”).
- Choose notification settings (e.g., motion alerts, doorbell presses).
- Enable two-way audio if desired.
- Set recording preferences (cloud or local, if supported).
Pro Tip: Enable “Motion Zones” to reduce false alerts from passing cars or trees.
Step 8: Test All Features
Don’t skip this step! Testing ensures everything works as expected.
Check Live Video
Open the app and tap your doorbell. You should see a live feed. Look for:
- Clear, sharp image
- Good lighting (day and night)
- Minimal lag
Test Two-Way Audio
Tap the microphone icon and speak. Someone near the doorbell should hear you clearly. Ask them to speak back—you should hear them in the app.
Trigger Motion Detection
Walk in front of the camera. You should receive a push notification and see a motion alert in the app.
Simulate a Doorbell Press
Press the button on the camera. Your indoor chime (if connected) should ring, and you’ll get a notification.
Note: If you don’t have a chime, the app notification is your alert.
Troubleshooting Common Installation Issues
Even with careful installation, problems can happen. Here’s how to fix the most common ones.
Camera Won’t Power On
- Check breaker: Ensure power is restored.
- Test voltage: Use a multimeter to confirm 16–24V at the wires.
- Inspect connections: Loose wires are a common culprit.
- Try a different transformer: If voltage is low, the transformer may be faulty.
Wi-Fi Connection Fails
- Confirm 2.4 GHz network: 5 GHz won’t work.
- Move closer to router: Weak signal causes dropouts.
- Restart router and camera: Power cycle both devices.
- Forget and re-add network: In the app, remove the device and set it up again.
Poor Video Quality
- Clean the lens: Wipe with a microfiber cloth.
- Adjust angle: Tilt slightly downward to avoid sky glare.
- Check lighting: Avoid pointing directly at bright lights or sunlight.
- Update firmware: New updates often improve image processing.
False Motion Alerts
- Adjust motion zones: Exclude areas like streets or trees.
- Lower sensitivity: In the app, reduce motion detection level.
- Install at correct height: Too high or low increases false triggers.
Two-Way Audio Not Working
- Check microphone and speaker: Ensure nothing is blocking them.
- Test in quiet environment: Background noise can interfere.
- Update app and firmware: Bugs are often fixed in updates.
- Re-pair the device: Remove and re-add in the app.
Maintenance and Best Practices
Your Roku doorbell camera will last years with proper care.
Clean Regularly
Wipe the lens and housing monthly with a soft, dry cloth. Avoid harsh chemicals.
Update Firmware
The app will notify you of updates. Install them promptly for security and performance improvements.
Monitor Battery (If Applicable)
Some Roku models are battery-powered. Check the app for battery level and recharge as needed.
Review Recordings
Check saved clips periodically. Delete old ones to free up space (if using cloud storage).
Secure Your Account
Use a strong password and enable two-factor authentication in the Roku app.
Conclusion
Installing a Roku doorbell camera is a smart move for home security—and now you know exactly how to do it. From checking compatibility and turning off power to mounting, wiring, and app setup, each step is designed to be simple and safe.
Remember: safety comes first. Always turn off the breaker, double-check connections, and test everything before calling the job done. With the Roku Home app, you’ll enjoy real-time alerts, crystal-clear video, and peace of mind—all from your phone.
Whether you’re a DIY beginner or a seasoned home improver, this guide ensures your installation goes smoothly. Now go ahead, upgrade your front door, and start seeing who’s there—even when you’re not home.
