Installing a traditional doorbell is easier than you think—even if you’re new to DIY projects. This guide walks you through every step, from choosing the right location to wiring and testing your new doorbell, ensuring a safe and reliable setup.
Key Takeaways
- Turn off the power first: Always shut off electricity at the breaker before working on doorbell wiring to prevent shocks or damage.
- Choose the right location: Install the doorbell button near the front door, at a comfortable height (around 48 inches), and away from direct weather exposure.
- Use the correct tools: A voltage tester, screwdrivers, wire strippers, and a drill are essential for a smooth installation.
- Match voltage requirements: Most traditional doorbells run on 8–24V AC, so ensure your transformer matches your chime unit.
- Test before finishing: Always test the doorbell after wiring but before securing covers to avoid rework.
- Know when to call a pro: If you’re unsure about electrical work or lack access to a transformer, consult a licensed electrician.
- Maintain your doorbell: Clean the button and check wiring annually to ensure long-term reliability.
How to Install a Traditional Doorbell
Installing a traditional doorbell might seem like a small upgrade, but it can make a big difference in your home’s functionality and curb appeal. Whether you’re replacing an old unit or installing one for the first time, this guide will walk you through the entire process—safely and efficiently. You don’t need to be an electrician to do this. With basic tools, a little patience, and the right steps, you can have a working doorbell in under an hour.
In this guide, you’ll learn how to choose the best location, prepare your tools, connect the wiring, mount the components, and test your new doorbell. We’ll also cover common mistakes, troubleshooting tips, and safety precautions to keep you protected throughout the project. By the end, you’ll not only have a working doorbell but also the confidence to tackle similar home improvement tasks.
Let’s get started!
What You’ll Need
Visual guide about How to Install a Traditional Doorbell
Image source: i1.wp.com
Before you begin, gather all the necessary tools and materials. Having everything ready will save time and prevent frustration mid-project.
Essential Tools
- Screwdrivers (flathead and Phillips)
- Voltage tester (non-contact type recommended)
- Wire strippers
- Drill with drill bits (for mounting)
- Measuring tape
- Pencil or marker
- Electrical tape
- Wire nuts (usually included with the doorbell kit)
Materials
- Traditional doorbell kit (includes button, chime unit, and mounting hardware)
- Doorbell transformer (if not already installed)
- Low-voltage doorbell wire (usually 18- or 20-gauge)
- Wall anchors (if mounting on drywall or masonry)
- Screws (typically included in the kit)
Safety Gear
- Insulated gloves (optional but recommended)
- Safety glasses
Most traditional doorbell kits come with everything you need except the wire and transformer. If you’re replacing an existing doorbell, you may already have the wiring and transformer in place. But if this is a brand-new installation, you’ll need to run wire from the transformer to the button and chime.
Step 1: Turn Off the Power
Safety is the most important part of any electrical project. Even though doorbells use low voltage, they’re still connected to your home’s electrical system through a transformer. That means there’s a risk of shock if you don’t disconnect the power.
Locate the Circuit Breaker
Go to your main electrical panel (breaker box) and look for the circuit labeled “doorbell,” “chime,” or something similar. If you don’t see a label, you may need to test circuits one by one.
Turn Off the Correct Breaker
Switch off the breaker that controls the doorbell circuit. To be extra safe, use a non-contact voltage tester near the existing doorbell button or chime to confirm the power is off. The tester should not light up or beep if the power is truly disconnected.
Label the Breaker (Optional but Helpful)
If the breaker isn’t labeled, use a label maker or masking tape to mark it. This will help you and others in the future.
Never assume the power is off just because the doorbell isn’t ringing. Always test it.
Step 2: Choose the Right Location
Where you install your doorbell affects both usability and aesthetics. The ideal spot is easy to reach, visible to visitors, and protected from the elements.
Doorbell Button Placement
The button should be mounted on the door frame or adjacent wall, about 48 inches from the ground. This height is comfortable for most adults and accessible for children. Avoid placing it too close to the door handle or in a spot that’s hard to see.
Chime Unit Placement
The chime (the part that makes the sound inside your home) should be installed in a central location where it can be heard easily—like a hallway, living room, or entryway. Avoid placing it behind furniture or in a closet.
Consider Wiring Path
Think about how the wire will run from the button to the chime and then to the transformer. If you’re replacing an old doorbell, you can reuse the existing wire. If not, you’ll need to run new wire through walls, baseboards, or under trim.
Tip: Use a fish tape or flexible drill bit to pull wire through walls if needed. Be gentle to avoid damaging insulation.
Step 3: Install the Doorbell Transformer
The transformer steps down your home’s 120V power to the 8–24V needed for the doorbell. Most homes already have one, but if yours doesn’t, you’ll need to install it.
Locate a Suitable Spot
Transformers are usually installed inside the electrical panel, in a junction box, or near the furnace. Choose a dry, accessible location close to the chime and button wiring paths.
Mount the Transformer
Secure the transformer to a junction box or electrical box using the provided screws. Make sure it’s firmly attached and won’t come loose over time.
Connect the Wires
Turn off the main power at the breaker before making any connections.
- Connect the transformer’s black (hot) wire to a 120V circuit wire using a wire nut.
- Connect the white (neutral) wire to the corresponding neutral wire.
- Connect the green or bare ground wire to the grounding screw or wire.
- The two low-voltage terminals on the transformer will connect to the doorbell wire later.
Never work on live wires. Double-check that the power is off before touching any connections.
Step 4: Run the Doorbell Wire
Now it’s time to connect the button, chime, and transformer with low-voltage wire.
Prepare the Wire
Use 18- or 20-gauge doorbell wire, which is flexible and easy to work with. Strip about 1/2 inch of insulation from each end using wire strippers.
Connect the Button
At the doorbell button location, connect one wire to each of the two terminals on the back of the button. It doesn’t matter which wire goes where—traditional doorbells are not polarity-sensitive.
Secure the button to the wall using screws and wall anchors if needed. Make sure it’s level and flush with the surface.
Run Wire to the Chime
Run the wire from the button to the chime location. You can route it along baseboards, under trim, or through walls. Use cable staples to secure the wire every few feet, but avoid over-tightening.

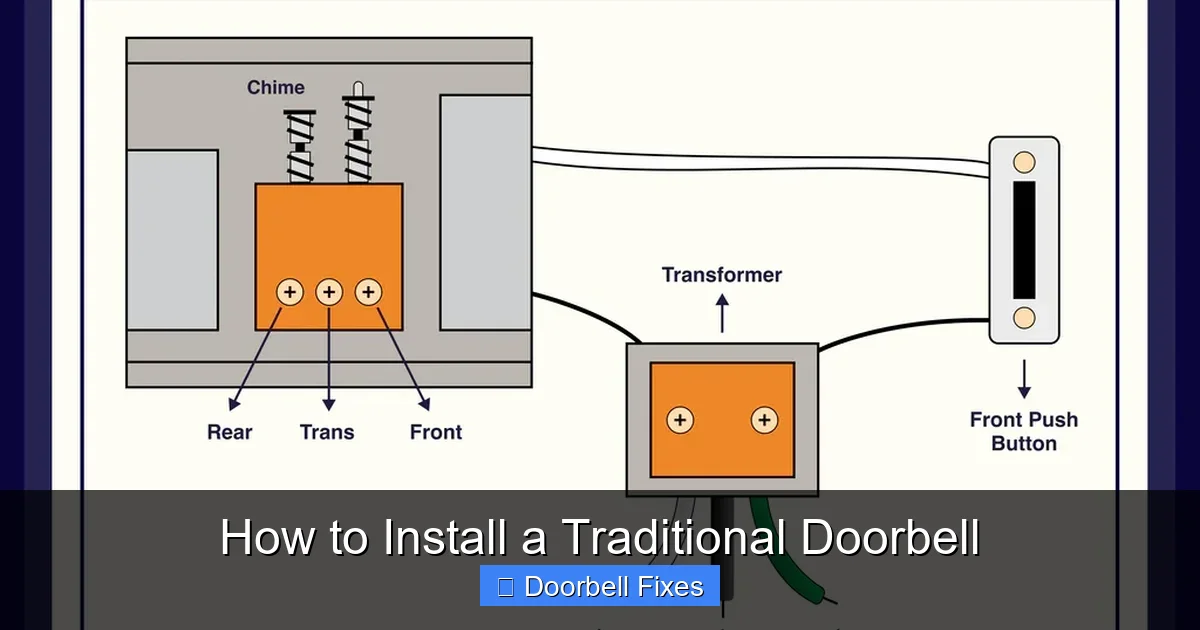

Connect the Chime
At the chime unit, connect the two wires from the button to the “Front” terminals (usually labeled “F” or “Front”). If you have a second doorbell (like a rear door), use the “Rear” terminals.
Then, run a second pair of wires from the chime to the transformer. Connect these to the “Transformer” terminals (labeled “T” or “Trans”).
Connect to the Transformer
Back at the transformer, connect the two low-voltage wires from the chime to the two screw terminals. Again, polarity doesn’t matter.
Double-check all connections to ensure they’re tight and secure.
Step 5: Mount the Chime Unit
With the wiring complete, it’s time to mount the chime inside your home.
Choose the Mounting Method
Most chime units come with a mounting bracket. Hold the bracket against the wall where you want the chime, and mark the screw holes with a pencil.
Drill Pilot Holes
Use a drill to create pilot holes for the screws. If you’re mounting on drywall, use wall anchors for extra support.
Attach the Bracket
Secure the bracket to the wall with screws. Make sure it’s level.
Snap or Screw the Chime
Place the chime unit onto the bracket and secure it with the provided screws or clips. Some models simply snap into place.
Tuck in Wires
Neatly tuck any excess wire behind the chime or into the wall cavity. Avoid pinching or damaging the wires.
Step 6: Test the Doorbell
Before you call the job done, test your work.
Turn the Power Back On
Go to the breaker box and turn the doorbell circuit back on.
Press the Button
Have someone press the doorbell button while you listen for the chime. You should hear a clear, consistent sound.
Check for Issues
If the chime doesn’t ring, or if it sounds weak or intermittent, there may be a loose connection or wiring issue. Turn the power off again and double-check all connections.
Adjust the Volume (If Applicable)
Some chime units have volume controls. Adjust them to your preference.
Test Multiple Times
Press the button several times to ensure it works reliably every time.
Troubleshooting Common Issues
Even with careful installation, problems can happen. Here’s how to fix the most common issues.
Doorbell Doesn’t Ring
- Check that the power is on at the breaker.
- Use a voltage tester to confirm power at the transformer.
- Inspect all wire connections for looseness or corrosion.
- Test the button with a multimeter to see if it’s working.
- Replace the chime unit if it’s old or damaged.
Weak or Intermittent Sound
- This often indicates a poor connection or low voltage.
- Check wire nuts and terminals for tightness.
- Ensure the transformer is providing the correct voltage (use a multimeter).
- Replace thin or damaged wire with new 18-gauge wire.
Button Gets Stuck or Doesn’t Reset
- Clean the button mechanism with compressed air.
- Check for moisture or debris inside the button.
- Replace the button if it’s worn out.
Transformer Hums or Overheats
- This could mean the transformer is overloaded or faulty.
- Ensure it’s rated for your chime (usually 10–16V, 10–30VA).
- Replace with a compatible transformer if needed.
Multiple Doorbells Not Working
- If you have front and rear buttons, check that both are wired correctly.
- Ensure the chime is set to recognize multiple inputs.
- Test each button individually.
Safety Tips and Best Practices
Following safety guidelines ensures a smooth and risk-free installation.
Always Turn Off Power
Even low-voltage systems can cause shocks or damage components if mishandled.
Use the Right Tools
Insulated tools reduce the risk of accidental contact with live wires.
Don’t Overload the Transformer
Most transformers support one chime and one or two buttons. Adding too many devices can cause failure.
Label Your Wires
Use tape or labels to mark wires during installation. This makes troubleshooting easier later.
Keep Wires Neat
Avoid loose or tangled wires. Use staples or clips to secure them and prevent tripping hazards.
Test Before Finalizing
Always test the system before closing walls or securing covers.
Maintenance Tips
Once your doorbell is installed, a little maintenance goes a long way.
Clean the Button
Wipe the button with a damp cloth every few months to remove dirt and grime. Avoid harsh chemicals.
Check Connections Annually
Inspect wire terminals and connections for looseness or corrosion.
Replace Batteries (If Applicable)
Some chime units use backup batteries. Replace them every 6–12 months.
Listen for Changes
If the sound becomes faint or irregular, investigate early to prevent complete failure.
When to Call a Professional
While most homeowners can install a traditional doorbell, some situations call for expert help.
- You’re unsure about electrical work or breaker locations.
- Your home lacks a doorbell transformer and you’re not comfortable installing one.
- You need to run wire through finished walls or ceilings.
- The existing wiring is damaged or outdated.
- You experience repeated failures after troubleshooting.
A licensed electrician can ensure safe, code-compliant installation—especially in older homes or complex setups.
Conclusion
Installing a traditional doorbell is a rewarding DIY project that enhances your home’s convenience and security. With the right tools, careful planning, and attention to safety, you can complete the job in under an hour. From turning off the power to testing the final connection, each step brings you closer to a reliable, working doorbell.
Remember to choose the right location, use quality materials, and double-check your wiring. And if you ever feel unsure, don’t hesitate to consult a professional. A well-installed doorbell not only works better—it lasts longer and gives you peace of mind.
Now that you know how to install a traditional doorbell, you’re ready to tackle this simple upgrade with confidence. Your visitors will know you’re home—and you’ll know exactly how it got done.
