Installing a doorbell transformer may seem intimidating, but with the right tools and guidance, it’s a manageable DIY project. This guide walks you through locating your old transformer, choosing the right replacement, and wiring it safely—all while keeping your doorbell working perfectly.
Key Takeaways
- Safety first: Always turn off power at the circuit breaker before working on electrical components to prevent shocks or injury.
- Locate the existing transformer: Most doorbell transformers are found in basements, garages, utility closets, or near the main electrical panel.
- Match voltage and power: Standard doorbells use 16V AC transformers with 10–30 VA output—choose a compatible replacement.
- Use proper tools: A voltage tester, screwdrivers, wire strippers, and electrical tape are essential for a clean, safe installation.
- Secure connections matter: Loose wires can cause intermittent ringing or no sound—always double-check your wiring.
- Test before finishing: Restore power and test the doorbell to ensure everything works before closing up walls or panels.
- When to call a pro: If you’re unsure about electrical work or lack experience, hire a licensed electrician for safety and peace of mind.
How to Install a Transformer for Doorbell
So your doorbell isn’t ringing—or maybe it’s weak, inconsistent, or you’re installing a new smart doorbell that needs more power. Chances are, the issue lies with the doorbell transformer. This small but crucial device steps down your home’s standard 120V electrical current to a safer 8–24V that your doorbell can use. Over time, transformers can fail, especially if they’ve been overloaded or exposed to moisture. The good news? Replacing or installing a new one is totally doable for most homeowners—even if you’re not an electrician.
In this guide, we’ll walk you through how to install a transformer for doorbell safely and correctly. Whether you’re upgrading an old system or fixing a broken one, you’ll learn how to locate your current transformer, choose the right replacement, shut off power safely, wire everything up, and test your doorbell. We’ll also cover common mistakes, troubleshooting tips, and when it’s best to call in a professional. By the end, you’ll have a reliable doorbell system and the confidence to tackle similar electrical projects around the house.
What Is a Doorbell Transformer?
Before diving into installation, let’s clarify what a doorbell transformer actually does. Think of it as a translator between your home’s high-voltage electrical system and your low-voltage doorbell. Your house runs on 120 volts (in the U.S.), which is far too powerful—and dangerous—for a simple doorbell chime. The transformer reduces that voltage to a safe level, typically between 8 and 24 volts, depending on the doorbell model.

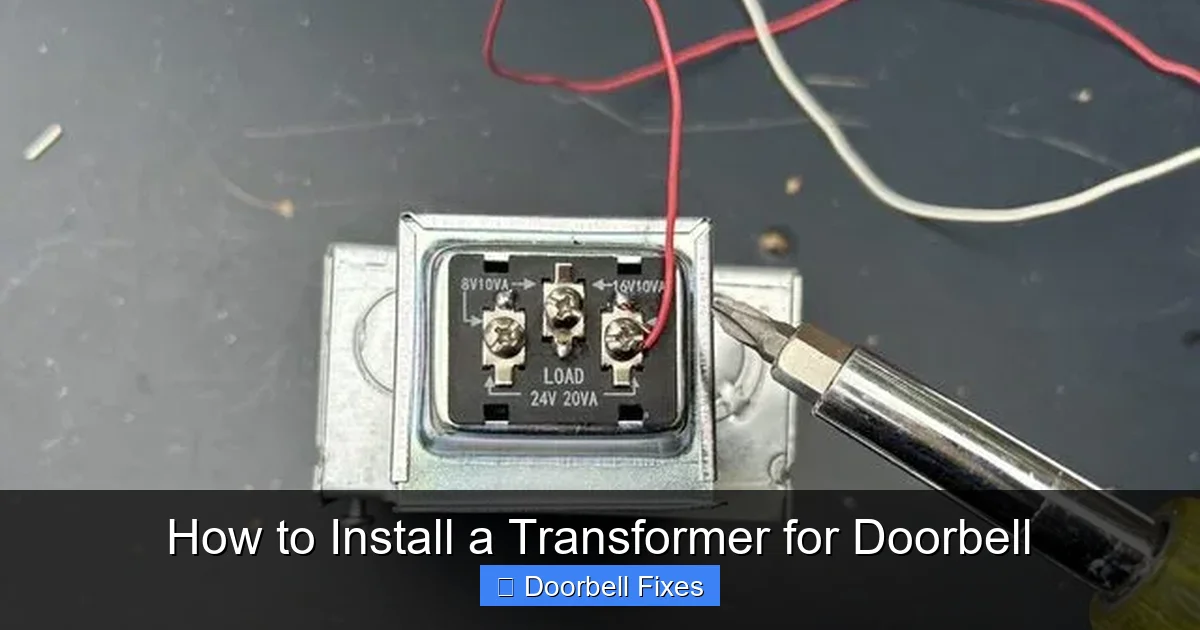

Visual guide about How to Install a Transformer for Doorbell
Image source: ringdoorbellinstallationguy.com
Most traditional wired doorbells use a 16V AC transformer with a power rating of 10 to 30 volt-amperes (VA). Smart doorbells, like Ring or Nest, often require a bit more juice—usually 16V/20VA or higher—to power their cameras, Wi-Fi, and motion sensors. Without a functioning transformer, your doorbell won’t get the power it needs to ring, light up, or connect to your phone.
Transformers are usually small, rectangular or cylindrical devices mounted near your electrical panel, in a basement, garage, attic, or utility closet. They’re often tucked away behind walls or inside junction boxes, which can make them tricky to find—but we’ll show you exactly where to look.
Tools and Materials You’ll Need
Before you start, gather these essential tools and supplies. Having everything ready will make the process smoother and safer.
- Voltage tester (non-contact) – To confirm power is off
- Screwdrivers (flathead and Phillips) – For removing covers and terminals
- Wire strippers – To expose fresh wire ends
- Electrical tape – For insulating connections
- Wire nuts (optional) – If splicing wires
- New doorbell transformer – Match voltage and VA rating
- Safety glasses and gloves – Protect your eyes and hands
- Flashlight or work light – Many transformers are in dark areas
- Multimeter (optional but helpful) – To test output voltage
You can find most of these at your local hardware store or online. If you’re replacing an old transformer, bring it with you to ensure you get an exact match—or at least one with the same specs.
Step 1: Turn Off the Power
This cannot be stressed enough: always turn off the power before working on any electrical component. Even though doorbell circuits are low voltage, the transformer is connected directly to your home’s 120V system, which can deliver a dangerous shock.
Locate the Correct Circuit Breaker
Go to your main electrical panel (breaker box). Look for a breaker labeled “doorbell,” “chime,” “low voltage,” or something similar. If there’s no label, you may need to test breakers one by one. Turn off breakers until your doorbell stops working—this confirms you’ve found the right one.
Verify Power Is Off
Use a non-contact voltage tester near the transformer terminals or wires. Touch the probe to the screw terminals or exposed wire ends. If the tester lights up or beeps, power is still on—go back and double-check your breaker. Only proceed when the tester shows no voltage.
Pro Tip: Place a piece of tape over the breaker switch and write “DO NOT TURN ON – WORK IN PROGRESS” to prevent someone else from accidentally restoring power while you’re working.
Step 2: Locate the Existing Transformer
Now that the power is off, it’s time to find your current transformer. It’s usually mounted on a junction box, electrical panel, or inside a wall near the doorbell chime.
Common Hiding Spots
- Basement or crawlspace: Look near the furnace, water heater, or main electrical panel.
- Garage: Often attached to a wall or ceiling joist.
- Utility closet: Especially if it houses HVAC or plumbing systems.
- Behind the doorbell chime: Some older homes have the transformer mounted directly behind the indoor chime unit.
- Inside electrical panels: Some transformers are built into or attached to the main breaker box.
If you can’t find it, follow the low-voltage wires from your doorbell button or chime. These thin, often two-wire cables (usually white and red or black) lead back to the transformer. Trace them carefully—they may run through walls, attics, or under floors.
Identify the Transformer
A typical doorbell transformer looks like a small metal or plastic box with two sets of wires:
- Primary side (high voltage): Two thick black or red wires connected to 120V house power.
- Secondary side (low voltage): Two thin wires (often white and red) that run to the doorbell and chime.
It may also have screw terminals labeled “LINE” (for 120V input) and “LOAD” or “SECONDARY” (for doorbell output).
Step 3: Remove the Old Transformer
Once you’ve located the transformer, carefully disconnect it. Take photos or make notes of the wiring before you remove anything—this will help you reconnect the new one correctly.
Disconnect the Low-Voltage Wires
Unscrew the terminals holding the thin doorbell wires (usually white and red). Gently pull the wires free. If they’re connected with wire nuts, unscrew the nuts and separate the wires.
Disconnect the High-Voltage Wires
Next, remove the thick 120V wires connected to the transformer. These are typically black (hot) and white (neutral), sometimes with a ground wire (green or bare copper). Loosen the terminal screws or remove wire nuts, then carefully pull the wires away.
Safety Note: Even though the power is off, avoid touching both wires at the same time to prevent accidental contact if power is restored unexpectedly.
Unmount the Transformer
Most transformers are mounted with screws to a junction box or electrical panel. Use a screwdriver to remove the mounting screws and gently pull the transformer free. Be careful not to damage surrounding wires or insulation.
Step 4: Choose the Right Replacement Transformer
Not all transformers are created equal. Using the wrong one can damage your doorbell or cause it to underperform.
Check Voltage and VA Rating
Look at the label on your old transformer. It should list:
- Output Voltage: Usually 8V, 10V, 12V, 16V, or 24V AC
- Power Rating: Measured in volt-amperes (VA), typically 10VA to 30VA
For most standard doorbells, a 16V, 10–20VA transformer is ideal. Smart doorbells often need 16V/20VA or 16V/30VA for reliable operation.
If your old transformer is missing or unreadable, check your doorbell’s manual or manufacturer website for recommended specs. When in doubt, go with 16V/20VA—it’s the most common and versatile option.
Buy a Quality Transformer
Don’t skimp on the transformer. Cheap models may overheat, fail prematurely, or deliver inconsistent voltage. Look for brands like Nutone, Heath Zenith, or TransformerTec. Buy from reputable hardware stores or online retailers like Amazon, Home Depot, or Lowe’s.
Bonus Tip: Some modern transformers are “plug-in” types that replace older hardwired models. These can simplify installation but may not fit in tight spaces.
Step 5: Install the New Transformer
Now it’s time to install your new transformer. Follow these steps carefully to ensure a safe and secure connection.
Mount the Transformer
Position the new transformer in the same location as the old one. Use the existing mounting holes or screws to secure it to the junction box or electrical panel. Make sure it’s firmly attached and won’t wobble or come loose.
Connect the High-Voltage Wires
Attach the 120V house wires to the transformer’s primary terminals:
- Connect the black (hot) wire to the terminal marked “LINE” or “HOT.”
- Connect the white (neutral) wire to the terminal marked “NEUTRAL” or “WHITE.”
- If there’s a ground wire (green or bare), connect it to the ground terminal or screw.
Tighten the terminal screws securely. Loose connections can cause arcing, overheating, or fire hazards.
Connect the Low-Voltage Wires
Now connect the thin doorbell wires to the secondary terminals:
- Attach one wire (usually white) to one terminal.
- Attach the other wire (usually red or black) to the other terminal.
Most transformers are not polarity-sensitive, so it doesn’t matter which wire goes where. However, if your doorbell has a light or specific wiring requirements, consult the manual.
Again, tighten the screws firmly. Use electrical tape to wrap the terminals for extra insulation if needed.
Step 6: Restore Power and Test
With everything connected, it’s time to test your work.
Turn the Power Back On
Go to your breaker panel and flip the doorbell circuit back on. Remove the warning tape if you used it.
Test the Doorbell
Press the doorbell button. Listen for a clear, consistent chime. If it rings normally, congratulations—you’ve successfully installed your transformer!
If the doorbell doesn’t work, don’t panic. Move on to the troubleshooting section below.
Use a Multimeter (Optional)
For extra peace of mind, use a multimeter to check the output voltage. Set it to AC voltage, touch the probes to the low-voltage terminals, and verify it reads close to the rated voltage (e.g., 16V). This confirms the transformer is working correctly.
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here’s how to fix the most common issues.
Doorbell Doesn’t Ring at All
- Check power: Ensure the breaker is on and the transformer is receiving 120V input.
- Inspect wires: Make sure all connections are tight and not loose or corroded.
- Test the button: The doorbell button itself might be faulty. Try bypassing it with a jumper wire across the terminals.
- Replace the chime: If the transformer and button are fine, the indoor chime unit may be broken.
Weak or Intermittent Ringing
- Undersized transformer: Your transformer may not be providing enough power. Upgrade to a higher VA rating (e.g., 20VA or 30VA).
- Loose connections: Re-tighten all wire terminals.
- Long wire runs: If your doorbell is far from the transformer, voltage drop can occur. Use thicker gauge wire or relocate the transformer closer.
Transformer Humming or Overheating
- Overloaded circuit: The transformer may be powering too many devices. Disconnect extras or upgrade to a higher-capacity model.
- Poor ventilation: Ensure the transformer has airflow and isn’t enclosed in a tight space.
- Defective unit: If it’s new and overheating, return it for a replacement.
Smart Doorbell Not Connecting
- Insufficient power: Smart doorbells need more juice. Use a 16V/30VA transformer.
- Incorrect wiring: Some smart doorbells require a resistor or specific wiring setup. Check the installation guide.
- Wi-Fi issues: Ensure your Wi-Fi signal reaches the doorbell location.
Safety Tips and Best Practices
Working with electricity always carries risks. Follow these guidelines to stay safe:
- Never work on live circuits. Always turn off power and verify with a tester.
- Use insulated tools. Prevents accidental shocks.
- Wear safety gear. Gloves and glasses protect against sparks and debris.
- Don’t overload transformers. Match the VA rating to your doorbell’s needs.
- Label wires. Use tape or labels to avoid confusion during reinstallation.
- Keep work area dry. Water and electricity don’t mix.
When to Call a Professional
While installing a doorbell transformer is generally safe for DIYers, there are times when you should call a licensed electrician:
- You can’t locate the transformer or access it safely.
- You’re uncomfortable working with electrical panels or high-voltage wires.
- The wiring is outdated, damaged, or aluminum (requires special handling).
- You need to run new wires through walls or attics.
- Your home has complex electrical systems or smart home integrations.
A professional can ensure the job is done safely, up to code, and with minimal disruption to your home.
Conclusion
Installing a transformer for your doorbell might seem like a small task, but it’s a critical step in keeping your home’s entry system working reliably. Whether you’re fixing a silent doorbell or upgrading to a smart model, knowing how to install a transformer for doorbell gives you control over your home’s functionality and saves you money on service calls.
By following this guide—turning off power, locating the old transformer, choosing the right replacement, wiring it correctly, and testing thoroughly—you’ll have a doorbell that rings loud and clear. Remember to prioritize safety, double-check your connections, and don’t hesitate to seek help if something feels off.
With a little patience and the right tools, you’ve not only fixed a common household issue but also built confidence in tackling future electrical projects. Now go enjoy that satisfying “ding-dong” every time someone visits!
