This guide walks you through how to install a wired doorbell chime from start to finish, including safety tips, tools needed, and troubleshooting advice. Whether you’re replacing an old unit or installing a new one, you’ll gain the confidence to complete the job yourself with clear, easy-to-follow instructions.
Key Takeaways
- Turn off power at the breaker: Always shut off electricity before working on wiring to prevent shocks or damage.
- Use a voltage tester: Confirm the power is off and check for live wires before touching any connections.
- Match wire colors correctly: Connect transformer, chime, and doorbell wires according to manufacturer instructions to ensure proper function.
- Secure all connections: Use wire nuts and electrical tape to prevent loose wires and potential fire hazards.
- Test before finalizing: Power on and test the chime after wiring but before mounting the cover to catch issues early.
- Follow local codes: Ensure your installation meets electrical safety standards in your area.
- Upgrade for better sound: Consider modern chimes with multiple tones or volume control for improved usability.
How to Install a Wired Doorbell Chime: A Complete DIY Guide
Installing a wired doorbell chime might sound intimidating, but with the right tools, a bit of patience, and this step-by-step guide, you can do it safely and successfully. Whether you’re replacing an old, broken chime or upgrading to a newer model with better sound and features, this project is well within the reach of most homeowners.
In this guide, you’ll learn how to install a wired doorbell chime from start to finish. We’ll cover everything from turning off the power and removing the old unit to wiring the new chime, testing the system, and troubleshooting common problems. No prior electrical experience? No problem. We’ll explain each step in simple, everyday language so you can feel confident every step of the way.
By the end of this guide, you’ll have a fully functional doorbell that not only works reliably but also adds a touch of modern convenience to your home. Let’s get started!
What You’ll Need

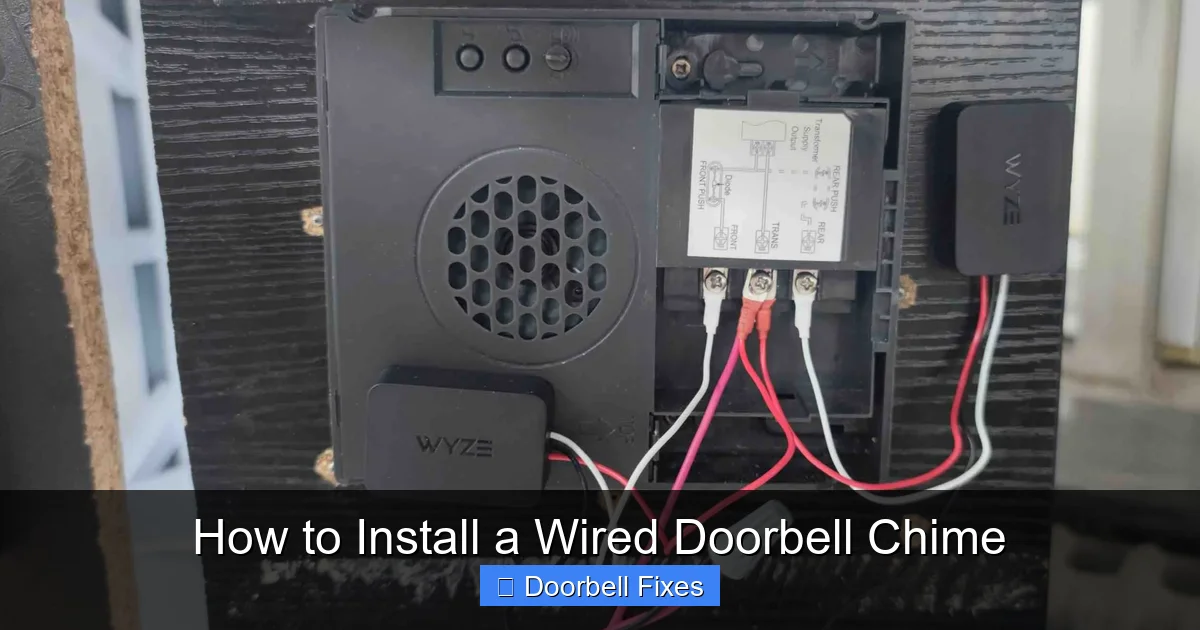

Visual guide about How to Install a Wired Doorbell Chime
Image source: support.wyze.com
Before you begin, gather all the necessary tools and materials. Having everything ready will make the process smoother and safer.
- New wired doorbell chime kit: Choose a model compatible with your existing transformer (usually 16V AC). Look for features like multiple tones, volume control, or LED indicators.
- Screwdrivers: A flathead and Phillips screwdriver for removing covers and securing wires.
- Voltage tester: Essential for confirming the power is off before touching any wires.
- Wire strippers: To remove insulation from wire ends if needed.
- Electrical tape: For insulating wire connections.
- Wire nuts (usually included): To secure wire connections.
- Pencil and notepad: To label wires during removal.
- Safety glasses: Protect your eyes from dust and debris.
- Ladder (if needed): For reaching high-mounted chimes.
Optional but helpful:
- Needle-nose pliers for bending wire ends
- Multimeter to test transformer output
- Drill and wall anchors if mounting to a new location
Step 1: Turn Off the Power
Safety is the most important part of any electrical project. Before touching any wires, you must turn off the power to the doorbell circuit.
Locate Your Electrical Panel
Go to your home’s main electrical panel (breaker box). Look for a breaker labeled “Doorbell,” “Chime,” or something similar. If there isn’t a label, you may need to test breakers one by one.
Turn Off the Correct Breaker
Switch the breaker to the “OFF” position. To be extra safe, turn off the main breaker if you’re unsure which one controls the doorbell.
Verify the Power Is Off
Use a non-contact voltage tester at the doorbell chime location. Touch the tester to the wires—if it doesn’t beep or light up, the power is off. You can also test the doorbell button outside to confirm it doesn’t activate the chime.
Pro Tip: Place a piece of tape over the breaker switch and write “Do Not Turn On – Working on Doorbell” to prevent someone else from restoring power accidentally.
Step 2: Remove the Old Doorbell Chime
Now that the power is off, it’s time to remove the existing chime unit.
Unscrew the Cover
Most chime units have a front cover held in place by one or two screws. Use your screwdriver to remove them and gently pull the cover away from the wall.
Take a Photo of the Wiring
Before disconnecting anything, take a clear photo of the wiring setup. This will help you remember how to reconnect the new chime correctly.
Label the Wires
Use small pieces of tape and a pencil to label each wire. Common labels include:
- “T” or “Transformer” – connects to the doorbell transformer
- “F” or “Front” – connects to the front doorbell button
- “R” or “Rear” – connects to a rear doorbell button (if you have one)
Disconnect the Wires
Loosen the terminal screws or remove the wires from the quick-connect terminals. Gently pull each wire free. If the wires are damaged or frayed, trim them with wire strippers and expose fresh copper.
Remove the Mounting Bracket
Unscrew the old chime unit from the wall or electrical box. Set it aside—you can recycle or discard it.
Step 3: Prepare the New Doorbell Chime
Now that the old unit is out, it’s time to get the new chime ready.
Read the Instructions
Every doorbell chime is slightly different. Read the manufacturer’s manual to understand the wiring diagram and any special installation steps.
Check Compatibility
Ensure your new chime is compatible with your existing transformer. Most wired doorbells use a 16-volt AC transformer, but some older homes may have 8V or 12V systems. If your new chime requires a different voltage, you may need to replace the transformer (we’ll cover that later).
Prepare the Wires
If the wires from the wall are too short or damaged, strip about 1/2 inch of insulation from the ends using wire strippers. Twist the exposed copper to keep it neat.
Step 4: Connect the Wires to the New Chime
This is the most critical step—wiring the new chime correctly ensures it will work safely and reliably.
Identify the Terminals
Most chime units have three terminals:
- Transformer (T or TR): Connects to the low-voltage wire from the transformer
- Front (F or FR): Connects to the front doorbell button
- Rear (R or RR): Connects to a rear doorbell button (optional)
Some models use labeled screws; others have push-in connectors. Refer to your manual.
Connect the Wires
Match the labeled wires to the correct terminals:
- Attach the “Transformer” wire to the “T” terminal
- Attach the “Front” wire to the “F” terminal
- If you have a rear button, connect the “Rear” wire to the “R” terminal
If your chime uses screw terminals, loosen the screw, insert the wire, and tighten securely. For push-in connectors, insert the stripped wire until it clicks.
Secure the Connections
After connecting, give each wire a gentle tug to ensure it’s secure. Loose wires can cause intermittent operation or no sound at all.
Pro Tip: If you’re unsure which wire is which, use a multimeter to test continuity between the doorbell button and the wires at the chime location.
Step 5: Mount the New Chime Unit
With the wires connected, it’s time to secure the chime to the wall.
Position the Chime
Hold the new chime unit against the wall or electrical box. Make sure it’s level and fits snugly.
Secure with Screws
Use the mounting screws provided (or reuse the old ones if compatible) to attach the chime to the wall or electrical box. Don’t overtighten—this can crack the plastic housing.
Tuck in Excess Wire
Gently push any extra wire back into the electrical box to prevent pinching or damage.
Step 6: Test the Doorbell
Before reassembling everything, test the system to make sure it works.
Turn the Power Back On
Go to the breaker box and turn the doorbell breaker back on.
Press the Doorbell Button
Go to your front door and press the button. You should hear a clear, consistent chime from inside.
Check All Buttons
If you have a rear doorbell, test it too. Some chimes play different tones for front and rear doors—this is normal and useful.
Adjust Settings (If Available)
Many modern chimes have volume controls, tone selectors, or LED indicators. Use the buttons or dials on the unit to customize the sound to your preference.
Pro Tip: If the chime doesn’t sound, don’t panic—check the troubleshooting section below.
Step 7: Reattach the Cover and Finalize
Once you’ve confirmed the doorbell works, complete the installation.
Attach the Front Cover
Align the cover with the chime unit and secure it with the screws. Make sure it snaps or fits securely.
Clean Up
Dispose of the old chime and packaging. Wipe down the area if needed.
Label the Breaker (Optional)
If your breaker wasn’t labeled, now’s a good time to add a label like “Doorbell” for future reference.
Troubleshooting Common Issues
Even with careful installation, problems can occur. Here’s how to fix the most common issues.
No Sound When Button Is Pressed
- Check the breaker: Make sure power is restored.
- Test the button: Use a multimeter to check if the button completes the circuit when pressed.
- Inspect wiring: Ensure all connections are tight and correct.
- Test the transformer: Use a multimeter to check if it’s outputting 16V AC. If not, it may need replacement.
Chime Sounds Weak or Intermittent
- Loose wires: Re-tighten all terminal connections.
- Corroded contacts: Clean the terminals with a small brush or sandpaper.
- Low voltage: The transformer may be underpowered or failing.
Chime Rings Randomly
- Faulty button: The doorbell button may be sticking or shorting. Replace it.
- Loose wire: A wire may be touching metal or another conductor. Inspect and insulate.
- Electrical interference: Rare, but possible near high-power lines. Relocate the chime if needed.
Only One Button Works
- Incorrect wiring: Double-check that the rear wire is connected to the “R” terminal.
- Missing rear terminal: Some chimes don’t support rear buttons. Check your model’s specs.
Upgrading Your Doorbell System
Once your wired chime is installed, consider these upgrades for added convenience:
Add a Second Chime
Install a remote chime in a bedroom or basement so you never miss a visitor. These plug into outlets and sync with your main chime.
Install a Smart Doorbell (Optional)
If you want video, motion detection, or smartphone alerts, consider adding a smart doorbell. Many models work with existing wired systems and use the same transformer.
Replace the Transformer (If Needed)
If your chime isn’t getting enough power, or you’re adding a smart doorbell, you may need a higher-capacity transformer (e.g., 24V). Turn off power, disconnect the old transformer, and install the new one following the same wiring steps.
Safety Tips and Best Practices
Keep these tips in mind for a safe and successful installation:
- Always turn off power: Never work on live wires.
- Use a voltage tester: Don’t rely solely on the breaker switch.
- Don’t overload the circuit: Avoid connecting too many devices to one transformer.
- Keep wires neat: Avoid tangled or pinched wires.
- Follow local codes: Some areas require permits for electrical work. When in doubt, consult an electrician.
Conclusion
Installing a wired doorbell chime is a practical and rewarding DIY project that enhances your home’s functionality and safety. By following this guide, you’ve learned how to install a wired doorbell chime safely, correctly, and efficiently—from turning off the power and removing the old unit to wiring the new chime and testing the system.
Remember, the key to success is preparation, attention to detail, and patience. Take your time, double-check connections, and don’t hesitate to consult the manufacturer’s instructions or seek professional help if something feels unsafe.
With your new doorbell chime in place, you’ll enjoy reliable performance, clearer sound, and the satisfaction of a job well done. Welcome guests with confidence—your doorbell is ready!
