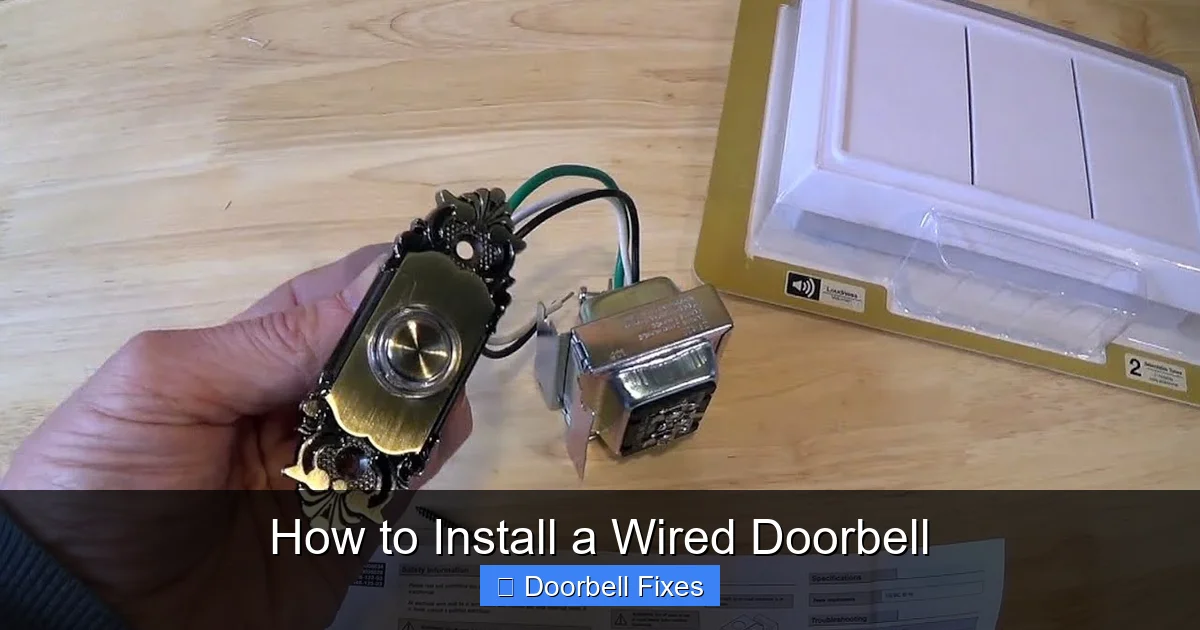

How to Install a Wired Doorbell

This guide walks you through how to install a wired doorbell from start to finish, including turning off power, mounting the chime, connecting wires, and testing. Perfect for DIYers who want a reliable, hardwired solution.

Key Takeaways

• Turn off the power first: Always shut off electricity at the breaker before working on wiring to prevent shocks or damage.
• Use the right tools: A voltage tester, screwdrivers, wire strippers, and a drill are essential for a safe and clean installation.
• Match your doorbell voltage: Most wired doorbells use 8–24V transformers; check compatibility with your chime and button.
• Secure connections are key: Loose wires cause malfunctions—twist and cap them properly with wire nuts.
• Test before finalizing: Power on and test the doorbell after wiring but before mounting everything permanently.
• Follow local codes: Some areas require permits or licensed electricians for electrical work—check regulations first.
• Upgrade smart features wisely: You can add video or Wi-Fi capabilities later, but start with a solid wired base.

Introduction: Why Install a Wired Doorbell?

Installing a wired doorbell might sound like a task best left to professionals, but with the right tools, clear instructions, and a bit of patience, it’s totally doable for most homeowners. Unlike wireless models that rely on batteries or Wi-Fi, a wired doorbell offers consistent performance, better sound quality, and no need to worry about signal drops or dead batteries. Whether you’re replacing an old unit or installing one for the first time, this guide will walk you through every step of how to install a wired doorbell safely and effectively.

In this comprehensive guide, you’ll learn how to choose the right doorbell system, gather the necessary tools, turn off power safely, mount the chime box and button, connect the low-voltage wires, and test your setup. We’ll also cover common pitfalls, troubleshooting tips, and how to upgrade to smart features later if desired. By the end, you’ll have a reliable, hardwired doorbell that enhances both security and convenience at your front door.

What You’ll Need: Tools and Materials

Before you begin, make sure you have all the tools and materials on hand. Rushing out mid-project to buy a missing screwdriver or wire nut can be frustrating. Here’s a complete checklist:

Essential Tools

• Screwdrivers: Both flathead and Phillips head for removing old units and securing new ones.
• Voltage tester: A non-contact voltage detector is crucial for confirming power is off.
• Wire strippers: For removing insulation from low-voltage wires without damaging the copper inside.
• Drill and drill bits: Needed if you’re mounting into brick, concrete, or hard surfaces.
• Pencil or marker: For marking drill points and wire locations.
• Level: Ensures your chime box and button are straight.
• Electrical tape: Optional, but helpful for securing wire nuts or labeling wires.

Materials

• Wired doorbell kit: Includes chime unit, doorbell button, and sometimes a transformer. Choose one compatible with your home’s voltage (usually 8–24V).
• Low-voltage wire: Typically 18- or 20-gauge stranded wire. You may need to run new wire if replacing an old system.
• Wire nuts (wire connectors): For securing connections between wires.
• Wall anchors and screws: If mounting into drywall or masonry.
• Electrical box (optional): Some chime units require a recessed electrical box for mounting.

Optional Upgrades

• Smart doorbell adapter: Allows you to add video or app notifications later.
• Extra chimes: Install additional units in bedrooms or back rooms for better coverage.
• Cable clips or conduit: For tidying up exposed wires along baseboards or walls.

Pro tip: If you’re unsure about your home’s existing wiring, take a photo of the old doorbell setup before disconnecting anything. This can help you remember how wires were connected.

Step 1: Turn Off the Power

Safety first! Even though doorbell systems use low-voltage electricity, they’re still connected to your home’s main electrical circuit via a transformer. That means there’s a risk of electric shock if you don’t disconnect power properly.

Locate the Circuit Breaker

Most doorbell transformers are connected to a 120V circuit in your electrical panel. Look for a breaker labeled “doorbell,” “chime,” or “low voltage.” If there’s no label, you may need to test circuits by turning them off one at a time and checking if the existing doorbell stops working.

Use a Voltage Tester

After turning off the suspected breaker, use a non-contact voltage tester near the doorbell button and chime unit. Touch the tester to the wire terminals—if it beeps or lights up, power is still on. Go back to the breaker panel and try another circuit.

Double-Check Before Touching Wires

Never assume the power is off just because the breaker is flipped. Always test with a voltage detector. Once confirmed, place a piece of tape over the breaker switch with a note like “Do not turn on – working on doorbell.” This prevents someone else from accidentally restoring power while you’re working.

Remember: Low-voltage wires (usually two thin wires running from the button to the chime) are safe to handle once power is off, but the transformer itself connects to high voltage—so avoid touching those terminals.

Step 2: Remove the Old Doorbell (If Applicable)

If you’re replacing an existing doorbell, start by removing the old components. This gives you access to the wiring and mounting points for the new system.

Remove the Doorbell Button

Unscrew the faceplate of the existing button from the wall. Gently pull it away to expose the two wires connected to the back. Take note of which wire goes where—though polarity doesn’t matter for most mechanical doorbells, labeling them (e.g., “front” and “common”) can help during reinstallation.

Disconnect the Wires

Loosen the terminal screws or pull the wires out of push-in connectors. If the wires are short or damaged, you may need to strip back a little insulation to expose fresh copper. Use your wire strippers to remove about 1/4 inch of insulation.

Remove the Chime Unit

Go inside to where the chime box is mounted—usually in a hallway, basement, or closet. Unscrew the unit from the wall or electrical box. Carefully disconnect the wires, again noting their positions. Some chimes have three wires: front, rear, and transformer. Label them with tape if needed.

Tip: If the old mounting holes don’t align with your new doorbell, you can patch the old holes with spackle later and drill new ones.

Step 3: Install the New Transformer (If Needed)

The transformer steps down your home’s 120V power to the 8–24V required by the doorbell. Most homes already have one installed, often near the furnace, in the basement, or inside the electrical panel. But if yours is missing, faulty, or incompatible, you’ll need to install a new one.

Check Existing Transformer

Look for a small gray or black box with two wires coming out. It should be labeled with voltage (e.g., 16V) and amperage (e.g., 10VA). Compare this to your new doorbell’s requirements—usually printed on the packaging or manual.

Install a New Transformer

If replacing or installing a new transformer:

• Turn off power at the breaker.
• Mount the transformer to a junction box or electrical outlet using the provided screws.
• Connect the black (hot) wire from the transformer to a 120V hot wire in the box using a wire nut.
• Connect the white (neutral) wire to the neutral bundle.
• Run the two low-voltage wires (usually red and white) from the transformer to the doorbell circuit.

Caution: This step involves high-voltage wiring. If you’re not comfortable working inside an electrical box, hire a licensed electrician. Improper installation can cause fire or shock hazards.

Step 4: Mount the Doorbell Button

Now it’s time to install the new doorbell button at your front door. This is the part visitors will press, so placement matters for both function and aesthetics.

Choose the Right Location

The button should be:

• About 48 inches above the ground (standard height for accessibility).
• Near the door frame but not blocked by trim or decorations.
• Protected from direct rain if possible (under an eave or porch).

Drill Holes and Run Wires (If Needed)

If you’re not reusing existing wires, you’ll need to run new low-voltage cable from the chime location to the button. This may involve drilling through walls, baseboards, or door frames. Use a flexible drill bit or fish tape to guide the wire through tight spaces.

Connect the Wires

Strip about 1/4 inch of insulation from each wire. Attach them to the terminal screws on the back of the button—most buttons are not polarized, so either wire can go on either terminal. Tighten the screws securely.

Secure the Button

Hold the button against the wall, use a level to ensure it’s straight, then mark the screw holes. Drill pilot holes if needed, insert wall anchors for drywall, and screw the button into place. Make sure it’s snug but not over-tightened, which can crack the plastic.

Pro tip: If the button feels loose or wobbly, use a small dab of silicone caulk around the edges to seal it and add stability.

Step 5: Install the Chime Unit

The chime is the indoor unit that makes the sound when the button is pressed. It’s typically mounted in a central location where the sound can be heard throughout the house.

Choose a Mounting Spot

Ideal locations include:

• A hallway near the front door.
• A living room or kitchen wall.
• A basement utility room (if you have a second chime upstairs).

Avoid damp areas like bathrooms or near heating vents, which can affect performance.

Connect the Wires

Most chime units have three terminals:

• Front: Connects to the doorbell button.
• Rear: For a second button (e.g., back door).
• Trans: Connects to the transformer.

Match the wires from your wall to these terminals. If you only have two wires, connect one to “Front” and one to “Trans.” Tighten the screws firmly.

Mount the Chime

Hold the chime against the wall, use a level, and mark the screw holes. Drill pilot holes, insert anchors if needed, and secure the unit with screws. Some models snap into a mounting plate—follow the manufacturer’s instructions.

Note: If your chime requires an electrical box (common in newer homes), you may need to install a retrofit box or use a surface-mounted version.

Step 6: Test the Doorbell

Before celebrating, it’s critical to test your installation to ensure everything works correctly.

Restore Power

Go back to the breaker panel and turn the power back on. Wait a few seconds for the system to initialize.

Press the Button

Go outside and press the doorbell button. Listen for the chime inside. If it rings clearly and consistently, great! If not, move to troubleshooting.

Check for Issues

Common problems include:

• No sound: Check wire connections, ensure power is on, and verify the transformer is working.
• Weak or intermittent sound: Loose wires or low voltage—re-tighten connections or test transformer output.
• Chime rings randomly: Could indicate a short circuit or faulty button—inspect wiring for damage.

Use a multimeter to test voltage at the chime terminals if needed. You should see 8–24V AC when the system is idle.

Troubleshooting Common Problems

Even with careful installation, issues can arise. Here’s how to fix the most common ones:

Doorbell Doesn’t Ring

First, confirm power is on and the breaker hasn’t tripped. Then check all wire connections at the button, chime, and transformer. Loose or corroded wires are the #1 cause of failure. Re-strip and reconnect if necessary.

Chime Sounds Weak or Distorted

This often means insufficient voltage. Test the transformer output with a multimeter. If it’s below the recommended range (e.g., less than 16V for a 16V system), the transformer may be overloaded or failing. Replace it with a higher-rated model if you have multiple chimes or smart features.

Button Feels Stiff or Sticks

Dirt, paint, or misalignment can cause mechanical issues. Remove the button, clean the contacts with rubbing alcohol, and ensure it moves freely. Avoid over-tightening mounting screws.

Multiple Chimes Not Working

If you have front and rear buttons, make sure each is connected to the correct terminal (“Front” or “Rear”) on the chime unit. Also verify that all wires are intact and not nicked or cut.

Transformer Humming or Overheating

A loud hum or warm transformer may indicate a short circuit or overload. Turn off power immediately and inspect all connections. Replace the transformer if it smells burnt or feels hot to the touch.

Upgrading to Smart Features

Once your wired doorbell is working, you can enhance it with modern technology. Many smart doorbells (like Ring or Nest) are designed to work with existing wired systems.

Add a Smart Chime

Some smart chimes plug into your existing wired setup and connect to Wi-Fi, sending alerts to your phone. They often include customizable sounds and volume control.

Install a Video Doorbell

Video doorbells require a bit more power (usually 16–24V), so ensure your transformer can handle the load. Most models replace the mechanical button and include a camera, motion sensor, and two-way audio. Follow the manufacturer’s wiring guide—some use the same two wires, while others need a third for constant power.

Use a Smart Adapter

If you want to keep your existing chime but add app notifications, consider a smart adapter that clips onto the chime wires and communicates with your phone via Wi-Fi.

Remember: Always check compatibility before buying smart upgrades. Not all systems work together.

Maintenance Tips for Long-Term Performance

A wired doorbell should last for years with minimal upkeep, but a little maintenance goes a long way.

Clean the Button Regularly

Dust, dirt, and grime can build up on the button, affecting responsiveness. Wipe it down with a damp cloth every few months.

Check Connections Annually

Over time, vibrations and temperature changes can loosen wire connections. Once a year, turn off power and inspect all terminals. Tighten any loose screws.

Test the Transformer

Use a multimeter to check voltage output yearly. A dropping voltage reading may signal a failing transformer.

Replace Batteries in Smart Features

If you’ve added a smart chime or adapter with a backup battery, replace it according to the manufacturer’s schedule (usually every 1–2 years).

Conclusion: Enjoy Your Reliable Wired Doorbell

Congratulations! You’ve successfully learned how to install a wired doorbell from start to finish. By following these steps—turning off power, removing old components, installing the transformer, mounting the button and chime, and testing thoroughly—you’ve created a dependable entryway system that won’t let you down.

Unlike wireless alternatives, a wired doorbell offers consistent performance, no battery changes, and the option to upgrade to smart features later. Plus, you’ve gained valuable DIY skills and potentially saved hundreds in installation fees.

Remember, safety is paramount. If at any point you feel unsure—especially when dealing with high-voltage wiring—don’t hesitate to call a licensed electrician. But for most homeowners, this project is well within reach. Now go enjoy the satisfying ding-dong of your new doorbell every time someone visits!
