This guide walks you through the complete installation of the Alfawise Wi-Fi Doorbell Video, from unboxing to live streaming. Whether you’re replacing an old doorbell or installing a new one, we’ll help you get it working fast and securely.
Key Takeaways
- Check compatibility first: Ensure your existing doorbell wiring provides 8–24V AC and that your Wi-Fi network supports 2.4GHz (not 5GHz only).
- Turn off power safely: Always shut off the breaker before removing your old doorbell to avoid electrical shock.
- Use the Alfawise app: Download the official app (available on iOS and Android) to pair your doorbell with your home network.
- Mount securely: Use the included mounting bracket and screws for a stable, weather-resistant installation.
- Test motion and audio: After setup, verify that motion detection, two-way audio, and live video are working correctly.
- Adjust settings for best performance: Customize motion zones, sensitivity, and notification preferences in the app.
- Troubleshoot common issues: If the doorbell won’t connect, restart your router, reset the device, or check voltage with a multimeter.
How to Install Alfawise Wi-Fi Doorbell Video
So, you’ve got your hands on the Alfawise Wi-Fi Doorbell Video—a sleek, affordable smart doorbell that lets you see, hear, and speak to visitors from anywhere. Whether you’re upgrading from a basic doorbell or installing one for the first time, this guide will walk you through every step to get your Alfawise doorbell up and running smoothly.
By the end of this guide, you’ll know how to:
– Check if your home is compatible
– Safely remove your old doorbell
– Mount the Alfawise doorbell securely
– Connect it to your Wi-Fi network
– Set up the app and customize settings
– Troubleshoot common problems
We’ll keep things simple, friendly, and practical—no technical jargon unless absolutely necessary. Let’s get started!
What You’ll Need Before Starting
Visual guide about How to Install Alfawise Wi-fi Doorbell Video
Image source: xiaomidna.com
Before you begin, gather these tools and materials:
- Alfawise Wi-Fi Doorbell Video (with mounting bracket and screws)
- Smartphone or tablet with iOS or Android
- Wi-Fi network (2.4GHz band required)
- Screwdriver (usually Phillips head)
- Voltage tester or multimeter (optional but recommended)
- Drill and drill bits (if mounting on brick, concrete, or hard surfaces)
- Level (to ensure the doorbell is straight)
- Electrical tape (for securing wires)
- Ladder (if your doorbell is high up)
It’s also a good idea to have a helper nearby, especially if you’re working at height or handling electrical wires. Safety first!
Step 1: Check Compatibility and Power Supply
Not all homes are ready for a smart doorbell right out of the box. The Alfawise Wi-Fi Doorbell Video requires a few things to work properly:
Power Requirements
The doorbell runs on low-voltage AC power, typically from your existing doorbell transformer. Most homes have a transformer that outputs between 8V and 24V AC. The Alfawise doorbell works within this range, but if your system is too weak (below 8V), the doorbell may not power on or could behave erratically.
To check your voltage:
1. Turn off the power at the breaker.
2. Remove your old doorbell.
3. Use a multimeter to test the voltage across the two wires.
4. If it’s below 8V, you may need to upgrade your transformer or consider a battery-powered alternative (though the Alfawise model is wired-only).
Wi-Fi Requirements
The Alfawise doorbell only supports 2.4GHz Wi-Fi networks. It does not work with 5GHz-only networks. If your router broadcasts both bands, make sure your phone is connected to the 2.4GHz network during setup.
Tip: If you’re not sure which band you’re on, check your router settings or use a Wi-Fi analyzer app. Some routers let you split the bands into separate names (e.g., “HomeWiFi” and “HomeWiFi_5G”).
Doorbell Chime Compatibility
If you have a mechanical chime (the classic ding-dong box inside your home), the Alfawise doorbell should work fine. However, if you have a digital or electronic chime, you might need to install a bypass resistor (not included) to prevent flickering or damage. Check your chime model online or consult an electrician if unsure.
Step 2: Turn Off the Power
This step is critical. Working with live wires can be dangerous.
1. Locate your home’s electrical panel (breaker box).
2. Find the breaker that controls your doorbell circuit. It’s often labeled “Doorbell,” “Front Door,” or “Chime.” If not labeled, turn off the main breaker to be safe.
3. Use a non-contact voltage tester on the doorbell wires to confirm power is off.
4. Place a piece of tape over the breaker switch with a note like “Do Not Turn On – Working on Doorbell.”
Safety tip: Never assume the power is off just because the old doorbell isn’t ringing. Always test the wires.
Step 3: Remove the Old Doorbell
Now that the power is off, it’s time to remove your existing doorbell.
Unscrew the Old Unit
1. Use a screwdriver to remove the screws holding the old doorbell to the wall.
2. Gently pull the unit away from the wall.
3. You’ll see two wires connected to the back.
Disconnect the Wires
1. Loosen the terminal screws or pull the wires out of the back (depending on your model).
2. Label the wires with tape (e.g., “Front” and “Transformer”) if they’re not already marked. This helps during reinstallation.
3. Twist the exposed wire ends to keep them neat and prevent fraying.
Inspect the Mounting Area
Check the wall surface. Is it flat? Are there holes from the old doorbell? If the new Alfawise bracket doesn’t align with the old holes, you may need to drill new ones. Use a level to mark where the new bracket will go.
Step 4: Install the Mounting Bracket
The Alfawise doorbell comes with a plastic mounting bracket that holds the device securely.
Position the Bracket
1. Hold the bracket against the wall where you want the doorbell.
2. Use a level to make sure it’s straight.
3. Mark the screw holes with a pencil.
Drill Pilot Holes (If Needed)
If you’re mounting on wood, you can often screw directly into the wall. For brick, concrete, or stucco, drill pilot holes using a masonry bit. Insert wall anchors for extra support.
Secure the Bracket
1. Align the bracket with the holes.
2. Insert the screws and tighten them with a screwdriver.
3. Make sure the bracket is snug and doesn’t wiggle.

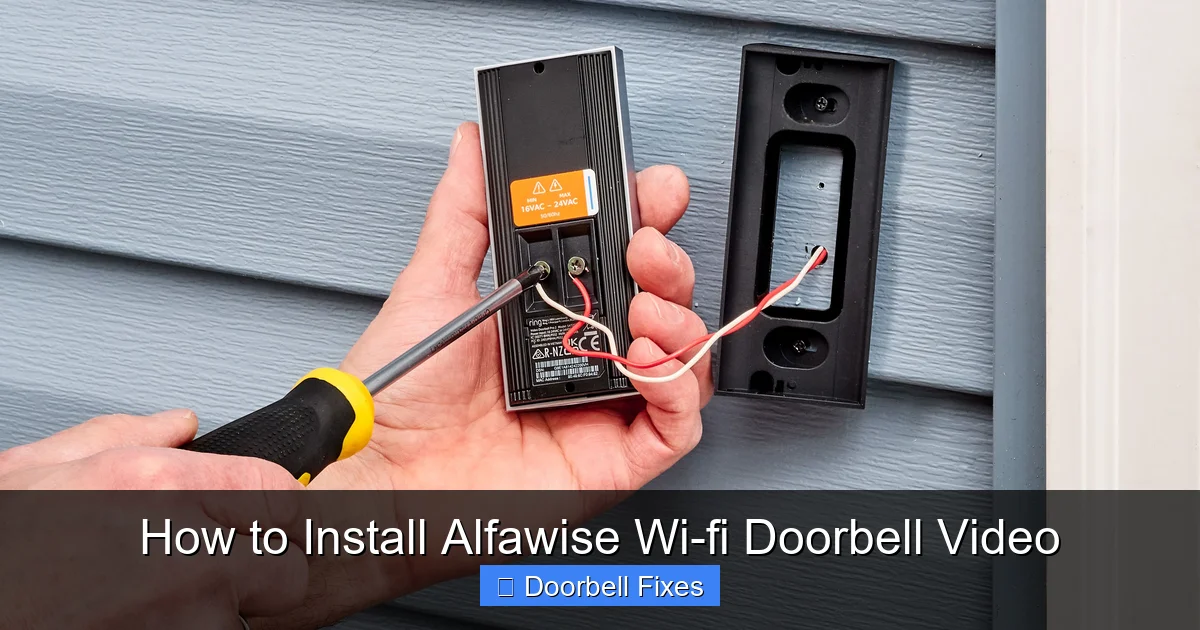

Connect the Wires
1. Feed the two doorbell wires through the center hole in the bracket.
2. Strip about 1/4 inch of insulation from the wire ends if needed.
3. Attach the wires to the terminal screws on the back of the Alfawise doorbell. It doesn’t matter which wire goes where—this is low-voltage AC, so polarity isn’t an issue.
4. Tighten the screws to secure the wires.
Tip: Wrap the connections with electrical tape for extra protection against moisture and loosening.
Step 5: Attach the Alfawise Doorbell
Now it’s time to mount the actual doorbell unit.
Snap It Into Place
1. Align the doorbell with the mounting bracket.
2. Gently press it until it clicks into place.
3. Some models have a small security screw on the bottom—insert and tighten it to prevent theft.
Turn the Power Back On
1. Go back to the breaker box.
2. Turn the doorbell breaker back on.
3. Wait 30–60 seconds for the doorbell to power up.
You should see a light on the front of the doorbell (usually red or blue). This indicates it’s receiving power and initializing.
Step 6: Download and Set Up the Alfawise App
The Alfawise doorbell uses a dedicated app to connect to Wi-Fi and manage settings.
Download the App
1. Open the App Store (iOS) or Google Play Store (Android).
2. Search for “Alfawise Smart” or “Alfawise Home.”
3. Download and install the official app.
Note: Avoid third-party apps—stick to the one from Alfawise or its parent company, Gearbest.
Create an Account
1. Open the app.
2. Tap “Register” or “Sign Up.”
3. Enter your email, create a password, and verify your account.
4. Log in with your new credentials.
Add Your Doorbell
1. Tap the “+” or “Add Device” button.
2. Select “Doorbell” or “Video Doorbell” from the list.
3. The app will prompt you to scan the QR code on the back of your doorbell or enter the device ID manually.
4. Follow the on-screen instructions to connect to your Wi-Fi network.
Connect to Wi-Fi
1. Make sure your phone is connected to your 2.4GHz Wi-Fi network.
2. Enter your Wi-Fi password when prompted.
3. Wait while the doorbell connects. This can take 1–2 minutes.
You’ll know it’s successful when the doorbell light turns solid blue (or green, depending on the model) and the app shows “Online.”
Step 7: Configure Settings and Test Features
Once connected, it’s time to customize your doorbell and make sure everything works.
Test the Video Feed
1. Open the app and tap on your doorbell.
2. You should see a live video stream.
3. Check the image quality—adjust the doorbell angle if the view is too high or low.
Test Two-Way Audio
1. Tap the microphone icon in the app.
2. Speak into your phone.
3. You should hear your voice through the doorbell’s speaker.
4. Have someone stand at the door and speak—you should hear them clearly.
Test Motion Detection
1. Walk in front of the doorbell.
2. The app should send a notification and start recording.
3. Check the recorded clip in the “Events” or “History” tab.
Adjust Motion Zones and Sensitivity
1. Go to “Device Settings” in the app.
2. Find “Motion Detection” or “Alert Settings.”
3. Draw motion zones to ignore areas like busy streets or trees.
4. Lower sensitivity if you’re getting too many false alerts.
Set Up Notifications
1. Enable push notifications so you’re alerted when someone approaches.
2. Choose whether to receive alerts for motion, doorbell presses, or both.
3. Set quiet hours if you don’t want alerts at night.
Enable Cloud or Local Storage
The Alfawise doorbell supports cloud storage (subscription may be required) or local storage via a microSD card (if your model has a slot). Insert a card (up to 128GB, formatted to FAT32) to save recordings locally.
Step 8: Final Checks and Tips
Before you call it a day, do a few final checks:
- Make sure the doorbell is securely mounted and doesn’t wobble.
- Verify that the chime inside your home rings when you press the button.
- Test the app from another room or outside your home (using mobile data) to confirm remote access works.
- Clean the camera lens with a soft, dry cloth to ensure clear video.
Pro Tips for Best Performance
– Place the doorbell at chest height (about 4–5 feet from the ground) for the best view of visitors.
– Avoid pointing it directly at bright lights or the sun, which can cause glare.
– If Wi-Fi signal is weak, consider installing a Wi-Fi extender near your front door.
– Update the app and firmware regularly for security and new features.
Troubleshooting Common Issues
Even with careful installation, you might run into a few hiccups. Here’s how to fix the most common problems:
Doorbell Won’t Power On
– Double-check that the breaker is on.
– Test the voltage at the wires—should be 8–24V AC.
– Ensure wires are securely connected and not touching each other.
Can’t Connect to Wi-Fi
– Confirm you’re using a 2.4GHz network.
– Move closer to the router during setup.
– Restart your router and the doorbell.
– Reset the doorbell (usually by holding the button for 10 seconds) and try again.
Video Is Blurry or Dark
– Clean the camera lens.
– Check for dirt, spider webs, or condensation.
– Adjust the angle to avoid backlighting.
Chime Doesn’t Ring
– Verify the chime is compatible.
– Check wire connections.
– If using a digital chime, install a bypass resistor.
App Shows “Offline”
– Restart the doorbell by turning the breaker off and on.
– Reconnect to Wi-Fi in the app.
– Ensure your phone and doorbell are on the same network.
Motion Alerts Are Too Frequent
– Reduce motion sensitivity in the app.
– Adjust motion zones to exclude pets or moving branches.
– Disable alerts during high-traffic times if needed.
Conclusion
Installing the Alfawise Wi-Fi Doorbell Video is a straightforward process that can greatly enhance your home security. With just a few tools, some basic electrical know-how, and the right app, you can have a fully functional smart doorbell in under an hour.
Remember to prioritize safety by turning off the power, test your connections, and take your time with the setup. Once everything is working, you’ll enjoy peace of mind knowing you can see and speak to anyone at your door—whether you’re home or halfway around the world.
If you run into issues, don’t panic. Most problems have simple fixes, and the Alfawise community and customer support can help. Now go enjoy your new smart doorbell!
