How to Install an Electric Doorbell

Installing an electric doorbell is a simple DIY project that enhances home security and convenience. This guide walks you through every step—from turning off power to testing your new chime—with safety tips and troubleshooting advice.

Key Takeaways

Turn off the power at the breaker before starting: Safety is critical when working with electrical systems. Always shut off the circuit to avoid shocks or damage.
Choose the right doorbell kit for your home: Consider wired vs. wireless, voltage compatibility, and chime style to match your needs and existing setup.
Use a voltage tester to confirm wires are safe: Never assume wires are dead—test them to ensure the power is truly off before touching any components.
Follow manufacturer instructions closely: Each doorbell model may have unique steps; always refer to the included manual for best results.
Test the system before finishing: After installation, ring the bell to confirm sound, volume, and connectivity work properly.
Know when to call a professional: If you’re unsure about wiring or encounter complex issues, it’s safer to consult an electrician.
Maintain your doorbell regularly: Clean buttons and check connections annually to keep your system running smoothly.

Installing an electric doorbell might seem like a small upgrade, but it can make a big difference in your daily life. Whether you’re replacing an old, broken unit or installing one for the first time, this guide will walk you through the entire process safely and efficiently. You’ll learn how to choose the right doorbell, prepare your workspace, connect the wiring, and test your new system—all without needing professional help.

This project is perfect for DIY enthusiasts and homeowners who want to improve their home’s functionality and curb appeal. With just a few tools and about 30 to 60 minutes of your time, you can have a working doorbell that alerts you whenever someone’s at the door. Plus, it’s a great way to gain confidence in handling basic electrical tasks around the house.

In this comprehensive guide, we’ll cover everything from safety precautions and tool requirements to step-by-step installation and troubleshooting. Whether you’re installing a traditional wired doorbell or a modern wireless model, the principles are similar—and we’ll make sure you understand each one. By the end, you’ll not only have a working doorbell but also the knowledge to maintain it for years to come.

What You’ll Need

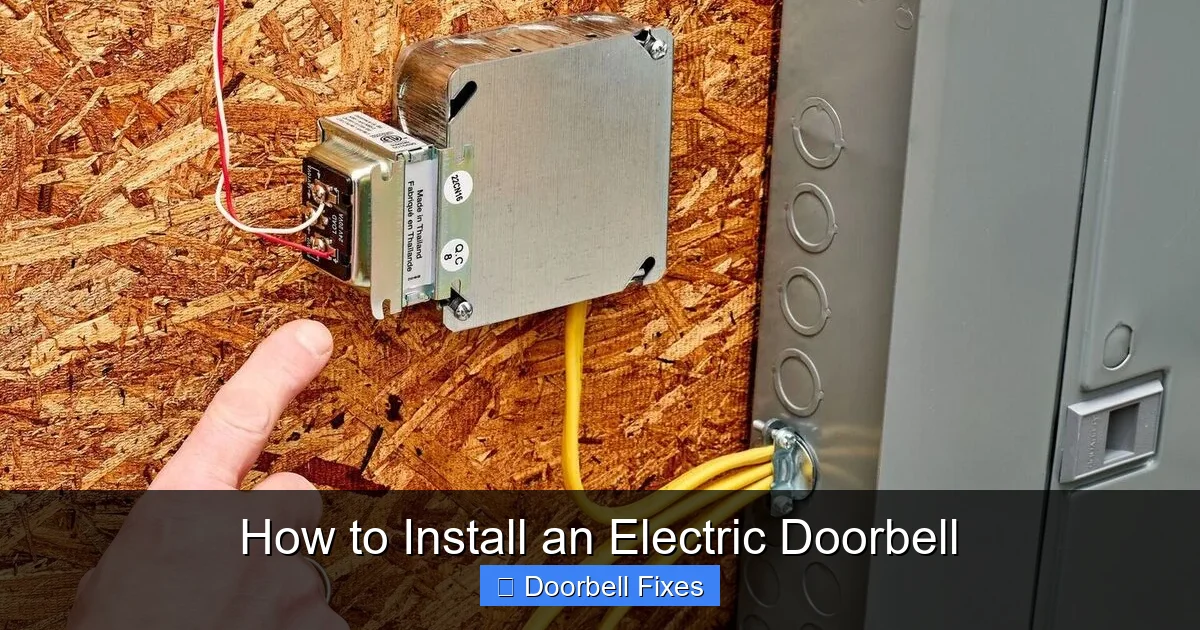

Visual guide about How to Install an Electric Doorbell

Image source: storables.com

Before you begin, gather all the necessary tools and materials. Having everything ready will save time and prevent frustration during the installation.

Tools

Screwdriver (Phillips and flathead)
Voltage tester (non-contact type recommended)
Wire strippers
Drill and drill bits (if mounting on brick or concrete)
Pencil or marker
Level (for straight mounting)
Safety gloves and goggles

Materials

Electric doorbell kit (includes button, chime unit, and transformer if needed)
Electrical tape
Wire nuts (usually included in the kit)
Wall anchors (if mounting on drywall without studs)
Screws (typically provided with the doorbell)

Optional but Helpful

Stud finder (to locate wall studs)
Extension cord (to power tools if needed)
Flashlight (for better visibility in dim areas)
Smartphone or camera (to take reference photos before disconnecting wires)

Safety First: Preparing for Installation

Electrical work always carries some risk, but with the right precautions, you can complete this project safely. The most important step is turning off the power.

Turn Off the Power at the Breaker

Locate your home’s main electrical panel (usually in the basement, garage, or utility closet). Find the circuit breaker that controls the doorbell. It may be labeled “doorbell,” “chime,” or “front door.” If it’s not labeled, you may need to test circuits by turning them off one at a time and checking if the existing doorbell stops working.

Once you’ve identified the correct breaker, switch it to the “OFF” position. For extra safety, place a piece of tape over the switch to prevent someone from accidentally turning it back on while you’re working.

Test the Wires with a Voltage Tester

Even after turning off the breaker, always double-check that the wires are not live. Use a non-contact voltage tester—simply touch it near the wire terminals. If the tester beeps or lights up, the power is still on, and you need to find the correct breaker.

This step is crucial. Never assume the power is off just because the breaker is switched. Faulty wiring or shared circuits can sometimes cause unexpected voltage.

Wear Protective Gear

Put on safety gloves and goggles to protect your hands and eyes. While doorbell voltage is low (typically 8–24 volts), it’s still wise to avoid direct contact with wires.

Choosing the Right Electric Doorbell

Not all doorbells are created equal. The type you choose will depend on your home’s wiring, your preferences, and your budget.

Wired vs. Wireless Doorbells

Wired doorbells: These connect directly to your home’s electrical system via low-voltage wires. They’re reliable, don’t require battery changes, and often support multiple chimes. Ideal if your home already has doorbell wiring.
Wireless doorbells: These use batteries and transmit a signal to a receiver plugged into an outlet. Great for renters or homes without existing wiring. However, they need periodic battery replacements and may have signal interference.

Voltage Compatibility

Most homes use a 16-volt transformer for doorbells. Check your existing transformer (usually located near the breaker panel, furnace, or attic) to confirm the voltage. Your new doorbell should match this rating. If you’re unsure, choose a universal doorbell that works with 8–24 volts.

Chime Style and Sound

Doorbells come with different chime sounds—classic two-tone, melodic, or even customizable MP3 tones. Consider the volume and tone that will be audible throughout your home. Some models offer adjustable volume and multiple sound options.

Smart Doorbells (Optional Upgrade)

If you want advanced features like video, motion detection, or smartphone alerts, consider a smart doorbell (e.g., Ring, Nest). These often require a stronger Wi-Fi signal and may need a higher-voltage transformer. Installation is similar but may include app setup and cloud account creation.

Step-by-Step Installation Guide

Now that you’re prepared, let’s install your electric doorbell. Follow these steps carefully for a successful setup.

Step 1: Remove the Old Doorbell (If Applicable)

If you’re replacing an existing doorbell, start by removing the old unit.

Unscrew the doorbell button from the wall.
Gently pull it away to expose the wires.
Take a photo of the wiring for reference.
Loosen the terminal screws and disconnect the wires. Note which wire goes to which terminal (usually marked “Front” or “Trans”).
Remove the old chime unit inside the house by unscrewing it from the wall or baseboard.
Disconnect the wires from the chime terminals.

Step 2: Install the New Doorbell Button

The button is the part visitors press outside your door.

Hold the new button against the wall where you want to install it. Use a level to ensure it’s straight.
Mark the screw holes with a pencil.
If mounting on drywall without a stud, drill pilot holes and insert wall anchors.
Connect the two wires to the terminals on the back of the button. It doesn’t matter which wire goes where—doorbell circuits are not polarized.
Secure the button to the wall with screws.
Tuck any excess wire back into the wall neatly.

Step 3: Install the Chime Unit

The chime is the indoor unit that makes the sound.

Choose a location near the front door, typically on a wall or baseboard.
Hold the chime unit in place and mark the screw holes.
Drill pilot holes if needed.
Connect the wires to the chime terminals. Match them to the labels (e.g., “Front,” “Trans,” “Rear” if you have a second button).
Secure the chime to the wall with screws.
If your chime has a cover, snap it into place.

Step 4: Connect the Transformer (If Needed)

The transformer steps down household voltage (120V) to the low voltage (16V) used by the doorbell.

Locate the transformer—usually near the breaker panel, furnace, or in the attic.
Turn off the power at the breaker again before touching the transformer.
Disconnect the old wires from the transformer terminals.
Connect the new doorbell wires to the transformer. One wire goes to the “Doorbell” terminal, the other to “Common.”
Secure the connections with wire nuts and electrical tape.
If your new doorbell requires a different voltage, you may need to replace the transformer. Consult an electrician if unsure.

Step 5: Restore Power and Test

Now it’s time to see if everything works.

Go back to the breaker panel and turn the power back on.
Wait a few seconds for the system to activate.
Press the doorbell button outside.
Listen for the chime inside. It should ring clearly and consistently.
If the chime doesn’t sound, double-check all connections and ensure the transformer is working.

Troubleshooting Common Issues

Even with careful installation, problems can occur. Here’s how to fix the most common issues.

Doorbell Doesn’t Ring

Check the power: Ensure the breaker is on and the transformer is receiving power.
Test the button: Use a multimeter to check for continuity when the button is pressed.
Inspect wires: Look for loose, corroded, or disconnected wires at the button, chime, and transformer.
Replace the transformer: If the voltage is too low, the doorbell won’t work. A new 16V transformer may be needed.

Chime Rings Weakly or Intermittently

Low voltage: The transformer may be underpowered or failing.
Loose connections: Tighten all wire terminals and ensure wire nuts are secure.
Faulty button: The button may be worn out. Replace it with a new one.

Chime Rings by Itself (Phantom Ringing)

Moisture in the button: Rain or humidity can cause false triggers. Install a weatherproof cover or replace the button.
Loose wiring: Check for frayed or shorting wires near the button.
Transformer issues: A failing transformer can send irregular voltage. Test and replace if necessary.

Wireless Doorbell Not Connecting

Low batteries: Replace the batteries in the button.
Signal interference: Move the receiver away from Wi-Fi routers, microwaves, or metal objects.
Out of range: Ensure the button is within the manufacturer’s specified range (usually 100–300 feet).

Maintenance Tips for Long-Term Performance

To keep your doorbell working reliably, perform regular maintenance.

Clean the Button

Dirt, dust, and debris can interfere with the button’s function. Wipe it down with a damp cloth every few months. For stubborn grime, use a mild cleaner and a soft brush.

Check Connections Annually

Over time, wires can loosen. Once a year, turn off the power and inspect all connections at the button, chime, and transformer. Tighten any loose screws and replace damaged wire nuts.

Test the System

Press the button monthly to ensure it’s working. If the sound becomes faint or inconsistent, investigate early to avoid complete failure.

Replace Batteries (Wireless Models)

If you have a wireless doorbell, replace the batteries every 6–12 months, or when the signal weakens.

Upgrade When Needed

Technology improves constantly. If your doorbell is more than 10 years old, consider upgrading to a smart model with better features and reliability.

When to Call a Professional

While most doorbell installations are DIY-friendly, some situations require expert help.

You’re unsure which breaker controls the doorbell.
The wiring is damaged, frayed, or inaccessible.
You need to install a new transformer or run new wires.
Your home has complex wiring or multiple doorbells.
You’re uncomfortable working with electricity.

An electrician can ensure the job is done safely and up to code, especially in older homes or commercial properties.

Conclusion

Installing an electric doorbell is a straightforward project that delivers immediate benefits. With the right tools, safety precautions, and step-by-step guidance, you can complete the installation in under an hour. Whether you choose a traditional wired model or a modern wireless option, your new doorbell will enhance your home’s security and convenience.

Remember to always turn off the power, test the wires, and follow the manufacturer’s instructions. If you encounter issues, use the troubleshooting tips to diagnose and fix problems quickly. And don’t hesitate to call a professional if the job feels beyond your skill level.

By taking the time to install your doorbell correctly, you’re not just adding a functional feature—you’re also building confidence in your DIY abilities. So grab your tools, stay safe, and enjoy the satisfying sound of your new doorbell ringing loud and clear.
