This guide walks you through how to install Blink doorbell to existing wires without rewiring your home. You’ll learn the tools needed, wiring steps, and how to test your setup for reliable performance.
Key Takeaways
- Check compatibility first: Ensure your existing doorbell wiring and transformer meet Blink’s power requirements (16–24V AC, 30VA minimum).
- Turn off power at the breaker: Always shut off electricity before handling wires to prevent shocks or damage.
- Use the mounting bracket correctly: Secure the bracket to the wall and connect wires to the designated terminals before attaching the doorbell.
- Test the doorbell after installation: Power on and use the Blink app to verify video, motion detection, and chime functionality.
- Adjust settings in the app: Customize motion zones, alerts, and video quality for optimal performance.
- Troubleshoot common issues: If the doorbell doesn’t power on, double-check wiring, voltage, and app sync.
- Consider a chime connector if needed: Older mechanical chimes may require a Blink Chime Connector for compatibility.
Introduction: Why Upgrade to a Blink Doorbell?
If you’re tired of missing deliveries or worrying about who’s at your door when you’re not home, upgrading to a smart doorbell like the Blink Video Doorbell is a smart move. Unlike traditional doorbells, Blink offers HD video, two-way audio, motion detection, and real-time alerts—all from your smartphone. And the best part? You don’t need to run new wires. If you already have a wired doorbell setup, you can easily install the Blink doorbell using your existing wiring.
In this guide, we’ll walk you through how to install Blink doorbell to existing wires step by step. Whether you’re a DIY beginner or a seasoned home improver, this guide is designed to be simple, safe, and effective. By the end, you’ll have a fully functional smart doorbell that keeps your home secure and connected.
We’ll cover everything from checking compatibility to troubleshooting common issues. No electrician required—just a few tools, a little patience, and this guide.
What You’ll Need Before You Start

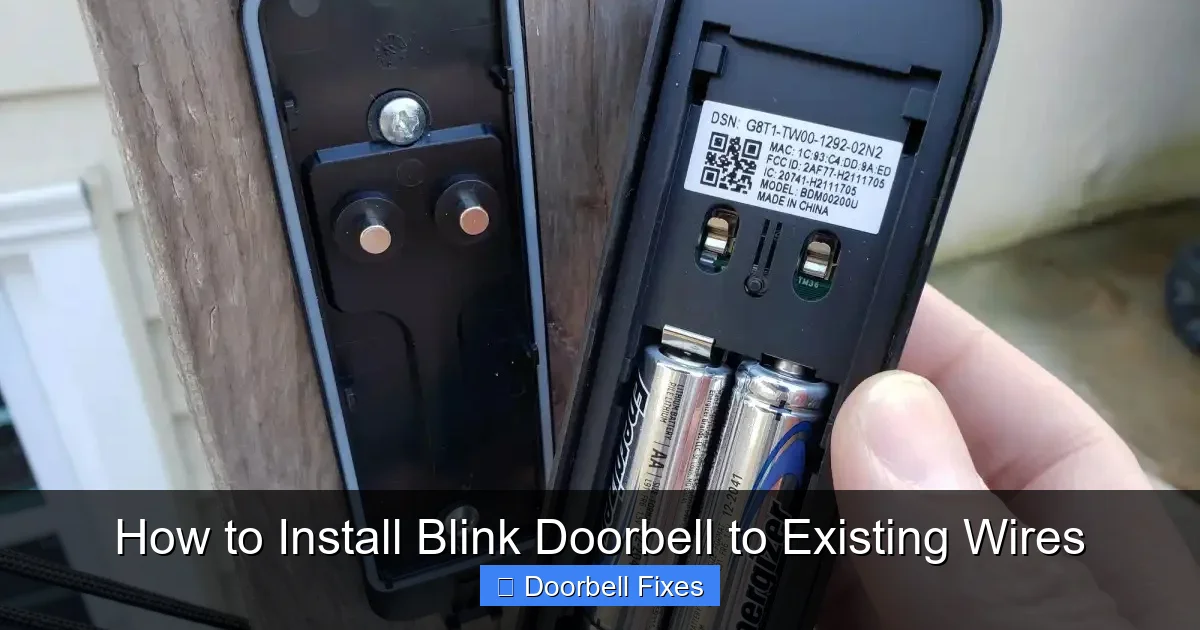

Visual guide about How to Install Blink Doorbell to Existing Wires
Image source: storables.com
Before diving into the installation, make sure you have the right tools and materials. Having everything ready will save time and prevent frustration.
Tools and Materials Checklist
- Blink Video Doorbell (wired version)
- Screwdriver (Phillips and flathead)
- Voltage tester (non-contact recommended)
- Wire strippers (if trimming wires)
- Drill and drill bits (if mounting to brick or concrete)
- Wall anchors (if needed)
- Smartphone with Blink app installed
- Wi-Fi network (2.4 GHz required)
Check Your Existing Doorbell System
Not all wired doorbells are compatible with Blink. Before installing, verify your current setup meets Blink’s power requirements.
Your existing doorbell should have:
- A transformer that outputs 16–24 volts AC
- A minimum of 30 VA (volt-amperes)
- Two low-voltage wires connected to the doorbell button
If you’re unsure about your transformer, check the label on the device (usually located near your electrical panel, furnace, or in a basement). Look for voltage (V) and VA ratings. If it says 16V or 24V and 30VA or higher, you’re good to go.
If your transformer is older or underpowered (e.g., 8V or 10V), the Blink doorbell may not work properly. In that case, you may need to upgrade your transformer or consider the battery-powered Blink doorbell instead.
Step 1: Turn Off the Power
Safety first! Working with electricity can be dangerous if you don’t take proper precautions.
Locate Your Circuit Breaker
Go to your home’s main electrical panel (breaker box). Look for a breaker labeled “doorbell,” “chime,” or something similar. If you can’t find a labeled breaker, turn off the main power or identify the correct circuit by testing.
Test the Power
Use a non-contact voltage tester to confirm the power is off. Touch the tester to the doorbell wires at the button. If the tester doesn’t beep or light up, the power is off. If it does, double-check your breaker or turn off the main power.
Never skip this step. Even low-voltage systems can cause shocks or damage your doorbell if mishandled.
Step 2: Remove Your Old Doorbell
Now that the power is off, it’s time to remove your existing doorbell button.
Unscrew the Old Button
Use a screwdriver to remove the screws holding the old doorbell button to the wall. Gently pull the button away from the wall to expose the two wires.
Label the Wires (Optional but Helpful)
If the wires aren’t already labeled, use small pieces of tape to mark them (e.g., “Front Door” or “Left” and “Right”). This helps avoid confusion during reinstallation.
Disconnect the Wires
Loosen the terminal screws on the back of the old button and remove the wires. Be careful not to let the wires slip back into the wall. You can tape them to the wall temporarily to keep them in place.
Step 3: Prepare the Blink Doorbell
Now it’s time to get your Blink doorbell ready for installation.
Unbox and Inspect
Open the Blink package and ensure all components are included:
- Blink Video Doorbell
- Mounting bracket
- Screws and anchors
- Wire connectors (if needed)
- Quick start guide
Download the Blink App
If you haven’t already, download the Blink Home Monitor app from the App Store (iOS) or Google Play (Android). Create an account or log in if you already have one.
The app is essential for setup, live viewing, and customizing settings.
Step 4: Install the Mounting Bracket
The mounting bracket holds the Blink doorbell securely in place and connects to your wires.
Position the Bracket
Hold the mounting bracket against the wall where you want to install the doorbell. Make sure it’s level and at a comfortable viewing height (typically 48–52 inches from the ground).
Use a pencil to mark the screw holes.
Drill Pilot Holes (If Needed)
If you’re mounting to wood, you may not need pilot holes. For brick, concrete, or siding, drill pilot holes using the appropriate drill bit. Insert wall anchors if necessary.
Attach the Bracket
Secure the bracket to the wall using the provided screws. Make sure it’s tight and stable—this will support the doorbell and ensure proper alignment.
Step 5: Connect the Wires
This is the most critical part of the installation. Proper wiring ensures your Blink doorbell gets the power it needs.
Identify the Terminals
On the back of the mounting bracket, you’ll see two terminal screws labeled “Front” and “Trans.” These correspond to the two wires from your existing doorbell:
- Front: Connects to the wire that goes to the doorbell button.
- Trans: Connects to the wire that goes to the transformer (usually through the chime unit).
Strip the Wire Ends (If Necessary)
If the wire ends are frayed or too short, use wire strippers to remove about 1/4 inch of insulation. This ensures a clean connection.
Connect the Wires
Loosen the terminal screws on the bracket. Insert one wire into the “Front” terminal and the other into the “Trans” terminal. Tighten the screws securely. The order doesn’t matter—Blink doorbells are polarity-insensitive.
Make sure the wires are firmly held and not loose. A poor connection can cause power issues or intermittent operation.
Step 6: Attach the Blink Doorbell
With the bracket and wires in place, it’s time to mount the doorbell.
Align the Doorbell
Hold the Blink doorbell against the mounting bracket. The bottom of the doorbell should slide into the bracket’s locking mechanism.
Secure the Doorbell
Push the top of the doorbell toward the wall until you hear a click. This locks it into place. Give it a gentle tug to ensure it’s secure.
Step 7: Restore Power and Test
Now that everything is connected, it’s time to power up and test your new doorbell.
Turn the Power Back On
Go to your breaker box and turn the power back on to the doorbell circuit.
Wait for the Doorbell to Power Up
The Blink doorbell will take a few seconds to initialize. You’ll see a light on the front—usually a solid blue or white—indicating it’s receiving power.
Open the Blink App
Launch the Blink app on your smartphone. If this is your first time using it, follow the on-screen prompts to add a new device.
Sync the Doorbell
Tap “Add Device” and select “Doorbell.” The app will guide you through the sync process. You may need to scan a QR code on the back of the doorbell or enter a serial number.
Once synced, the app will confirm the connection and show a live video feed.
Step 8: Configure Settings in the App
Your Blink doorbell is now installed, but you’ll want to customize it for the best experience.
Adjust Motion Zones
In the app, go to the doorbell settings and select “Motion Zones.” You can define specific areas where you want motion detection (e.g., the walkway but not the street). This reduces false alerts from passing cars or animals.
Set Alert Preferences
Choose when and how you receive notifications. You can set alerts for motion, doorbell presses, or both. You can also schedule quiet hours (e.g., no alerts after 10 PM).
Customize Video Quality
Blink offers different video quality settings. Higher quality uses more data and battery (if applicable), so choose based on your needs and internet speed.
Enable Two-Way Audio
Make sure two-way audio is enabled so you can speak to visitors through the app.
Test the Doorbell
Press the doorbell button to test the chime and video. If you have a mechanical chime, it should ring. If not, check the next section.
Troubleshooting Common Issues
Even with careful installation, you might run into problems. Here’s how to fix the most common issues.
Doorbell Doesn’t Power On
- Double-check that power is restored at the breaker.
- Verify the wires are securely connected to the correct terminals.
- Use a voltage tester to confirm the transformer is outputting 16–24V AC.
- If voltage is low, your transformer may be underpowered—consider upgrading it.
No Video or Poor Connection
- Ensure your Wi-Fi signal is strong at the doorbell location.
- Blink doorbells require a 2.4 GHz network—5 GHz is not supported.
- Move your router closer or use a Wi-Fi extender if needed.
- Restart the doorbell by removing it from the bracket and reattaching it.
Chime Doesn’t Ring
- If you have a mechanical chime, it should ring when the button is pressed.
- If it doesn’t, the chime may not be compatible with Blink’s low-power signal.
- Solution: Install a Blink Chime Connector (sold separately) between the chime and transformer. This boosts the signal and ensures compatibility.
False Motion Alerts
- Adjust motion zones to exclude areas like streets or trees.
- Lower motion sensitivity in the app settings.
- Ensure the doorbell is level—tilted units may detect motion incorrectly.
App Shows “Offline”
- Check your Wi-Fi connection.
- Restart your router and the doorbell.
- Re-sync the doorbell through the app.
- If the issue persists, contact Blink support.
Tips for Long-Term Performance
To keep your Blink doorbell working smoothly, follow these maintenance tips:
- Clean the lens regularly: Use a soft, dry cloth to wipe away dust, dirt, or fingerprints. A dirty lens can blur video quality.
- Check for firmware updates: The Blink app will notify you when updates are available. Install them to improve performance and security.
- Monitor battery (if applicable): Even wired models have a small backup battery. Replace it every 1–2 years or as needed.
- Test monthly: Press the button and check motion alerts to ensure everything is working.
- Secure the doorbell: Periodically check that the unit is tightly locked to the bracket to prevent tampering.
Conclusion: Enjoy Your Smart Doorbell
Installing a Blink doorbell using existing wires is a straightforward project that can greatly enhance your home’s security and convenience. By following this guide, you’ve learned how to install Blink doorbell to existing wires safely and correctly—from checking compatibility to configuring settings in the app.
With HD video, motion alerts, and two-way communication, your new doorbell keeps you connected to your home no matter where you are. And because you used your existing wiring, you saved time and money compared to a full rewiring job.
If you run into any issues, refer back to the troubleshooting section or reach out to Blink customer support. Most problems are easily resolved with a few simple steps.
Now, sit back, relax, and enjoy peace of mind knowing you’ll never miss a visitor again.
