How to Install Blink Doorbell with Sync Module 2

This guide walks you through installing your Blink Doorbell with Sync Module 2 from start to finish. You’ll learn how to mount the doorbell, connect the sync module, and set it up in the app—even if you’re not tech-savvy.

Key Takeaways

Sync Module 2 is required: The Blink Doorbell won’t work without it—it connects your doorbell to Wi-Fi and enables remote access.
No existing doorbell needed: You can install the Blink Doorbell even if you don’t have a wired doorbell—it runs on batteries or hardwired power.
Use the Blink app for setup: All configuration happens in the free Blink Home Monitor app (iOS or Android).
Mounting matters: Choose a location with good Wi-Fi signal and clear view of your entryway for best performance.
Test after installation: Always test motion detection and live view to ensure everything works before finishing.
Battery vs. wired options: Decide whether to use batteries (easier install) or hardwire for continuous power.
Troubleshooting is common: If sync fails or video lags, check Wi-Fi strength, module placement, and app updates.

How to Install Blink Doorbell with Sync Module 2

So, you’ve got your new Blink Doorbell and Sync Module 2—great choice! Whether you’re upgrading from an old doorbell or installing your first smart doorbell, this guide will help you get everything set up quickly and correctly. Don’t worry if you’re not a DIY expert. Installing the Blink Doorbell with Sync Module 2 is straightforward, even for beginners.

In this step-by-step guide, you’ll learn how to mount your doorbell, connect the Sync Module 2, pair everything through the Blink app, and test your system. We’ll also cover common pitfalls and how to fix them. By the end, you’ll have a fully functional smart doorbell that sends motion alerts, live video, and two-way audio right to your phone.

Let’s get started!

What You’ll Need Before You Begin

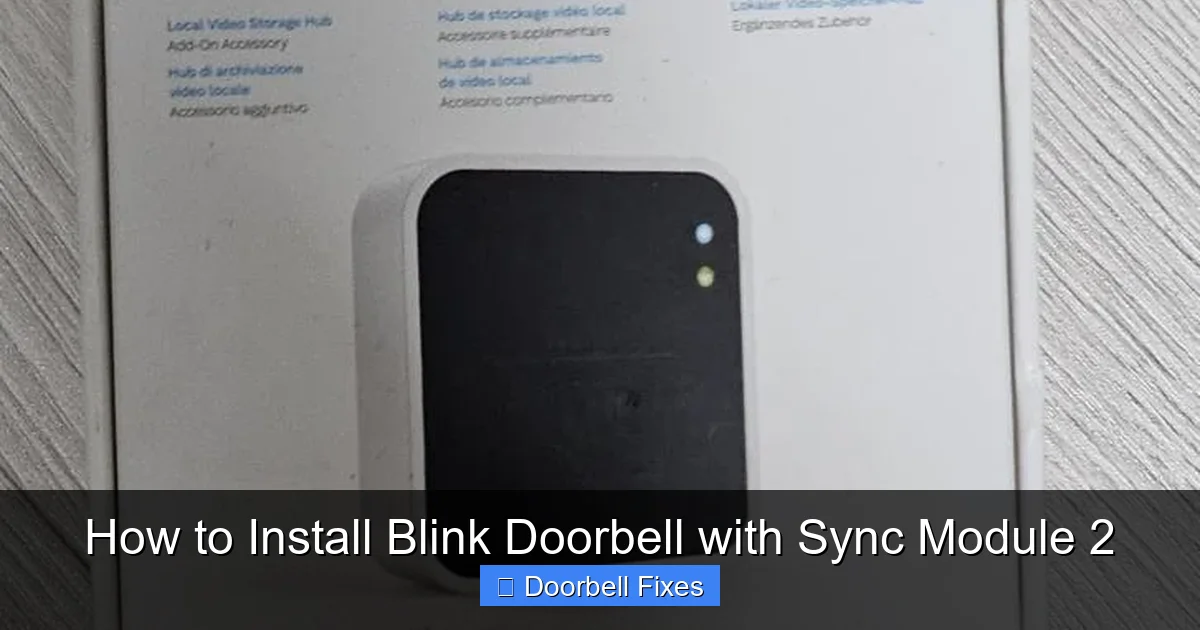

Visual guide about How to Install Blink Doorbell with Sync Module 2

Image source: techgenuinely.com

Before diving into the installation, make sure you have all the necessary tools and materials. Having everything ready will save time and frustration.

Here’s what you’ll need:

Blink Video Doorbell – The main device that captures video and detects motion.
Sync Module 2 – This small box connects your doorbell to your home Wi-Fi network. It’s essential—without it, the doorbell can’t send alerts or video.
Blink app – Download the free Blink Home Monitor app on your iPhone or Android device.
Smartphone or tablet – You’ll use this to set up and control your doorbell.
Screwdriver – Usually a Phillips head. Needed for mounting and wiring.
Drill and drill bits (optional) – Only if you need to create new mounting holes.
Level (optional but helpful) – To ensure your doorbell is straight.
Wire strippers (if hardwiring) – If you’re connecting to existing doorbell wires.
Two AA lithium batteries (if not hardwiring) – The doorbell can run on batteries for up to two years.
Existing doorbell wires (optional) – If you have a wired doorbell, you can use those wires for power.

Pro tip: If you’re hardwiring, turn off power at the breaker before touching any wires. Safety first!

Step 1: Set Up the Sync Module 2

The Sync Module 2 is the brain of your Blink system. It connects your doorbell (and other Blink cameras) to your Wi-Fi network and stores your settings. You’ll need to set it up first before installing the doorbell.

Find a Good Location for the Sync Module

The Sync Module should be placed:

Within 100 feet of your doorbell (ideally closer).
Near a power outlet—it needs to be plugged in.
In a dry, protected area (not outside).
Away from metal objects or thick walls that can block the signal.

A garage, basement, or indoor wall near the front door works well. Avoid placing it behind a metal cabinet or in a metal box.

Plug In the Sync Module

Take the Sync Module 2 and plug it into a standard wall outlet. The light on the front will blink blue, indicating it’s in setup mode.

Download and Open the Blink App

If you haven’t already, download the Blink Home Monitor app from the App Store (iOS) or Google Play (Android). Create a free account or log in if you already have one.

Add the Sync Module in the App

Follow these steps in the app:

Tap the + (plus) icon to add a new system.
Select Sync Module.
Scan the QR code on the back of the Sync Module using your phone’s camera.
Follow the on-screen prompts to connect the module to your Wi-Fi network.
Enter your Wi-Fi password when prompted.
Wait for the app to confirm the connection. The light on the module will turn solid green when successful.

If the light stays blue or turns red, the connection failed. We’ll cover troubleshooting later.

Step 2: Prepare Your Doorbell Location

Now that the Sync Module is online, it’s time to install the doorbell itself. First, decide where to mount it.

Choose the Right Spot

Your doorbell should be:

At a height of about 48 inches (eye level for most people).
Centered on the doorframe or wall next to the door.
Close enough to the Sync Module for a strong signal (within 100 feet).
Free from obstructions like plants, mailboxes, or overhangs.

Avoid placing it where it might get direct sunlight all day—this can cause overheating and false motion alerts.

Check Wi-Fi Signal Strength

Use your phone to check the Wi-Fi signal at the installation spot. If the signal is weak, consider moving the Sync Module closer or using a Wi-Fi extender.

You can also use apps like WiFi Analyzer (Android) or NetSpot (iOS) to test signal strength.

Decide: Battery or Hardwired?

The Blink Doorbell gives you two power options:

Battery-powered: Uses two AA lithium batteries. Easy to install—no wiring needed. Batteries last up to two years.
Hardwired: Connects to existing doorbell wires for continuous power. No battery changes, but requires wiring.

If you have existing doorbell wires and want hassle-free power, go hardwired. If not, batteries are a great option.

Step 3: Install the Doorbell (Battery or Wired)

Now it’s time to mount the doorbell. We’ll cover both battery and hardwired methods.

Option A: Battery-Powered Installation

This is the easiest method—no wires, no power tools.

Remove the backplate from the doorbell by sliding it off.
Use the included mounting bracket as a template. Hold it against the wall where you want to install the doorbell.
Mark the screw holes with a pencil.
Drill pilot holes if needed (especially on brick or concrete).
Secure the bracket with the provided screws using a screwdriver.
Insert two AA lithium batteries into the doorbell.
Slide the doorbell onto the bracket until it clicks into place.

That’s it! The doorbell is now mounted and powered.

Option B: Hardwired Installation

If you’re connecting to existing doorbell wires, follow these steps carefully.

Turn off power at the circuit breaker to avoid electric shock.
Remove your old doorbell (if present) by unscrewing it from the wall.
Disconnect the wires and note which is “front” and which is “transformer” (usually labeled or color-coded).
Strip about 1/4 inch of insulation from each wire if needed.
Attach the wires to the terminals on the back of the Blink Doorbell mounting bracket. It doesn’t matter which wire goes where—Blink uses low voltage.
Secure the bracket to the wall using screws.
Slide the doorbell onto the bracket until it clicks.
Turn the power back on at the breaker.

The doorbell should power up automatically. If it doesn’t, double-check the wiring and breaker.

Step 4: Add the Doorbell in the Blink App

Now that the doorbell is physically installed, it’s time to pair it with the Sync Module via the app.

Open the Blink App

Launch the app and make sure you’re logged in.

Add a New Camera

Tap the + icon again.
Select Camera.
Choose Doorbell from the list.
Scan the QR code on the back of your doorbell using your phone’s camera.
The app will search for the doorbell and attempt to pair it with the Sync Module.
Wait for the confirmation message: “Doorbell added successfully.”

If pairing fails, the app will give you options to retry or troubleshoot.

Name Your Doorbell

Give your doorbell a name, like “Front Door” or “Main Entrance.” This helps if you have multiple Blink devices.

Adjust Settings

Once added, you can customize:

Motion detection zones – Define areas where motion should trigger alerts.
Sensitivity – Adjust how sensitive the motion sensor is.
Clip length – Choose how long each video clip is (5 to 60 seconds).
Live view – Enable or disable live streaming.
Two-way audio – Turn on to speak through the doorbell.

Take time to explore these settings—they can improve your experience and reduce false alerts.

Step 5: Test Your Blink Doorbell

Don’t skip this step! Testing ensures everything works as expected.

Test Motion Detection

Walk in front of the doorbell to trigger motion. You should receive a push notification on your phone within a few seconds.

If you don’t get an alert:

Check that motion detection is enabled in the app.
Make sure the doorbell is within range of the Sync Module.
Verify your phone’s notification settings allow alerts from the Blink app.

Test Live View

Open the app and tap the doorbell camera. Tap the “Live View” button to see a real-time video feed.

If the video is slow or won’t load:

Check your Wi-Fi speed—Blink recommends at least 2 Mbps upload speed.
Move the Sync Module closer to the doorbell.
Restart the Sync Module by unplugging it for 10 seconds and plugging it back in.

Test Two-Way Audio

While in Live View, tap the microphone icon and speak. You should hear your voice through the doorbell’s speaker.

If audio doesn’t work:

Ensure two-way audio is enabled in settings.
Check that your phone’s microphone isn’t muted.
Make sure the doorbell isn’t muted in the app.

Check Battery Level (If Applicable)

If you’re using batteries, the app will show the battery level. Lithium batteries last longer than alkaline, so stick with lithium for best results.

Troubleshooting Common Issues

Even with careful installation, problems can happen. Here’s how to fix the most common ones.

Sync Module Won’t Connect to Wi-Fi

Make sure you’re entering the correct Wi-Fi password.
Ensure your Wi-Fi network is 2.4 GHz—Blink doesn’t support 5 GHz.
Move the Sync Module closer to your router during setup.
Restart your router and try again.
Reset the Sync Module by holding the reset button for 10 seconds, then re-add it in the app.

Doorbell Won’t Pair with Sync Module

Make sure the Sync Module is online (green light).
Ensure the doorbell is within 100 feet of the module.
Remove and reinsert the batteries (if battery-powered).
Reset the doorbell by holding the setup button for 10 seconds.
Try adding the doorbell again in the app.

Video is Laggy or Won’t Load

Check your internet upload speed—low speed causes delays.
Reduce the video quality in the app settings.
Move the Sync Module closer to the doorbell.
Limit the number of devices using your Wi-Fi during live view.

False Motion Alerts

Adjust motion zones to exclude areas like trees or busy streets.
Lower the sensitivity setting.
Clean the doorbell lens—dirt or spider webs can trigger false alerts.

Battery Drains Too Fast

Use high-quality lithium batteries.
Reduce motion detection sensitivity.
Shorten clip length.
Disable live view when not needed.

Tips for Best Performance

To get the most out of your Blink Doorbell, follow these best practices:

Keep the Sync Module plugged in – It needs constant power to work.
Update the app and firmware regularly – Blink releases updates to improve performance and security.
Clean the lens monthly – Use a soft, dry cloth to remove dust and smudges.
Avoid extreme temperatures – Don’t install in direct sunlight or freezing conditions.
Use a strong Wi-Fi password – This protects your system from unauthorized access.
Enable two-factor authentication – Adds an extra layer of security to your Blink account.

Conclusion

Installing your Blink Doorbell with Sync Module 2 is a smart way to upgrade your home security. With this guide, you’ve learned how to set up the Sync Module, mount the doorbell (battery or wired), pair it in the app, and test everything for reliable performance.

Remember, the Sync Module 2 is essential—it’s the bridge between your doorbell and your phone. Take time to place it well and ensure a strong Wi-Fi connection. Whether you choose battery power for simplicity or hardwiring for convenience, your Blink Doorbell will give you peace of mind with motion alerts, live video, and two-way talk.

If you run into issues, don’t panic—most problems are fixable with a few simple steps. And if all else fails, Blink’s customer support is available to help.

Now go enjoy your new smart doorbell! You’ve earned it.
