This guide walks you through the complete process of installing a Cox Doorbell Camera, from checking compatibility to final setup. Whether you’re replacing an old doorbell or installing a new one, we’ll help you get it done safely and correctly.
Key Takeaways
- Check compatibility first: Ensure your doorbell wiring and transformer meet Cox Doorbell Camera requirements (16–24V AC).
- Turn off power at the breaker: Safety is critical—always shut off electricity before handling wires.
- Use the right tools: A voltage tester, screwdriver, drill, and wire strippers make installation smoother.
- Follow the app setup: The Cox app guides you through Wi-Fi pairing, camera calibration, and motion settings.
- Test after installation: Confirm video, audio, and notifications work before finishing.
- Troubleshoot common issues: No power? Weak signal? We cover fixes for frequent problems.
- Consider professional help: If wiring is complex or you’re unsure, hire an electrician.
How to Install Cox Doorbell Camera: A Complete Step-by-Step Guide
Upgrading your home security with a Cox Doorbell Camera is a smart move. These devices let you see, hear, and speak to visitors from anywhere using your smartphone. Whether you’re replacing an old mechanical doorbell or installing a brand-new system, this guide will walk you through every step—safely and efficiently.
In this comprehensive how-to, you’ll learn how to install your Cox Doorbell Camera from start to finish. We’ll cover everything from checking your home’s compatibility to mounting the device, connecting it to Wi-Fi, and troubleshooting common issues. By the end, you’ll have a fully functional smart doorbell that enhances your home’s safety and convenience.
No prior experience? No problem. We’ve broken the process into simple, manageable steps with clear explanations and practical tips. Let’s get started!
What You’ll Need Before You Begin

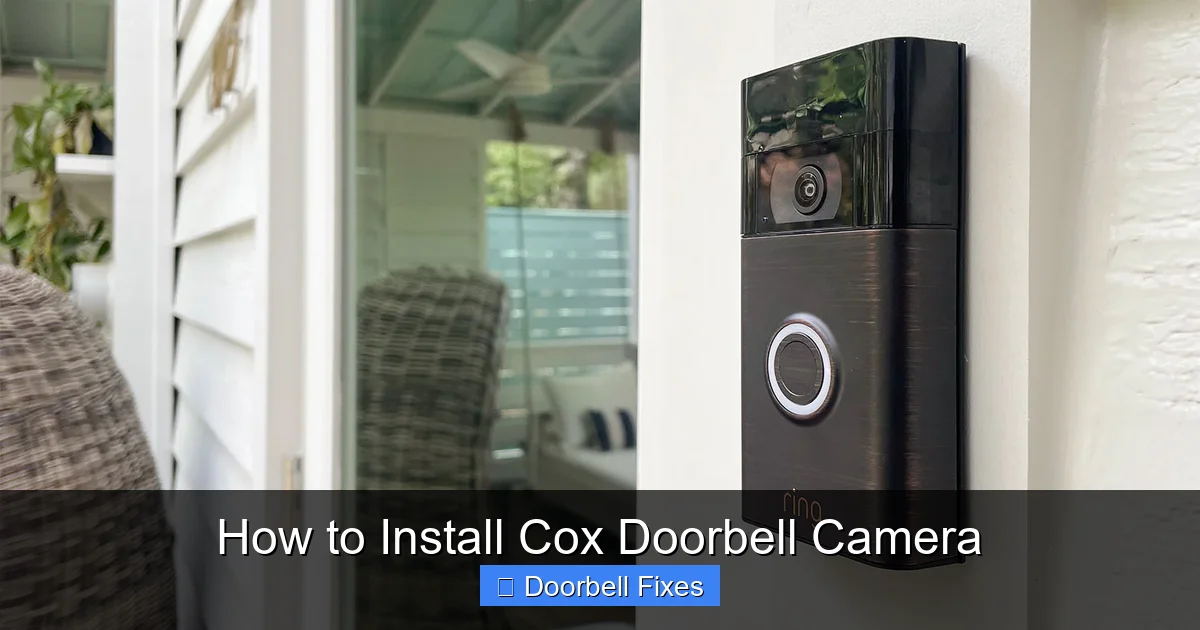

Visual guide about How to Install Cox Doorbell Camera
Image source: younghouselove.com
Before you touch a single wire, gather all the tools and materials you’ll need. Having everything ready saves time and reduces frustration.
Tools and Materials
- Cox Doorbell Camera kit (includes camera, mounting plate, screws, wire nuts)
- Screwdriver (Phillips and flathead)
- Voltage tester (non-contact type recommended)
- Wire strippers
- Drill and drill bits (if mounting on brick or stucco)
- Level (to ensure the camera is straight)
- Smartphone with the Cox app installed
- Ladder (if your doorbell is high up)
- Electrical tape (optional, for extra wire protection)
Check Your Existing Doorbell System
Not all homes are ready for a smart doorbell. Your current setup must meet certain electrical requirements.
First, locate your doorbell transformer. It’s usually near your electrical panel, in the basement, or in the attic. The transformer converts household voltage (120V) to the lower voltage (16–24V AC) needed by doorbells.
Use a multimeter or voltage tester to check the voltage at the doorbell terminals. If it reads below 16V, your Cox Doorbell Camera may not work properly. In that case, you’ll need to upgrade the transformer—something best handled by a licensed electrician.
Also, check if your existing doorbell has two wires (front and transformer). Most Cox models require this. If you only have one wire or a wireless doorbell, you may need a power kit or professional assistance.
Step 1: Turn Off the Power
Safety first! Electricity and water don’t mix, and neither do live wires and DIY projects.
Locate Your Circuit Breaker
Go to your home’s main electrical panel. Look for the breaker labeled “doorbell,” “chime,” or “front door.” If there’s no label, turn off the main breaker to be safe.
Test the Power
Even after turning off the breaker, double-check that power is off. Use a non-contact voltage tester at the doorbell wires. Touch the probe to each wire—if the tester doesn’t beep or light up, it’s safe to proceed.
Never skip this step. A small mistake can lead to electric shock or damage to your camera.
Step 2: Remove the Old Doorbell
Now that the power is off, it’s time to remove your existing doorbell.
Unscrew the Old Unit
Use a screwdriver to remove the screws holding the old doorbell to the wall. Gently pull the unit away from the wall to expose the wires.
Label the Wires (Optional but Helpful)
If your old doorbell has two wires, label them with tape—“Front” and “Trans” (for transformer). This helps during reinstallation.
Disconnect the Wires
Loosen the terminal screws and carefully remove the wires. Don’t let them fall back into the wall. You can tape them to the wall temporarily to keep them accessible.
Remove the Mounting Plate
If your old doorbell had a mounting plate, unscrew and remove it. You’ll replace it with the Cox mounting plate.
Step 3: Prepare the Wiring
Proper wiring ensures your Cox Doorbell Camera gets steady power.
Strip the Wire Ends
Use wire strippers to remove about 1/4 inch of insulation from each wire end. This exposes fresh copper for a solid connection.
Check Wire Length
The wires should extend at least 1–2 inches from the wall. If they’re too short, you may need to fish new wires—best left to a professional.
Twist the Strands
If the wires are stranded (multiple thin wires), twist them gently with pliers to keep them neat and prevent fraying.
Step 4: Install the Mounting Plate
The mounting plate holds your Cox Doorbell Camera securely in place.
Position the Plate
Hold the Cox mounting plate against the wall where you want the camera. Use a level to make sure it’s straight. Mark the screw holes with a pencil.
Drill Pilot Holes (If Needed)
If you’re mounting on wood, you can screw directly. For brick, stucco, or concrete, drill pilot holes using a masonry bit. Insert wall anchors for extra support.
Secure the Plate
Align the plate with the holes and screw it into place. Make sure it’s tight and level.
Connect the Wires
Thread the doorbell wires through the center hole of the mounting plate. Leave enough slack to connect to the camera later.
Step 5: Attach the Cox Doorbell Camera
Now it’s time to connect your camera to the wiring and mount it.
Connect the Wires to the Camera
On the back of the Cox Doorbell Camera, you’ll see two terminal screws. Loosen them slightly.
Insert one wire under each screw—it doesn’t matter which wire goes where, as doorbells use AC power. Tighten the screws to secure the wires.
Pro Tip: If the wires are loose, wrap them clockwise around the screw before tightening. This prevents them from slipping out.
Attach the Camera to the Mounting Plate
Align the camera with the mounting plate. Slide it down until it clicks into place. Some models may require you to secure it with a small security screw (included in the kit).
Double-Check Connections
Give the camera a gentle tug to ensure it’s firmly attached. Loose mounting can cause video tilt or signal issues.
Step 6: Restore Power and Test
With everything connected, it’s time to turn the power back on.
Turn On the Breaker
Go back to your electrical panel and flip the breaker back on.
Wait for the Camera to Power Up
The Cox Doorbell Camera should light up within 30–60 seconds. You may see a blinking LED—this is normal during startup.
Test the Doorbell
Press the doorbell button. Listen for the chime inside your home. If you have a mechanical chime, it should ring. If you have a digital chime, check that it responds.
If nothing happens, turn the power back off and double-check your wiring.
Step 7: Set Up the Cox App
The Cox app is your control center for the doorbell camera. It lets you view live video, receive alerts, and adjust settings.
Download the Cox App
If you haven’t already, download the “Cox” app from the Apple App Store or Google Play. Create or log in to your Cox account.
Add Your Device
Open the app and tap “Add Device” or “+”. Select “Doorbell Camera” from the list.
Scan the QR Code
The app will ask you to scan the QR code on the back of your camera or the packaging. Point your phone’s camera at the code to pair the device.
Connect to Wi-Fi
Follow the on-screen prompts to connect your doorbell to your home Wi-Fi network. Make sure you’re on a 2.4 GHz network—most Cox doorbells don’t support 5 GHz.
Tip: Stand close to your router during setup for a strong signal.
Calibrate the Camera
The app may ask you to adjust the camera angle or motion zones. Follow the instructions to set up detection areas and avoid false alerts from trees or passing cars.
Enable Notifications
Turn on push notifications so you’ll be alerted when someone approaches your door. You can customize settings like sensitivity and alert frequency.
Step 8: Final Adjustments and Tips
Once your Cox Doorbell Camera is online, take a few minutes to fine-tune it.
Adjust the Camera Angle
If the video looks tilted, you can slightly loosen the mounting screws and adjust the camera. Don’t over-tighten—this can crack the housing.
Set Up Motion Zones
In the app, define areas where you want motion detection. For example, exclude your driveway if you don’t want alerts every time a car passes.
Test Two-Way Audio
Have someone stand at the door while you speak through the app. Test both volume and clarity. Adjust microphone sensitivity if needed.
Check Night Vision
Wait until dark and check the video feed. The infrared LEDs should provide clear black-and-white footage. If it’s too dark, ensure nothing is blocking the lens.
Troubleshooting Common Issues
Even with careful installation, problems can happen. Here’s how to fix the most common ones.
Doorbell Won’t Power On
- Check that the breaker is on.
- Test the voltage at the wires—should be 16–24V AC.
- Ensure wires are securely connected and not touching each other.
- Try a different transformer if voltage is too low.
Weak or No Wi-Fi Signal
- Move your router closer or use a Wi-Fi extender.
- Ensure you’re connected to 2.4 GHz, not 5 GHz.
- Reposition the camera—metal surfaces can block signals.
Chime Doesn’t Ring
- Verify the chime unit is compatible with digital doorbells.
- Check wiring connections at both the doorbell and chime.
- Some Cox models require a resistor—check the manual.
Blurry or Dark Video
- Clean the camera lens with a microfiber cloth.
- Adjust the angle to avoid glare from windows or lights.
- Ensure night vision LEDs aren’t covered.
False Motion Alerts
- Narrow the motion zones in the app.
- Lower sensitivity settings.
- Trim bushes or trees that move in the wind.
When to Call a Professional
While most homeowners can install a Cox Doorbell Camera themselves, some situations call for expert help.
- Your home has no existing doorbell wiring.
- The transformer voltage is below 16V and you’re not comfortable replacing it.
- You’re mounting on stone, brick, or uneven surfaces.
- You experience repeated power or connectivity issues.
A licensed electrician can safely upgrade your wiring, install a new transformer, or hardwire the camera for optimal performance.
Conclusion
Installing a Cox Doorbell Camera is a rewarding DIY project that boosts your home’s security and convenience. By following this guide, you’ve learned how to safely remove your old doorbell, prepare the wiring, mount the camera, and set it up through the Cox app.
Remember to always turn off the power, test connections, and use the app to customize your experience. With proper installation, your doorbell camera will provide clear video, reliable alerts, and peace of mind for years to come.
If you run into issues, don’t hesitate to consult the troubleshooting section or reach out to Cox customer support. And if the job feels too complex, hiring a professional is always a smart choice.
Now, go enjoy your new smart doorbell—and never miss a visitor again!
