Installing the Nest Hello doorbell is easier than you think. This guide walks you through every step—from checking compatibility to final setup—so you can enjoy smart video doorbell features in under an hour. No electrician needed if you’re replacing an existing doorbell.
Key Takeaways
- Check compatibility first: Your existing doorbell wiring and chime must meet Nest Hello’s requirements to avoid installation issues.
- Turn off power at the breaker: Safety is critical—always shut off electricity before handling wires.
- Use the Nest app for setup: The app guides you through Wi-Fi connection, motion zones, and notifications.
- Install the wedge or corner kit if needed: Adjust the doorbell angle for better video coverage of your walkway or driveway.
- Test chime and live view: After installation, verify that the chime rings and the camera streams properly.
- Keep firmware updated: Regular updates improve performance, security, and add new features.
- Contact support if stuck: Google Nest support can help with wiring, app issues, or hardware problems.
How to Install Doorbell Nest Hello: A Complete Step-by-Step Guide
So, you’ve decided to upgrade your home with the Nest Hello smart video doorbell. Great choice! The Nest Hello offers HD video, night vision, two-way audio, and smart alerts that let you see and speak to visitors—even when you’re not home. But before you can enjoy those features, you need to install it properly.
Don’t worry—this guide will walk you through the entire process, from checking your current setup to testing your new doorbell. Whether you’re a DIY enthusiast or a first-time installer, we’ve got you covered. By the end of this article, you’ll know exactly how to install doorbell Nest Hello safely and correctly.
We’ll cover tools you’ll need, compatibility checks, wiring tips, app setup, and troubleshooting common issues. Let’s get started!
What You’ll Need Before You Begin

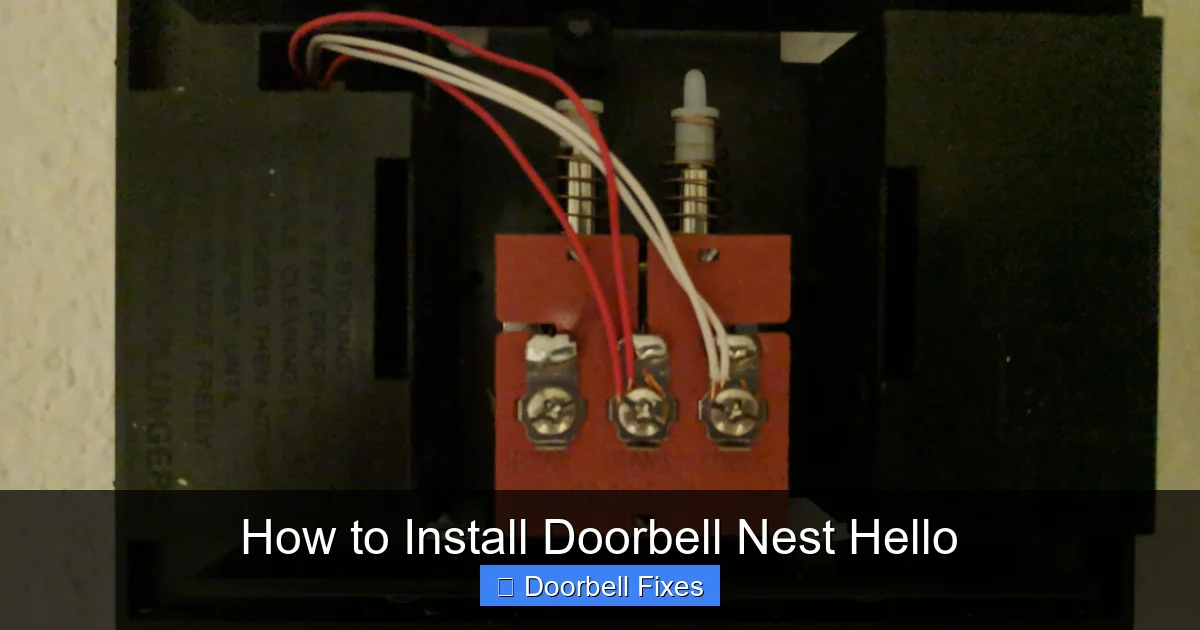

Visual guide about How to Install Doorbell Nest Hello
Image source: i.redd.it
Before you touch a single screw, make sure you have everything you need. Rushing into installation without the right tools can lead to frustration—or worse, damage to your doorbell or wiring.
Here’s a checklist of items you’ll need:
- Nest Hello doorbell kit: Includes the doorbell, mounting plate, screwdriver, wire labels, and chime connector.
- Screwdriver (Phillips head): For removing your old doorbell and securing the new one.
- Drill and drill bits (optional): Only if you need to make new holes for mounting.
- Voltage tester (recommended): To confirm power is off before working with wires.
- Smartphone with the Nest app installed: Available for iOS and Android.
- Wi-Fi network: Nest Hello requires a 2.4 GHz or 5 GHz Wi-Fi connection.
- Ladder (if needed): For reaching high doorbell locations.
Pro tip: If you’re replacing an existing doorbell, you likely already have most of the wiring in place. That makes installation much easier. But if you’re installing from scratch, you may need to run wires—something best left to a professional electrician.
Step 1: Check Compatibility
Not every doorbell system works with the Nest Hello. To avoid problems during installation, you need to verify compatibility first.
Check Your Existing Doorbell Wiring
The Nest Hello requires a wired connection to function. It doesn’t run on batteries, so you must have low-voltage doorbell wires (typically 16–24 volts AC) running from your chime to the doorbell location.
To check:
- Remove your current doorbell from the wall.
- Look for two wires connected to the back.
- Use a multimeter or voltage tester to confirm the voltage is between 8V and 24V AC.
If you don’t have wires, or if the voltage is too low, the Nest Hello won’t work properly. In that case, you may need to install a transformer or consider a battery-powered alternative like the Nest Doorbell (battery).
Check Your Chime Type
The Nest Hello works with most mechanical and digital chimes. However, some older or specialty chimes (like those with solenoids or very low power) may not be compatible.
Google provides a chime compatibility checker on their support site. Enter your chime model to confirm. If your chime isn’t compatible, you can still use the Nest Hello—but you’ll need to install the included chime connector inside your chime box. We’ll cover that in Step 4.
Wi-Fi Requirements
The Nest Hello needs a stable Wi-Fi connection to send video and alerts. Make sure your router is within range (ideally within 30–50 feet) and supports either 2.4 GHz or 5 GHz bands.
Avoid using Wi-Fi extenders unless they’re high-quality and placed close to the doorbell. Weak signals can cause lag or dropped connections.
Step 2: Turn Off the Power
Safety first! Before you touch any wires, you must turn off the power to your doorbell.
Locate Your Circuit Breaker
Doorbell circuits are usually labeled “doorbell,” “chime,” or “front door.” If you can’t find it, turn off the main breaker to be safe.
Test the Power
Even after turning off the breaker, use a non-contact voltage tester to double-check that the wires are not live. Touch the tester to each wire—if it beeps or lights up, the power is still on. Go back and turn off the correct breaker.
Never skip this step. Working on live wires can cause shocks or damage your doorbell.
Step 3: Remove Your Old Doorbell
Now that the power is off, it’s time to remove your existing doorbell.
Unscrew the Old Doorbell
Use your Phillips screwdriver to remove the screws holding the old doorbell to the wall. Gently pull the doorbell away from the wall so you can access the wires.
Label the Wires
You’ll see two wires—usually black and white, or red and white. Before disconnecting them, label them with the included wire labels (or tape and a pen). This ensures you connect them correctly to the Nest Hello.
Pro tip: Take a photo of the wiring before disconnecting. It’s a great reference if you get confused later.
Disconnect the Wires
Loosen the terminal screws on the old doorbell and remove the wires. Be careful not to let the wires fall back into the wall. You can use a small piece of tape to hold them in place.
Step 4: Install the Chime Connector (If Needed)
If your chime isn’t compatible with the Nest Hello, you’ll need to install the chime connector inside your chime box. This small device ensures the doorbell gets enough power and that your chime rings correctly.
Access Your Chime Box
The chime box is usually located in your basement, attic, or utility closet. Open the cover to see the wiring.
Connect the Chime Connector
The chime connector has three wires:
- Two wires that connect to your existing chime terminals.
- One wire that connects to the Nest Hello circuit.
Follow these steps:
- Disconnect the wires from your chime terminals.
- Connect those wires to the chime connector’s input terminals.
- Connect the chime connector’s output wire to the chime terminal.
- Secure the connector with the included screw or tape.
The Nest app will guide you through this process during setup. If you’re unsure, watch Google’s installation video or contact support.
Step 5: Mount the Nest Hello
Now it’s time to install the Nest Hello itself.
Attach the Mounting Plate
The Nest Hello comes with a mounting plate that screws into the wall. Hold it against the wall where you want the doorbell, making sure it’s level.
Use a pencil to mark the screw holes. If you’re reusing existing holes, great! If not, drill pilot holes and insert wall anchors if needed.
Secure the plate with the provided screws.
Connect the Wires
Take the two labeled wires from your wall and connect them to the back of the Nest Hello. It doesn’t matter which wire goes where—the Nest Hello is polarity-independent.
Push the wires into the terminals and tighten the screws. Make sure the connections are snug but don’t overtighten.
Snap the Doorbell into Place
Align the Nest Hello with the mounting plate and press it firmly until it clicks into place. Give it a gentle tug to make sure it’s secure.
Step 6: Adjust the Angle (Optional)
The Nest Hello has a fixed angle, but you might want to adjust it for better coverage—especially if your door is recessed or your walkway is off to the side.
Use the Wedge or Corner Kit
Google sells optional wedge and corner kits that let you tilt the doorbell up to 15 degrees. These are especially useful for:
- Doors set back from the street.
- Homes with side walkways.
- Driveways that approach from an angle.
To install:
- Remove the Nest Hello from the mounting plate.
- Attach the wedge or corner bracket to the plate.
- Reconnect the doorbell.
This small adjustment can make a big difference in your video quality and motion detection.
Step 7: Turn the Power Back On
Once everything is connected, it’s time to restore power.
Go back to your circuit breaker and turn the doorbell circuit back on. Wait about 30 seconds for the Nest Hello to power up.
You should see a light ring on the front of the doorbell. It will flash yellow at first, then turn solid white when ready.
Step 8: Set Up the Nest App
The Nest app is your control center for the doorbell. It’s where you’ll connect to Wi-Fi, adjust settings, and receive alerts.
Download and Open the Nest App
If you haven’t already, download the Google Nest app from the App Store or Google Play. Sign in with your Google account.
Add a New Device
Tap the “+” icon and select “Set up a device.” Choose “Doorbell” and follow the on-screen instructions.
The app will ask you to scan the QR code on the back of the Nest Hello. Hold your phone close to the code until it scans.
Connect to Wi-Fi
Select your home Wi-Fi network and enter the password. The app will send the credentials to the doorbell.
Wait for the connection to complete. This may take a minute or two.
Test the Doorbell
Once connected, the app will guide you through a few tests:
- Check the live video feed.
- Test the two-way audio.
- Verify motion detection.
Tap the doorbell button (or have someone else do it) to test the chime. You should hear it ring inside your home.
Step 9: Customize Your Settings
Now that your doorbell is working, it’s time to personalize it.
Set Up Motion Zones
You can define specific areas where you want to receive alerts. For example, you might want alerts when someone approaches your front door but ignore motion from the street.
In the app, go to “Settings” > “Motion sensing” and draw zones on the video preview.
Adjust Alert Frequency
Choose how often you want to be notified. Options include:
- All motion.
- Only people.
- Frequent alerts (every event).
- Less frequent (grouped alerts).
For most users, “Only people” and “Less frequent” strikes a good balance.
Enable Familiar Face Alerts (Optional)
If you have a Nest Aware subscription, you can enable Familiar Face Detection. The doorbell will recognize family members and regular visitors, sending personalized alerts.
Set Up Activity Zones
Create zones for your driveway, walkway, or porch. You’ll get alerts only when motion occurs in those areas.
Step 10: Test Everything
Before you call it a day, run a full test to make sure everything works.
- Press the doorbell button—does the chime ring?
- Open the live view in the app—is the video clear?
- Speak through the app—can the visitor hear you?
- Walk in front of the doorbell—do you get a motion alert?
- Check night vision—cover the camera and see if it switches to infrared.
If anything isn’t working, go back to the troubleshooting section below.
Troubleshooting Common Issues
Even with careful installation, problems can happen. Here’s how to fix the most common ones.
Doorbell Won’t Turn On
- Check that power is restored at the breaker.
- Verify wire connections are secure.
- Test voltage at the doorbell terminals—should be 8V–24V AC.
- If voltage is low, you may need a stronger transformer.
Chime Doesn’t Ring
- Ensure the chime connector is installed (if needed).
- Check that the chime is compatible.
- Test the chime with the old doorbell to confirm it works.
- In the app, go to “Settings” > “Chime” and make sure it’s enabled.
Poor Wi-Fi Connection
- Move your router closer or use a Wi-Fi extender.
- Switch to the 2.4 GHz band if 5 GHz is unstable.
- Restart your router and the doorbell.
- Check for interference from other devices.
Blurry or Dark Video
- Clean the camera lens with a soft cloth.
- Adjust the angle using a wedge kit.
- Ensure the doorbell isn’t facing direct sunlight or bright lights.
- Check that night vision is enabled in the app.
App Not Connecting
- Make sure your phone is on the same Wi-Fi network.
- Restart the app and your phone.
- Remove and re-add the doorbell in the app.
- Reset the doorbell by holding the button for 10 seconds.
Maintenance Tips
To keep your Nest Hello working smoothly:
- Clean the lens monthly: Use a microfiber cloth to remove dust and smudges.
- Check for firmware updates: The app will notify you when updates are available.
- Test the doorbell weekly: Press the button to ensure it’s working.
- Review recordings: Use Nest Aware to save and review clips.
- Trim nearby plants: Overgrown bushes can block the camera view.
Conclusion
Installing the Nest Hello doorbell is a smart upgrade that enhances your home’s security and convenience. With this guide, you’ve learned how to check compatibility, safely handle wiring, mount the device, connect to Wi-Fi, and customize settings—all without needing an electrician.
Remember, the key to a successful installation is preparation and patience. Take your time, follow each step carefully, and don’t hesitate to use the Nest app’s built-in guidance.
Once installed, you’ll enjoy features like HD video, two-way talk, and smart alerts that keep you connected to your home—no matter where you are.
So go ahead, give it a try. You’ve got this!
