How to Install Doorbell Transformer to Fuse Box
If your doorbell has stopped working or you’re installing a new one, the issue might be a faulty or missing transformer. The doorbell transformer steps down your home’s standard 120V electrical supply to a safer 16V or 24V, which powers your doorbell chime and button. While many transformers plug into an outlet, hardwiring one directly to your fuse box (also known as a fuse panel or electrical panel) offers a cleaner, more permanent solution—especially for new builds or renovations.
In this comprehensive guide, you’ll learn how to safely install a doorbell transformer directly into your fuse box. We’ll walk you through every step, from gathering tools to testing your system, with clear instructions and safety tips. Whether you’re a DIY enthusiast or a homeowner looking to save on electrician fees, this guide will help you get your doorbell working reliably—without the hassle.
What You’ll Need

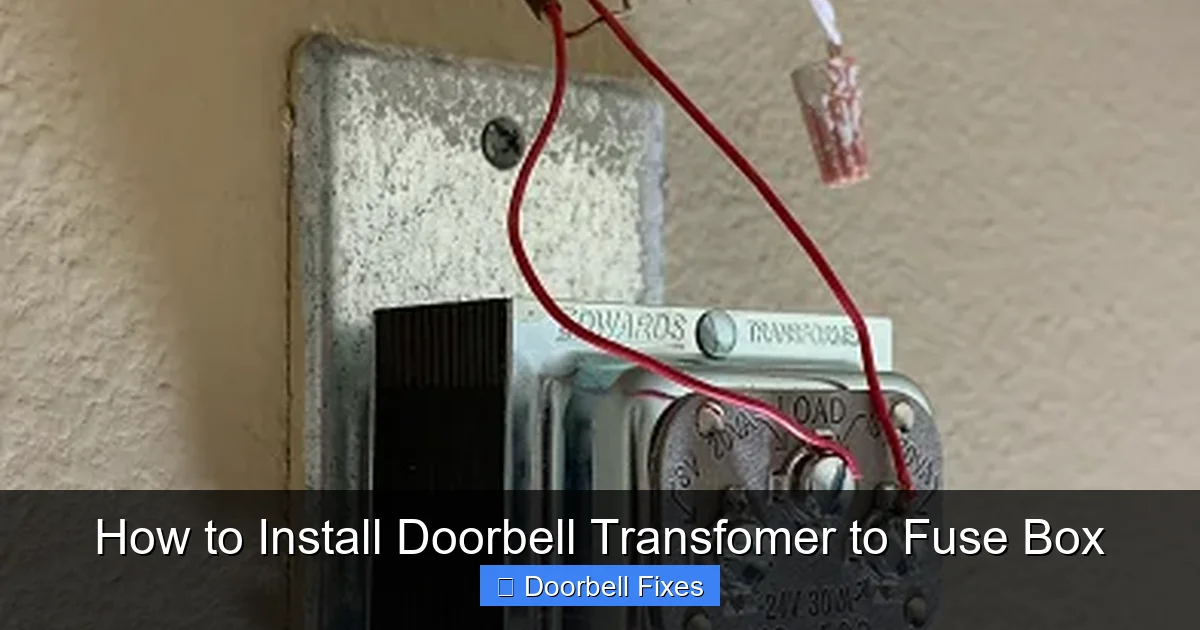

Visual guide about How to Install Doorbell Transfomer to Fuse Box
Image source: thespruce.com
Before you begin, make sure you have the right tools and materials. Having everything ready will make the process smoother and safer.
- Doorbell transformer: Typically 16V, 10–30VA (check your doorbell’s requirements)
- Screwdrivers: Flathead and Phillips
- Voltage tester: Non-contact type to confirm power is off
- Wire strippers: For preparing low-voltage wires
- Electrical tape: For insulating connections
- Wire nuts: For securing connections (if needed)
- Cable clamps: To secure wires entering the fuse box
- Low-voltage wire: 18–22 gauge, 2-conductor (usually 50–100 feet)
- Fuse box access: Ensure your panel has space and a spare fuse slot
- Safety gear: Rubber-soled shoes, safety glasses, and insulated gloves
Optional but helpful:
- Drill and bits (for mounting the transformer)
- Cable staples (to secure low-voltage wire along walls)
- Label maker (to mark wires for future reference)
Understanding the Doorbell Transformer
The doorbell transformer is a small but essential device that converts high-voltage household electricity into low-voltage power suitable for doorbells. Most residential doorbells operate on 16 volts, though some models use 8V or 24V—always check your doorbell’s specifications.
Transformers can be installed in several ways:
- Plug-in type: Plugs into an outlet near the doorbell chime (common but less permanent)
- In-wall type: Installed inside a junction box behind the chime
- Fuse box-mounted: Hardwired directly into the electrical panel (most reliable and cleanest look)
Mounting the transformer in the fuse box eliminates the need for visible cords and reduces clutter. It also ensures a constant power source, as long as the main panel is energized.
Safety First: Preparing to Work on the Fuse Box
Working inside a fuse box involves high-voltage electricity, which can be dangerous—even deadly—if mishandled. Follow these safety steps carefully.
Turn Off the Main Power
Before touching anything inside the fuse box, you must shut off the main power supply. This is usually a large switch or lever at the top or bottom of the panel labeled “Main” or “Main Disconnect.”
Important: Turning off individual circuit breakers is not enough. The main power must be off to ensure no electricity is flowing into the panel.
After flipping the main switch, use a non-contact voltage tester to double-check that power is off. Touch the tester to the main lugs (the thick wires coming from the utility line). If the tester lights up or beeps, power is still on—do not proceed.
Wear Proper Safety Gear
Even with the main power off, treat every wire as if it’s live. Wear:
- Safety glasses to protect your eyes from sparks or debris
- Rubber-soled shoes to reduce shock risk
- Insulated gloves (rated for electrical work)
Avoid working in wet conditions or with wet hands.
Clear the Work Area
Make sure the area around the fuse box is dry, well-lit, and free of clutter. Keep tools organized and within reach. Never leave metal tools near live parts.
Choosing the Right Location in the Fuse Box
Not all fuse boxes are the same. Older homes may have fuse panels with screw-in fuses, while newer ones use circuit breakers. Regardless of type, you’ll need to find a safe spot to mount the transformer and connect it to a power source.
Check for Available Space
Open the fuse box door and inspect the interior. Look for:
- An unused fuse slot or breaker space
- Room to mount the transformer (usually on the side or back of the panel)
- Access to route low-voltage wires out of the panel
If your panel is full, you may need to install a subpanel or upgrade your electrical service—this is best left to a licensed electrician.
Select the Correct Circuit
The transformer should be connected to a dedicated circuit or a spare slot. Avoid piggybacking onto existing circuits (like lighting or outlets) unless absolutely necessary, as this can cause overloads.
If your panel has a spare 15-amp or 20-amp breaker slot, use that. If not, you may need to install a new single-pole breaker. Again, consult an electrician if you’re unsure.
Mounting the Transformer
Once you’ve chosen a location, it’s time to mount the transformer securely.
Position the Transformer
Most transformers designed for fuse box installation come with mounting brackets or holes. Position it where it won’t interfere with existing breakers or wires. Common spots include:
- On the side wall of the panel
- On the back panel (if space allows)
- Near the bottom, away from high-voltage lugs
Avoid placing it directly over breakers or near the main lugs.
Secure with Screws
Use the screws provided (or appropriate ones) to attach the transformer to the panel. Make sure it’s tight and won’t move when wires are connected.
Tip: If your panel is metal, use self-tapping screws. For plastic panels, use appropriate anchors.
Wiring the Transformer to the Fuse Box
This is the most critical part of the installation. You’ll connect the transformer’s primary (high-voltage) side to the fuse box and the secondary (low-voltage) side to your doorbell.
Connect the Primary Wires (High Voltage)
The primary side of the transformer has two wires—usually black and white—that connect to the 120V power source.
Step 1: Strip about ½ inch of insulation from the ends of the black and white wires.
Step 2: Connect the black (hot) wire to the new or existing breaker. Use a wire nut or terminal screw, depending on the breaker type.
Step 3: Connect the white (neutral) wire to the neutral bus bar—a long metal strip with many white wires connected.
Step 4: If your transformer has a green or bare ground wire, connect it to the ground bus bar (usually green screws).
Important: Never connect wires while the main power is on. Double-check all connections before restoring power.
Route the Low-Voltage Wires
The secondary side of the transformer has two low-voltage wires (often red and white or black and white). These will run to your doorbell button and chime.
Step 1: Drill a small hole in the side or bottom of the fuse box (if not already present) to pass the low-voltage wires through.
Step 2: Use a cable clamp to secure the wires and prevent them from being pulled out.
Step 3: Run the wires through walls, attic, or basement to the doorbell location. Use cable staples to secure them every few feet.
Tip: Keep low-voltage wires at least 6 inches away from high-voltage lines to avoid interference.
Connecting the Doorbell Wires
Once the low-voltage wires reach the doorbell area, connect them to the chime and button.
At the Doorbell Chime
Most chimes have two terminals labeled “Front” and “Trans” or “Transformer.”
Step 1: Strip the ends of the low-voltage wires.
Step 2: Connect one wire to “Front” and the other to “Trans.” It doesn’t matter which wire goes where—doorbell circuits are not polarity-sensitive.
Step 3: Secure with screws and wrap connections with electrical tape.
At the Doorbell Button
The button has two small screws or push-in terminals.
Step 1: Run a short length of low-voltage wire from the chime to the button (if not already done).
Step 2: Connect one wire to each terminal.
Step 3: Tighten screws and ensure no bare wire is exposed.
Testing the System
Before closing everything up, test your doorbell to make sure it works.
Restore Power
Go back to the fuse box and turn the main power back on. Then, turn on the breaker for the doorbell circuit.
Press the Doorbell Button
Listen for the chime. If it rings, congratulations—your installation is successful!
If it doesn’t work, don’t panic. Move to the troubleshooting section below.
Check Voltage Output
Use a multimeter to test the voltage at the chime terminals. You should see around 16V AC. If it’s too low or zero, the transformer may be faulty or incorrectly wired.
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here’s how to fix the most common ones.
Doorbell Doesn’t Ring
- Check power: Ensure the breaker is on and the main power is restored.
- Test the button: Use a multimeter to check for continuity when the button is pressed.
- Inspect wires: Look for loose, damaged, or disconnected wires at the chime, button, or transformer.
- Replace the transformer: If voltage output is low or zero, the transformer may be defective.
Chime Sounds Weak or Intermittent
- Low voltage: The transformer may be underpowered. Upgrade to a 24V or higher VA model.
- Loose connections: Tighten all wire connections at the chime and transformer.
- Long wire runs: If wires are over 100 feet, voltage drop can occur. Use thicker wire (16–18 gauge).
Buzzing or Humming Sound
- Transformer interference: Keep low-voltage wires away from high-voltage lines.
- Faulty chime: The chime mechanism may be worn. Replace the chime unit.
Breaker Trips When Doorbell is Pressed
- Short circuit: A wire may be touching metal or another conductor. Inspect all connections.
- Overloaded circuit: The transformer may be drawing too much current. Use a dedicated circuit.
Final Steps and Cleanup
Once everything is working, finish the installation properly.
Secure All Wires
Use cable staples to fasten low-voltage wires along baseboards, walls, or joists. Avoid sharp bends or pinching.
Label the Circuit
In the fuse box, label the breaker “Doorbell” so you (or future owners) know what it controls.
Close the Panel
Make sure no wires are pinched when closing the fuse box door. Tighten all screws.
Dispose of Old Parts
If you replaced an old transformer, recycle it properly. Many hardware stores accept old electrical components.
When to Call a Professional
While this project is doable for many homeowners, some situations require a licensed electrician:
- Your fuse box is full or outdated
- You’re uncomfortable working with electricity
- Local codes require permits or inspections
- You encounter unexpected issues (e.g., no spare breaker space)
Electrical work can be dangerous. If you’re unsure at any point, it’s better to pay for professional help than risk injury or fire.
Conclusion
Installing a doorbell transformer to your fuse box is a smart way to ensure reliable, permanent power for your doorbell. With the right tools, safety precautions, and step-by-step guidance, it’s a project most DIYers can tackle in a few hours.
Remember: safety comes first. Always turn off the main power, wear protective gear, and double-check your work. Choose the right transformer, route wires carefully, and test the system before finishing.
A properly installed doorbell not only adds convenience but also enhances your home’s security and curb appeal. Whether you’re fixing a broken chime or upgrading your entryway, this guide gives you the knowledge and confidence to get the job done right.
Now that your doorbell is powered directly from the fuse box, you can enjoy peace of mind knowing it will work every time—rain or shine, day or night.
