Installing a doorbell transformer and chime might sound tricky, but it’s a manageable DIY project with the right tools and guidance. This guide walks you through every step—from turning off power to testing your new doorbell—so you can upgrade or replace your system safely and confidently.
Key Takeaways
- Safety first: Always turn off power at the circuit breaker before working on electrical components to prevent shocks or damage.
- Choose the right transformer: Most doorbells require a 16-volt transformer, but check your chime’s specifications to ensure compatibility.
- Location matters: Install the transformer in a dry, accessible spot near an electrical outlet and your doorbell wiring path.
- Use low-voltage wiring: Connect the transformer to the chime using 18- or 20-gauge doorbell wire for safe, efficient operation.
- Test before finalizing: Power up and test the system after wiring but before securing covers to catch issues early.
- Upgrade options available: Consider smart chimes or wireless kits if you want modern features without rewiring.
- When to call a pro: If you’re unsure about electrical work or encounter complex wiring, consult a licensed electrician.
Introduction: Why Installing a Doorbell Transformer and Chime Matters
Your doorbell is one of the most frequently used—and often overlooked—fixtures in your home. Whether you’re replacing an old, broken unit or upgrading to a modern chime with better sound or smart features, knowing how to install a doorbell transformer and chime is a valuable DIY skill. Not only does it save you money on professional installation, but it also gives you full control over the placement, style, and functionality of your doorbell system.
In this comprehensive guide, we’ll walk you through the entire process of installing a doorbell transformer and chime—from understanding the components to testing your finished setup. You’ll learn how to safely work with low-voltage electrical systems, choose the right parts, and troubleshoot common issues. By the end, you’ll have a fully functional doorbell that’s reliable, safe, and tailored to your home.
Whether you’re a first-time DIYer or a seasoned home improver, this guide is designed to be clear, practical, and easy to follow. We’ll keep the technical jargon to a minimum and focus on real-world steps you can take today. So grab your tools, turn off the power, and let’s get started!
Understanding Doorbell Components: What You Need to Know

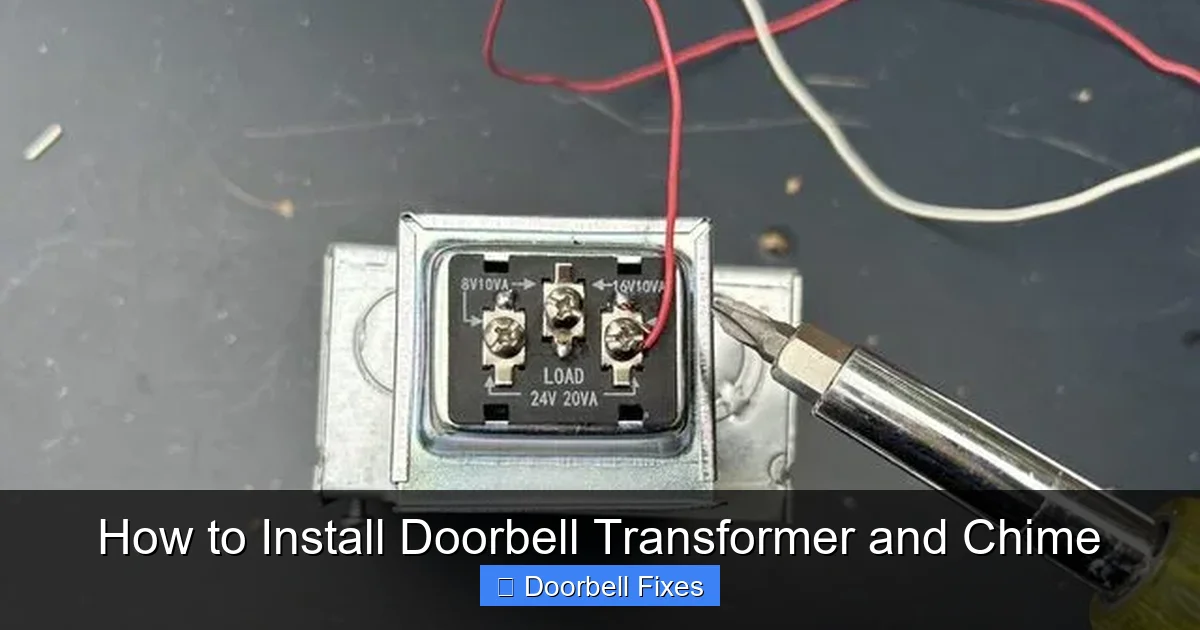

Visual guide about How to Install Doorbell Transformer and Chime
Image source: familyhandyman.com
Before you begin installing your doorbell transformer and chime, it’s important to understand the key components involved. A typical doorbell system consists of three main parts: the button, the chime (or bell unit), and the transformer. Each plays a vital role in making your doorbell work.
The doorbell button is the part you press outside your door. When pressed, it completes a circuit and sends a low-voltage signal through the wires to the chime. Most buttons are simple mechanical switches, but modern versions may include LED lights, cameras, or Wi-Fi connectivity.
The chime unit is usually mounted inside your home, often near the front door. It receives the signal from the button and produces the familiar “ding-dong” sound. Chimes come in various styles—from classic mechanical units to digital models with multiple tones, volume controls, and even smartphone notifications.
The transformer is the heart of the system. It steps down your home’s standard 120-volt electrical current to a safer 8- to 24-volt current used by the doorbell. Without a properly functioning transformer, your doorbell won’t work—or worse, it could overheat and become a fire hazard.
Most residential doorbells use a 16-volt transformer, which is sufficient for standard chimes and buttons. However, if you’re installing a smart doorbell or multiple chimes, you may need a higher-voltage transformer (like 24 volts) or a more powerful model. Always check the manufacturer’s specifications before purchasing.
Tools and Materials You’ll Need
Having the right tools and materials on hand will make your installation smoother and safer. Here’s a checklist of what you’ll need:
- Screwdrivers: Both flathead and Phillips, for removing covers and securing wires.
- Voltage tester: To confirm the power is off before working.
- Wire strippers: For removing insulation from doorbell wires.
- Drill and drill bits: If you need to create new holes for mounting or routing wires.
- Electrical tape: For insulating wire connections.
- Wire nuts: To secure wire connections (usually included with the transformer).
- Low-voltage doorbell wire: 18- or 20-gauge wire, typically sold in spools. You’ll need enough to run from the transformer to the chime and from the chime to the button.
- Doorbell transformer: Match the voltage to your chime’s requirements (usually 16V).
- Doorbell chime unit: Choose a model that fits your style and needs.
- Mounting screws and anchors: For securing the chime and transformer.
- Wire connectors or terminal screws: Depending on your chime and transformer design.
Optional but helpful tools include a stud finder (to avoid drilling into studs), a flashlight (for dark areas like electrical panels), and a label maker (to keep track of wires).
Step 1: Turn Off the Power
Safety is the most important part of any electrical project. Before you touch any wires or components, you must turn off the power to the doorbell circuit.
Locate Your Circuit Breaker
Most doorbell transformers are connected to a dedicated circuit in your home’s electrical panel. This panel is usually located in a basement, garage, utility closet, or exterior wall. Open the panel door and look for a breaker labeled “Doorbell,” “Chime,” or something similar. If there’s no label, you may need to test breakers one by one.
Test the Power
Even if you think the power is off, always double-check with a non-contact voltage tester. This tool beeps or lights up when it detects live electricity. Hold it near the doorbell button and chime terminals. If it activates, the power is still on—go back to the breaker panel and turn off the correct circuit.
Lock Out the Breaker (Optional but Recommended)
If you’re working alone or want extra safety, use a breaker lock or tape to prevent someone from accidentally turning the power back on while you’re working.
Step 2: Remove the Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, you’ll need to remove the old components before installing the new ones.
Remove the Doorbell Button
Unscrew the button from the exterior wall. Gently pull it away to expose the wires. Take a photo of the wiring setup for reference. Disconnect the wires by loosening the terminal screws or removing wire nuts.
Remove the Old Chime Unit
Go inside and locate the chime unit. Unscrew the cover and remove it. You’ll see two or more wires connected to terminals labeled “Front,” “Trans,” and sometimes “Rear” (for a second button). Take another photo, then disconnect the wires.
Locate and Remove the Old Transformer
The transformer is usually mounted inside the electrical panel, in the attic, or near the furnace. It’s a small metal box with wires coming in and out. Disconnect the wires and unscrew the transformer from its mounting bracket. Note how it was wired—this will help when installing the new one.
Step 3: Choose the Right Location for the Transformer
The transformer needs to be installed in a dry, accessible location where it can connect to both household power and the doorbell wiring. Common locations include:
- Inside the electrical panel: Most common and convenient, but may require an electrician if you’re not comfortable working inside the panel.
- Near the furnace or in the basement: Easy to access and often close to doorbell wiring routes.
- In the attic: Less common, but possible if wiring runs through the attic.
- Inside a junction box: Must be rated for electrical use and properly enclosed.
Avoid placing the transformer in damp areas like bathrooms or outdoor enclosures unless it’s specifically rated for wet locations.
Step 4: Install the New Transformer
Now it’s time to install your new doorbell transformer. Follow these steps carefully.
Mount the Transformer
If installing in the electrical panel, use the mounting bracket provided. Secure it to the panel using screws. Make sure it’s firmly attached and won’t move.
Connect the Primary (High-Voltage) Wires
The transformer has two sets of wires: the primary (input) and secondary (output). The primary wires connect to your home’s 120-volt power.
Turn off the main breaker if working inside the panel. Strip about 1/2 inch of insulation from the transformer’s black (hot) and white (neutral) wires. Connect the black wire to a spare breaker or piggyback onto an existing circuit using a wire nut. Connect the white wire to the neutral bus bar. Secure all connections and ensure no bare wire is exposed.
Connect the Secondary (Low-Voltage) Wires
The secondary wires (usually red and white) carry the low-voltage current to the doorbell. These will connect to your doorbell wiring.
Run the low-voltage wires from the transformer to the location of your chime unit. Use existing holes or drill new ones if needed. Leave extra wire for connections.
At the chime location, strip the ends of the wires and connect them to the “Trans” terminals on the chime. The color doesn’t matter—just make sure both wires are securely attached.
Step 5: Install the Doorbell Chime Unit
With the transformer in place, it’s time to install the chime.
Mount the Chime
Hold the chime unit against the wall where you want it installed. Use a level to ensure it’s straight. Mark the screw holes with a pencil. Drill pilot holes if needed, then secure the chime with screws.

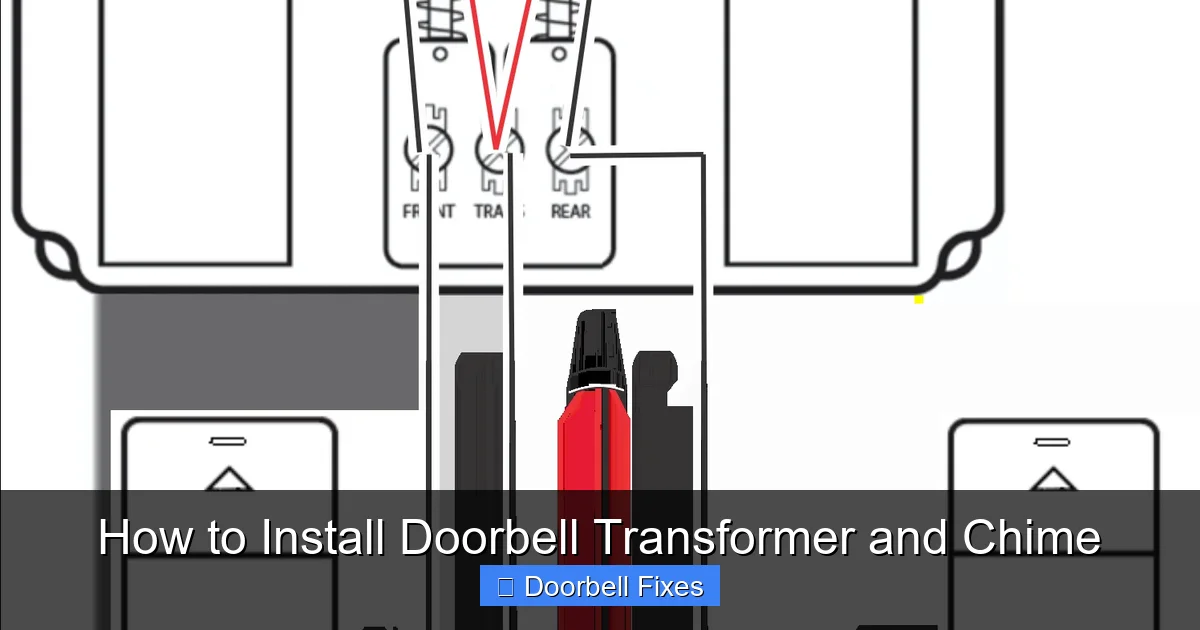

Connect the Wires
Connect the wires from the transformer to the “Trans” terminals on the chime. Connect the wire from the doorbell button to the “Front” terminal. If you have a second button (e.g., at the back door), connect it to the “Rear” terminal.
Tighten the terminal screws securely. Avoid over-tightening, which can damage the terminals.
Attach the Cover
Once all wires are connected, snap or screw the chime cover into place. Make sure it’s secure and doesn’t pinch any wires.
Step 6: Reconnect the Doorbell Button
Go back outside to the doorbell button location.
Connect the Wires
Strip the ends of the wires coming from the wall. Connect them to the terminals on the back of the new button. Again, polarity doesn’t matter for most mechanical buttons.
Secure the Button
Press the button gently against the wall and screw it into place. Make sure it’s flush and doesn’t wobble.
Step 7: Restore Power and Test the System
Now that everything is installed, it’s time to test your work.
Turn the Power Back On
Go to the circuit breaker and turn the power back on. Listen for any unusual sounds from the transformer or chime.
Test the Doorbell
Press the doorbell button. You should hear the chime sound clearly. If it doesn’t work, don’t panic—there are several common issues we’ll cover next.
Check for Proper Operation
Test the volume, tone, and responsiveness. If your chime has multiple settings, try them out. Make sure the button feels firm and doesn’t stick.
Troubleshooting Common Issues
Even with careful installation, problems can occur. Here’s how to fix the most common issues.
Doorbell Doesn’t Ring
- Check the power: Use a voltage tester to confirm the transformer is receiving power.
- Test the transformer output: Use a multimeter to check if the transformer is outputting the correct voltage (e.g., 16V).
- Inspect wire connections: Loose or corroded wires can break the circuit. Reconnect and tighten all terminals.
- Test the button: Press the button while listening for a click. If no click, the button may be faulty.
Chime Sounds Weak or Intermittent
- Low voltage: The transformer may be underpowered. Upgrade to a higher-wattage model.
- Long wire runs: Excessive distance can cause voltage drop. Use thicker wire (18-gauge) or install the transformer closer to the chime.
- Loose connections: Recheck all wire nuts and terminal screws.
Transformer Hums or Overheats
- Overloaded circuit: The transformer may be powering too many devices. Ensure it’s only connected to the doorbell system.
- Faulty transformer: Replace with a new one if it continues to overheat.
Smart Doorbell Not Connecting
- Insufficient power: Smart doorbells often require more power than traditional ones. Use a 24V transformer or a dedicated power kit.
- Wi-Fi issues: Ensure your doorbell is within range of your router. Consider a Wi-Fi extender if needed.
Upgrading to a Smart Doorbell (Optional)
If you’re installing a new system, consider upgrading to a smart doorbell. These devices offer features like video streaming, motion detection, two-way audio, and smartphone alerts.
Most smart doorbells can work with existing wiring, but they often require a stronger transformer (24V) and a stable Wi-Fi connection. Some models come with a plug-in transformer that replaces the traditional in-wall unit, making installation even easier.
Before upgrading, check compatibility with your existing chime or plan to use the doorbell’s built-in speaker. Some smart doorbells can’t work with mechanical chimes and require a digital or wireless setup.
Safety Tips and Best Practices
Working with electricity—even low-voltage systems—requires caution. Follow these safety tips:
- Always turn off power before working on any electrical component.
- Use insulated tools to reduce the risk of shock.
- Never work in wet conditions.
- Label wires as you disconnect them to avoid confusion.
- Don’t overload the transformer. Stick to the manufacturer’s recommended load.
- When in doubt, call a professional. If you’re uncomfortable with any step, hire a licensed electrician.
Conclusion: Enjoy Your New Doorbell System
Installing a doorbell transformer and chime is a rewarding DIY project that enhances your home’s functionality and curb appeal. By following this guide, you’ve learned how to safely work with electrical components, choose the right parts, and troubleshoot common issues.
Remember, the key to success is preparation and patience. Take your time, double-check connections, and test the system thoroughly. With your new doorbell in place, you’ll enjoy reliable performance and the satisfaction of a job well done.
Whether you’re sticking with a classic chime or stepping into the smart home era, your doorbell is now ready to welcome guests—safely and efficiently.
