This guide walks you through how to install a doorbell transformer to a junction box safely and correctly. You’ll learn the tools needed, wiring basics, and essential safety tips to ensure your doorbell works reliably.
Key Takeaways
- Safety first: Always turn off power at the breaker before working on electrical components to prevent shocks or injury.
- Choose the right transformer: Match the transformer’s voltage (typically 16V) to your doorbell chime requirements for optimal performance.
- Use a compatible junction box: Ensure the junction box is rated for electrical use and has enough space to house the transformer securely.
- Follow local codes: Check with your local building authority to ensure compliance with electrical codes and permit requirements.
- Test before finishing: Always test the doorbell after installation to confirm it’s working before closing up walls or covers.
- Label wires: Use tape or labels to mark wires during disassembly to avoid confusion when reconnecting.
- Consider professional help: If you’re unsure about any step, especially involving high-voltage wiring, consult a licensed electrician.
How to Install Doorbell Transformer to Junction Box: A Complete DIY Guide
Installing a doorbell transformer to a junction box might sound like a complex electrical task, but with the right tools, knowledge, and safety precautions, it’s a manageable DIY project for most homeowners. Whether you’re replacing an old transformer or installing a new doorbell system, mounting the transformer inside a junction box ensures it’s protected, secure, and up to code.
In this comprehensive guide, you’ll learn how to install a doorbell transformer to a junction box step by step. We’ll cover everything from understanding what a doorbell transformer does, to selecting the right components, turning off power safely, wiring the transformer, and testing your system. By the end, you’ll have a reliable, code-compliant doorbell setup that works every time someone rings the bell.
This guide is designed for beginners and intermediate DIYers. We use simple language, clear instructions, and practical tips to make the process easy to follow. No prior electrical experience? No problem—just take your time, follow the steps, and prioritize safety.
Let’s get started!
What Is a Doorbell Transformer and Why Does It Need a Junction Box?
Visual guide about How to Install Doorbell Transformer to Junction Box
Image source: broan-nutone.com
Before diving into the installation, it’s important to understand the role of a doorbell transformer and why it should be installed inside a junction box.

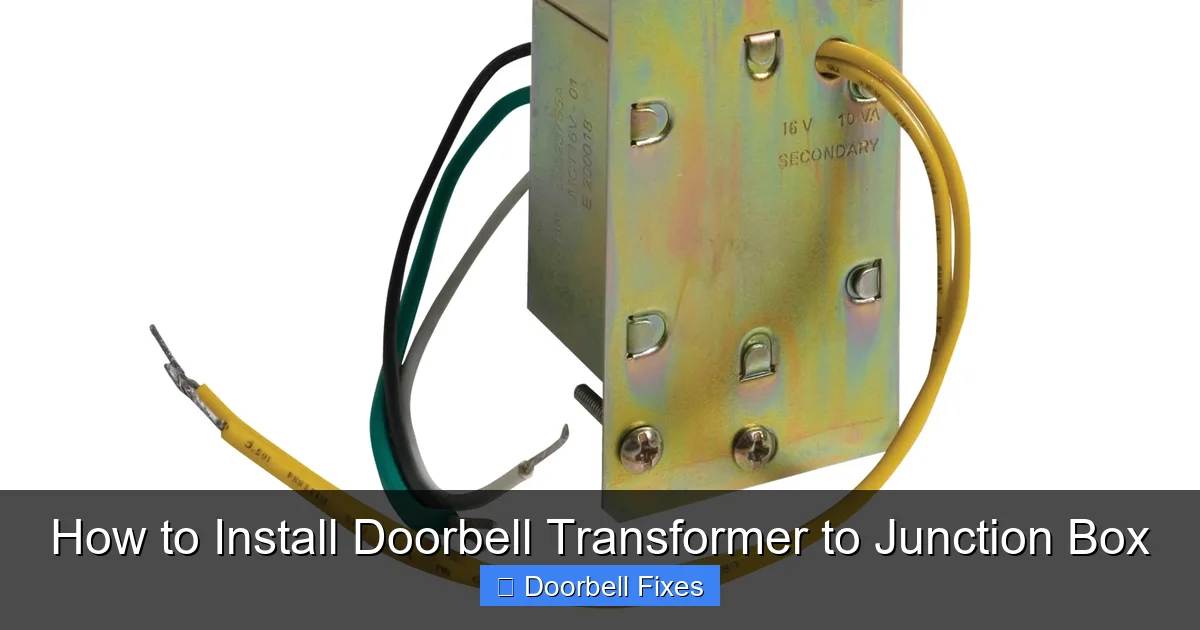

A doorbell transformer is a small electrical device that steps down your home’s standard 120-volt household current to a lower voltage—typically 8 to 24 volts—that’s safe for doorbell systems. Most modern doorbells operate on 16 volts, so that’s the most common transformer output.
Without a transformer, your doorbell wouldn’t work. The low voltage powers the chime or digital module when someone presses the button. But because the transformer connects to your home’s main electrical supply, it must be installed safely and in compliance with electrical codes.

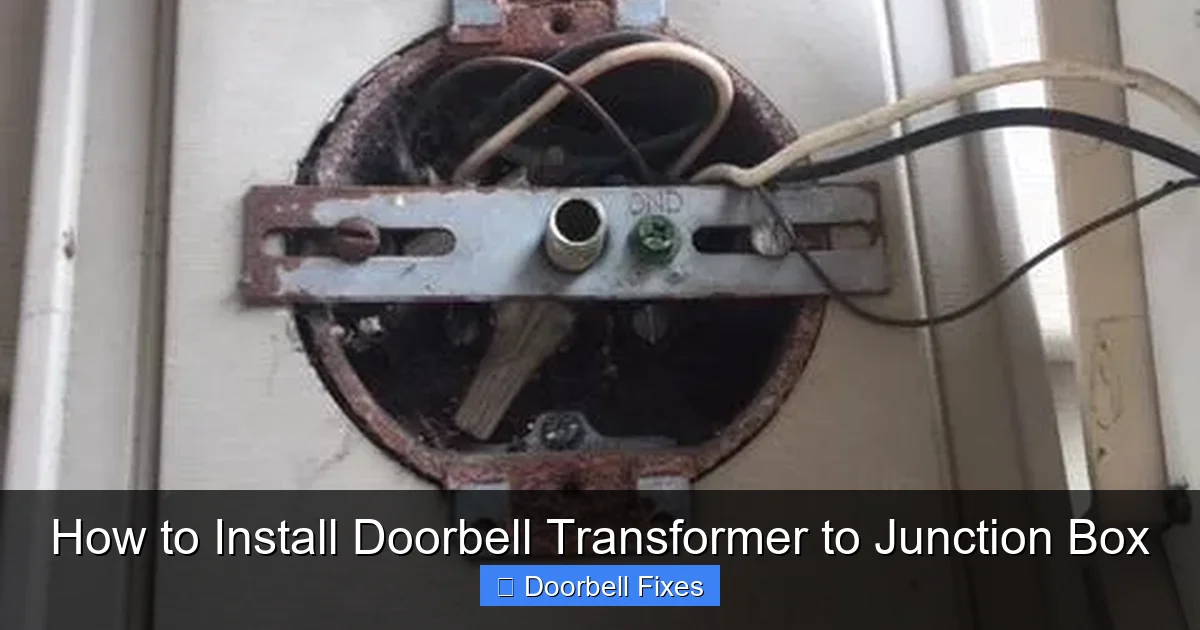

That’s where the junction box comes in. A junction box is an enclosed container that houses electrical connections. It protects wires from damage, prevents accidental contact, and reduces fire risks. Installing your doorbell transformer inside a junction box ensures it’s secure, accessible, and meets National Electrical Code (NEC) standards.
You’ll typically install the transformer in an indoor location like a basement, utility closet, or attic—somewhere near an electrical outlet or junction point. Avoid outdoor installations unless the box is rated for wet or damp locations.
Tools and Materials You’ll Need
Before starting, gather all the tools and materials to avoid interruptions. Here’s a complete list:
- Doorbell transformer (16V, 10-30VA recommended)
- Electrical junction box (metal or plastic, 4-inch square or round)
- Junction box cover (optional, but recommended)
- Screwdrivers (flathead and Phillips)
- Voltage tester (non-contact)
- Wire strippers
- Electrical tape
- Wire nuts (usually included with transformer)
- Drill and drill bits (if mounting to wood or drywall)
- Wall anchors and screws (if needed)
- Cable clamps (if using metal junction box)
- Electrical wire (14/2 or 12/2 NM cable, if extending wiring)
- Safety glasses and gloves
Most of these items are available at hardware stores or online. If you’re replacing an old transformer, you may already have some of the wiring in place. If this is a new installation, you’ll need to run low-voltage wire from the transformer to the doorbell button and chime.
Step 1: Turn Off the Power
Safety is the most important part of any electrical project. Before touching any wires, you must turn off the power at the source.
Locate Your Electrical Panel
Go to your home’s main electrical panel (also called the breaker box). It’s usually in the basement, garage, or utility room. Open the panel door and look for the circuit breaker that controls the area where you’ll be working.
If you’re unsure which breaker controls the outlet or junction box, turn off the main breaker to cut power to the entire house. This is the safest option, especially if you’re not experienced with electrical work.
Test for Power
After turning off the breaker, use a non-contact voltage tester to confirm the power is off. Touch the tester to the wires inside the junction box or outlet. If the tester doesn’t beep or light up, the power is off.
Never skip this step. Even if you think the breaker is off, a faulty switch or mislabeled panel could leave power running.
Lock Out the Breaker (Optional but Recommended)
If someone else has access to the breaker panel, consider using a lockout tag or breaker lock to prevent accidental re-energizing while you work.
Step 2: Choose the Right Location for the Junction Box
The location of your junction box is critical for both safety and functionality.
Indoor Installation Preferred
Install the junction box indoors in a dry, accessible location. Basements, closets, and utility rooms are ideal. Avoid attics unless they’re well-ventilated and protected from extreme temperatures.
Near an Electrical Source
Choose a spot close to a 120V electrical outlet or existing junction box. This makes it easier to connect the transformer to household power.
Avoid Obstructions
Make sure the box isn’t blocked by pipes, ducts, or insulation. You’ll need room to work and access the transformer later if needed.
Mounting Surface
The junction box should be mounted to a stud, joist, or solid surface. Use appropriate screws and anchors for drywall or masonry.
Step 3: Install the Junction Box
Now that you’ve chosen the location, it’s time to install the junction box.
Mark the Spot
Hold the junction box against the wall or ceiling where you want to install it. Use a pencil to mark the screw holes.
Drill Pilot Holes
Drill small pilot holes at the marked spots. This prevents wood from splitting and makes screwing easier.
Secure the Box
Attach the junction box using screws. For metal boxes, use the provided mounting ears or brackets. For plastic boxes, use the built-in nail-in flanges or screw holes.
Make sure the box is flush with the wall and doesn’t wobble. A loose box can damage wires over time.
Add Cable Clamps (For Metal Boxes)
If you’re using a metal junction box, install cable clamps where the electrical wires will enter. This secures the cables and prevents them from being pulled out accidentally.
Step 4: Prepare the Wires
With the box in place, it’s time to prepare the wires for connection.
Identify the Wires
Inside the junction box, you should see two or more wires:
– Black (hot)
– White (neutral)
– Bare copper or green (ground)
If you’re connecting to an existing outlet, the wires may already be stripped and connected. If not, you’ll need to strip about ¾ inch of insulation from each wire using wire strippers.
Strip the Wires
Use wire strippers to remove the outer sheathing and expose the individual conductors. Be careful not to nick or cut the copper wires.
Label the Wires (Optional)
If you’re disconnecting existing wires, label them with tape so you know which is hot, neutral, and ground when reconnecting.
Step 5: Connect the Transformer
Now comes the core of the installation: wiring the doorbell transformer.
Understand the Transformer Terminals
Most doorbell transformers have three sets of terminals:
– Line (or Primary): Connects to 120V household power (black and white wires)
– Load (or Secondary): Connects to the doorbell circuit (usually two low-voltage terminals)
– Ground: Connects to the ground wire
Check your transformer’s label or manual for exact terminal markings.
Connect the Line Wires
Take the black (hot) wire from the household circuit and connect it to the “line” or “primary” terminal on the transformer. Use a wire nut or screw terminal, depending on the model.
Connect the white (neutral) wire to the other line terminal.
Secure the connections tightly. Loose wires can cause arcing or overheating.
Connect the Ground Wire
Attach the bare copper or green ground wire to the ground terminal on the transformer. If the transformer has a green screw, wrap the ground wire around it and tighten.
Connect the Load Wires
Run two low-voltage wires (usually 18-gauge) from the transformer’s “load” terminals to the doorbell button and chime. These wires carry the stepped-down voltage (e.g., 16V).
Strip the ends of these wires and connect them to the load terminals. The polarity doesn’t matter for doorbells, so either wire can go to either terminal.
Secure the Transformer
Once all wires are connected, carefully fold them into the junction box. Mount the transformer to the box using the provided screws or mounting holes. Make sure it’s secure and won’t shift.
Step 6: Close the Junction Box
With the transformer installed and wired, it’s time to close the box.
Check Wire Clearance
Ensure all wires are neatly tucked inside the box and not pinched by the cover. There should be enough space for the transformer and connections.
Attach the Cover
Place the junction box cover over the opening and secure it with screws. If you’re using a blank cover, make sure it’s rated for electrical use.
Label the Box (Recommended)
Use a label or marker to write “Doorbell Transformer” on the cover. This helps future homeowners or electricians identify the box’s purpose.
Step 7: Restore Power and Test the System
Now that everything is installed, it’s time to test your work.
Turn the Power Back On
Go to the breaker panel and turn the circuit back on. If you turned off the main breaker, turn it on first, then the individual breaker.
Test the Doorbell
Press the doorbell button. You should hear the chime or see the digital display activate.
If the doorbell doesn’t work, don’t panic—there are a few common issues to check.
Check the Button and Chime
Make sure the doorbell button is properly connected and not stuck. Test the chime by connecting it directly to a known working transformer if possible.
Verify Wiring Connections
Double-check all wire connections in the junction box. Loose or reversed wires are a common cause of failure.
Use a Multimeter
If you have a multimeter, test the voltage at the transformer’s load terminals. You should see around 16V AC. If the voltage is too low or zero, the transformer may be faulty or incorrectly wired.
Troubleshooting Common Issues
Even with careful installation, problems can occur. Here are some common issues and how to fix them.
Doorbell Doesn’t Ring
– Check that power is on and the breaker hasn’t tripped.
– Verify all wire connections are tight and correct.
– Test the doorbell button with a multimeter for continuity.
– Replace the transformer if it’s not outputting voltage.
Buzzing or Humming Sound
– This can indicate a loose connection or a transformer under load.
– Check all terminals and tighten if necessary.
– Ensure the transformer is rated for your chime’s power requirements.
Transformer Overheats
– Overheating may mean the transformer is undersized or overloaded.
– Use a transformer with a higher VA rating (e.g., 20VA or 30VA).
– Ensure the transformer isn’t covered or enclosed in a tight space without ventilation.
Intermittent Operation
– Loose wires or corroded connections can cause intermittent issues.
– Re-strip and reconnect wires.
– Replace old or damaged low-voltage wiring.
Safety Tips and Best Practices
Electrical work can be dangerous if not done correctly. Follow these safety tips to protect yourself and your home.
- Always turn off power at the breaker before starting.
- Use a voltage tester to confirm power is off.
- Wear safety glasses and gloves.
- Never work on live circuits.
- Follow local electrical codes and obtain permits if required.
- Label all wires and components for future reference.
- If in doubt, hire a licensed electrician.
Conclusion
Installing a doorbell transformer to a junction box is a practical and rewarding DIY project that improves the safety and reliability of your doorbell system. By following this guide, you’ve learned how to choose the right components, turn off power safely, wire the transformer correctly, and test your installation.
Remember, the key to success is patience and attention to detail. Take your time, double-check connections, and never skip safety steps. With your new transformer securely mounted in a junction box, your doorbell will work reliably for years to come.
If you encounter challenges beyond your skill level, don’t hesitate to call a professional. Electrical work is not worth the risk of injury or fire.
Now go enjoy the peace of mind that comes with a properly installed doorbell system!
