Installing a wired doorbell is a straightforward DIY project that enhances your home’s safety and convenience. This guide walks you through every step—from turning off power to testing your new chime—so you can do it confidently and correctly.
Key Takeaways
- Turn off power at the breaker before starting any electrical work to prevent shocks or damage.
- Use a voltage tester to confirm wires are not live, even after switching off the breaker.
- Match wire colors correctly—typically black (hot) to transformer, white (neutral) to chime, and red (bell wire) to button.
- Secure all connections with wire nuts and electrical tape to ensure safe, long-lasting performance.
- Test the doorbell immediately after installation to catch issues early and avoid rework.
- Choose a compatible transformer (usually 16V AC) to power your doorbell system reliably.
- Label wires during removal of the old doorbell to simplify reconnection of the new unit.
How to Install Doorbell Wired: A Complete DIY Guide
Upgrading or installing a wired doorbell might sound intimidating, but with the right tools and a little patience, it’s a project most homeowners can handle in under an hour. Whether you’re replacing an old, broken chime or adding a doorbell to a home that never had one, this guide will walk you through the entire process—safely and efficiently.
In this comprehensive how-to, you’ll learn how to install doorbell wired systems from start to finish. We’ll cover everything from gathering the right tools and turning off power, to connecting wires, mounting the chime, and testing your new setup. You’ll also find practical tips, common pitfalls to avoid, and troubleshooting advice if something doesn’t work as expected.
By the end of this guide, you’ll not only have a fully functional doorbell, but you’ll also feel confident tackling other basic home electrical projects. Let’s get started!
What You’ll Need

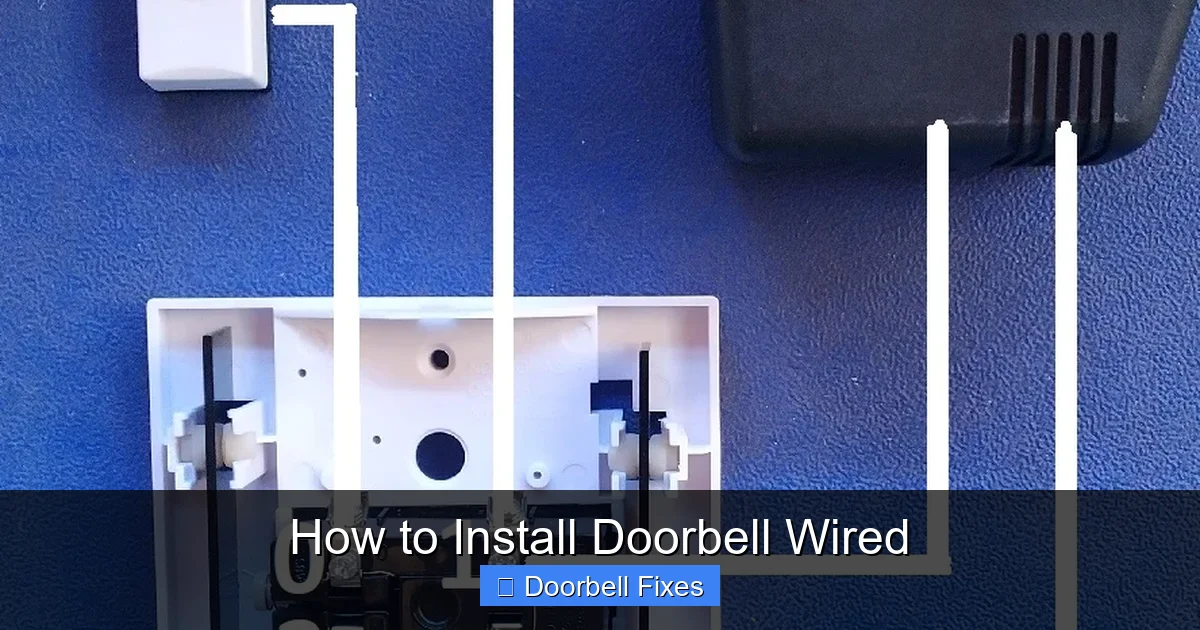

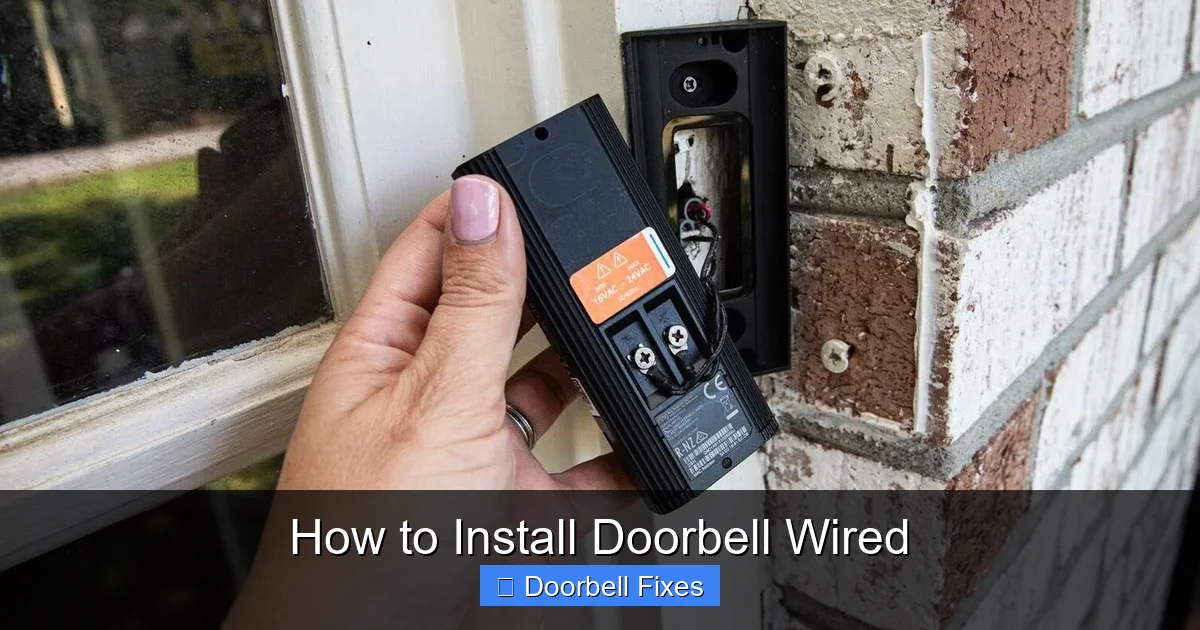

Visual guide about How to Install Doorbell Wired
Image source: mrdoorbells.com.au
Before you begin, make sure you have all the necessary tools and materials. Having everything ready will save time and prevent frustration mid-project.
- New wired doorbell kit (includes chime unit, doorbell button, and mounting hardware)
- Screwdriver set (Phillips and flathead)
- Voltage tester (non-contact type recommended)
- Wire strippers
- Electrical tape
- Wire nuts (usually included in the kit)
- Pliers (needle-nose preferred)
- Drill and drill bits (if mounting on brick or concrete)
- Level (to ensure chime is straight)
- Pencil (for marking screw holes)
- Safety glasses
If you’re replacing an existing doorbell, you may already have some of these tools. For new installations, you’ll also need to ensure your home has a doorbell transformer and low-voltage wiring in place—more on that later.
Step 1: Turn Off the Power
Safety is the most important part of any electrical project. Even though doorbells use low voltage, they’re still connected to your home’s electrical system via a transformer, which steps down 120V AC to 16V or 24V AC. That means there’s still a risk of shock if the power isn’t properly disconnected.
Locate Your Electrical Panel
Start by finding your home’s main electrical panel (also called the breaker box). It’s usually in the basement, garage, or utility closet. Open the panel door and look for the circuit that controls your doorbell. It may be labeled “Doorbell,” “Chime,” or “Low Voltage.” If it’s not labeled, you may need to turn off the main breaker or test circuits individually.
Switch Off the Breaker
Once you’ve identified the correct breaker, switch it to the “OFF” position. To be extra safe, turn off the main breaker if you’re unsure which one controls the doorbell. This cuts power to the entire panel and eliminates any risk.
Test the Wires
Even after turning off the breaker, always use a non-contact voltage tester to double-check that the wires are not live. Touch the tester to the wires at the doorbell button and chime location. If the tester beeps or lights up, the power is still on—go back and recheck the breaker.
This step is critical. Never assume the power is off just because you flipped a switch.
Step 2: Remove the Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, you’ll need to remove the old unit before installing the new one. This step ensures a clean setup and prevents confusion with wiring.
Unscrew the Doorbell Button
At the front door, locate the doorbell button. Use a screwdriver to remove the mounting screws and gently pull the button away from the wall. You’ll see two small wires connected to the back—usually black and red, or red and white.
Label the Wires
Before disconnecting anything, label the wires with small pieces of tape or a marker. For example, write “Transformer” on one wire and “Chime” on the other. This makes reconnection much easier, especially if the wires look similar.
Disconnect the Wires
Loosen the terminal screws on the back of the button and carefully remove the wires. If the wires are wrapped around the screws, use needle-nose pliers to gently unwind them.
Remove the Chime Unit
Next, go inside to the chime unit (usually located in a hallway or near the front door). Remove the cover and unscrew the mounting plate from the wall. Again, label the wires before disconnecting them. Most chimes have three wires: one from the transformer, one to the doorbell button, and one common wire.
Once all wires are disconnected, remove the old chime and set it aside.
Step 3: Check Your Transformer and Wiring
Before installing the new doorbell, it’s important to verify that your existing transformer and wiring are compatible and in good condition.
Locate the Transformer
The doorbell transformer is typically mounted near your electrical panel, inside the basement, or in a junction box. It’s a small black or gray box with wires coming out. It converts 120V household current to 16V or 24V for the doorbell system.
Check the Voltage Rating
Look for a label on the transformer that shows the output voltage (e.g., 16V AC). Most standard doorbells require 16V, but some newer models may need 24V. Check your new doorbell’s manual to confirm compatibility.
If your transformer is damaged, outdated, or outputs the wrong voltage, you’ll need to replace it. This is a more advanced step and may require an electrician if you’re not comfortable working inside the electrical panel.
Inspect the Wiring
Trace the low-voltage wires from the transformer to the doorbell button and chime. Look for frayed insulation, loose connections, or corrosion. If the wires are damaged, they may need to be replaced. This usually involves running new wire through walls, which can be challenging—consider hiring a professional if needed.
Step 4: Install the New Doorbell Button
Now it’s time to install the new doorbell button at your front door. This is the part visitors will press, so make sure it’s secure and weather-resistant.
Prepare the Wires
If the existing wires are short or damaged, strip about 1/4 inch of insulation from the ends using wire strippers. Twist the exposed copper strands to keep them neat.
Connect the Wires
Attach the wires to the terminals on the back of the new doorbell button. Most buttons have two terminals labeled “Front” and “Trans” or simply “+” and “–”. It doesn’t matter which wire goes where—doorbell circuits are not polarized. However, for consistency, connect the wire from the transformer to one terminal and the wire going to the chime to the other.
Tighten the terminal screws securely. If your button uses push-in connectors instead of screws, insert the stripped wire fully and ensure it’s snug.
Mount the Button
Hold the button against the wall where you want it installed. Use a level to make sure it’s straight. Mark the screw holes with a pencil, then drill pilot holes if needed (especially for brick or concrete). Secure the button with the provided screws.
Make sure the button is flush with the wall and doesn’t wobble. A loose button can cause poor contact and intermittent ringing.
Step 5: Install the Chime Unit
The chime unit is the indoor part of the doorbell that makes the sound when the button is pressed. It’s usually mounted on a wall in a central location, like a hallway or living room.
Choose the Right Location
Pick a spot that’s easy to hear from multiple rooms but not too close to the door (to avoid echo). Avoid areas with high humidity, like bathrooms, as moisture can damage the electronics.
Mount the Chime
Hold the chime mounting plate against the wall and use a level to ensure it’s straight. Mark the screw holes, drill pilot holes if necessary, and secure the plate with screws.
Connect the Wires
Now connect the three wires to the chime terminals. These are typically labeled:
- “Front” – connects to the doorbell button
- “Trans” – connects to the transformer
- “Common” – shared connection (sometimes labeled “C”)
Match the wires based on your earlier labels. For example:
- Wire from the doorbell button → “Front” terminal
- Wire from the transformer → “Trans” terminal
- Common wire (often white) → “Common” terminal
Tighten the screws or insert wires into the appropriate slots. Double-check that each wire is secure and not touching another terminal.
Attach the Chime Cover
Once the wires are connected, snap or screw the chime cover onto the mounting plate. Make sure it’s firmly in place and doesn’t rattle.
Step 6: Restore Power and Test the Doorbell
With everything connected, it’s time to turn the power back on and test your new doorbell.
Turn the Breaker Back On
Go to your electrical panel and switch the doorbell breaker (or main breaker) back to the “ON” position.
Test the Button
Press the doorbell button. You should hear a clear, consistent chime from the indoor unit. If it rings, congratulations—your installation is successful!
Check for Issues
If the doorbell doesn’t ring, don’t panic. Common issues include:
- Loose wire connections
- Incorrect terminal assignments
- Faulty transformer
- Damaged wiring
We’ll cover troubleshooting in the next section.
Troubleshooting Common Doorbell Problems
Even with careful installation, issues can arise. Here’s how to diagnose and fix the most common problems.
Doorbell Doesn’t Ring at All
If pressing the button produces no sound:
- Double-check that the breaker is on and the transformer is receiving power.
- Use a voltage tester to confirm 16V AC at the chime terminals.
- Inspect all wire connections for looseness or corrosion.
- Try swapping the “Front” and “Trans” wires—sometimes the labels are misleading.
Doorbell Rings Weakly or Intermittently
A faint or inconsistent chime often points to:
- Loose connections at the button or chime
- Corroded or damaged wires
- An underpowered transformer
Tighten all connections and clean wire ends with sandpaper if needed. If the problem persists, consider upgrading to a higher-capacity transformer.
Doorbell Rings Without Being Pressed
This “phantom ringing” can be caused by:
- A short circuit in the wiring
- A faulty doorbell button
- Moisture in the button (common in rainy climates)
Replace the button if it’s old or damaged. For moisture issues, apply a small amount of dielectric grease to the terminals or install a weatherproof cover.
Only One Chime Sounds (in Dual-Chime Systems)
Some doorbells have two tones (“ding” and “dong”). If only one plays:
- Check that both chime bars are properly aligned and not obstructed.
- Ensure the wiring matches the manufacturer’s diagram.
- Test with a multimeter to confirm voltage reaches both terminals.
Safety Tips and Best Practices
To ensure a safe and long-lasting installation, keep these tips in mind:
- Always turn off power before working on any electrical component.
- Use a voltage tester every time—even if you’re sure the power is off.
- Label wires during removal to avoid confusion.
- Don’t overtighten screws—this can strip terminals or crack plastic housings.
- Keep connections dry—use electrical tape or wire nuts to protect exposed wires.
- Follow the manufacturer’s instructions—every doorbell model is slightly different.
If at any point you feel unsure, don’t hesitate to consult a licensed electrician. It’s better to be safe than sorry.
Conclusion
Installing a wired doorbell is a practical and rewarding DIY project that boosts your home’s functionality and curb appeal. By following this step-by-step guide, you’ve learned how to safely remove an old unit, verify your transformer and wiring, install a new button and chime, and troubleshoot common issues.
Remember, the key to success is preparation and attention to detail. Turn off the power, label your wires, and test everything before calling the job done. With the right tools and a careful approach, you can have a reliable, high-quality doorbell system up and running in no time.
Not only did you save money by doing it yourself, but you also gained valuable skills that can be applied to future home improvement projects. So go ahead—ring that bell with pride!
