This guide walks you through how to install Eufy Doorbell C31 safely and correctly, whether replacing an old doorbell or installing a new one. You’ll get clear instructions, helpful tips, and solutions to common issues.
Key Takeaways
- Turn off power first: Always shut off electricity at the breaker before handling wires to prevent shocks or damage.
- Check compatibility: Ensure your existing doorbell transformer provides 8–24V AC and at least 10VA for reliable performance.
- Use the right tools: A screwdriver, drill, level, and voltage tester make installation faster and safer.
- Mount securely: Attach the mounting bracket firmly to prevent wobbling and ensure optimal camera angle.
- Connect via app: Download the Eufy Security app to complete setup, adjust settings, and test video quality.
- Troubleshoot early: If the doorbell doesn’t power on, double-check wiring and transformer output.
- Enjoy smart features: Once installed, use motion alerts, two-way audio, and night vision for enhanced home security.
How to Install Eufy Doorbell C31: A Complete Step-by-Step Guide
So you’ve got your hands on the Eufy Doorbell C31—congratulations! This sleek, wire-powered smart doorbell offers crisp 2K video, color night vision, two-way talk, and local storage (no monthly fees!). But before you can start seeing who’s at your door from your phone, you need to get it installed properly. Don’t worry—we’ve got you covered.
In this detailed guide, we’ll walk you through how to install Eufy Doorbell C31 from start to finish. Whether you’re replacing an old mechanical doorbell or upgrading from a basic wired model, these instructions will help you do it safely, correctly, and with confidence. We’ll cover everything: checking compatibility, turning off power, mounting the bracket, connecting wires, syncing with the app, and troubleshooting common hiccups.
By the end, your Eufy Doorbell C31 will be up, running, and keeping an eye on your front door—rain or shine, day or night.
What You’ll Need Before Starting

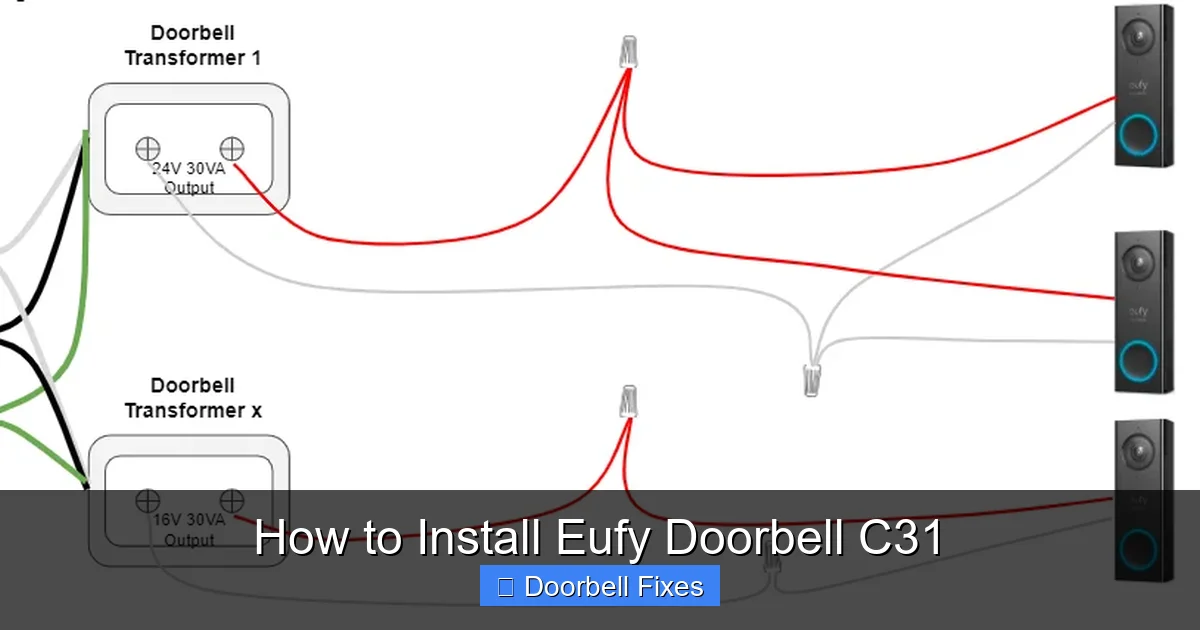

Visual guide about How to Install Eufy Doorbell C31
Image source: c1.neweggimages.com
Before you even think about touching a screwdriver, gather these essentials:
- Eufy Doorbell C31 kit (includes doorbell, mounting bracket, screws, anchors, and chime connector)
- Screwdriver (Phillips head is usually best)
- Drill and drill bits (for mounting into brick, stucco, or concrete)
- Level (to keep your doorbell straight—nobody wants a crooked view!)
- Voltage tester (non-contact type works great)
- Wire strippers (if you need to trim or re-strip existing wires)
- Ladder (if your doorbell is mounted high)
- Smartphone with Eufy Security app installed (download from iOS App Store or Google Play)
Pro tip: If you’re unsure about your home’s wiring or electrical setup, consider consulting a licensed electrician—especially if your house is older or you’ve never worked with doorbell systems before.
Step 1: Check Compatibility and Power Requirements
Not all doorbells play nice with all homes. The Eufy Doorbell C31 is a wired model, which means it needs a constant power source from your existing doorbell circuit. Here’s what to verify:
Transformer Voltage and Power
The C31 requires a transformer that outputs **8–24V AC** and delivers at least **10VA (volt-amperes)**. Most modern homes meet this standard, but older homes might have underpowered transformers.
To check:
- Locate your doorbell transformer—it’s usually near your furnace, in the basement, or inside a junction box in the attic.
- Look for a label indicating voltage (V) and VA rating.
- If it says “16V, 10VA” or higher, you’re good to go.
If your transformer is below 8V or under 10VA, the doorbell may not power on consistently or could cause your existing chime to malfunction. In that case, you’ll need to upgrade the transformer—a job best left to an electrician.
Existing Wiring
The C31 uses two low-voltage wires (typically labeled “Front” and “Trans”). Make sure you have at least two wires running from your doorbell location to the chime inside your home. If you only have one wire or none, you may need to run new wiring—or consider Eufy’s battery-powered models instead.
Chime Compatibility
The Eufy C31 works with most mechanical and digital chimes. However, if you have a very old or proprietary chime system (like certain Ring or Nest-compatible ones), you might need to bypass the internal chime and use the included Eufy chime connector. We’ll cover that in Step 4.
Step 2: Turn Off the Power
Safety first! Even though doorbell voltage is low, it’s still electricity—and mistakes can damage your doorbell or worse.
Locate Your Circuit Breaker
Find the breaker that controls your doorbell circuit. It’s often labeled “Doorbell,” “Chime,” or “Front Door.” If you’re not sure, turn off the main breaker to be extra safe (though this will cut power to your whole house).
Test the Wires
After turning off the breaker:
- Remove your old doorbell (if applicable) by unscrewing it from the wall.
- Gently pull the wires out just enough to expose the bare ends.
- Use a non-contact voltage tester to confirm there’s no power. Touch the probe near the wires—if it beeps or lights up, the power isn’t fully off.
Never skip this step! A live wire can fry your new doorbell instantly.
Step 3: Remove the Old Doorbell (If Applicable)
If you’re replacing an existing doorbell:
- Unscrew the old unit from the wall.
- Carefully disconnect the two wires—don’t let them fall back into the wall!
- Use electrical tape to cap each wire temporarily so they don’t touch each other or the wall.
If there’s no old doorbell, skip to mounting the bracket. But make sure the wires are accessible and long enough to work with (at least 2–3 inches sticking out).
Step 4: Install the Mounting Bracket
The Eufy C31 comes with a sturdy mounting bracket that holds the doorbell securely and allows for adjustable viewing angles.
Position the Bracket
Hold the bracket against the wall where you want the doorbell. Ideal height is between 48–52 inches from the ground—eye level for most visitors. Use a level to ensure it’s straight.
Tip: Avoid mounting directly over door frames or in areas where rain or sprinklers might soak the camera.
Mark and Drill Holes
Once positioned:
- Mark the screw holes with a pencil.
- Drill pilot holes using the appropriate bit for your wall material (wood, brick, stucco, etc.).
- If drilling into masonry, use wall anchors for extra grip.
Secure the Bracket
Attach the bracket using the provided screws. Make sure it’s tight and doesn’t wiggle—a loose mount can cause video shake or misalignment.
Optional: Adjust Viewing Angle
The C31 bracket has a slight tilt adjustment. If your door is set back from the walkway, angle the bracket slightly downward so the camera points at the visitor’s face, not their feet.
Step 5: Connect the Wires
Now for the moment of truth—wiring your new doorbell.
Prepare the Wires
Strip about 1/4 inch of insulation from each wire if needed. Twist the exposed copper strands to keep them neat.
Attach to the Bracket
The Eufy mounting bracket has two terminal screws (usually labeled “Front” and “Trans,” but polarity doesn’t matter). Simply:
- Loosen the screws slightly.
- Insert one wire under each screw head.
- Tighten the screws firmly—but don’t over-tighten and strip them.
Double-check that the wires aren’t touching each other or any metal parts of the bracket.
Use the Chime Connector (If Needed)
If your existing chime doesn’t work reliably with the C31 (common with digital chimes), use the included chime connector:
- Disconnect the wires from your indoor chime.
- Connect both wires to the chime connector (it has two ports).
- The connector mimics the “ding-dong” signal, ensuring your chime rings when the button is pressed.
This small device solves many compatibility issues and is worth trying if your chime is silent after installation.
Step 6: Attach the Doorbell to the Bracket
With the bracket wired and secure:
- Align the back of the Eufy Doorbell C31 with the bracket.
- Slide it downward until it clicks into place.
- Use the included security screw (and tiny Allen wrench) to lock it in—this prevents theft.
Give it a gentle tug to make sure it’s firmly attached.
Step 7: Restore Power and Test
Head back to your breaker panel and turn the power back on.
Check for Power
Within 10–30 seconds, the doorbell should light up. You’ll see a status LED (usually white or blue) indicating it’s receiving power and connecting to Wi-Fi.
If nothing happens:
- Double-check that the breaker is on.
- Verify wire connections are tight.
- Test the transformer voltage with a multimeter.
- Ensure the chime connector (if used) is properly installed.
Test the Button
Press the doorbell button. Your indoor chime should ring (if compatible), and the LED on the doorbell should flash.
Step 8: Set Up via the Eufy Security App
Now for the fun part—making it smart!
Download and Open the App
If you haven’t already, download the **Eufy Security app** (free on iOS and Android). Create an account or log in.
Add Your Device
- Tap the “+” icon and select “Doorbell.”
- Choose “Wired Doorbell” and then “C31.”
- Follow the on-screen prompts.
The app will guide you through:
- Connecting to your home Wi-Fi (2.4 GHz only—the C31 doesn’t support 5 GHz).
- Scanning the QR code on the back of the doorbell.
- Naming your device (e.g., “Front Door”).
Calibrate Motion Zones and Settings
Once connected:
- Adjust motion detection zones to avoid false alerts from passing cars or trees.
- Set recording preferences (continuous, motion-only, etc.).
- Enable two-way audio and night vision.
- Turn on human detection to reduce unnecessary notifications.
The app also lets you view live video, review recordings (stored locally on the doorbell’s built-in storage), and share access with family members.
Troubleshooting Common Installation Issues
Even with perfect steps, hiccups happen. Here’s how to fix the most common problems:
Doorbell Won’t Power On
- Confirm power is restored at the breaker.
- Check wire connections—loose wires are the #1 culprit.
- Test transformer output with a multimeter (should read 8–24V AC).
- Try bypassing the chime with the included connector.
Chime Doesn’t Ring
- Ensure the chime connector is installed correctly.
- Some digital chimes require a specific resistance—try adding a 100-ohm resistor in parallel with the chime (available at hardware stores).
- Test the chime independently by shorting the wires briefly (only if power is on!).
Poor Wi-Fi Signal or Dropped Connection
- The C31 needs a strong 2.4 GHz signal. Move your router closer or use a Wi-Fi extender.
- Avoid installing behind metal doors or thick walls.
- Reboot your router and the doorbell (remove and reattach to power).
Blurry or Dark Video
- Clean the lens with a microfiber cloth.
- Ensure the doorbell is angled correctly—too high or low affects image quality.
- Check that night vision LEDs aren’t blocked by the mounting surface.
False Motion Alerts
- Narrow the motion zone in the app to exclude busy streets or swaying branches.
- Lower sensitivity settings during windy days.
- Enable “Human Only” detection to ignore pets and vehicles.
Maintenance Tips for Long-Term Performance
Your Eufy Doorbell C31 is built to last, but a little care goes a long way:
- Clean the lens monthly with a soft, dry cloth to maintain video clarity.
- Check screws annually to ensure the doorbell stays tight and level.
- Update firmware regularly via the app to get new features and security patches.
- Clear local storage if it fills up (the C31 holds about 4–6 weeks of recordings).
- Inspect wires yearly for corrosion or damage, especially in humid climates.
Final Thoughts
Installing the Eufy Doorbell C31 might seem intimidating at first, but with the right prep and patience, it’s totally doable for most homeowners. By following this guide—turning off power, verifying compatibility, mounting securely, wiring correctly, and setting up the app—you’ll have a reliable, feature-packed smart doorbell that enhances your home’s security without monthly fees.
Remember: when in doubt, consult a professional. And once it’s up and running, enjoy peace of mind knowing you can see, hear, and speak to anyone at your door—from anywhere in the world.
Welcome to the future of doorbells!
