Installing a Google Doorbell Camera is simpler than you think. This guide walks you through every step—from checking compatibility to final app setup—so you can enjoy smart security in under an hour.
Key Takeaways
- Check compatibility first: Ensure your doorbell wiring and Wi-Fi meet Google’s requirements before buying or installing.
- Turn off power safely: Always shut off electricity at the breaker box to avoid shocks when handling wires.
- Use the Google Home app: The official app guides setup, connects your doorbell to Wi-Fi, and syncs with other smart devices.
- Test after installation: Confirm video, motion alerts, and two-way audio work properly before finishing.
- Mount securely: Choose the right angle and height (48–60 inches) for optimal motion detection and video quality.
- Troubleshoot common issues: Weak Wi-Fi, loose wires, or app glitches can usually be fixed with simple steps.
- Consider a chime connector: If your existing chime isn’t compatible, use Google’s Chime Connector for reliable ringing.
How to Install Google Doorbell Camera: A Complete Step-by-Step Guide
So, you’ve decided to upgrade your home security with a Google Doorbell Camera—great choice! Whether it’s the battery-powered Google Nest Doorbell (2nd gen) or the wired Nest Hello, these smart devices offer crystal-clear video, real-time alerts, and seamless integration with your Google ecosystem. But before you can start seeing who’s at your door from your phone, you’ll need to install it properly.
Don’t worry—this guide will walk you through the entire process, from unboxing to final testing. We’ll cover everything: checking your home’s compatibility, turning off power safely, mounting the device, connecting it to your Wi-Fi via the Google Home app, and troubleshooting common issues. By the end, you’ll have a fully functional smart doorbell that keeps your home secure and gives you peace of mind.
Let’s get started!
What You’ll Need Before You Begin

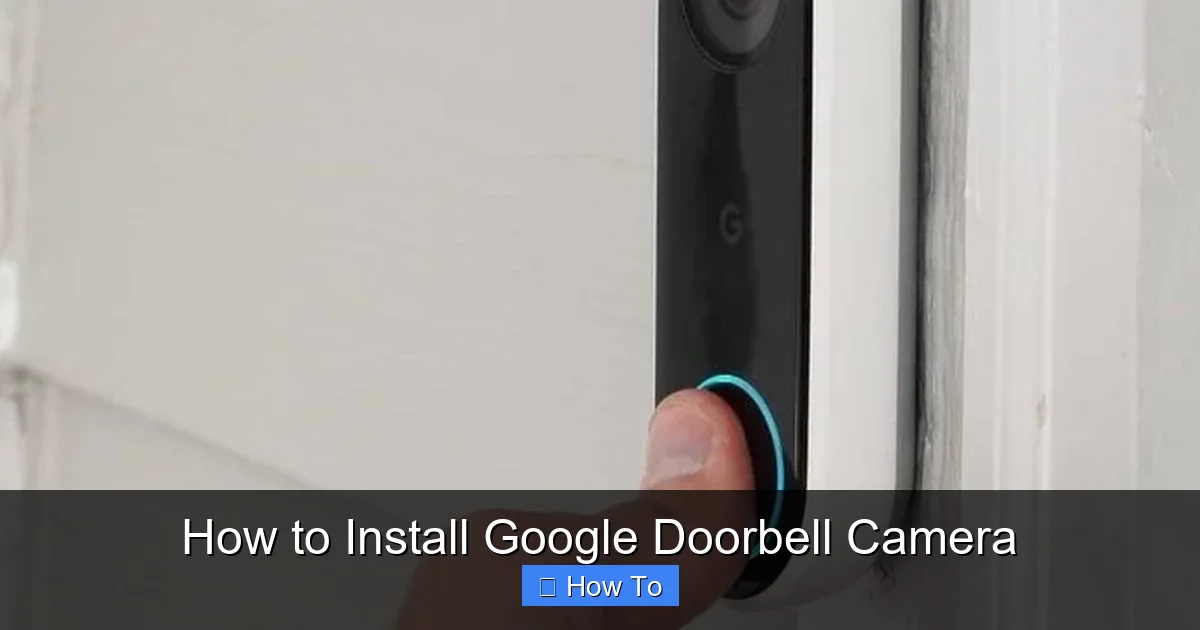

Visual guide about How to Install Google Doorbell Camera
Image source: familyhandyman.com
Before you even think about drilling holes or touching wires, make sure you have all the necessary tools and materials. Having everything ready will save time and prevent frustration mid-installation.
Here’s a quick checklist:
- Google Doorbell Camera – Either the wired Nest Hello or the battery-powered Nest Doorbell (2nd gen).
- Screwdriver – A Phillips head is usually needed for mounting brackets and terminal screws.
- Drill and drill bits – For creating pilot holes if mounting on brick, stucco, or concrete.
- Level – To ensure your doorbell is straight (nobody wants a crooked camera!).
- Smartphone or tablet – With the Google Home app installed and updated.
- Wi-Fi network – 2.4 GHz or 5 GHz (check your model’s requirements).
- Existing doorbell wiring (for wired models) – At least 16–24V AC transformer recommended.
- Optional: Chime Connector – If your mechanical chime isn’t compatible with smart doorbells.
- Optional: Wire strippers – If you need to trim or re-strip old wires.
Pro tip: If you’re installing the battery-powered Nest Doorbell, you won’t need to deal with wiring—but you will need to charge the battery fully before setup.
Step 1: Check Compatibility and Power Requirements
Not every home is ready for a Google Doorbell Camera right out of the box. To avoid headaches later, verify that your setup meets the basic requirements.
For Wired Models (Nest Hello)
If you’re installing the Nest Hello, your existing doorbell system must have:
- Working doorbell wires – Typically two low-voltage wires running from your doorbell button to the chime inside.
- A compatible transformer – Most homes have a 16V or 24V AC transformer. The Nest Hello requires at least 16V and 6VA (volt-amperes). You can check this by looking at the transformer (usually near your doorbell chime or in the basement/attic).
- A compatible chime – Mechanical chimes (the kind with physical hammers) usually work, but some digital or electronic chimes may not. If unsure, Google recommends using the Nest Chime Connector to bypass compatibility issues.
For Battery Models (Nest Doorbell 2nd Gen)
The battery-powered version is more flexible. It doesn’t require existing wiring, but you should still consider:
- Wi-Fi strength at the door – Weak signal can cause video lag or disconnections. Use a Wi-Fi extender if needed.
- Charging access – You’ll need to remove the battery every 3–6 months to recharge it (depending on usage).
- Optional wired power – You can hardwire it later if you change your mind, but it comes with a rechargeable battery by default.
Check Your Wi-Fi Network
Google Doorbell Cameras require a stable Wi-Fi connection. Here’s what to look for:
- 2.4 GHz band – All models support this. It has better range but slower speeds.
- 5 GHz band – Supported by newer models for faster video streaming (but shorter range).
- Signal strength – Use a Wi-Fi analyzer app to check signal at your door. Aim for at least -65 dBm or stronger.
If your signal is weak, consider installing a Wi-Fi extender or mesh system near your front door.
Step 2: Turn Off Power at the Breaker
Safety first! Even though doorbell wires carry low voltage, it’s still possible to get a shock or damage your device if power is on.
Locate Your Breaker Box
Find your home’s main electrical panel. It’s usually in the basement, garage, or utility closet.
Identify the Doorbell Circuit
Look for a breaker labeled “doorbell,” “chime,” or “low voltage.” If there isn’t one, turn off the main breaker to be safe.
Test the Power
After turning off the breaker, go to your existing doorbell and press the button. If the chime doesn’t ring, power is off. If it still rings, turn off additional breakers until it stops.
Pro tip: Use a non-contact voltage tester on the doorbell wires to double-check. If the tester beeps or lights up, power is still on—don’t proceed!
Step 3: Remove Your Old Doorbell
Now that power is off, it’s time to remove the existing doorbell button.
Unscrew the Old Button
Use your screwdriver to remove the two screws holding the old doorbell in place. Gently pull the button away from the wall.
Disconnect the Wires
You’ll see two wires connected to the back. Loosen the terminal screws and carefully pull the wires free. Don’t let them fall back into the wall!
Secure the Wires
Twist a small piece of electrical tape around the exposed ends to prevent short circuits. Use a wire nut or tape to hold them together temporarily.
Remove the Mounting Plate (if needed)
If your old doorbell had a large mounting plate, remove it. You’ll be installing the Google Doorbell’s own bracket instead.
Step 4: Install the Mounting Bracket
The Google Doorbell Camera comes with a custom mounting bracket that ensures a secure fit and proper angle.
Choose the Right Bracket
Google provides multiple bracket options:
- Standard bracket – For flat surfaces.
- Wedge bracket – Angles the camera downward if your door is recessed or you want better motion detection.
- Corner bracket – For mounting on the side of a doorframe or corner.
Choose the one that best fits your door and desired viewing angle.
Position the Bracket
Hold the bracket against the wall where you want to install the doorbell. The ideal height is between 48 and 60 inches from the ground—this ensures the camera sees people’s faces and packages left at the door.
Use a level to make sure it’s straight. Mark the screw holes with a pencil.
Drill Pilot Holes
If you’re mounting on wood, you can often screw directly into the wall. For brick, stucco, or concrete, drill pilot holes using a masonry bit. Insert wall anchors if needed.
Secure the Bracket
Line up the bracket with the holes and screw it into place using the provided screws. Make sure it’s tight and doesn’t wobble.
Step 5: Connect the Wires (Wired Models Only)
If you’re installing the Nest Hello or hardwiring a battery model, now’s the time to connect the wires.
Strip the Wire Ends (if needed)
If the wire ends are frayed or too short, use wire strippers to expose about 1/4 inch of copper.
Connect to the Bracket Terminals
The mounting bracket has two terminal screws labeled “Front” and “Trans.” It doesn’t matter which wire goes where—Google’s system is polarity-independent.
Loosen the screws, insert the wires, and tighten them securely. Give the wires a gentle tug to ensure they’re held firmly.
Optional: Install the Chime Connector
If your indoor chime isn’t compatible, install the Nest Chime Connector inside your chime box. This device tricks the chime into working with the smart doorbell.
Follow the instructions in the Google Home app or the included manual. It usually involves connecting two wires from the chime to the connector.
Step 6: Attach the Google Doorbell Camera
With the bracket in place and wires connected, it’s time to mount the camera.
Align the Camera
Hold the Google Doorbell Camera against the bracket. The bottom edge should snap into the bracket’s hooks.
Secure with the Security Screw
Once the camera is seated, use the provided security screw and screwdriver to lock it in place. This prevents theft—only someone with the special tool can remove it.
Double-Check Connections
Make sure the camera is firmly attached and the wires aren’t pinched or loose.
Step 7: Turn Power Back On
Head back to your breaker box and turn the power back on. Wait about 30 seconds for the system to reset.
Go to your doorbell and press the button. If you installed the Chime Connector, your indoor chime should ring. If not, don’t worry—you’ll test everything in the app next.
Step 8: Set Up the Google Home App
Now for the fun part—connecting your doorbell to your phone and home network.
Download and Open the Google Home App
If you don’t already have it, download the Google Home app from the Apple App Store or Google Play Store. Sign in with your Google account.
Tap the “+” to Add a Device
In the app, tap the “+” icon in the top-left corner, then select “Set up device.” Choose “New device.”
Scan the QR Code
The app will ask you to scan the QR code on the back of your doorbell or the packaging. Point your phone’s camera at the code to scan it.
Follow the On-Screen Instructions
The app will guide you through:
- Connecting to your Wi-Fi network (enter your password).
- Naming your doorbell (e.g., “Front Door”).
- Setting up motion and sound alerts.
- Enabling two-way audio and video recording.
Test the Connection
Once setup is complete, the app will test the connection. You should see a live video feed from your doorbell.
Step 9: Configure Settings and Alerts
Now that your doorbell is online, customize it to fit your lifestyle.
Set Up Activity Zones
In the Google Home app, go to your doorbell settings and create “Activity Zones.” These let you define areas where you want to receive alerts (e.g., the sidewalk but not the street).
Adjust Motion Sensitivity
Too many false alerts? Lower the motion sensitivity. Want to catch every visitor? Increase it.
Enable Package Alerts (if supported)
Some models can detect when a package is delivered. Turn this on to get notified when a delivery arrives.
Set Quiet Hours
Prevent alerts during nighttime or naptime by setting “Quiet Hours” in the app.
Link to Other Devices
Connect your doorbell to Google Assistant, smart lights, or a Nest Hub. For example, say “Hey Google, show me the front door” to view the feed on your smart display.
Step 10: Test Everything
Before you call it a day, make sure everything works as expected.
Test the Video Feed
Open the Google Home app and check the live view. The image should be clear, even at night (thanks to night vision).
Test Two-Way Audio
Tap the microphone icon and speak. You should hear yourself through the doorbell’s speaker. Have someone outside test hearing you too.
Test Motion Alerts
Walk in front of the doorbell. You should receive a notification on your phone within a few seconds.
Test the Doorbell Press
Press the button on the doorbell. Your phone should get a notification, and your indoor chime (if connected) should ring.
Check Battery Level (Battery Models)
If you’re using the battery-powered version, check the battery level in the app. It should be at 100% after setup.
Troubleshooting Common Issues
Even with careful installation, problems can happen. Here’s how to fix the most common ones.
Doorbell Won’t Connect to Wi-Fi
- Make sure you’re entering the correct Wi-Fi password.
- Move your router closer or use a Wi-Fi extender.
- Restart your router and try again.
- Forget the network in the app and reconnect.
No Video or Poor Quality
- Check your internet speed—Google recommends at least 2 Mbps upload speed.
- Ensure the camera lens is clean.
- Reposition the doorbell for better lighting.
Chime Doesn’t Ring
- Verify the Chime Connector is installed correctly.
- Check that the transformer provides enough power.
- Test the chime with the old doorbell to confirm it works.
False Motion Alerts
- Adjust motion sensitivity in the app.
- Create smaller Activity Zones.
- Trim bushes or trees that sway in the wind.
Battery Drains Too Fast
- Reduce video quality or recording length.
- Turn off unnecessary alerts.
- Ensure strong Wi-Fi—weak signals cause the battery to work harder.
Maintenance Tips for Long-Term Use
To keep your Google Doorbell Camera working smoothly:
- Clean the lens monthly with a soft, dry cloth.
- Check battery level every few weeks (for battery models).
- Update the app and firmware regularly for new features and security patches.
- Inspect wires and connections annually, especially after storms.
- Review alert settings seasonally—adjust for holidays, vacations, or new routines.
Conclusion
Installing a Google Doorbell Camera might seem intimidating at first, but with the right preparation and this step-by-step guide, it’s totally doable—even for beginners. From checking compatibility and safely handling wires to setting up the Google Home app and customizing alerts, every step brings you closer to a smarter, safer home.
Whether you chose the wired Nest Hello for continuous power or the flexible battery-powered Nest Doorbell, you now have a powerful tool that lets you see, hear, and speak to visitors from anywhere. Plus, with features like motion detection, night vision, and smart alerts, you’ll never miss a delivery or unexpected guest again.
So go ahead—enjoy your new peace of mind. And remember: if you run into any issues, the Google support team and community forums are there to help. Welcome to the future of home security!
