How to Install Google Doorbell Wired: A Complete Step-by-Step Guide
So, you’ve decided to upgrade your front door with the Google Doorbell Wired—a sleek, smart device that lets you see, hear, and speak to visitors from anywhere using your phone. Whether you’re replacing an old mechanical doorbell or installing one for the first time, this guide will walk you through the entire process safely and efficiently.
You don’t need to be an electrician to get this done. With the right tools, a little patience, and this detailed walkthrough, you’ll have your Google Doorbell Wired up and running in under an hour. We’ll cover everything from checking your home’s compatibility to finalizing the setup in the Google Home app.
By the end of this guide, you’ll know exactly how to install Google Doorbell Wired, avoid common mistakes, and troubleshoot any issues that come up. Let’s get started!
What You’ll Need Before You Begin
Visual guide about How to Install Google Doorbell Wired

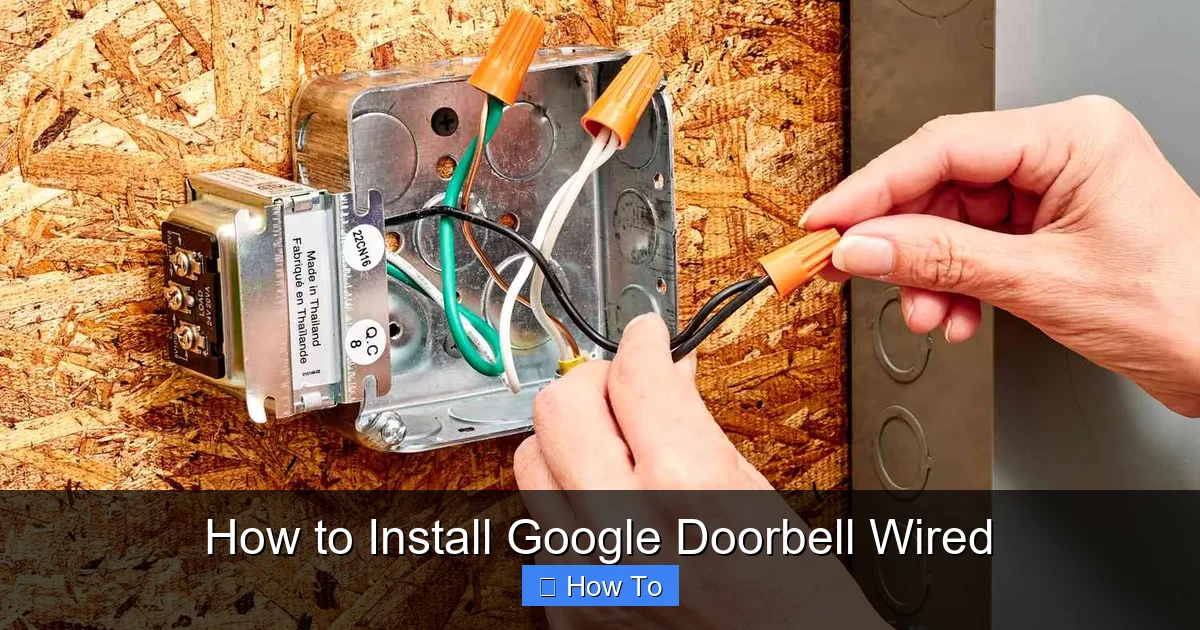

Image source: storables.com
Before you touch a single wire, make sure you have all the necessary tools and materials. Having everything ready will save time and reduce frustration.
Tools Required
- Screwdriver (Phillips and flathead): For removing the old doorbell and mounting the new one.
- Voltage tester: To confirm the power is off and check wire voltage.
- Wire strippers: In case you need to trim or re-strip wires.
- Drill and drill bits (optional): Only if you need to make new mounting holes or run wires.
- Pencil or marker: For marking drill spots.
- Level: To ensure your doorbell is straight.
- Smartphone or tablet: To use the Google Home app during setup.
Materials Included with Google Doorbell Wired
- Google Doorbell Wired unit
- Mounting bracket
- Screws and wall anchors
- Wire nuts (for connecting wires)
- Chime connector (if replacing a mechanical chime)
- Quick start guide
Optional but Helpful
- Electrical tape
- Ladder (if your doorbell is high up)
- Assistant (to hold the doorbell while you wire it)
Step 1: Check Compatibility and Power Requirements
Not every home is ready for a Google Doorbell Wired. Before you start, you need to confirm that your existing doorbell system can support it.
Check Your Existing Doorbell Wiring
Most homes with a traditional doorbell have low-voltage wiring running from a transformer to the doorbell button and chime. The Google Doorbell Wired requires:
- 16–24 volts AC (alternating current)
- At least 500mA (0.5A) of power
If your current doorbell uses batteries only, you’ll need to install wiring and a transformer—this is a more advanced project and may require an electrician.
Locate Your Doorbell Transformer
The transformer steps down your home’s 120V power to the lower voltage needed for the doorbell. It’s usually found in one of these places:
- Basement near the electrical panel
- Garage ceiling or wall
- Utility closet
- Attic (less common)
Look for a small black or gray box with wires coming out and a label that says “16V” or “24V.” If you can’t find it, check your electrical panel or consult an electrician.
Test the Voltage
This is critical. Use a non-contact voltage tester or a multimeter to check the voltage at the doorbell button:
- Remove the old doorbell button.
- Touch the multimeter probes to the two wires.
- Set the meter to AC voltage (V~).
- You should see a reading between 16 and 24 volts.
If the voltage is too low (under 16V), the doorbell may not work properly. If it’s too high (over 24V), it could damage the device. In either case, you may need to replace the transformer.
Pro Tip: If you’re unsure about voltage or wiring, hire a licensed electrician. It’s better to be safe than sorry.
Step 2: Turn Off the Power
Safety first! Working with electricity can be dangerous if you don’t take the right precautions.
Shut Off the Circuit Breaker
- Go to your main electrical panel.
- Locate the breaker that controls your doorbell (it may be labeled “doorbell,” “chime,” or “front door”).
- Switch it to the OFF position.
If you can’t identify the right breaker, turn off the main power or test each one by turning them off one at a time and checking if the doorbell stops working.
Double-Check with a Voltage Tester
Even after turning off the breaker, use your voltage tester to confirm no power is reaching the doorbell wires. Touch the tester to each wire—there should be no indication of voltage.
Never skip this step. A live wire can cause serious injury.
Step 3: Remove the Old Doorbell
Now that the power is off, it’s time to remove your existing doorbell button.
Unscrew the Old Button
- Use a screwdriver to remove the screws holding the old doorbell in place.
- Gently pull the button away from the wall.
- You’ll see two wires connected to the back.
Disconnect the Wires
- Loosen the terminal screws or pull the wires out of the back.
- Note which wire goes where—though polarity doesn’t matter for AC, it’s good practice to remember.
- If the wires are short or damaged, use wire strippers to expose fresh copper (about 1/4 inch).
Tip: Take a photo of the wiring before disconnecting. This can help if you need to troubleshoot later.
Cap the Wires (Temporarily)
Twist a wire nut onto each exposed wire to prevent them from touching each other or the wall. This keeps things safe while you work.
Step 4: Install the Mounting Bracket
The Google Doorbell Wired comes with a mounting bracket that attaches to your wall. This bracket holds the doorbell securely and allows for easy removal if needed.
Position the Bracket
- Hold the bracket against the wall where you want to install the doorbell.
- Use a level to make sure it’s straight.
- Mark the screw holes with a pencil.
Ideal Height: Install the doorbell about 48 inches (4 feet) from the ground. This is eye level for most adults and ensures good camera angle.
Drill Pilot Holes (If Needed)
If you’re mounting into wood or need extra support:
- Use a drill bit slightly smaller than your screws.
- Drill pilot holes at the marked spots.
- This prevents the wood from splitting.
For brick, concrete, or stucco walls, use a masonry drill bit and wall anchors.
Secure the Bracket
- Align the bracket with the holes.
- Insert screws and tighten with a screwdriver.
- Make sure the bracket is snug and doesn’t wobble.
Step 5: Connect the Wires to the Doorbell
Now it’s time to connect your home’s wiring to the Google Doorbell Wired.
Prepare the Wires
Remove the wire nuts from the two doorbell wires. If the ends are frayed or too short, trim and strip them again to expose clean copper.
Attach Wires to the Doorbell
The Google Doorbell Wired has two terminal screws on the back:
- Loosen the screws slightly.
- Insert one wire under each screw.
- Tighten the screws to secure the wires.
Note: Since this is AC power, it doesn’t matter which wire goes to which terminal. Both will work.
Use Wire Nuts for Extra Security (Optional)
For added safety, you can twist the wires together with a wire nut before attaching them to the doorbell. This reduces strain on the terminals.
Step 6: Attach the Doorbell to the Bracket
With the wires connected, it’s time to mount the doorbell.
Align and Slide Into Place
- Hold the doorbell so the mounting tabs align with the bracket.
- Gently slide it down until it clicks into place.
- You should hear a secure snap.
Secure with the Security Screw
- Use the small security screw (included) to lock the doorbell to the bracket.
- This prevents theft or accidental removal.
- Tighten with a screwdriver, but don’t over-tighten.
Pro Tip: If the doorbell feels loose, double-check that the wires aren’t pulling it out of alignment.
Step 7: Turn the Power Back On
Now that everything is connected, it’s time to restore power.
Flip the Circuit Breaker
Go back to your electrical panel and turn the doorbell breaker back to the ON position.
Check for Power
Wait about 30 seconds. The Google Doorbell Wired should power on automatically. You’ll see a light on the front:
- Solid white: Power is on, and it’s ready to connect.
- Blinking white: It’s in pairing mode.
- No light: There’s a problem—check wiring and voltage.
If there’s no light, go back and double-check your connections and voltage.
Step 8: Set Up the Doorbell in the Google Home App
The physical installation is done—now let’s get it connected to your phone.
Download the Google Home App
If you don’t already have it:
- Download “Google Home” from the App Store (iOS) or Google Play (Android).
- Sign in with your Google account.
Add the Doorbell
- Open the Google Home app.
- Tap the “+” icon in the top-left corner.
- Select “Set up device.”
- Choose “New device.”
- The app will search for nearby devices.
- When your doorbell appears, tap it.
Follow the On-Screen Instructions
The app will guide you through:
- Scanning the QR code on the doorbell (or entering the serial number manually).
- Connecting to your Wi-Fi network (2.4 GHz only—Google Doorbell Wired doesn’t support 5 GHz).
- Naming your doorbell (e.g., “Front Door”).
- Setting up motion zones and alerts.
Wi-Fi Tip: Make sure your router is within range. If the signal is weak, consider a Wi-Fi extender.
Test the Features
Once setup is complete:
- Press the doorbell button—you should hear a chime (if connected) and get a notification on your phone.
- Open the live view in the app to check video quality.
- Walk in front of the doorbell to test motion detection.
Step 9: Configure Chime and Notifications
Your Google Doorbell Wired can trigger both a physical chime and mobile notifications.
Connect to a Mechanical Chime (Optional)
If you have a traditional doorbell chime inside your home:
- Open the chime cover.
- Connect the two wires from the doorbell to the terminals (usually labeled “Front” or “Trans”).
- Use the included chime connector if needed.
Note: If you don’t have a chime or prefer silent alerts, you can disable the chime in the app.
Customize Notifications
In the Google Home app:
- Go to your doorbell settings.
- Tap “Notifications.”
- Choose when to receive alerts (e.g., when someone rings, when motion is detected).
- Set quiet hours to avoid disturbances at night.
Troubleshooting Common Issues
Even with careful installation, problems can happen. Here’s how to fix the most common ones.
Doorbell Won’t Power On
- Check the breaker: Make sure power is restored.
- Test voltage: Use a multimeter to confirm 16–24V at the wires.
- Inspect connections: Ensure wires are tight and not loose.
- Try a different transformer: If voltage is low, the transformer may be failing.
No Video or Poor Image Quality
- Check Wi-Fi signal: Move your router closer or use an extender.
- Clean the lens: Wipe with a soft, dry cloth.
- Adjust angle: Make sure the doorbell isn’t pointed at a bright light source.
Motion Alerts Not Working
- Enable motion detection: Go to settings in the Google Home app.
- Adjust sensitivity: Set to “High” if alerts are missed.
- Check motion zones: Draw zones to focus on walkways, not busy streets.
Doorbell Disconnects Frequently
- Restart the doorbell: Remove and reattach it to the bracket.
- Restart your router: Power cycle your Wi-Fi.
- Update the app: Make sure Google Home is up to date.
Maintenance Tips for Long-Term Performance
To keep your Google Doorbell Wired working smoothly:
- Clean the lens monthly: Use a microfiber cloth to remove dust and smudges.
- Check wiring annually: Ensure connections are tight and wires aren’t frayed.
- Update firmware: The app will notify you of updates—install them promptly.
- Test monthly: Ring the bell and check live view to confirm everything works.
Conclusion
Installing a Google Doorbell Wired is a smart upgrade that enhances your home’s security and convenience. With this guide, you’ve learned how to safely check compatibility, wire the device, mount it properly, and set it up in the Google Home app.
Remember: safety comes first. Always turn off the power, test voltage, and double-check connections. If you’re ever unsure, don’t hesitate to call a professional.
Once installed, your doorbell will give you peace of mind—letting you see who’s at the door, even when you’re miles away. Whether it’s a package delivery, a visitor, or just curious motion, you’ll always be in the know.
So go ahead—enjoy your new smart doorbell. You’ve earned it!
