How to Install Hampton Bay Doorbell Transformer
Upgrading or replacing your doorbell transformer might sound intimidating, but with the right tools and guidance, it’s a manageable DIY task—even for beginners. Whether your current doorbell is silent, your chime is weak, or you’re installing a new smart doorbell that requires more power, a properly installed Hampton Bay doorbell transformer can make all the difference.
In this comprehensive guide, you’ll learn exactly how to install a Hampton Bay doorbell transformer safely and correctly. We’ll cover everything from understanding what a doorbell transformer does, to choosing the right model, gathering your tools, and completing the installation step by step. By the end, you’ll have a reliable, hardwired doorbell system that works every time someone presses the button.
Let’s get started!
What Is a Doorbell Transformer?

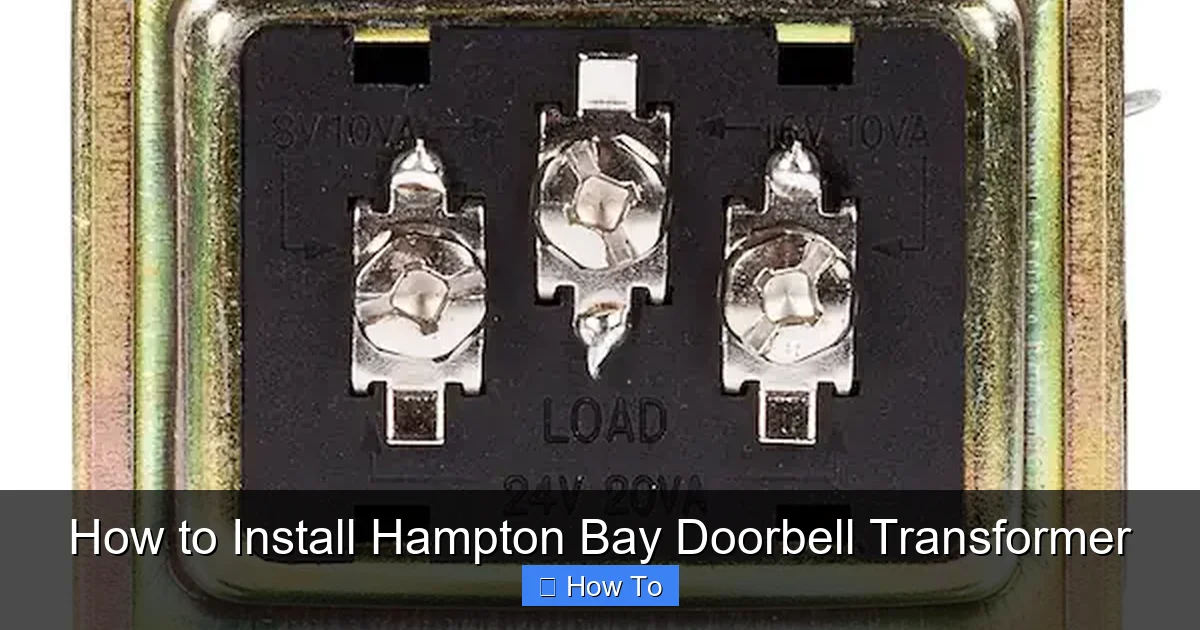

Visual guide about How to Install Hampton Bay Doorbell Transformer
Image source: images.thdstatic.com
Before diving into the installation, it’s important to understand what a doorbell transformer does. Simply put, a transformer converts your home’s standard 120-volt electrical current into a lower voltage—typically 8V, 16V, or 24V—that’s safe and suitable for your doorbell system.
Most Hampton Bay doorbells, including wired and some smart models, operate on 16 volts. The transformer acts as the power source, sending just enough electricity through the doorbell wires to activate the chime when the button is pressed. Without a working transformer, your doorbell won’t ring—no matter how many times you press the button.
Over time, transformers can fail due to age, power surges, or loose connections. If your doorbell has stopped working and new batteries (if applicable) don’t fix it, the transformer is often the culprit.
Why Choose Hampton Bay?
Hampton Bay is a trusted brand under The Home Depot, known for affordable, reliable home improvement products—including doorbells and their components. Their doorbell transformers are designed to be user-friendly, compact, and compatible with most standard doorbell systems.
One of the biggest advantages of Hampton Bay transformers is their plug-in design. Many models come with a built-in plug that connects directly into a standard electrical outlet, eliminating the need for complex hardwiring in some cases. This makes installation faster and safer, especially for DIYers who aren’t comfortable working inside electrical panels.
Additionally, Hampton Bay transformers are often pre-wired with color-coded leads (usually red and white), making it easy to connect them to your doorbell wires. They’re also UL-listed, meaning they meet safety standards set by Underwriters Laboratories.
Tools and Materials You’ll Need
Before you begin, gather all the necessary tools and materials. Having everything ready will save time and reduce frustration during the installation.
Here’s a checklist:
- Hampton Bay doorbell transformer (16V recommended for most models)
- Voltage tester (non-contact type)
- Screwdrivers (flathead and Phillips)
- Wire strippers
- Electrical tape
- Wire nuts (usually included with the transformer)
- Electrical outlet cover plate (if replacing an existing one)
- Drill and bits (optional, for mounting)
- Safety glasses and gloves
If you’re replacing an old transformer, you may also need a voltage meter to confirm the old unit is dead before removing it.
Step 1: Turn Off the Power
Safety is the most important part of any electrical project. Never attempt to install or replace a doorbell transformer while the power is on.
Locate Your Circuit Breaker
Go to your home’s main electrical panel (usually in the basement, garage, or utility closet). Look for the breaker that controls the doorbell circuit. It may be labeled “Doorbell,” “Chime,” or “Low Voltage.” If it’s not labeled, you may need to test breakers one by one.
Turn Off the Breaker
Switch the breaker to the “OFF” position. To be extra safe, use a non-contact voltage tester at the outlet where the transformer will plug in. Touch the tester to the outlet slots—if it beeps or lights up, the power is still on, and you need to find the correct breaker.
Double-Check with a Tester
Even after turning off the breaker, always test the outlet again. Electrical systems can be tricky, and sometimes circuits are mislabeled. Confirming zero voltage ensures you won’t get shocked.
Step 2: Choose the Right Location
Where you install the transformer matters. It needs to be close enough to your doorbell chime to connect easily, but also accessible for future maintenance.
Near the Chime Unit
Most doorbell chimes are mounted inside the house, usually in a hallway or entryway. The transformer should be installed within 6 to 10 feet of the chime for easy wiring.
Close to an Electrical Outlet
Since many Hampton Bay transformers plug directly into a wall outlet, choose a location near an existing outlet. Avoid using extension cords—they’re not safe for permanent installations.
Avoid Moisture and Heat
Don’t install the transformer in damp areas like basements with high humidity or near heating vents. Excess moisture or heat can damage the unit over time.
Accessible but Hidden
Ideally, mount the transformer in a spot that’s out of sight but still reachable—like behind a baseboard, inside a closet, or in a utility area. Some people install them inside the wall near the chime, but this requires more advanced skills and may not be code-compliant.
Step 3: Remove the Old Transformer (If Applicable)
If you’re replacing an existing transformer, you’ll need to remove it first.
Unplug or Disconnect
If your old transformer is plug-in type, simply unplug it from the outlet. If it’s hardwired, you’ll need to disconnect the wires from the electrical box.
Label the Wires
Before disconnecting anything, take a photo or label the wires with tape. Note which wire goes where—this will help when connecting the new transformer.
Remove Mounting Screws
Use a screwdriver to remove the screws holding the transformer in place. Carefully pull it out, making sure not to damage surrounding wires.
Inspect the Wiring
Check the condition of the existing doorbell wires. If they’re frayed, brittle, or damaged, consider replacing them with new 18- or 20-gauge low-voltage wire.
Step 4: Install the New Hampton Bay Transformer
Now it’s time to install your new transformer. Follow these steps carefully.
Plug-In vs. Hardwired Models
Hampton Bay offers both plug-in and hardwired transformers. The plug-in version is easier for most homeowners.
- Plug-in: Simply plug the transformer into a nearby outlet. The low-voltage wires connect directly to the transformer’s terminals.
- Hardwired: Requires connecting the transformer to your home’s electrical box. This method is more permanent and may require an electrician.
For this guide, we’ll focus on the plug-in model, which is the most common and user-friendly.
Mount the Transformer
Even though it’s plug-in, you should still secure the transformer to prevent it from dangling or getting pulled out.
- Use the included mounting bracket or screws to attach the transformer to a wall stud or electrical box.
- Make sure the outlet isn’t blocked and the transformer can plug in securely.
- If mounting inside a wall, ensure it’s in an accessible junction box and complies with local electrical codes.
Connect the Doorbell Wires
Now, connect the low-voltage wires from your doorbell system to the transformer.
- Strip about 1/2 inch of insulation from the ends of the doorbell wires using wire strippers.
- Locate the two terminals on the transformer—usually labeled “Front” and “Trans” or just two screw terminals.
- Loosen the screws slightly, insert the stripped wire ends, and tighten the screws to secure them.
- Most Hampton Bay transformers use red and white wires—red typically goes to “Front” (the doorbell button), and white to “Trans” (the chime).
Secure with Wire Nuts (If Needed)
If your transformer uses wire leads instead of direct terminals, twist the doorbell wires to the transformer leads and cover with wire nuts. Wrap the connection with electrical tape for extra security.
Step 5: Restore Power and Test
Once everything is connected, it’s time to test your work.
Turn the Power Back On
Go back to the circuit breaker and switch it to the “ON” position.
Plug In the Transformer
If using a plug-in model, plug it into the outlet. You should hear a faint click or see a small LED light (on some models), indicating power.
Test the Doorbell
Press the doorbell button outside. The chime should ring clearly and consistently.
- If it rings, great! Your installation is successful.
- If it doesn’t ring, double-check all connections.
- If the chime is weak or intermittent, the transformer may be underpowered or the wires may be loose.
Check Voltage (Optional)
Use a multimeter to test the voltage across the transformer terminals. It should read close to 16V AC. If it’s significantly lower, the transformer may be faulty or overloaded.
Troubleshooting Common Issues
Even with careful installation, problems can occur. Here’s how to fix the most common issues.
Doorbell Doesn’t Ring
- Check that the transformer is plugged in and the breaker is on.
- Verify wire connections are tight and not reversed.
- Test the doorbell button with a multimeter to ensure it’s working.
- Replace the chime unit if it’s old or damaged.
Chime Rings Weakly or Intermittently
- This often means the transformer is underpowered. Upgrade to a 24V model if your doorbell supports it.
- Check for loose or corroded wires.
- Ensure the transformer isn’t overloaded by multiple chimes or smart devices.
Transformer Gets Hot
- A warm transformer is normal, but if it’s hot to the touch, it may be overloaded or defective.
- Unplug it immediately and check the wiring.
- Replace with a higher-capacity model if needed.
Buzzing or Humming Sound
- This can indicate a loose connection or incompatible voltage.
- Recheck all wire connections and ensure the transformer matches your doorbell’s voltage requirement.
Safety Tips and Best Practices
Working with electricity always carries risks. Follow these safety tips to protect yourself and your home.
- Always turn off power at the breaker before starting.
- Use a voltage tester to confirm power is off.
- Wear safety glasses and gloves.
- Don’t work in wet or damp conditions.
- Never force wires or connections.
- If you’re unsure at any point, consult a licensed electrician.
When to Call a Professional
While many homeowners can install a doorbell transformer themselves, some situations call for professional help.
- You’re not comfortable working with electrical systems.
- The transformer needs to be hardwired into a junction box.
- You’re installing a smart doorbell with complex wiring requirements.
- Your home has older wiring that may not support modern doorbells.
- You’re unsure about local electrical codes.
A licensed electrician can ensure the installation is safe, code-compliant, and reliable.
Conclusion
Installing a Hampton Bay doorbell transformer is a practical and rewarding DIY project that can restore functionality to your doorbell system. With the right tools, careful planning, and attention to safety, you can complete the job in under an hour.
