Installing a hardwired transformer for your Video Doorbell Pro ensures reliable power and optimal performance. This guide walks you through every step—from choosing the right transformer to wiring and testing—so you can complete the job safely and confidently.
Key Takeaways
- Choose the correct transformer: Your Video Doorbell Pro requires a 16-24V AC transformer with at least 30VA power output for consistent performance.
- Turn off power at the breaker: Always shut off electricity at the main panel before working on any wiring to prevent shocks or damage.
- Use proper tools and safety gear: A voltage tester, screwdrivers, wire strippers, and insulated gloves are essential for a safe installation.
- Follow local electrical codes: Check with your local building authority to ensure compliance, especially if you’re near a street or in a historic district.
- Test the system before finalizing: After installation, power up and test the doorbell to confirm it’s receiving adequate voltage and functioning properly.
- Consider professional help if unsure: If you’re not comfortable working with electrical systems, hire a licensed electrician to avoid risks.
- Maintain your setup: Periodically check connections and transformer output to ensure long-term reliability.
How to Install Hardwired Transformer for Video Doorbell Pro
So, you’ve got your shiny new Video Doorbell Pro, and you’re ready to upgrade your home security. But wait—your current doorbell setup might not be cutting it. Most older doorbells run on low-voltage systems that simply can’t power advanced features like HD video, night vision, and two-way audio. That’s where a hardwired transformer comes in.
Installing a hardwired transformer for your Video Doorbell Pro ensures it gets the steady, reliable power it needs to function at its best. Unlike battery-powered models, a hardwired connection means no more frequent recharging or unexpected outages. Plus, you’ll enjoy uninterrupted live streaming and motion alerts—no more missing that package delivery because your doorbell died.
In this guide, we’ll walk you through the entire process of installing a hardwired transformer for your Video Doorbell Pro. Whether you’re a DIY enthusiast or just looking to understand what’s involved before calling a pro, we’ve got you covered. We’ll explain what tools you need, how to choose the right transformer, and how to wire everything safely and correctly. By the end, you’ll have a powered-up doorbell that’s ready to protect your home 24/7.
Let’s get started.
Why You Need a Hardwired Transformer

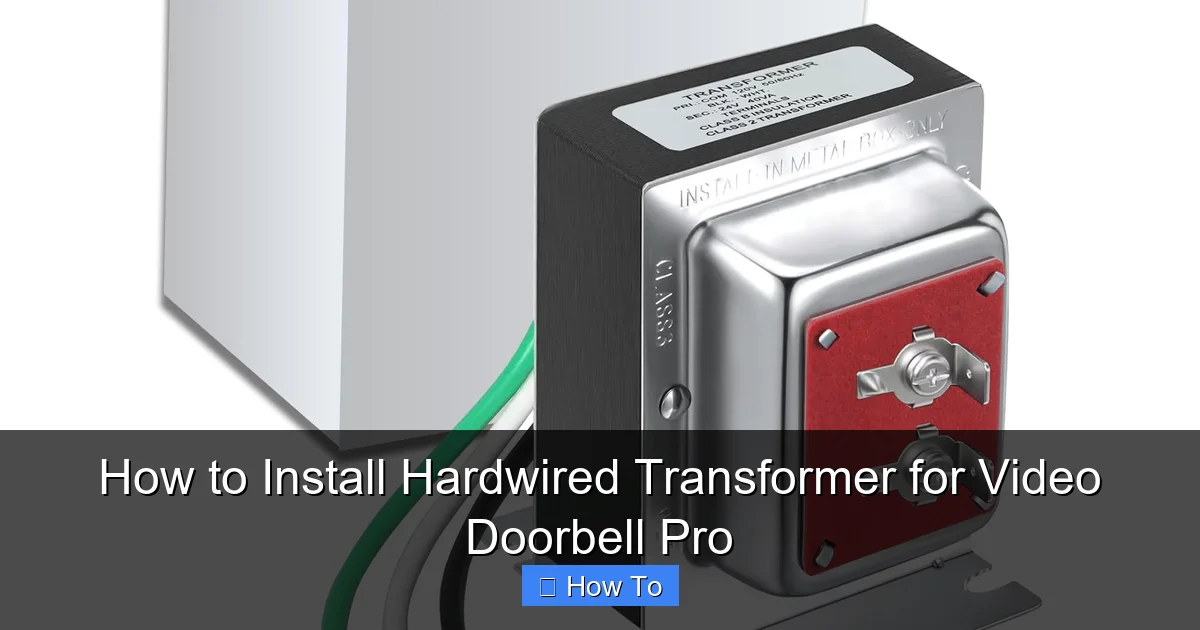

Visual guide about How to Install Hardwired Transformer for Video Doorbell Pro
Image source: images-na.ssl-images-amazon.com
Before diving into the installation, it’s important to understand why a hardwired transformer is essential for your Video Doorbell Pro.
Most traditional doorbells use a low-voltage system powered by a small transformer that steps down your home’s 120V AC power to around 8–16V AC. While this works for simple mechanical chimes, modern smart doorbells like the Video Doorbell Pro demand more power. They need a consistent 16–24V AC supply with at least 30VA (volt-amperes) to support features like high-definition video recording, Wi-Fi connectivity, and real-time alerts.
If your existing transformer is underpowered or outdated, your doorbell may:
– Fail to charge properly (if using a hybrid battery/wired model)
– Experience frequent disconnections from Wi-Fi
– Show dim or flickering video
– Trigger false motion alerts
– Shut down unexpectedly
A dedicated hardwired transformer eliminates these issues by providing stable, sufficient power directly to your doorbell. It also future-proofs your setup—so if you ever upgrade to a more advanced model, you won’t need to rewire.
Tools and Materials You’ll Need
Before you begin, gather all the necessary tools and materials. Having everything ready will save time and reduce frustration during installation.
Here’s what you’ll need:
- New 16–24V AC transformer (30VA or higher): Look for a UL-listed transformer designed for doorbell systems. Popular brands include Nutone, Heath/Zenith, and DoorBird.
- Voltage tester (non-contact): To confirm power is off before working.
- Screwdrivers (flathead and Phillips): For removing covers and securing wires.
- Wire strippers: To remove insulation from wire ends.
- Electrical tape: For insulating connections.
- Wire nuts (usually included with transformer): To secure wire connections.
- Electrical box (if not already present): A junction box to house the transformer safely.
- Fish tape or flexible drill bit (optional): If you need to run new wires through walls.
- Safety gear: Insulated gloves and safety glasses.
Pro tip: If you’re replacing an old transformer, bring it to the hardware store to match the voltage and mounting style.
Step 1: Turn Off the Power
Safety first! Working with electricity can be dangerous if you don’t take the right precautions.
Locate Your Electrical Panel
Head to your home’s main electrical panel (also called the breaker box). It’s usually in the basement, garage, or utility closet.
Find the Doorbell Circuit
Look for a breaker labeled “doorbell,” “chime,” or something similar. If there isn’t a label, you may need to test circuits by turning them off one at a time and checking if your existing doorbell stops working.
Turn Off the Breaker
Switch the breaker to the “OFF” position. Use a non-contact voltage tester at the doorbell chime or transformer location to confirm there’s no power. The tester should not light up or beep.
Never skip this step. Even low-voltage systems can cause shocks or damage equipment if live.
Step 2: Remove the Old Transformer (If Applicable)
If you already have a transformer installed, you’ll need to remove it before installing the new one.
Access the Transformer
Most transformers are mounted inside the electrical panel, in a junction box near the chime, or inside the attic. Locate yours and remove the cover.
Disconnect the Wires
Use your screwdriver to loosen the terminal screws holding the wires. Typically, you’ll see two wires: one from the doorbell button and one going to the chime. Carefully pull them free.
Unmount the Old Transformer
Unscrew the transformer from its mounting bracket or electrical box. Set it aside—you can recycle it or keep it as a spare.
Step 3: Choose the Right Transformer
Not all transformers are created equal. Using the wrong one can damage your doorbell or cause poor performance.
Check Voltage and Power Rating
Your Video Doorbell Pro requires:
– Voltage: 16–24V AC
– Power: Minimum 30VA (volt-amperes)
Avoid transformers labeled “8V” or “10V”—they’re too weak. Also, don’t use DC transformers—your doorbell needs alternating current (AC).
Look for UL Listing
Always choose a transformer that’s UL-listed or certified by a recognized safety organization. This ensures it meets electrical safety standards.
Consider Mounting Style
Transformers come in different styles:
– Panel-mounted: Installs directly into your breaker box (common in newer homes).
– Junction box-mounted: Fits inside a standard electrical box (ideal for retrofits).
– Plug-in: Plugs into an outlet (not recommended for permanent hardwired setups).
For a clean, permanent installation, go with a junction box-mounted transformer.
Step 4: Install the New Transformer
Now it’s time to install your new transformer. We’ll cover the most common setup: mounting in a junction box near your doorbell chime.
Mount the Transformer
If you don’t already have a junction box, install one in a convenient location—ideally close to your doorbell chime or electrical panel. Use screws to secure the transformer to the box.
Connect the Line Wires
Your transformer has two input terminals labeled “LINE” or “HOT” and “NEUTRAL.” These connect to your home’s 120V power supply.
– Strip about ½ inch of insulation from the ends of the black (hot) and white (neutral) wires.
– Connect the black wire to the “HOT” terminal and the white wire to the “NEUTRAL” terminal.
– Tighten the screws securely.
Connect the Low-Voltage Wires
The output side has two terminals labeled “DOORBELL” or “LOW VOLTAGE.” These will connect to your doorbell circuit.
– Strip the ends of the two low-voltage wires (usually red and white or black and white).
– Connect one wire to each terminal. Polarity doesn’t matter for AC doorbells.
– Secure with wire nuts if needed.
Secure All Connections
Double-check that all wires are tight and insulated. Use electrical tape over wire nuts for extra safety. Close the junction box cover.
Step 5: Run Wires to the Doorbell (If Needed)
If your existing wires are damaged or too short, you may need to run new ones from the transformer to the doorbell location.
Plan the Route
Trace the shortest path from the transformer to your front door. Avoid areas with moisture, heat, or sharp edges.
Use Fish Tape for Walls
If running wires through walls, use a fish tape to pull the wire from one point to another. You may need to drill small holes in studs or baseboards.
Leave Extra Length
Leave about 6–12 inches of extra wire at both ends for easier connections.
Secure Wires
Use staples or cable clips to secure the wire along the route. Don’t over-tighten—this can damage the insulation.
Step 6: Connect the Doorbell
With the transformer installed and wires in place, it’s time to connect your Video Doorbell Pro.
Remove the Old Doorbell Button
Unscrew the existing doorbell button from the wall. Disconnect the wires and set it aside.
Connect the New Wires
Strip the ends of the two wires coming from the transformer. Attach them to the terminals on the back of your Video Doorbell Pro. Again, polarity doesn’t matter.
Mount the Doorbell
Use the included mounting bracket and screws to secure the doorbell to the wall. Make sure it’s level and angled slightly toward the walkway for better motion detection.
Attach the Faceplate
Snap the faceplate onto the doorbell. Ensure it’s secure and aligned properly.
Step 7: Restore Power and Test
You’re almost done! Now it’s time to power up and test your setup.
Turn the Breaker Back On
Go to your electrical panel and switch the breaker back to “ON.”
Check the Transformer
Listen for a soft hum—this indicates the transformer is working. Use your voltage tester to confirm output at the doorbell terminals. You should see 16–24V AC.
Test the Doorbell
Open the companion app on your phone and follow the setup instructions. The doorbell should power on, connect to Wi-Fi, and display a live video feed.
Test the Chime (If Applicable)
Press the doorbell button. Your indoor chime should ring. If not, double-check wire connections at the chime and transformer.
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here’s how to fix the most common ones.
Doorbell Won’t Power On
– Check that the breaker is on.
– Use a voltage tester to confirm the transformer is outputting 16–24V AC.
– Ensure all wire connections are tight and secure.
– Try swapping the low-voltage wires at the doorbell (sometimes polarity matters on certain models).
Weak or Flickering Video
– This usually indicates insufficient power. Verify your transformer is 30VA or higher.
– Check for loose or corroded connections.
– Avoid using extension cords or long wire runs that can cause voltage drop.
Chime Doesn’t Ring
– Confirm the chime is compatible with your doorbell model.
– Check wiring at the chime unit—loose connections are common.
– Some smart doorbells bypass the mechanical chime. Use a digital chime or the app notification instead.
Overheating Transformer
– This could mean the transformer is undersized or overloaded.
– Ensure it’s rated for at least 30VA.
– Make sure it’s mounted in a well-ventilated area—not enclosed in a tight box.
Wi-Fi Connectivity Issues
– Poor signal can mimic power problems. Move your router closer or use a Wi-Fi extender.
– Ensure the doorbell is within range of your network.
– Restart the doorbell and router if needed.
Safety Tips and Best Practices
Working with electricity requires caution. Follow these tips to stay safe and ensure a successful installation.
- Always turn off power at the breaker before starting. Never assume a circuit is dead—test it.
- Use insulated tools and wear safety gear. Gloves and glasses protect against shocks and debris.
- Don’t overload the transformer. If you plan to add more devices (like a second doorbell), ensure the transformer can handle the total load.
- Label your wires. Use tape or markers to identify which wire goes where—this prevents confusion later.
- Keep the area dry. Never work on electrical systems in wet conditions.
- Follow local codes. Some areas require permits for electrical work. When in doubt, consult a professional.
When to Call a Professional
While many homeowners can handle this installation, there are times when it’s best to call a licensed electrician.
Consider professional help if:
– You’re not comfortable working with electrical systems.
– Your home has complex wiring or aluminum wires (which require special handling).
– You need to run new wires through finished walls or ceilings.
– The installation requires modifying your electrical panel.
– You’re unsure about local building codes.
A qualified electrician can ensure the job is done safely, correctly, and up to code—giving you peace of mind and potentially increasing your home’s value.
Maintaining Your Hardwired Doorbell System
Once installed, your hardwired doorbell should require minimal maintenance. But a little care goes a long way.
- Check connections annually. Vibration and temperature changes can loosen wires over time.
- Clean the doorbell lens. Use a soft, dry cloth to remove dust and smudges for clear video.
- Test the system monthly. Press the button and verify the chime and app notifications work.
- Monitor transformer temperature. If it feels hot to the touch, it may be overloaded or failing.
- Update firmware regularly. Keep your doorbell’s software current for security and performance improvements.
Conclusion
Installing a hardwired transformer for your Video Doorbell Pro is a smart upgrade that enhances reliability, performance, and convenience. By providing steady power, you ensure your doorbell can deliver crisp video, instant alerts, and seamless connectivity—no more worrying about dead batteries or weak signals.
While the process involves working with electricity, following this guide step by step makes it manageable for most DIYers. Just remember: safety comes first. Turn off the power, use the right tools, and don’t hesitate to call a pro if you’re unsure.
With your new transformer in place, you’ll enjoy a smarter, safer home—one ring at a time.
