Installing a Nest Doorbell Chime is easier than you think. This guide walks you through every step—from checking compatibility to testing the chime—so you can enjoy reliable doorbell alerts at home.
Key Takeaways
- Check compatibility first: Ensure your existing doorbell wiring and voltage meet Nest’s requirements before starting.
- Turn off power safely: Always shut off power at the breaker to avoid electrical shock during installation.
- Use the Nest app for guidance: The official app provides real-time setup instructions and helps verify connections.
- Test the chime after install: Confirm the chime rings properly and adjust volume or tone in the app if needed.
- Keep tools handy: A screwdriver, voltage tester, and wire strippers make the process smoother.
- Troubleshoot common issues: If the chime doesn’t work, check wiring, power, and app settings before calling support.
- Enjoy smart features: Once installed, use motion alerts, live video, and two-way audio through the Nest app.
How to Install Nest Doorbell Chime: A Complete Step-by-Step Guide
So, you’ve got your shiny new Nest Doorbell—congratulations! But wait… where’s the chime? If you’re replacing an old wired doorbell or upgrading to a smart system, you’ll likely need to install a Nest Doorbell Chime (also known as the Nest Chime Connector or Chime Transformer Kit). Don’t worry—it’s not as scary as it sounds. In fact, with the right tools and this guide, you can have it up and running in under an hour.
In this comprehensive how-to, we’ll walk you through everything you need to know about installing a Nest Doorbell Chime. Whether you’re a DIY beginner or a seasoned home improver, we’ve got you covered. You’ll learn how to check compatibility, safely turn off power, connect wires, configure the Nest app, and troubleshoot common issues. By the end, your doorbell will not only ring when someone presses the button—it’ll also send you instant alerts, show live video, and let you talk to visitors from anywhere.
Let’s get started!
What Is a Nest Doorbell Chime?

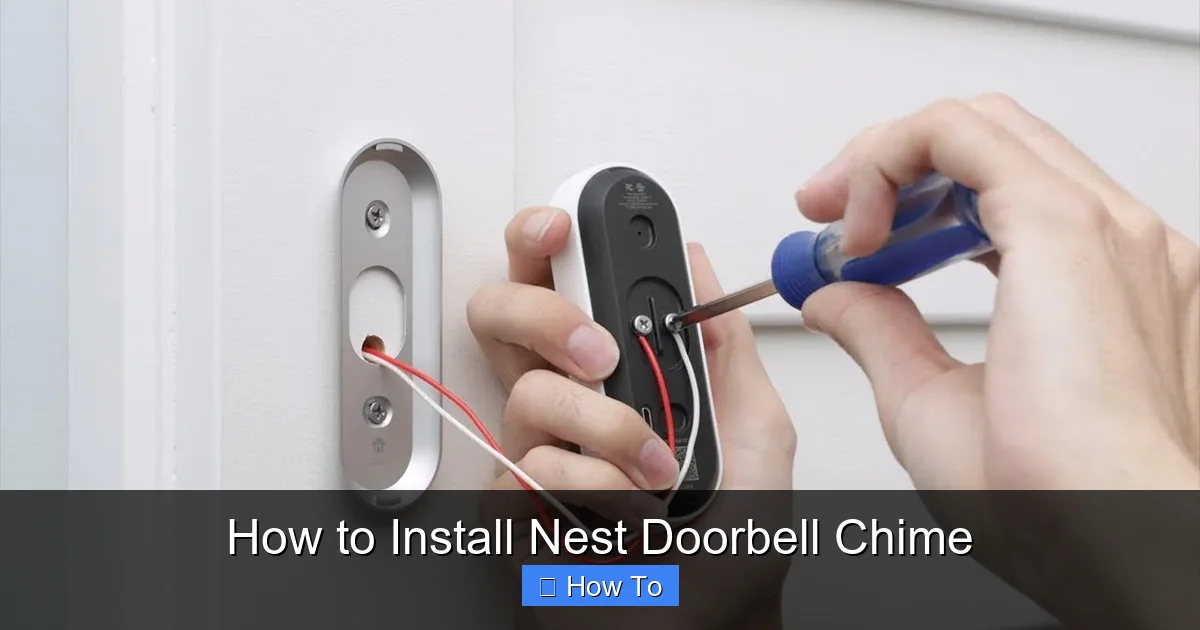

Visual guide about How to Install Nest Doorbell Chime
Image source: i.ytimg.com
Before diving into installation, it’s important to understand what the Nest Doorbell Chime actually does. Unlike traditional doorbells that rely solely on a mechanical chime inside your wall, the Nest Doorbell uses a digital chime system that connects to your home’s Wi-Fi and works with the Nest app.
The Nest Doorbell Chime (officially called the “Nest Chime Connector”) is a small device that replaces your existing doorbell chime module. It communicates with your Nest Doorbell (wired models like the Nest Doorbell (2nd gen) or Nest Hello) and triggers both an audible chime inside your home and a notification on your phone.
Think of it as the bridge between your physical doorbell button and your smart home ecosystem. Without it, your wired Nest Doorbell won’t be able to ring your indoor chime—even if it’s connected to power and Wi-Fi.
Do You Need a Nest Doorbell Chime?
Not everyone needs to install a separate chime. Here’s how to tell if you do:
– **You have a wired Nest Doorbell (not battery-powered):** Battery-powered Nest Doorbells (like the Nest Doorbell (battery)) don’t require a chime connector because they use wireless communication.
– **You want an indoor chime sound:** If you still want to hear a traditional “ding-dong” inside your home (in addition to phone alerts), you’ll need the chime connector.
– **Your existing chime isn’t compatible:** Some older chime boxes don’t work with Nest’s low-voltage requirements. The Nest Chime Connector ensures compatibility.
If you’re unsure, check your current doorbell setup. Open the chime box (usually located near your front door or in a basement). If it has two wires connected and looks like a small rectangular box with terminals, you likely have a standard mechanical chime that can be replaced.
Tools and Materials You’ll Need
Before you begin, gather these essentials:
– Nest Doorbell Chime Connector (sold separately or included in some kits)
– Phillips-head screwdriver
– Flat-head screwdriver (optional, for prying)
– Voltage tester (non-contact type recommended)
– Wire strippers (if wires need trimming)
– Electrical tape
– Smartphone with the Nest app installed
– Ladder (if your doorbell is high up)
– Work gloves (for safety)
Pro tip: If you’re not comfortable working with electrical wiring, consider hiring a licensed electrician. Safety first!
Step 1: Check Compatibility and Power Requirements
Not all doorbell systems are created equal. Nest Doorbell Chimes require specific voltage and wiring setups to function properly.
Check Your Doorbell Transformer
The transformer is the device that steps down your home’s 120V power to a safer 16–24V for the doorbell. It’s usually located in your basement, garage, or electrical panel.
Use a voltage tester to check the voltage at your existing chime terminals. Nest recommends:
– **Voltage:** 16–24V AC
– **Power:** At least 10VA (volt-amperes)
If your transformer outputs less than 16V, the Nest Chime Connector may not work reliably. You might need to upgrade your transformer—something best done by an electrician.
Verify Wiring
Your doorbell should have two wires running from the button to the chime: one labeled “Front” (or “Trans”) and one labeled “Trans” (or “Common”). These connect to the chime box.
If you only have one wire, or if your system uses a digital or wireless chime, the Nest Chime Connector may not be compatible. In such cases, consider using the Nest Doorbell (battery) instead.
Step 2: Turn Off Power at the Breaker
Safety is non-negotiable when working with electricity.
Locate Your Electrical Panel
Find your home’s main electrical panel (breaker box). Look for the circuit that controls your doorbell. It’s often labeled “Doorbell,” “Front Door,” or “Low Voltage.” If not labeled, turn off circuits one by one and test the doorbell until it stops working.
Switch Off the Breaker
Flip the correct breaker to the “OFF” position. Use your voltage tester at the chime terminals to confirm no power is flowing. The tester should not light up or beep.
Pro tip: Place a piece of tape over the breaker switch with a note like “Do not turn on—working on doorbell.” This prevents someone from accidentally restoring power while you’re working.
Step 3: Remove the Old Chime Box
Now it’s time to take out the old chime.
Unscrew the Cover
Use a screwdriver to remove the front cover of your existing chime box. Most covers are held in place by two screws at the top and bottom.
Disconnect the Wires
You’ll see two wires connected to terminals—usually labeled “Front” and “Trans.” Loosen the screws and gently pull the wires free. Label them with tape if needed (e.g., “Front Wire,” “Trans Wire”) to avoid confusion later.
Remove the Old Chime
Unscrew the chime box from the wall or junction box. Carefully pull it out, making sure not to damage the wires or wall.
Step 4: Install the Nest Doorbell Chime Connector
Now for the fun part—setting up the Nest Chime Connector.
Prepare the Wires
If the wire ends are frayed or too short, use wire strippers to expose about 1/4 inch of copper. Twist the strands gently to keep them neat.
Connect the Wires
The Nest Chime Connector has two terminal screws: “Front” and “Trans.” Match the wires from your wall to these terminals:
– Connect the wire that was on “Front” to the “Front” terminal on the Nest connector.
– Connect the wire that was on “Trans” to the “Trans” terminal.
Tighten the screws securely. Loose connections can cause the chime to fail or behave erratically.
Secure the Connector
Mount the Nest Chime Connector inside the wall box or junction box using the provided screws. Make sure it’s snug and won’t rattle when the chime rings.
Tuck Wires Neatly
Gently push any excess wire back into the wall to avoid pinching. Close the cover if your junction box has one.
Step 5: Restore Power and Test
You’re almost done!
Turn the Breaker Back On
Go to your electrical panel and flip the breaker back to “ON.” Wait a few seconds for the system to power up.
Test the Chime
Press your doorbell button. You should hear a chime from the Nest connector. If it doesn’t ring:
– Double-check wire connections.
– Ensure the breaker is on.
– Verify voltage with your tester.
If the chime rings but sounds weak or distorted, the voltage may be too low. Consider upgrading your transformer.
Step 6: Set Up the Nest App
The Nest app is your command center for all things Nest.
Download and Open the App
If you haven’t already, download the Nest app from the Apple App Store or Google Play. Sign in with your Google account.
Add Your Doorbell
Tap the “+” icon and select “Add product.” Follow the on-screen prompts to scan the QR code on your Nest Doorbell or enter the serial number manually.
Connect to Wi-Fi
The app will guide you through connecting your doorbell to your home Wi-Fi network. Make sure you’re on a 2.4GHz network (Nest Doorbells don’t support 5GHz-only networks).
Complete Setup
Follow the remaining steps to name your doorbell, set up motion zones, and enable notifications. The app will also confirm that the chime is working.
Step 7: Customize Your Chime Settings
Once everything is connected, personalize your experience.
Adjust Chime Volume and Tone
In the Nest app, go to your doorbell settings and select “Chime.” You can choose from different tones (e.g., classic ding-dong, modern beep) and adjust the volume.
Set Quiet Hours
Want peace at night? Enable “Quiet Hours” to silence the chime during specific times (e.g., 10 PM to 7 AM). You’ll still get phone alerts, but no indoor noise.
Enable Smart Alerts
Turn on person, package, and motion detection so you’re only notified when it matters. You can even create custom activity zones to ignore motion from busy streets.
Troubleshooting Common Issues
Even with careful installation, problems can happen. Here’s how to fix the most common ones.
Chime Doesn’t Ring
– **Check power:** Ensure the breaker is on and voltage is 16–24V.
– **Inspect wires:** Loose or reversed connections are a common culprit.
– **Test transformer:** Use a multimeter to confirm output.
– **Restart the app:** Force-close and reopen the Nest app.
Chime Rings Randomly
– **Loose wiring:** Tighten all connections.
– **Low voltage:** Upgrade your transformer if below 16V.
– **Interference:** Keep the chime away from large metal objects or electrical panels.
No Sound or Weak Sound
– **Volume settings:** Increase volume in the app.
– **Faulty connector:** Try resetting the chime by unplugging power for 30 seconds.
– **Old transformer:** Replace if it’s more than 10 years old.
App Shows “Chime Not Detected”
– **Re-pair the device:** Remove and re-add your doorbell in the app.
– **Update firmware:** Ensure your doorbell and app are up to date.
– **Check Wi-Fi:** A weak signal can disrupt communication.
Safety Tips and Best Practices
– Always turn off power before touching wires.
– Use a non-contact voltage tester to confirm no current is present.
– Don’t force wires—gentle handling prevents damage.
– Keep the Nest app updated for the latest features and security patches.
– If in doubt, consult a professional electrician.
Conclusion
Installing a Nest Doorbell Chime might seem intimidating at first, but with the right preparation and this guide, it’s a straightforward DIY project. From checking compatibility to customizing chime tones, every step brings you closer to a smarter, safer home.
Remember: safety comes first. Always turn off power, double-check connections, and use the Nest app to verify everything is working. Once installed, you’ll enjoy the convenience of smart alerts, live video, and two-way audio—all while still hearing that satisfying “ding-dong” when someone’s at the door.
So grab your tools, follow these steps, and say hello to your new smart doorbell setup. Welcome to the future of home security!
