Installing a Nest Doorbell transformer ensures your smart doorbell gets the right power to function reliably. This guide walks you through every step—from checking your current setup to testing your new transformer—so you can complete the job safely and confidently.
Key Takeaways
- Check your existing doorbell voltage first: Most older doorbells run on 8–16V, but Nest Doorbells need at least 16–24V AC to work properly.
- Turn off power at the breaker: Always shut off electricity before working on wiring to prevent shocks or damage.
- Use a compatible transformer: Nest recommends a 16–24V AC transformer with at least 20VA (volt-ampere) output.
- Mount the transformer near your chime or electrical panel: It should be close to an outlet and accessible for future maintenance.
- Test the doorbell after installation: Use the Nest app to confirm power and connectivity before finishing up.
- Call an electrician if unsure: If you’re not comfortable with electrical work, professional help ensures safety and compliance.
- Label wires during removal: Taking photos or using tape labels prevents confusion when reconnecting.
Introduction: Why You Might Need a New Transformer for Your Nest Doorbell
So, you’ve just unboxed your shiny new Nest Doorbell—maybe the wired version—and you’re ready to upgrade your home security. But wait… when you try to install it, the app says “low power” or “insufficient voltage.” Frustrating, right?
That’s because many older homes have doorbell transformers that deliver only 8–12 volts, which isn’t enough to power modern smart doorbells like the Nest Doorbell (wired). These devices need more juice—specifically, **16 to 24 volts AC**—to run their cameras, Wi-Fi radios, and motion sensors reliably.
The good news? Installing a new Nest Doorbell transformer is totally doable for most DIYers—if you follow the right steps and stay safe. In this guide, we’ll walk you through everything you need to know: from diagnosing your current setup to mounting the new transformer and testing your doorbell. Whether you’re a weekend warrior or a first-time installer, you’ll finish this project feeling confident and secure.
By the end of this guide, you’ll understand:
– How to test your existing doorbell voltage
– What kind of transformer you need
– Step-by-step wiring instructions
– Safety best practices
– How to troubleshoot common issues
Let’s get started!
What Is a Doorbell Transformer—and Why Does Your Nest Doorbell Need One?

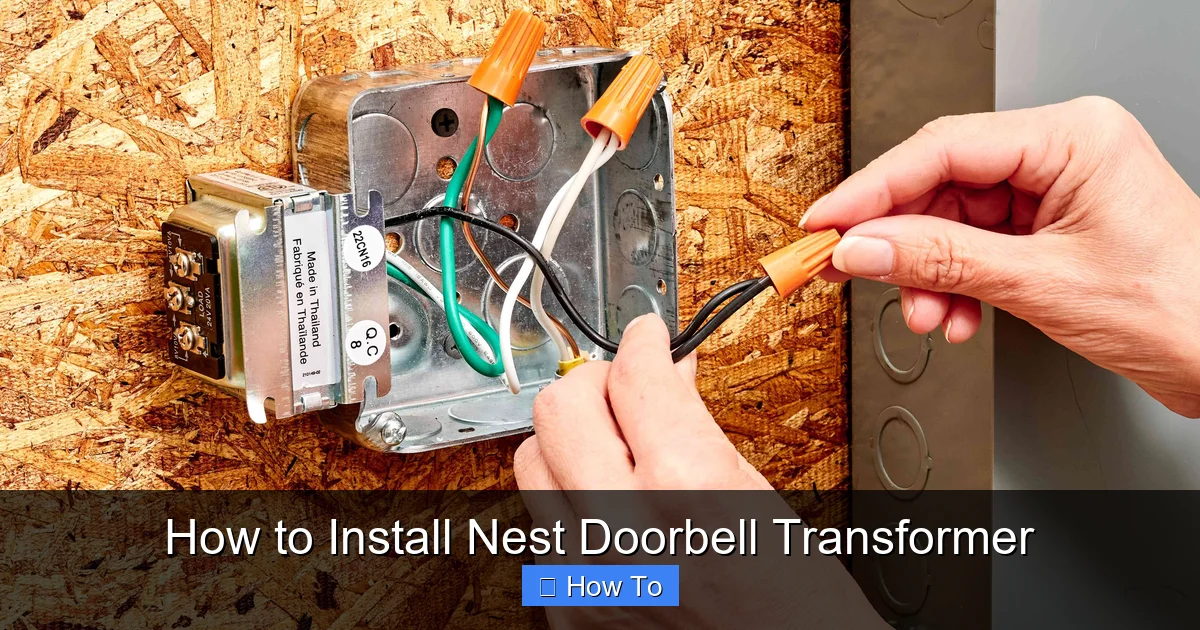

Visual guide about How to Install Nest Doorbell Transformer
Image source: thespruce.com
Before diving into installation, it helps to understand what a doorbell transformer actually does.
A doorbell transformer is a small electrical device that steps down your home’s standard 120-volt household current to a much safer, lower voltage (usually 8–24V AC) used by doorbells. It’s typically mounted inside your mechanical chime box, inside a junction box near your front door, or even inside your electrical panel.
Why does this matter for your Nest Doorbell? Unlike traditional mechanical doorbells that just ring a bell, smart doorbells like the Nest model include high-definition cameras, two-way audio, night vision, and constant Wi-Fi connectivity. All these features require significantly more power than a simple chime.
Nest officially recommends a **16–24V AC transformer with a minimum output of 20VA (volt-amperes)**. If your current transformer delivers less than 16V, your doorbell may:
– Fail to turn on
– Disconnect from Wi-Fi frequently
– Show “low power” warnings in the app
– Drain its backup battery quickly (if applicable)
So, even if your old doorbell worked fine, your Nest Doorbell likely needs an upgrade.
Tools and Materials You’ll Need
Before you begin, gather these essentials:
- New doorbell transformer (16–24V AC, 20VA or higher—see recommendations below)
- Voltage tester or multimeter (to check existing voltage)
- Screwdrivers (Phillips and flathead)
- Wire strippers
- Electrical tape
- Wire nuts (wire connectors)
- Pencil or marker (for labeling)
- Smartphone with Nest app installed
- Safety glasses and gloves (optional but recommended)
Recommended Transformers:
– Hampton Bay 16V 30VA Plug-In Transformer (great for indoor chime boxes)
– Heath Zenith SDRT-1615C (hardwired, 16V 15VA—good for basic setups)
– Intermatic EN24H (24V 20VA—ideal for high-demand smart doorbells)
Always double-check compatibility with your specific Nest Doorbell model (e.g., Nest Doorbell Wired vs. Nest Doorbell Battery). The wired version absolutely requires proper transformer voltage.
Step 1: Turn Off Power and Verify It’s Off
Safety first! Working with electricity can be dangerous if you skip this step.
Locate Your Circuit Breaker
Most doorbell circuits are on a dedicated 15-amp or 20-amp breaker labeled “Doorbell,” “Chime,” or “Front Door.” If you don’t see a label, you may need to test breakers one by one (see below).
Turn Off the Breaker
Flip the correct breaker to the OFF position. To be extra safe, also unplug any plug-in transformers if your system uses one.
Verify Power Is Off
Use a non-contact voltage tester or multimeter to check the wires at your doorbell chime or existing transformer. Touch the probes to the terminals—if the tester beeps or lights up, power is still on. Never assume it’s off!
Pro Tip: Take a photo of your current wiring setup before disconnecting anything. This will help you reconnect wires correctly later.
Step 2: Test Your Existing Doorbell Voltage
Now let’s find out if your current transformer is the culprit.
Access Your Doorbell Chime or Transformer
Remove the cover of your indoor doorbell chime (usually held by two screws). You should see two low-voltage wires connected to terminals labeled “Front” and “Trans” (or similar).
Set Up Your Multimeter
Turn your multimeter to the AC voltage setting (usually marked “V~”). Insert the red probe into the “V” port and the black probe into “COM.”
Measure the Voltage
Touch the probes to the two screw terminals where the doorbell wires connect. Make sure the doorbell button isn’t pressed (which would complete the circuit and give a false reading).
– If you read **below 16V**, your transformer is underpowered.
– If you read **16–24V**, your transformer might be fine—but could still be failing under load.
– If you read **0V**, the transformer may be dead or disconnected.
Note: Some older homes use 6V or 8V transformers—common in homes built before the 1990s. These won’t cut it for Nest.
If your voltage is too low, it’s time to install a new transformer.
Step 3: Choose the Right Location for Your New Transformer
You have two main options for mounting your new transformer:
Option A: Inside the Doorbell Chime Box
This is the cleanest and most common approach—if there’s enough space. Many modern chime boxes have room for a plug-in or hardwired transformer.
Pros: Hidden, no extra wiring, easy access
Cons: Limited space; may not fit larger transformers
Option B: Near Your Electrical Panel or in a Junction Box
If your chime box is too small or crowded, mount the transformer near your main electrical panel or in an accessible junction box in your basement, attic, or garage.
Pros: More space, better ventilation
Cons: Requires running new low-voltage wires (more work)
Important: The transformer must be within 6–8 feet of an electrical outlet if it’s a plug-in model. Hardwired models connect directly to your home’s 120V circuit.
Avoid placing transformers in damp areas (like outdoors without weatherproofing) or inside sealed walls.
Step 4: Install the New Transformer
Now for the main event! We’ll cover both plug-in and hardwired installations.
For Plug-In Transformers (Easiest Method)
1. Plug the transformer into a nearby GFCI-protected outlet (often inside the chime box or garage).
2. Route the low-voltage wires from the transformer to your doorbell chime.
3. Connect the two wires to the “Trans” terminals on your chime (polarity doesn’t matter for AC).
4. Secure all connections with wire nuts and electrical tape.
For Hardwired Transformers (More Permanent)
1. Mount the transformer securely using screws (follow manufacturer instructions).
2. Turn off the main power at the breaker panel again (double-check!).
3. Run a new 14/2 or 12/2 NM electrical cable from the breaker panel to the transformer location.
4. Connect the black (hot) and white (neutral) wires to the corresponding terminals on the transformer’s input side.
5. Connect the ground wire to the green grounding screw.
6. On the output side, connect two low-voltage wires (typically 18-gauge) to the transformer’s terminals.
7. Run these wires to your doorbell chime and connect them to the “Trans” terminals.
Safety Reminder: Only attempt hardwiring if you’re confident working inside your electrical panel. When in doubt, hire a licensed electrician.
Step 5: Reconnect Your Doorbell Wires
With your new transformer in place, it’s time to hook everything back up.
Label Your Wires (If You Haven’t Already)
Use tape and a marker to label the wires from your doorbell button (“Front”) and chime (“Trans”). This prevents mix-ups.
Reattach Wires to the Chime
– Connect the wire from your front doorbell button to the “Front” terminal.
– Connect the two wires from your new transformer to the “Trans” terminals.
Tighten the screws securely—loose connections cause intermittent power issues.
Secure Loose Wires
Use zip ties or electrical tape to bundle wires neatly inside the chime box. Don’t let wires dangle or touch metal parts.
Step 6: Restore Power and Test the System
You’re almost done!
Turn the Breaker Back On
Flip the doorbell breaker to ON. Wait 30 seconds for the system to stabilize.
Test the Doorbell Button
Press your outdoor doorbell button. You should hear a clear chime inside. If not, double-check connections.
Check Voltage Again
Use your multimeter to confirm the new transformer is delivering 16–24V AC at the chime terminals.
Set Up Your Nest Doorbell
Open the Nest app and follow the setup prompts. The app should now detect sufficient power. If you still see “low power” warnings, try these fixes:
– Ensure all wire connections are tight
– Verify the transformer is rated for at least 20VA
– Move the doorbell closer to your Wi-Fi router (weak signal can mimic power issues)
Troubleshooting Common Issues
Even with careful installation, problems can pop up. Here’s how to fix the most common ones:
Issue: Doorbell Still Shows “Low Power”
– Cause: Transformer output is too low or wiring is too long/thin.
– Fix: Upgrade to a 24V 30VA transformer. Use 18-gauge or thicker wire if running long distances.
Issue: Chime Doesn’t Ring
– Cause: Loose connections or incorrect wiring.
– Fix: Recheck all terminals. Ensure the “Front” and “Trans” wires are correctly placed.
Issue: Transformer Hums or Gets Hot
– Cause: Overloaded or defective transformer.
– Fix: Replace with a higher-rated model (e.g., 30VA instead of 20VA). Ensure it’s not covered or enclosed tightly.
Issue: Wi-Fi Drops Frequently
– Cause: Insufficient power causing reboots.
– Fix: Confirm voltage with a multimeter under load (press the doorbell button while measuring). If voltage drops below 16V, upgrade your transformer.
When to Call a Professional
While many homeowners can handle this project, don’t hesitate to call an electrician if:
– You’re uncomfortable working with electrical panels
– Your home has complex wiring or multiple doorbells
– You can’t locate the doorbell circuit breaker
– The existing wiring is damaged or outdated
A licensed pro can ensure your installation meets local electrical codes and operates safely for years.
Conclusion: Enjoy Your Fully Powered Nest Doorbell
Installing a Nest Doorbell transformer might seem intimidating at first, but with the right tools, safety precautions, and this guide, it’s a manageable DIY task. By upgrading to a 16–24V AC transformer, you’re giving your smart doorbell the consistent power it needs to deliver crystal-clear video, reliable alerts, and seamless integration with your smart home.
Remember: always turn off power before working, test your voltage, choose the right transformer, and double-check all connections. And if something feels off—don’t guess. Ask for help.
Now go enjoy peace of mind knowing your front door is protected by a doorbell that actually works when you need it most.
