How to Install Nutone Doorbell

Installing a Nutone doorbell is easier than you think—even if you’re a beginner. This guide walks you through every step, from turning off power to testing your new chime, with clear instructions and safety tips.

Key Takeaways

• Turn off power at the breaker: Always shut off electricity before working on doorbell wiring to prevent shocks or damage.
• Check compatibility: Ensure your existing transformer and wiring support the Nutone doorbell model you’re installing.
• Use the right tools: A voltage tester, screwdrivers, wire strippers, and a drill make the process smoother and safer.
• Follow wiring color codes: Match wires correctly—typically front (F) and trans (T) terminals—to avoid malfunctions.
• Test before finishing: Always test the doorbell after installation and before reattaching covers or restoring power fully.
• Troubleshoot common issues: No sound? Check connections, transformer voltage, and button alignment.
• Upgrade for modern features: Consider wireless or video doorbells if rewiring is difficult or you want smart home integration.

How to Install a Nutone Doorbell: A Complete Step-by-Step Guide

So, you’ve decided to install a Nutone doorbell—great choice! Nutone has been a trusted name in home ventilation and doorbell systems for decades, known for reliable, easy-to-install products. Whether you’re replacing an old doorbell or installing one for the first time, this guide will walk you through the entire process safely and efficiently.

In this comprehensive how-to, you’ll learn how to install a Nutone doorbell from start to finish. We’ll cover everything from gathering the right tools and turning off the power to wiring the chime unit and testing the system. You’ll also get practical tips, troubleshooting advice, and answers to common questions—so you can feel confident, even if you’ve never done electrical work before.

By the end of this guide, your new Nutone doorbell will be up and running, giving you that satisfying “ding-dong” every time someone arrives at your door. Let’s get started!

What You’ll Need Before You Begin

Before diving into the installation, it’s important to gather all the necessary tools and materials. Having everything ready will save you time and prevent frustrating mid-project trips to the hardware store.

Here’s a checklist of what you’ll need:

• Nutone doorbell kit: This typically includes the chime unit, doorbell button, and mounting hardware.
• Screwdrivers: Both flathead and Phillips head screwdrivers are essential for removing covers and securing wires.
• Voltage tester: A non-contact voltage tester helps confirm the power is off before you touch any wires.
• Wire strippers: These are used to remove insulation from the ends of wires for proper connection.
• Drill and drill bits: You may need to drill holes for mounting the chime or button, especially if replacing an old unit.
• Electrical tape: Useful for insulating wire connections and preventing short circuits.
• Pencil and measuring tape: For marking drill points and ensuring proper alignment.
• Safety glasses: Protect your eyes when drilling or working near electrical components.

Pro Tip: If you’re replacing an existing doorbell, take a photo of the current wiring setup before disconnecting anything. This will help you remember how the wires were connected.

Step 1: Turn Off the Power

Safety first! Working with electrical wiring can be dangerous if the power is still on. Even though doorbell systems use low voltage (usually 8–24 volts), it’s still important to turn off the power at the source.

Locate Your Circuit Breaker

Most doorbells are connected to a dedicated circuit or share a circuit with other low-voltage devices. Go to your home’s main electrical panel (breaker box) and look for a breaker labeled “doorbell,” “chime,” or “transformer.” If you don’t see a label, you may need to test breakers one by one.

Turn Off the Correct Breaker

Flip the breaker to the “OFF” position. To double-check that the power is off, use your non-contact voltage tester. Touch it near the doorbell button and chime unit—if it doesn’t beep or light up, the power is off.

Important: Never assume the power is off just because the doorbell isn’t ringing. Always test with a voltage tester.

Label the Breaker (Optional but Helpful)

If your breaker isn’t labeled, use a label maker or masking tape to mark it as “Doorbell” for future reference. This will save you time the next time you need to work on the system.

Step 2: Remove the Old Doorbell (If Applicable)

If you’re replacing an existing doorbell, you’ll need to remove the old unit before installing the new Nutone model.

Unscrew the Chime Unit

Most chime units are mounted inside the house, usually in a hallway or near the front door. Use your screwdriver to remove the screws holding the cover in place. Gently pull the cover away from the wall.

Disconnect the Wires

You’ll see two or three wires connected to terminals labeled “F” (Front), “T” (Transformer), and sometimes “R” (Rear, if you have a second doorbell). Carefully loosen the terminal screws and remove the wires. Take note of which wire goes where—this is where that photo you took earlier comes in handy.

Remove the Doorbell Button

Go outside to the doorbell button. Unscrew it from the wall and gently pull it away. You’ll see two wires connected to the back. Disconnect them by loosening the screws or pulling them out if they’re push-in connectors.

Inspect the Wiring

Check the condition of the wires. If they’re frayed, corroded, or damaged, you may need to trim them back and strip new ends. Use your wire strippers to remove about 1/4 inch of insulation from each wire.

Pro Tip: If the wires are too short or damaged, you may need to run new wiring. This is more advanced, so consider consulting an electrician if you’re unsure.

Step 3: Prepare the New Nutone Doorbell

Now that the old unit is removed, it’s time to prepare your new Nutone doorbell for installation.

Unpack the Kit

Open the Nutone doorbell kit and lay out all components. You should have:

• The chime unit (with cover)
• The doorbell button
• Mounting screws and anchors
• Wire connectors (if included)
• Instruction manual

Read the Manual

Every Nutone model is slightly different, so take a moment to read the instruction manual. It will include specific wiring diagrams, mounting instructions, and any special features (like adjustable volume or multiple chimes).

Check Transformer Compatibility

Nutone doorbells typically require a 16-volt transformer. If your existing transformer is older or outputs a different voltage (like 8V or 24V), it may not work properly. You can check the transformer (usually located near the chime or in the basement) for a label indicating voltage and amperage.

Note: Most standard doorbell transformers are compatible, but if you’re unsure, contact Nutone support or a licensed electrician.

Step 4: Install the Doorbell Button

The doorbell button is installed outside, so this step requires a bit of precision to ensure it’s secure and weather-resistant.

Position the Button

Hold the new button against the wall where you want to install it. Use a pencil to mark the screw holes. Make sure it’s at a comfortable height—typically 42 to 48 inches from the ground.

Drill Pilot Holes

If you’re drilling into wood or drywall, use a drill bit slightly smaller than the screws to create pilot holes. This prevents cracking and makes screwing easier. For brick or masonry, use a masonry bit and wall anchors.

Connect the Wires

Take the two wires from the wall and connect them to the terminals on the back of the button. Most Nutone buttons have screw terminals—loosen the screws, wrap the bare wire around them, and tighten securely. The order doesn’t matter since doorbell circuits are not polarity-sensitive.

Mount the Button

Align the button with the pilot holes and screw it into place. Don’t overtighten—this can crack the plastic or damage the wall.

Pro Tip: Apply a small bead of silicone caulk around the edges of the button to prevent water from seeping behind it. This is especially important in rainy or snowy climates.

Step 5: Install the Chime Unit

The chime unit is installed indoors and connects to the transformer and doorbell button via low-voltage wiring.

Position the Chime

Choose a location near the front door, ideally in a central area where the sound can be heard throughout the house. Avoid placing it behind furniture or in a closet.

Mark and Drill Mounting Holes

Hold the chime base against the wall and mark the screw holes with a pencil. Drill pilot holes if needed.

Connect the Wires

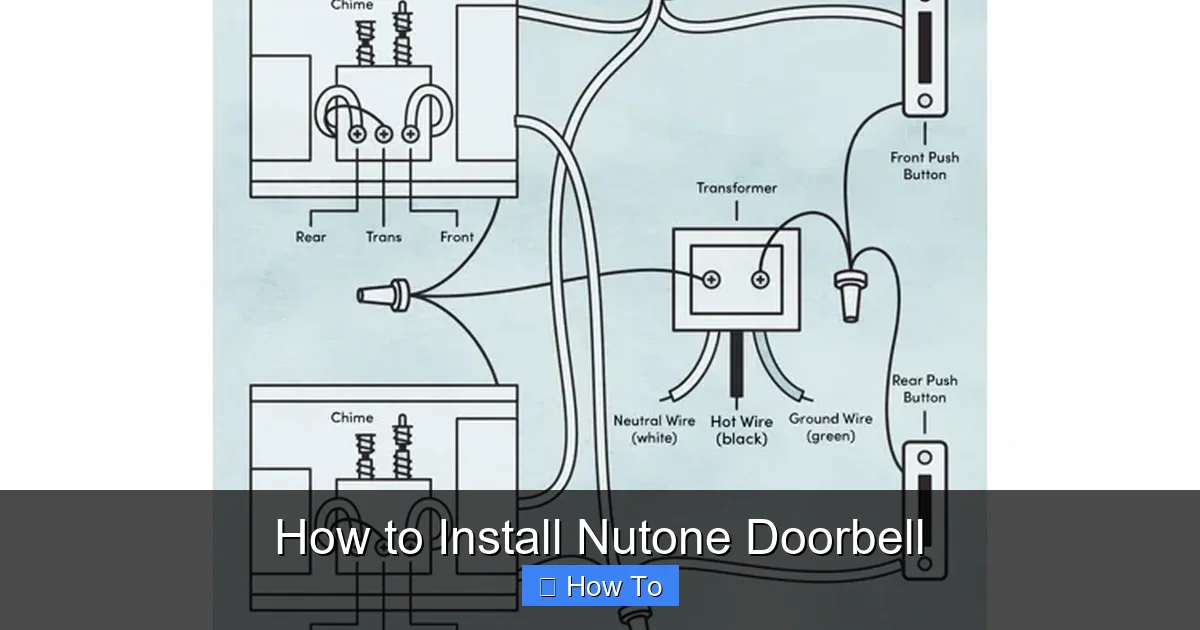

This is the most critical part of the installation. You’ll have two or three wires to connect:

• Front (F) terminal: Connects to the wire from the front doorbell button.
• Transformer (T) terminal: Connects to the wire from the transformer (usually located in the basement or near the furnace).
• Rear (R) terminal (if applicable): For a second doorbell button at a back or side door.

Strip about 1/4 inch of insulation from each wire. Loosen the terminal screws on the chime unit, insert the wires, and tighten the screws. Make sure the wires are secure and not touching each other.

Important: Double-check the wiring diagram in your manual. Incorrect wiring can damage the chime or prevent it from working.

Mount the Chime

Align the chime base with the mounting holes and screw it into place. Then, attach the cover by snapping or screwing it on, depending on the model.

Step 6: Restore Power and Test the System

Now that everything is installed, it’s time to test your new Nutone doorbell.

Turn the Power Back On

Go back to the breaker box and flip the doorbell circuit back to “ON.”

Test the Doorbell

Press the doorbell button outside. You should hear a clear, consistent chime from the indoor unit. If it works, great! If not, don’t panic—troubleshooting is next.

Adjust Settings (If Available)

Many Nutone doorbells come with adjustable volume or multiple chime sounds. Use the switches or buttons on the chime unit to customize the sound to your preference.

Pro Tip: If you have a two-door setup (front and back), test both buttons to ensure they trigger the correct chime.

Troubleshooting Common Issues

Even with careful installation, problems can occur. Here are some common issues and how to fix them.

No Sound When Button Is Pressed

• Check power: Make sure the breaker is on and the transformer is working. Use a multimeter to test the transformer output—it should read around 16 volts.
• Inspect wiring: Ensure all wires are securely connected and not loose or crossed.
• Test the button: Use a multimeter to check for continuity when the button is pressed. If there’s no continuity, the button may be faulty.

Chime Sounds Weak or Intermittent

• Low voltage: The transformer may be underpowered or failing. Replace it with a 16V, 10–15VA transformer.
• Loose connections: Tighten all terminal screws and ensure wires are stripped properly.
• Old wiring: If the wires are brittle or corroded, consider replacing them.

Chime Rings Randomly

• Faulty button: A worn-out or moisture-damaged button can cause false triggers. Replace the button.
• Loose wiring: Check for loose connections that may be making intermittent contact.
• Transformer issues: A failing transformer can cause erratic behavior. Test and replace if necessary.

Only One Chime Sound (If Multiple Are Available)

• Check dip switches: Some Nutone models have dip switches inside the chime unit to select different sounds. Open the cover and adjust the switches according to the manual.
• Button wiring: Ensure the correct button is connected to the right terminal (e.g., front vs. rear).

Upgrading to a Wireless or Video Doorbell

If you’re finding the wiring process too challenging or you want more modern features, consider upgrading to a wireless or video doorbell. Many Nutone models are compatible with wireless kits, or you can switch to a smart doorbell like Ring or Nest.

Wireless Doorbell Kits

These kits include a wireless button that transmits a signal to a receiver plugged into an outlet. No wiring is needed, making installation quick and easy.

Video Doorbells

Video doorbells offer live streaming, motion detection, and two-way audio. Some models can be wired into your existing doorbell circuit, while others are battery-powered.

Note: If you choose a video doorbell, ensure your transformer can handle the higher power requirements (usually 16–24V, 20–30VA).

Maintenance Tips for Long-Term Performance

To keep your Nutone doorbell working smoothly for years, follow these simple maintenance tips:

• Clean the button: Wipe the doorbell button with a damp cloth every few months to remove dirt and debris.
• Check connections annually: Inspect wiring and terminals for looseness or corrosion.
• Test the system: Press the button monthly to ensure it’s working properly.
• Replace batteries (if applicable): Some chime units use backup batteries. Replace them as recommended in the manual.

Conclusion

Installing a Nutone doorbell is a straightforward DIY project that can enhance your home’s security and convenience. By following this step-by-step guide, you’ve learned how to safely turn off the power, remove the old unit, wire the new chime and button, and troubleshoot common issues.

Remember, the key to a successful installation is preparation and attention to detail. Always use the right tools, double-check your wiring, and test the system before calling it done. And if you ever feel unsure, don’t hesitate to consult a professional electrician.

With your new Nutone doorbell in place, you’ll enjoy reliable performance and peace of mind every time someone comes to your door. Welcome to the neighborhood—ding-dong!
