How to Install Ring 2 Doorbell on Brick

If you’re hardwiring the Ring 2 (instead of using the rechargeable battery), you’ll also need:

• Wire strippers
• Electrical tape
• Voltage tester – To confirm power is off before working.
• Wire nuts (if needed)

Pro tip: If you’re unsure about electrical work, consider hiring a licensed electrician. Safety first!

Step 1: Choose the Right Location

Where you mount your Ring 2 matters—a lot. The ideal spot ensures clear video, reliable motion detection, and strong Wi-Fi connectivity.

Height Matters

Ring recommends mounting the doorbell between 48 and 60 inches from the ground. This height captures most visitors’ faces while minimizing glare from the sun or porch lights.

If your door is particularly tall or short, adjust accordingly—but stay within that range for best results.

Angle for Optimal View

The Ring 2 has a 150-degree diagonal field of view. To maximize coverage, mount it so it points slightly downward—about 10 to 15 degrees. This helps avoid capturing too much sky (which can cause overexposure) and focuses on the walkway or porch.

Use the included wedge mount (if needed) to adjust the angle. The Ring 2 comes with a standard mount, but you can purchase angled wedges separately if your brick surface is uneven.

Check for Obstructions

Look for anything that might block the camera or motion sensor:

• Overhangs or awnings
• Thick door frames
• Plants or decorations
• Mailboxes or light fixtures

Even a small obstruction can reduce effectiveness. Step back and visualize the camera’s view—does it cover the entire approach to your door?

Test Wi-Fi Signal Strength

A weak Wi-Fi signal is one of the most common issues with smart doorbells. Before drilling, use the Ring app to test signal strength at your chosen spot.

Here’s how:

1. Open the Ring app on your phone.
2. Go to Devices > Set Up a Device > Doorbells.
3. Select Ring Video Doorbell 2.
4. Follow the prompts until you reach the Wi-Fi Signal Strength test.
5. Hold your phone where you plan to install the doorbell and run the test.

The app will show “Strong,” “Moderate,” or “Weak.” If it’s weak, consider:

• Moving your router closer
• Using a Wi-Fi extender
• Choosing a different mounting spot

A strong signal ensures smooth video streaming, quick alerts, and reliable two-way talk.

Step 2: Turn Off Power (If Hardwiring)

If you’re connecting your Ring 2 to existing doorbell wires, safety is critical. Even low-voltage doorbell circuits can pose a risk if mishandled.

Locate Your Doorbell Transformer

Most doorbells run on 8–24 volts AC. The transformer is usually located in your basement, garage, or near your electrical panel. It steps down household voltage (120V) to a safer level.

Turn off the circuit breaker that controls the doorbell. If you’re unsure which one it is, turn off the main breaker to be safe.

Test the Wires

Use a non-contact voltage tester to confirm power is off. Touch the tester to the doorbell wires at the old mounting location. If it beeps or lights up, power is still on—double-check your breaker.

Once confirmed, remove the old doorbell (if present) and disconnect the wires. Twist the bare ends together temporarily to prevent them from touching anything metal.

Optional: Upgrade Your Transformer

The Ring 2 recommends a transformer with at least 16–24V AC and 30VA. Older homes may have weaker transformers that cause charging issues.

If your Ring 2 frequently shows “low battery” even when hardwired, consider upgrading the transformer. This is a job for an electrician unless you’re experienced with electrical work.

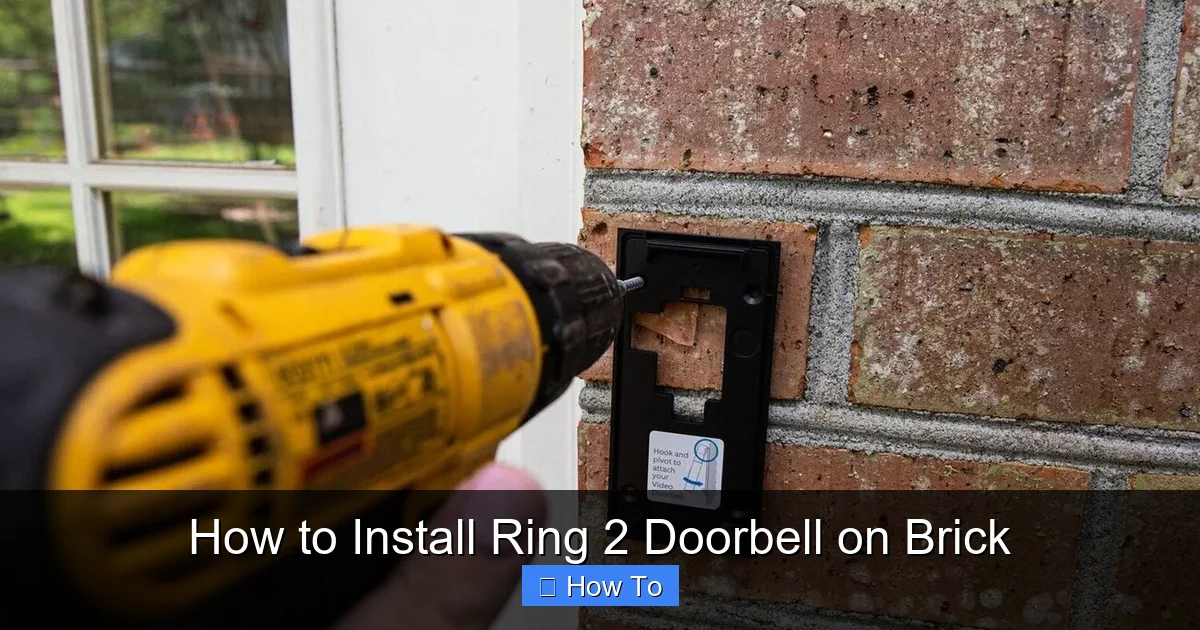

Step 3: Mark and Drill Pilot Holes in Brick

Now comes the trickiest part: drilling into brick. But with the right technique, it’s straightforward.

Position the Mounting Bracket

Hold the Ring mounting bracket (the plastic plate that comes with the doorbell) against the brick where you want to install it. Use a level to ensure it’s straight.

Mark the two screw holes with a pencil or chalk. If you’re using a wedge mount, attach it to the bracket first.

Drill Carefully

Brick is hard and brittle. Drilling too fast or with the wrong bit can crack it or damage the drill.

Follow these steps:

1. Put on safety goggles and a dust mask.
2. Insert the masonry drill bit into your drill. A 5/32” bit works well for most anchors.
3. Set your drill to hammer mode if it has one. This combines rotation with a pounding action, perfect for masonry.
4. Start drilling slowly at the marked spot. Apply gentle, steady pressure—don’t force it.
5. Drill about 1.5 to 2 inches deep. This gives the anchor enough room to grip.
6. Pull the bit out frequently to clear dust and prevent overheating.

Pro tip: If you hit a mortar joint (the gray stuff between bricks), it’s actually easier to drill—but less secure. Try to drill into the center of the brick for maximum hold.

Clean the Holes

Use a vacuum or a small brush to remove all dust from the holes. Dust prevents anchors from seating properly and weakens the hold.

Insert Wall Anchors

Push the plastic or metal wall anchors into the holes until they’re flush with the brick. Tap gently with a hammer if needed.

These anchors expand when the screw is inserted, creating a tight grip in the brick.

Step 4: Mount the Bracket and Attach the Doorbell

With the anchors in place, it’s time to secure the bracket.

Secure the Mounting Bracket

Line up the bracket with the anchors and insert the screws. Use a screwdriver or drill with a driver bit to tighten them—but don’t over-tighten. Brick can crack under too much pressure.

Check with a level one more time. If it’s crooked, loosen the screws slightly, adjust, and retighten.

Connect the Wires (If Hardwiring)

If you’re using existing doorbell wires:

1. Strip about 1/4 inch of insulation from each wire.
2. Loosen the terminal screws on the back of the Ring 2.
3. Insert the wires into the terminals (it doesn’t matter which wire goes where—Ring 2 is non-polarized).
4. Tighten the screws to secure the wires.
5. Wrap the connections with electrical tape for extra protection.

If you’re using the battery-only option, skip this step. Just make sure the battery is charged.

Attach the Doorbell

Slide the Ring 2 onto the mounting bracket until it clicks into place. Give it a gentle tug to ensure it’s secure.

Step 5: Apply Silicone Sealant (Optional but Recommended)

Brick is porous and can let in water, especially during rain or snow. To protect your installation:

• Apply a small bead of exterior-grade silicone sealant around each screw head.
• Smooth it with your finger or a tool to create a waterproof barrier.
• Let it dry according to the product instructions (usually 24 hours).

This simple step prevents moisture from seeping into the brick and protects the screws from rust.

Step 6: Set Up the Ring App and Test the Device

Now for the fun part—getting your doorbell online and ready to use.

Download and Open the Ring App

If you haven’t already, download the Ring app (available on iOS and Android). Create an account or log in.

Follow the On-Screen Setup

The app will guide you through:

• Scanning the QR code on the back of the Ring 2
• Connecting to your Wi-Fi network
• Setting up motion zones
• Adjusting notification preferences

Make sure your phone is connected to the same Wi-Fi network you want the doorbell to use.

Test the Doorbell

Once setup is complete:

• Press the doorbell button to test the chime (if hardwired) or notification.
• Walk in front of the camera to test motion detection.
• Use the two-way talk feature to speak through the app.
• Check video quality in different lighting (day, night, dusk).

If everything works, congratulations—you’re all set!

Troubleshooting Common Issues

Even with careful installation, you might run into a few hiccups. Here’s how to fix them:

Weak Wi-Fi Signal

• Move your router closer or add a Wi-Fi extender.
• Switch to a 2.4GHz network (Ring 2 doesn’t support 5GHz).
• Reposition the doorbell slightly if possible.

Doorbell Won’t Charge (Hardwired)

• Check transformer voltage—upgrade if below 16V.
• Ensure wires are securely connected.
• Test with a multimeter to confirm power output.

Video is Blurry or Glared

• Adjust the mounting angle to reduce sun exposure.
• Clean the camera lens with a microfiber cloth.
• Enable HDR in the app settings for better contrast.

Motion Alerts Are Too Sensitive

• Adjust motion zones in the app to exclude trees or busy streets.
• Lower the motion sensitivity setting.
• Use the “People Only” mode to reduce false alerts.

Doorbell Falls Off or Loosens

• Check that anchors are fully seated.
• Use longer screws or heavier-duty anchors.
• Reapply silicone to seal and stabilize.

Maintenance Tips for Long-Term Performance

To keep your Ring 2 working perfectly for years:

• Clean the lens monthly with a soft, dry cloth.
• Check screws every 6 months and tighten if loose.
• Update the app and firmware regularly for new features and security.
• Replace the battery annually if using the rechargeable option.
• Trim nearby plants that might block the camera or trigger motion.

Final Thoughts

Installing a Ring 2 doorbell on brick might seem intimidating at first, but it’s a manageable project for most homeowners. The key is preparation: use the right tools, choose a smart location, and take your time with drilling and wiring.

By following this guide, you’ve not only secured your front door with a high-tech upgrade, but you’ve also gained valuable DIY skills. Whether you’re deterring package thieves, checking on deliveries, or simply seeing who’s at the door from your phone, your Ring 2 will deliver peace of mind every day.

So go ahead—enjoy your new smart doorbell. And the next time a friend asks how you mounted it on brick, you can say, “It was easier than I thought!”
