Installing a Ring Doorbell Plus with a wedge mount improves your camera’s field of view and enhances security coverage. This guide walks you through every step—from choosing the right location to final testing—ensuring a secure, professional-looking setup.
Key Takeaways
- Proper placement is critical: Mount the doorbell at 4–5 feet high and angle it toward the walkway for optimal motion detection and video quality.
- The wedge mount adjusts the viewing angle: Use the included wedge to tilt the doorbell downward or sideways, especially on angled doorframes or brick walls.
- Turn off power before wiring: Always shut off electricity at the breaker box when connecting to existing doorbell wires to avoid shocks or damage.
- Use the Ring app for setup: The app guides you through Wi-Fi connection, device pairing, and motion zone customization.
- Test after installation: Check video feed, motion alerts, and two-way audio to ensure everything works before finishing.
- Secure all screws tightly: Loose mounting can cause vibration, poor video, or device detachment over time.
- Consider a chime connector or Ring Chime: If your existing chime isn’t compatible, use a Ring Chime or Chime Pro for audible alerts.
Introduction: Why Install Ring Doorbell Plus with a Wedge?
Upgrading your home security with a Ring Doorbell Plus is a smart move—but getting the best performance means more than just mounting it straight on the wall. Many homes have doorframes that slope inward, brick or stone surfaces, or entryways where the default horizontal mount doesn’t capture visitors properly. That’s where the Ring Doorbell Plus wedge mount comes in.
The wedge is a small, angled plastic piece included with your Ring Doorbell Plus (or available separately) that allows you to tilt the device downward or sideways. This adjustment improves your camera’s field of view, reduces blind spots, and ensures motion sensors detect approaching guests more accurately. Whether you’re installing on a slanted wall, a narrow porch, or a high-traffic walkway, using the wedge helps you get the most out of your smart doorbell.
In this comprehensive guide, we’ll walk you through every step of installing your Ring Doorbell Plus with the wedge mount—from planning your location to final testing. You’ll learn how to safely wire the device, use the Ring app, troubleshoot common issues, and optimize settings for the best experience. By the end, you’ll have a securely mounted, fully functional doorbell that enhances your home’s safety and convenience.
What You’ll Need Before You Begin
Before you start drilling or wiring, gather all the tools and materials. Having everything ready saves time and prevents mid-installation trips to the hardware store.

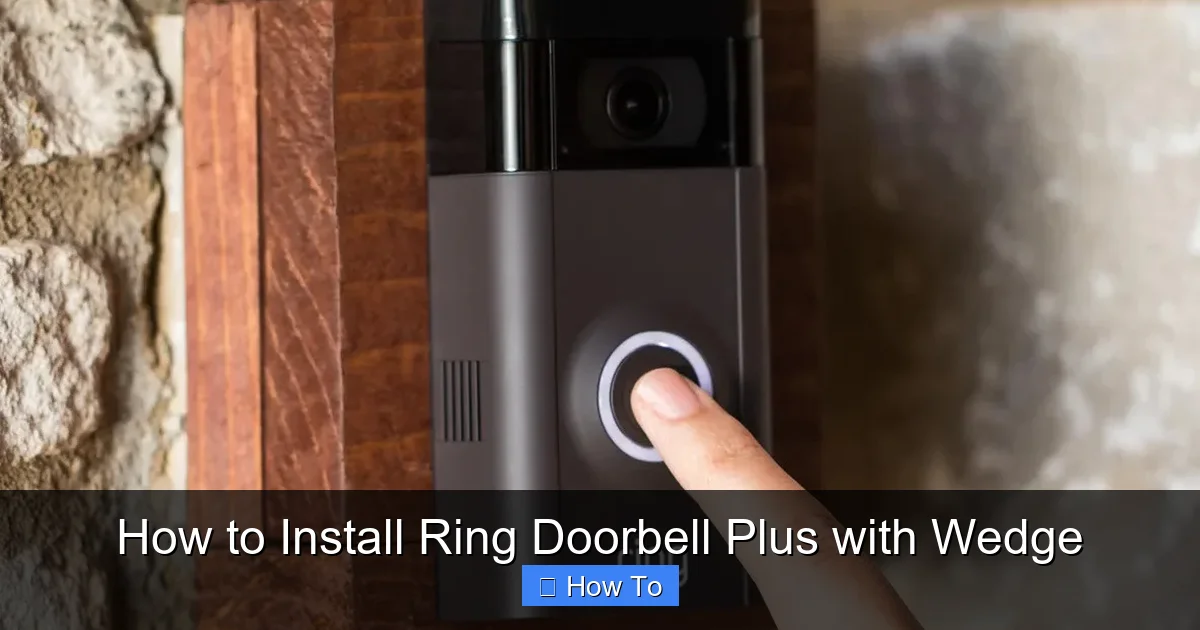

Visual guide about How to Install Ring Doorbell Plus with Wedge
Image source: i.ytimg.com
Tools and Materials Checklist
- Ring Doorbell Plus (with included wedge mount)
- Smartphone or tablet with the Ring app installed
- Drill with 3/32″ drill bit (for pilot holes)
- Screwdriver (Phillips head)
- Level (to ensure straight mounting)
- Pencil (for marking drill points)
- Wire strippers (if reusing old wires)
- Electrical tape (optional, for securing wires)
- Ladder (if mounting above 6 feet)
- Safety goggles and gloves (recommended)
Optional but Helpful Items
- Stud finder (to avoid drilling into studs)
- Wall anchors (if mounting on brick, concrete, or hollow walls)
- Ring Chime or Chime Pro (if your existing chime isn’t compatible)
- Chime Connector (included with Ring Doorbell Plus)
Pro Tip: Download and install the Ring app on your phone before starting. You’ll need it to scan the QR code on your doorbell and complete setup.
Step 1: Choose the Right Location
The success of your Ring Doorbell Plus installation starts with choosing the perfect spot. A poorly placed doorbell can miss visitors, trigger false alerts, or have a weak Wi-Fi signal.
Ideal Mounting Height
Mount your doorbell between 4 and 5 feet above the ground. This height captures most people’s faces clearly and keeps the device out of easy reach for tampering. If you have tall family members or expect frequent deliveries, aim for 5 feet.
Field of View Considerations
Look at your front door and walkway. The camera should have a clear view of the path leading to your door. Avoid placing it behind plants, mailboxes, or overhangs that could block the lens.
Wi-Fi Signal Strength
Your doorbell needs a strong Wi-Fi connection to stream video and send alerts. Use your phone to check signal strength at the installation spot. If it’s weak, consider relocating your router, using a Wi-Fi extender, or upgrading to a Ring Chime Pro (which also boosts Wi-Fi).
Power Source
Ring Doorbell Plus can be powered in two ways:
- Hardwired: Connects to existing doorbell wires (16–24V AC). Most reliable and recommended.
- Battery-powered: Uses rechargeable battery (sold separately). Easier to install but requires periodic charging.
For this guide, we’ll focus on hardwired installation with the wedge, but battery options are available if wiring isn’t feasible.
Step 2: Turn Off Power and Remove Old Doorbell
Safety first! Working with electrical wires can be dangerous if the power is still on.
Locate Your Circuit Breaker
Find your home’s main electrical panel and look for the breaker labeled “doorbell,” “chime,” or “front door.” If unsure, turn off the main breaker or test the old doorbell to confirm power is off.
Remove the Existing Doorbell
- Unscrew the old doorbell from the wall.
- Gently pull it away to expose the wires.
- Take a photo of the wiring for reference.
- Loosen the terminal screws and disconnect the wires.
- Cap the wires with wire nuts or electrical tape to prevent them from touching.
Important: Never leave exposed wires dangling. Secure them safely before proceeding.
Step 3: Install the Wedge Mount
The wedge mount is the key to adjusting your doorbell’s angle. It’s simple to install but makes a big difference in performance.
Attach the Wedge to the Mounting Plate
- Take the included wedge (a small, angled plastic piece) and the mounting plate.
- Align the wedge with the back of the mounting plate. The angled side should face outward.
- Use the provided screws to secure the wedge to the plate. Tighten firmly but don’t over-tighten—plastic can crack.
Determine the Correct Angle
The wedge can be rotated to tilt the doorbell in different directions:
- Downward tilt: Best for high doorframes or when the camera points too high.
- Sideways tilt: Useful for angled walls or to avoid capturing a neighbor’s property.
- No tilt: If your wall is flat and level, you can skip the wedge or use it flat.
Test the angle by holding the mounted plate against the wall. Use a level to ensure it’s straight once installed.
Mark Drill Points
- Hold the wedge-mounted plate against the wall at your chosen height.
- Use a pencil to mark the screw holes.
- Double-check alignment with a level.
Step 4: Drill Holes and Secure the Mount
Now it’s time to anchor the mount to your wall. Proper drilling ensures a stable, long-lasting installation.
Drill Pilot Holes
- Use a 3/32″ drill bit to create pilot holes at your marked points.
- Drill straight in—don’t angle the drill unless your wall requires it.
Insert Wall Anchors (If Needed)
If you’re mounting on drywall, brick, concrete, or another hard surface, use wall anchors for extra grip. Push them into the pilot holes until flush.
Attach the Mounting Plate
- Align the plate with the holes.
- Insert the provided screws and tighten with a screwdriver.
- Ensure the plate is level and secure.
Pro Tip: If your wall is uneven, use shims (small plastic or wooden pieces) behind the plate to level it.
Step 5: Connect the Wires
Now that the mount is secure, it’s time to connect the doorbell to power.
Prepare the Wires
- Remove the wire nuts or tape from the existing doorbell wires.
- If the wires are frayed or too short, strip 1/4″ of insulation from the ends.
Connect to the Doorbell
- On the back of the Ring Doorbell Plus, you’ll see two terminals labeled “Front” and “Trans.”
- Loosen the screws slightly.
- Insert one wire into each terminal. It doesn’t matter which wire goes where—Ring uses polarity-free wiring.
- Tighten the screws to secure the wires.
Secure Loose Wires
Tuck any excess wire back into the wall to prevent it from being pinched or damaged. Use electrical tape if needed.
Step 6: Attach the Doorbell to the Mount
With the wires connected, it’s time to snap the doorbell onto the mount.
Align and Secure
- Hold the Ring Doorbell Plus against the mounting plate.
- Slide it downward until it clicks into place.
- Ensure it’s seated firmly and doesn’t wobble.
Tighten the Security Screw
- Use the included security screw and screwdriver to secure the bottom of the doorbell.
- This prevents theft and ensures the device stays in place.
Note: The security screw requires a special tool (included). Keep it in a safe place for future maintenance.
Step 7: Restore Power and Test
Before celebrating, restore power and test your installation.
Turn Power Back On
- Go to your circuit breaker and turn the doorbell circuit back on.
- Wait 30–60 seconds for the doorbell to power up.
Check for Lights
The Ring Doorbell Plus has a status light:
- Solid white: Ready to set up.
- Blinking white: Connecting to Wi-Fi.
- Solid green: Connected and online.
If the light doesn’t turn on, double-check wiring and power.
Step 8: Set Up with the Ring App
The Ring app is your control center for setup, alerts, and customization.
Open the Ring App
- Launch the app on your smartphone or tablet.
- Tap “Set Up a Device” and select “Doorbells.”
- Choose “Ring Video Doorbell Plus.”
Scan the QR Code
- Point your camera at the QR code on the back of the doorbell.
- The app will detect the device and begin setup.
Connect to Wi-Fi
- Select your home Wi-Fi network.
- Enter your password.
- Wait for the doorbell to connect (may take 1–2 minutes).
Name Your Doorbell
Give it a name like “Front Door” or “Main Entrance” for easy identification.
Test Features
- Tap “Live View” to see the camera feed.
- Test two-way audio by speaking and listening.
- Trigger motion by walking in front of the doorbell.
Step 9: Customize Settings and Motion Zones
Optimize your doorbell’s performance with smart settings.
Adjust Motion Zones
- In the app, go to Device Settings > Motion Settings.
- Draw zones where you want motion detection (e.g., walkway, driveway).
- Avoid areas like busy streets to reduce false alerts.
Set Motion Sensitivity
Choose from Low, Medium, or High. Start with Medium and adjust based on alerts.
Enable Smart Alerts
- Turn on “People Only Mode” to reduce notifications from cars or animals.
- Set up “Motion Schedules” to disable alerts during quiet hours.
Link to Ring Chime (Optional)
If you have a Ring Chime, pair it in the app to hear alerts inside your home.
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here’s how to fix them.
Doorbell Won’t Power On
- Check that power is restored at the breaker.
- Verify wires are securely connected.
- Test voltage with a multimeter (should be 16–24V AC).
Poor Wi-Fi Signal
- Move your router closer or use a Wi-Fi extender.
- Upgrade to Ring Chime Pro for built-in Wi-Fi boosting.
- Avoid mounting near metal objects or thick walls.
Blurry or Dark Video
- Clean the lens with a soft, dry cloth.
- Ensure the doorbell isn’t facing direct sunlight or bright lights.
- Adjust the wedge angle for better lighting.
False Motion Alerts
- Narrow motion zones in the app.
- Lower sensitivity or enable People Only Mode.
- Trim bushes or trees that sway in the wind.
Two-Way Audio Not Working
- Check microphone and speaker settings in the app.
- Ensure your phone’s volume is up.
- Restart the doorbell by removing and reattaching it.
Maintenance and Long-Term Care
Keep your Ring Doorbell Plus in top shape with regular care.
Clean the Lens Monthly
Use a microfiber cloth to wipe away dust, dirt, or fingerprints.
Check Mounting Screws
Every few months, ensure screws are tight and the device is secure.
Update Firmware
The Ring app automatically updates firmware, but check for updates occasionally.
Review Alerts and Recordings
Regularly check your event history to ensure the doorbell is capturing important activity.
Conclusion: Enjoy Your Enhanced Security
Installing your Ring Doorbell Plus with a wedge mount is a straightforward process that pays off in better security, clearer video, and smarter alerts. By following this guide, you’ve ensured optimal placement, secure wiring, and customized settings—giving you peace of mind every time someone approaches your door.
Remember, the wedge isn’t just an accessory—it’s a tool that helps you adapt the doorbell to your home’s unique layout. Whether you’re tilting it down for a better view or angling it to avoid glare, this small adjustment makes a big difference.
Now that your doorbell is up and running, take time to explore the Ring app’s features, share access with family members, and integrate it with other smart home devices. With your Ring Doorbell Plus properly installed and optimized, you’re not just watching your doorstep—you’re protecting your home.
