This guide walks you through installing the Ring Doorbell Pro Corner Kit to mount your doorbell on angled or corner walls. You’ll get better viewing angles, easier setup, and professional results with clear instructions and expert tips.
Key Takeaways
- Improved Viewing Angles: The corner kit allows you to position your Ring Doorbell Pro at an optimal angle, reducing blind spots and capturing more of your front yard or walkway.
- Easy Installation Process: With the right tools and our step-by-step guide, most homeowners can complete the installation in under an hour.
- Compatibility Check Required: Ensure your existing wiring supports the Ring Doorbell Pro and that your door frame or wall is suitable for corner mounting.
- Use the Right Tools: A voltage tester, drill, level, and screwdriver are essential for a safe and secure installation.
- Test Before Finalizing: Always test the doorbell’s video feed and motion detection after mounting to confirm proper alignment and functionality.
- Professional Finish: The corner kit gives a clean, built-in look that blends seamlessly with your home’s exterior.
- Troubleshooting Tips Included: We cover common issues like poor Wi-Fi signal, misalignment, and power problems with practical solutions.
How to Install Ring Doorbell Pro Corner Kit
Installing a Ring Doorbell Pro on a corner or angled wall can be tricky—but that’s exactly what the Ring Doorbell Pro Corner Kit is designed to solve. Whether your front door sits at a 90-degree angle or your porch wraps around a corner, this mounting accessory helps you get the best possible view of visitors, packages, and activity. In this comprehensive guide, we’ll walk you through every step of installing the Ring Doorbell Pro Corner Kit, from planning and prep to final testing and troubleshooting.
By the end of this guide, you’ll have a securely mounted, properly angled doorbell that maximizes your home security and delivers crystal-clear video. No prior experience? No problem. We’ll keep things simple, safe, and stress-free.
What Is the Ring Doorbell Pro Corner Kit?

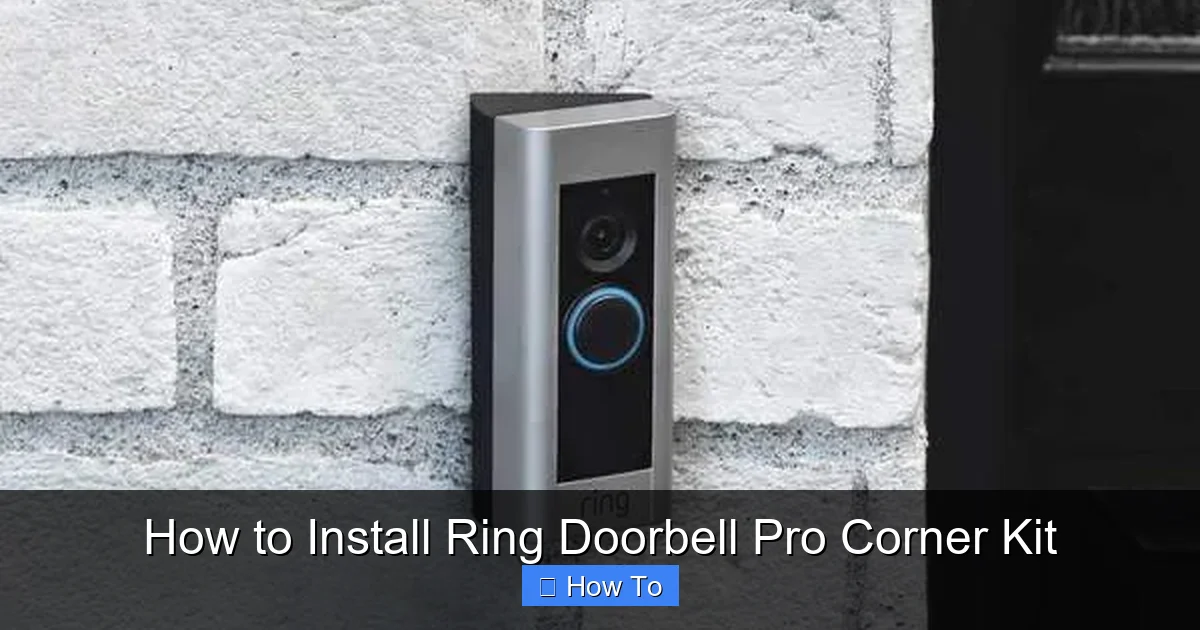

Visual guide about How to Install Ring Doorbell Pro Corner Kit
Image source: smarthomepoint.com
The Ring Doorbell Pro Corner Kit is an optional mounting accessory designed specifically for the Ring Doorbell Pro. It includes a specially angled mounting plate and hardware that allows you to install your doorbell on walls that meet at a corner or have a steep angle—typically between 90 and 120 degrees.
Without the corner kit, mounting a Ring Doorbell Pro on such surfaces can result in a skewed view, blind spots, or an unstable installation. The corner kit adjusts the doorbell’s angle so it faces directly toward the walkway or driveway, ensuring optimal motion detection and video quality.
The kit typically includes:
– One angled corner mounting plate
– Screws and anchors
– A small leveling tool
– Installation instructions
It’s important to note that the corner kit is not included with the standard Ring Doorbell Pro package. You’ll need to purchase it separately from the Ring website or authorized retailers.
Tools and Materials You’ll Need
Before you begin, gather all the necessary tools and materials. Having everything ready will make the installation smoother and safer.
- Ring Doorbell Pro Corner Kit
- Ring Doorbell Pro (already set up in the Ring app)
- Voltage tester (non-contact)
- Drill with 3/16” drill bit
- Screwdriver (Phillips head)
- Level (the kit includes a small one, but a larger one helps)
- Pencil or marker
- Measuring tape
- Safety goggles
- Wire strippers (if needed)
- Electrical tape
Optional but helpful:
– Stud finder (if mounting into wood or drywall)
– Ladder (for high installations)
– Assistant (to hold the doorbell during testing)
Step 1: Check Compatibility and Power Requirements
Before drilling any holes, make sure your setup is compatible with the Ring Doorbell Pro and the corner kit.
Verify Doorbell Pro Compatibility
The corner kit is designed exclusively for the Ring Doorbell Pro (1st and 2nd generation). It will not work with the Ring Video Doorbell, Ring Doorbell 2, 3, 3 Plus, 4, or Ring Peephole Cam. Double-check your model before proceeding.
Check Existing Doorbell Wiring
The Ring Doorbell Pro requires a wired connection to a transformer that provides 16–24 volts AC at 30–40 VA (volt-amperes). Most older doorbells use 8–12 volts, which is insufficient.
To check:
1. Turn off power to your doorbell at the circuit breaker.
2. Remove your existing doorbell button.
3. Use a non-contact voltage tester to confirm power is off.
4. Test the voltage across the two wires with a multimeter. If it reads below 16V, you may need to upgrade your transformer.
If your current transformer is too weak, you’ll need to replace it with a compatible one (available from Ring or hardware stores). This ensures stable power and prevents frequent disconnections.
Assess the Mounting Surface
The corner kit works best on flat, sturdy surfaces like wood, brick, or concrete. Avoid mounting on loose siding, stucco, or uneven stone unless you use appropriate anchors.
Measure the angle where the two walls meet. The corner kit is optimized for 90- to 120-degree angles. If your corner is sharper or more obtuse, the kit may not provide the ideal viewing angle.
Step 2: Plan the Installation Location
Choosing the right spot is crucial for both security and functionality.
Determine the Best Height
Ring recommends mounting the doorbell 48 inches (4 feet) above the ground. This height captures faces clearly and reduces tampering risk. Use a measuring tape and pencil to mark the spot.
Check Wi-Fi Signal Strength
The Ring Doorbell Pro relies on a strong Wi-Fi connection. Use the Ring app’s “Device Health” feature to check signal strength at your planned location. If the signal is weak:
– Move your router closer
– Use a Wi-Fi extender
– Consider a wired Ethernet adapter (via the Ring Bridge)
Avoid installing behind thick walls, metal doors, or large appliances that can block signals.
Ensure Proper Viewing Angle
The goal is to point the camera toward the center of your walkway or driveway. With the corner kit, you’ll mount the doorbell slightly outward from the corner so the lens faces the approach path.
Use the included leveling tool or a standard level to ensure the mounting plate will be straight. A crooked installation can skew the video feed and reduce motion detection accuracy.
Step 3: Turn Off Power and Remove Old Doorbell
Safety first! Always disconnect power before working with electrical wiring.
Turn Off the Circuit Breaker
Locate the breaker that controls your doorbell circuit. Turn it off and verify it’s dead using a non-contact voltage tester at the doorbell wires.
Remove the Existing Doorbell
Unscrew and gently pull out your old doorbell button. You’ll see two wires connected to terminals. Carefully disconnect them, leaving enough wire exposed (about 1/2 inch) for the new installation.
If the wires are too short, use wire strippers to expose more copper. Wrap the exposed ends with electrical tape to prevent short circuits.
Label the Wires (Optional but Helpful)
If you’re unsure which wire is which, label them with tape (e.g., “Front” and “Transformer”). This helps during reinstallation.
Step 4: Install the Corner Mounting Plate
Now it’s time to mount the corner kit’s angled plate.
Position the Mounting Plate
Hold the corner mounting plate against the wall at your marked location. The angled side should face outward, aligning with the corner. Use the included level to ensure it’s straight.
Mark the screw holes with a pencil. The plate typically has two or four holes depending on the model.
Drill Pilot Holes
Using a 3/16” drill bit, drill pilot holes at the marked spots. This prevents wood from splitting and makes screwing easier. If mounting into brick or concrete, use a masonry bit and wall anchors.
Secure the Mounting Plate
Align the plate with the pilot holes and screw it into place using the provided screws. Use a screwdriver or drill with a low torque setting to avoid over-tightening.
Double-check that the plate is level and firmly attached. A loose mount can cause vibration and poor video quality.
Step 5: Connect the Wiring
With the plate secure, it’s time to connect the doorbell.
Prepare the Wires
Strip about 1/4 inch of insulation from the ends of the two doorbell wires if needed. Twist the copper strands to keep them neat.
Attach Wires to the Doorbell
The Ring Doorbell Pro has two terminal screws on the back. Loosen them slightly, insert one wire into each terminal, and tighten the screws. It doesn’t matter which wire goes where—the doorbell is not polarity-sensitive.
Ensure the wires are snug and not touching each other to prevent shorts.
Tuck Wires Neatly
Gently push the wires back into the wall cavity to avoid pinching them when mounting the doorbell.
Step 6: Mount the Ring Doorbell Pro
Now attach the doorbell to the corner mounting plate.
Align the Doorbell
Hold the Ring Doorbell Pro against the mounting plate. The hooks on the back of the doorbell should slide into the slots on the plate.
Secure with Screw
Once aligned, use the provided security screw to lock the doorbell in place. Insert it through the bottom of the doorbell and into the plate. Tighten with a screwdriver—don’t over-tighten.
This screw prevents theft and ensures the doorbell stays firmly attached.
Check the Angle
Step back and look at the doorbell. The camera should be pointing directly at your walkway. If it’s too high, low, or off-center, adjust the mounting plate slightly before final tightening.
Step 7: Restore Power and Test the Doorbell
With everything connected, it’s time to power up and test.
Turn the Power Back On
Go to your circuit breaker and restore power to the doorbell circuit.
Wait for the Doorbell to Boot
The Ring Doorbell Pro will take 30–60 seconds to power up. You’ll see a light ring on the front—blue during setup, then solid white when ready.
Open the Ring App
Launch the Ring app on your smartphone. Go to “Devices” and select your doorbell. The app should detect it automatically.
Check Live View
Tap “Live View” to see the camera feed. Walk in front of the doorbell to test motion detection. Make sure the view covers the desired area without excessive sky or ground.
If the image is tilted, you may need to adjust the mounting plate or use the app’s “Video Settings” to rotate the view slightly (limited adjustment available).
Test the Chime
Press the doorbell button. Your Ring Chime (if connected) or existing mechanical chime should sound. If not, check the wiring and transformer voltage.
Step 8: Final Adjustments and Optimization
Fine-tune your setup for the best performance.
Adjust Motion Zones
In the Ring app, go to “Motion Settings” and customize your motion zones. Draw boxes around areas you want to monitor (like the walkway) and exclude areas you don’t (like a busy street).
This reduces false alerts and improves accuracy.
Set Up Notifications
Choose when and how you receive alerts. You can enable “Motion Alerts,” “Ring Alerts,” and “Person Detection” for smarter notifications.
Enable Privacy Zones
If your camera sees private areas (like a neighbor’s yard), use “Privacy Zones” to block them out. This keeps your recordings compliant and respectful.
Check Device Health
Regularly check the “Device Health” section in the app. It shows Wi-Fi signal strength, battery level (if applicable), and firmware updates.
Troubleshooting Common Issues
Even with careful installation, you might run into problems. Here’s how to fix the most common ones.
Doorbell Won’t Power On
– Check that power is restored at the breaker.
– Test voltage at the wires—should be 16–24V AC.
– Ensure wires are securely connected and not shorted.
– Try a different transformer if voltage is low.
Poor Wi-Fi Signal
– Move your router closer or use a Wi-Fi extender.
– Avoid mounting behind metal doors or thick walls.
– Use the Ring Bridge for a wired Ethernet connection.
Blurry or Tilted Video
– Clean the camera lens with a microfiber cloth.
– Adjust the mounting plate to level the doorbell.
– Use the app’s video rotation feature (limited to 15 degrees).
Motion Detection Not Working
– Check motion zones in the app—ensure they cover the right area.
– Make sure “Motion Alerts” are enabled.
– Clean the PIR sensor (small black dot on the front).
Chime Doesn’t Ring
– Verify your mechanical chime is compatible with Ring Doorbell Pro.
– Check wiring connections.
– Adjust the “Chime Duration” setting in the app.
Doorbell Falls Off or Feels Loose
– Ensure the security screw is fully tightened.
– Check that the mounting plate is securely anchored.
– Use longer or stronger screws if needed for brick or concrete.
Safety Tips and Best Practices
– Always turn off power before working with wires.
– Wear safety goggles when drilling.
– Use a ladder safely—have someone spot you if needed.
– Don’t force wires—gentle bending prevents damage.
– Keep the Ring app updated for the latest features and security patches.
Conclusion
Installing the Ring Doorbell Pro Corner Kit might seem intimidating at first, but with the right preparation and our step-by-step guide, it’s a manageable DIY project that pays off in better security and peace of mind. By mounting your doorbell at the perfect angle, you eliminate blind spots, improve video quality, and enhance motion detection—all while giving your home a sleek, professional look.
Remember to check compatibility, test your wiring, plan your location carefully, and always prioritize safety. Once installed, take advantage of the Ring app’s smart features like motion zones, privacy settings, and live view to get the most out of your device.
Whether you’re upgrading from an old doorbell or installing your first smart security device, the Ring Doorbell Pro Corner Kit is a smart investment for corner or angled wall setups. Follow this guide, and you’ll have a reliable, high-performing doorbell that keeps your home safe—rain or shine, day or night.
