Installing a Ring Doorbell Pro transformer ensures your smart doorbell gets the right power to function reliably. This guide walks you through checking your current setup, choosing the right transformer, and wiring it safely—no electrician needed if you follow the steps carefully.
Key Takeaways
- Check your existing transformer first: Many homes have outdated or underpowered transformers that won’t support the Ring Doorbell Pro’s 16–24V AC requirement.
- Use a compatible 16–24V AC transformer: The Ring-recommended 16V 30VA transformer is ideal, but 24V models also work if properly rated.
- Turn off power at the breaker: Safety is critical—always shut off electricity before working on doorbell wiring.
- Label wires during removal: This prevents confusion when reconnecting to the new transformer.
- Test voltage after installation: Use a multimeter to confirm proper output before mounting the doorbell.
- Consider professional help if unsure: If you’re not comfortable with electrical work, hire a licensed electrician.
- Upgrade wiring if needed: Old or thin wires may cause voltage drop—use 18-gauge or thicker for best results.
How to Install Ring Doorbell Pro Transformer
So, you’ve got your shiny new Ring Doorbell Pro—congratulations! It’s a fantastic upgrade from traditional doorbells, offering HD video, two-way talk, motion alerts, and seamless integration with your smartphone. But here’s the catch: unlike battery-powered models, the Ring Doorbell Pro needs a constant power source. And that means your existing doorbell transformer might not cut it.
Many homeowners assume their old doorbell setup will work just fine. Spoiler alert: it often won’t. The Ring Doorbell Pro requires a transformer that delivers between 16 and 24 volts AC (alternating current) at a minimum of 20–40 VA (volt-amperes). Most older homes still have transformers outputting only 8–12 volts—way too weak to keep your Pro running smoothly.
That’s why installing a compatible transformer is one of the most important steps in setting up your Ring Doorbell Pro. Don’t worry—you don’t need to be an electrician to do this. With the right tools, a little patience, and this step-by-step guide, you can safely upgrade your transformer and ensure your doorbell works like a charm from day one.
In this guide, we’ll walk you through everything: how to check your current transformer, choose the right replacement, safely install it, and test the system. We’ll also cover common pitfalls, troubleshooting tips, and when it’s best to call in a pro. By the end, you’ll have a reliable power source for your Ring Doorbell Pro—and peace of mind knowing it’s done right.
Let’s get started!
Why Your Ring Doorbell Pro Needs a Proper Transformer

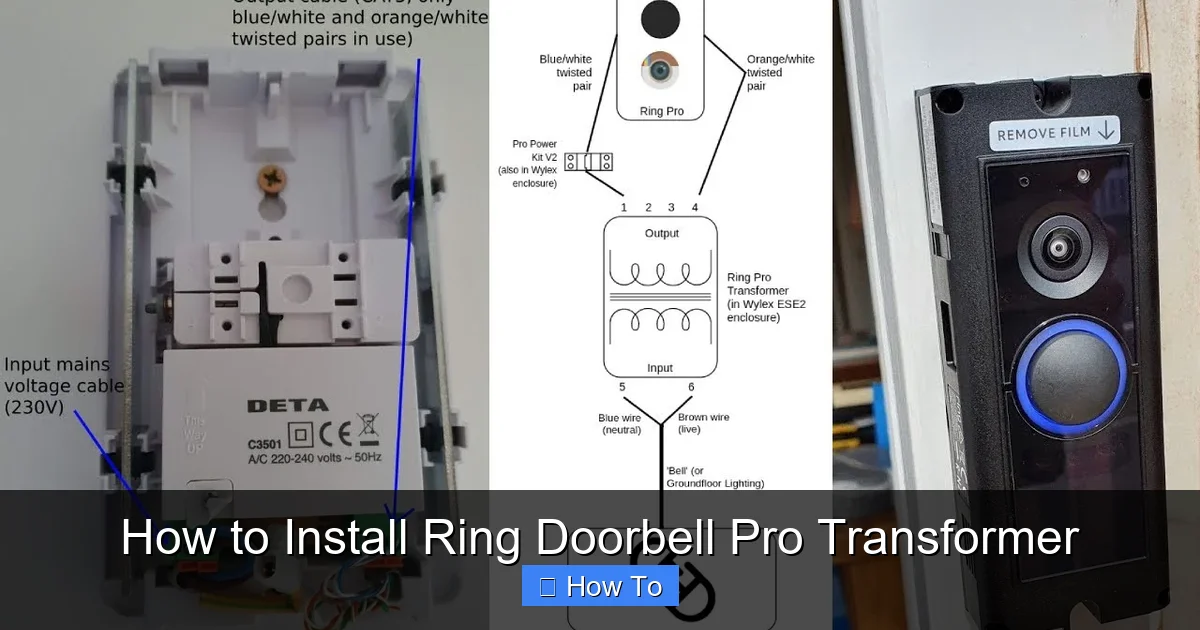

Visual guide about How to Install Ring Doorbell Pro Transformer
Image source: i.ytimg.com
Before diving into installation, it’s important to understand *why* the transformer matters so much. Think of the transformer as the heart of your doorbell system. It takes the standard 120V AC from your home’s electrical panel and steps it down to a safer, lower voltage (usually 16–24V) that powers your doorbell chime and, in this case, your Ring Doorbell Pro.
The Ring Doorbell Pro is more power-hungry than a basic mechanical doorbell. It runs a camera, microphone, speaker, Wi-Fi radio, and motion sensors—all simultaneously. If the transformer can’t supply enough consistent power, you’ll run into issues like:
– Frequent disconnections from Wi-Fi
– Poor video quality or lag
– Motion alerts not triggering
– The doorbell failing to ring or respond
Even if your current doorbell “works,” it might not meet the Pro’s demands. That’s why Ring explicitly recommends a transformer rated for 16V at 30VA or higher. Some users even opt for 24V transformers for extra headroom, especially if they have long wire runs or multiple chimes.
Bottom line: Skipping the transformer upgrade is the #1 reason Ring Doorbell Pro installations fail. Investing 30 minutes (and about $15–$25) in a new transformer can save you hours of frustration later.
Tools and Materials You’ll Need
Before you begin, gather these essentials. Having everything ready will make the process smoother and safer.
- Compatible transformer: Ring recommends the 16V 30VA transformer (model #16-30), but 24V 40VA models also work well. You can find these at hardware stores or online retailers like Amazon or Home Depot.
- Screwdrivers: A flathead and Phillips head screwdriver for removing covers and terminals.
- Voltage tester or multimeter: To check if power is off and verify output after installation.
- Wire strippers: For trimming and preparing wires if needed.
- Electrical tape: To insulate connections.
- Wire nuts (optional): If you need to extend or splice wires.
- Ladder: To safely reach the doorbell and chime box.
- Safety gear: Rubber-soled shoes and safety glasses (optional but recommended).
Pro tip: If your existing wires are frayed, too short, or made of thin gauge (like 22 AWG), consider replacing them with 18-gauge doorbell wire. Thicker wires reduce voltage drop over long distances.
Step 1: Turn Off the Power
Safety first! Never work on electrical components while the power is on. Even low-voltage doorbell systems can give you a nasty shock if mishandled—and you don’t want to damage your new Ring Doorbell Pro with a power surge.
Locate Your Circuit Breaker
Go to your home’s main electrical panel (usually in the basement, garage, or utility closet). Look for the breaker labeled “doorbell,” “chime,” or something similar. If there’s no label, you may need to test breakers by turning them off one at a time and checking if your doorbell stops working.
Turn Off the Breaker
Flip the breaker to the “OFF” position. To be extra safe, use a non-contact voltage tester near the doorbell chime or transformer location to confirm no power is flowing.
⚠️ Important: Don’t assume the power is off just because the breaker is flipped. Always test!
Notify Household Members
Let everyone in your home know you’re working on the doorbell system so they don’t accidentally turn the breaker back on.
Step 2: Locate and Remove the Old Transformer
Now that the power is off, it’s time to find your current transformer. It’s usually located in one of three places:
– Inside the doorbell chime box (most common)
– In the basement or attic near the electrical panel
– Inside a junction box near the doorbell
Open the Chime Box
Use your screwdriver to remove the cover of your doorbell chime (the unit inside your home that makes the “ding-dong” sound). Inside, you’ll see wires connected to terminals labeled “Front,” “Trans,” and sometimes “Rear” or “Transformer.”
The transformer is typically a small black or gray box with two wires coming out of it. It may be mounted directly to the chime unit or tucked into the wall.
Identify the Transformer Wires
Look for two wires connected to the “Trans” terminals. These run from the transformer to your home’s electrical system (usually to a junction box or directly to the breaker panel).
Label these wires with tape or a marker (e.g., “Line 1” and “Line 2”) so you know how to reconnect them later.
Disconnect the Wires
Loosen the terminal screws and carefully remove the wires. If the wires are connected with wire nuts, unscrew the nuts and separate the wires.
Set the old transformer aside—you won’t need it anymore.
Step 3: Install the New Transformer
Now it’s time to install your new 16V or 24V transformer. The process is straightforward, but precision matters.
Mount the New Transformer
Most transformers come with mounting holes. Secure it to the chime box, junction box, or nearby surface using screws. Make sure it’s stable and won’t move around.
If your new transformer is larger than the old one, you may need to reposition it slightly. Just ensure it fits comfortably and doesn’t strain the wires.
Connect the Line Wires
Take the two wires you labeled earlier (from your home’s electrical system) and connect them to the input terminals of the new transformer. These are usually labeled “LINE” or “PRIMARY.”
– One wire goes to “L1” or “Hot”
– The other goes to “L2” or “Neutral”
Tighten the terminal screws securely. If your transformer uses wire nuts instead of terminals, twist the wires together and cap them with a wire nut.
Connect the Doorbell Wires
Now connect the two low-voltage wires that run to your doorbell (usually the ones labeled “Front” and “Trans” on the chime) to the output terminals of the transformer. These are labeled “SECONDARY” or “16V”/“24V.”
Again, tighten the screws or use wire nuts. Double-check that the connections are firm—loose wires can cause intermittent power issues.
Secure and Insulate
Use electrical tape to wrap any exposed wire ends or terminals. This prevents accidental shorts and adds an extra layer of safety.
Tuck the transformer and wires neatly back into the chime box or junction box. Avoid pinching or bending wires sharply.
Step 4: Restore Power and Test the System
You’re almost done! Now it’s time to turn the power back on and make sure everything works.
Turn the Breaker Back On
Go to your electrical panel and flip the doorbell breaker to the “ON” position.
Test the Voltage
Use your multimeter to check the output voltage at the doorbell terminals (where the wires connect to the chime). Set the multimeter to AC voltage (V~) and touch the probes to the two low-voltage terminals.
– For a 16V transformer: You should read between 15–18V
– For a 24V transformer: You should read between 22–26V
If the voltage is too low, check your connections or consider upgrading to a higher-rated transformer.
Test the Doorbell Chime
Press your existing doorbell button (or have someone press it for you). The chime should sound clearly. If it doesn’t, double-check your wiring.
Install the Ring Doorbell Pro
Now that you’ve confirmed power is flowing correctly, it’s time to install your Ring Doorbell Pro:
1. Remove the old doorbell button.
2. Connect the two wires to the Ring Pro’s terminals (polarity doesn’t matter).
3. Mount the Ring Pro to the wall using the included screws and bracket.
4. Open the Ring app and follow the setup instructions to connect to Wi-Fi and complete configuration.
Your Ring Doorbell Pro should now power on, connect to your network, and start streaming video.
Troubleshooting Common Issues
Even with careful installation, you might run into a few hiccups. Here’s how to fix the most common problems.
Doorbell Won’t Power On
– Check that the breaker is on and the transformer is properly connected.
– Use a multimeter to verify voltage at the doorbell terminals.
– Ensure the wires are securely attached and not loose.
Weak or Intermittent Signal
– This could be due to low voltage. Test with a multimeter—if it’s below 15V, your transformer may be underpowered.
– Long wire runs can cause voltage drop. Upgrade to 18-gauge wire if your current wires are thin.
Chime Doesn’t Ring
– Make sure the chime is compatible with the new transformer voltage.
– Some electronic chimes require a specific voltage. Check the manufacturer’s specs.
Transformer Gets Hot
– A warm transformer is normal, but if it’s too hot to touch, it may be overloaded.
– Ensure the VA rating matches or exceeds your doorbell’s requirements.
Wi-Fi Connection Drops
– While this is often a Wi-Fi issue, inconsistent power can also cause disconnections.
– Verify stable voltage output and consider relocating your router closer to the doorbell.
When to Call a Professional
While installing a transformer is manageable for most DIYers, there are times when it’s best to call a licensed electrician:
– You can’t locate the transformer
– Your electrical panel is outdated or hard to access
– You’re uncomfortable working with electricity
– You need to run new wires through walls or ceilings
– Your home has aluminum wiring (requires special handling)
A professional can ensure the job is done safely and up to code—especially important if you’re planning to sell your home.
Final Tips for Long-Term Reliability
To keep your Ring Doorbell Pro running smoothly for years:
– Label your breaker: Write “Doorbell” on the breaker panel so others know which one controls it.
– Check connections annually: Vibrations and temperature changes can loosen wires over time.
– Use a surge protector: While rare, power surges can damage transformers. A whole-house surge protector adds extra protection.
– Keep the app updated: Ring frequently releases firmware updates that improve performance and security.
Conclusion
Installing a Ring Doorbell Pro transformer might seem intimidating at first, but it’s a straightforward task that pays big dividends in performance and reliability. By upgrading to a proper 16–24V AC transformer, you ensure your smart doorbell has the steady power it needs to deliver crisp video, instant alerts, and seamless connectivity.
Remember: safety comes first—always turn off the power and test before touching any wires. Take your time, follow the steps, and don’t hesitate to seek help if something feels off. With the right transformer in place, your Ring Doorbell Pro will be a dependable addition to your smart home for years to come.
Now go enjoy that peace of mind—every time someone approaches your door, you’ll know about it.
